DFEH10040D-3R3M=P3 datasheet, PDF

Datasheet> All Categories > Passive components> DFEH10040D-3R3M=P3

DFEH10040D-3R3M=P3: DescriptionFixed Inductors 3.3uH 12mOhms 10A 10x10.9mm AEC-Q200; CategoryPassive components; File Size1MB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

DFEH10040D-3R3M=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFEH10040D-3R3M=P3	-	-	View	Buy Now

DFEH10040D-3R3M=P3 Overview

Fixed Inductors 3.3uH 12mOhms 10A 10x10.9mm AEC-Q200

DFEH10040D-3R3M=P3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Inductance	3.3 uH
Tolerance	20 %
Maximum DC Current	10 A
Maximum DC Resistance	12 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 155 C
Q Minimum	-
Test Frequency	100 kHz
Product	Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	-
Length	11.2 mm
Width	10.3 mm
Height	4 mm
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	AEC-Q200 Metal Alloy Inductors
Core Material	Iron Powder
Self Resonant Frequency	-
Factory Pack Quantity	500

Preview

Download Datasheet

View All

DFEH10040D-3R3M#

< List of part numbers with package codes >

“#” indicates a package specification code.

DFEH10040D-3R3M=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 20%. (The ambient reference temperature is 25℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 25℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

500

L size

W size

T size

Size code in inch (mm)

10.9 ±0.3mm

10.0 ±0.3mm

4.0 mm

4339 (109100)

Mass (Typ.)

1 piece

2.1295g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Absolute maximum voltage

Series

3.3µH ±20%

0.1MHz

10000mA

0.0120Ω

-40〜155℃

Metal Alloy

50V DC

DFEH10040D

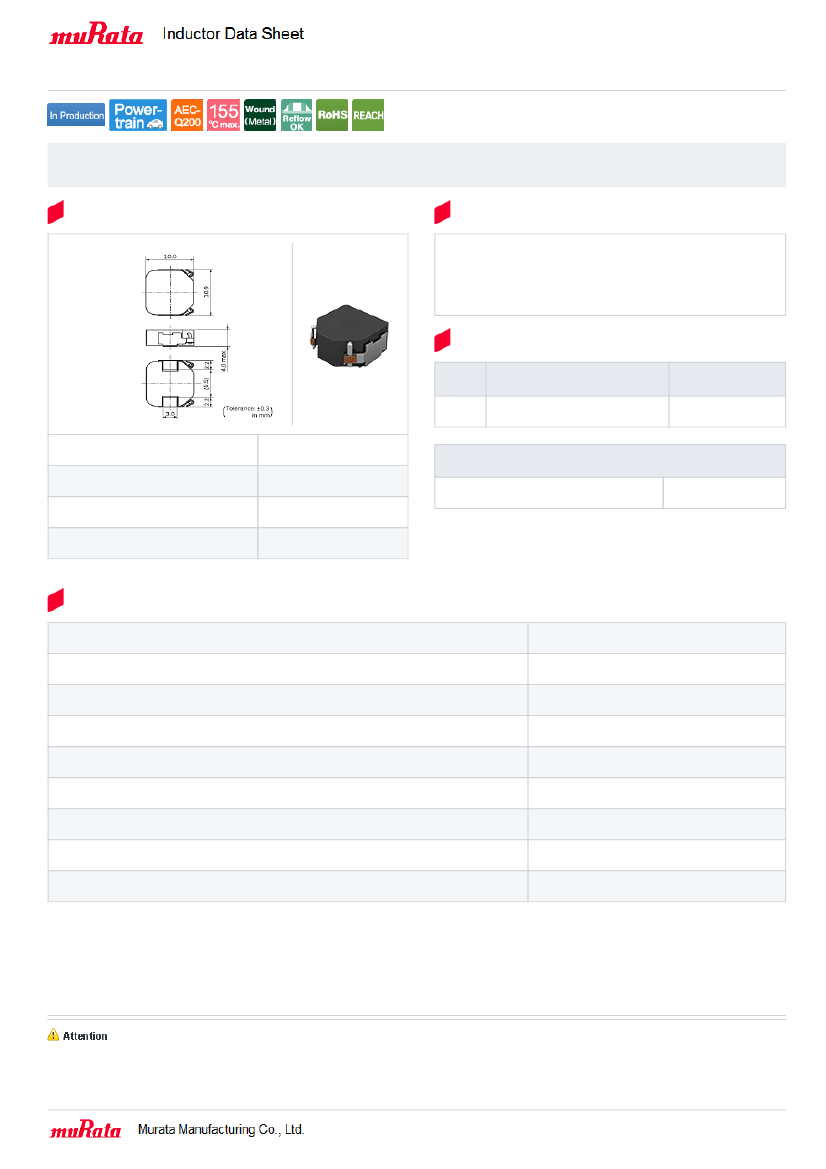

1 of 3

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/02/18
