2450BP15P0100E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 2450BP15P0100E

Preview

2450BP15P0100E: DescriptionSignal Conditioning 2400-2500 MHz Band Pass Filter; CategoryPassive components; File Size209KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric View All

2450BP15P0100E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2450BP15P0100E	-	-	View	Buy Now

2450BP15P0100E Overview

Signal Conditioning 2400-2500 MHz Band Pass Filter

2450BP15P0100E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Johanson Technology
Product Category	Signal Conditioning
RoHS	Details
Product	Band Pass Filters
Frequency	2450 MHz
Frequency Range	2400 MHz to 2500 MHz
Impedance	50 Ohms
Termination Style	SMD/SMT
Package / Case	0805 (2012 metric)
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Mounting	SMD/SMT
Operating Temperature Range	- 40 C to + 85 C
Type	High Frequency Ceramic Band Pass Filter
Insertion Loss	1.3 dB
Factory Pack Quantity	4000
Unit Weight	0.000194 oz

Preview

Download Datasheet

View All

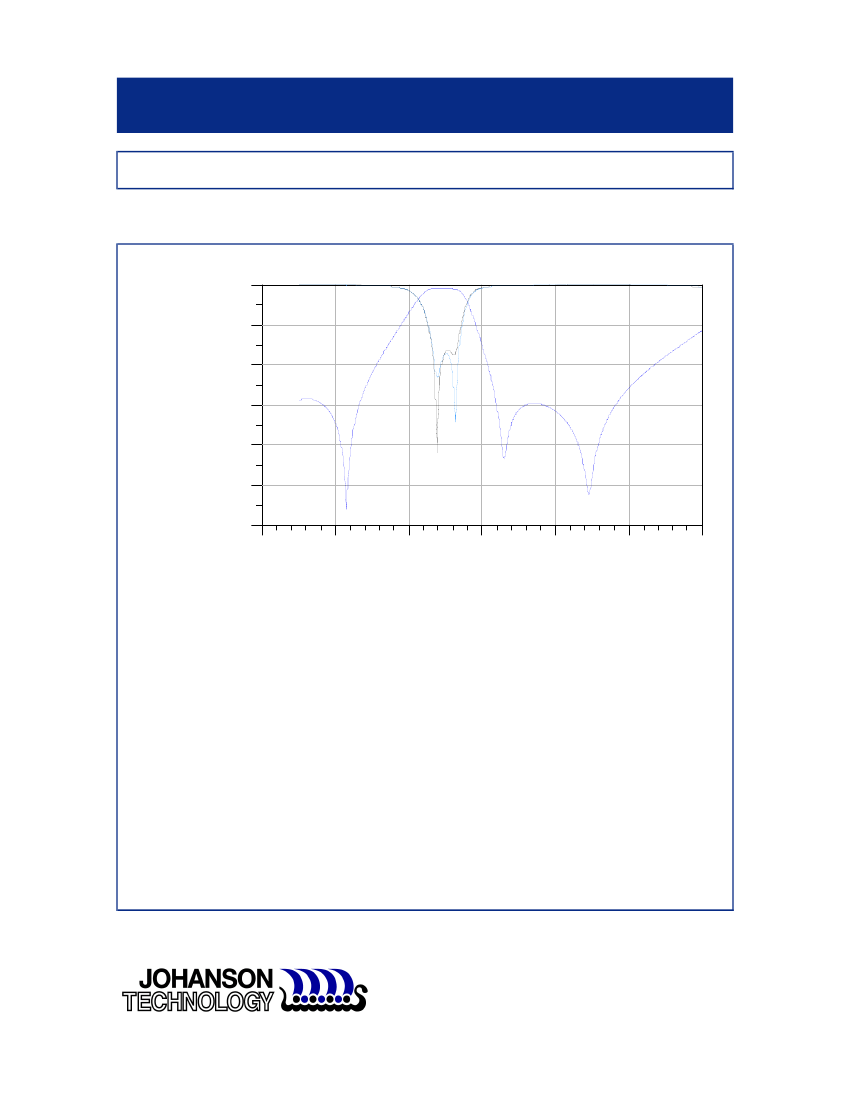

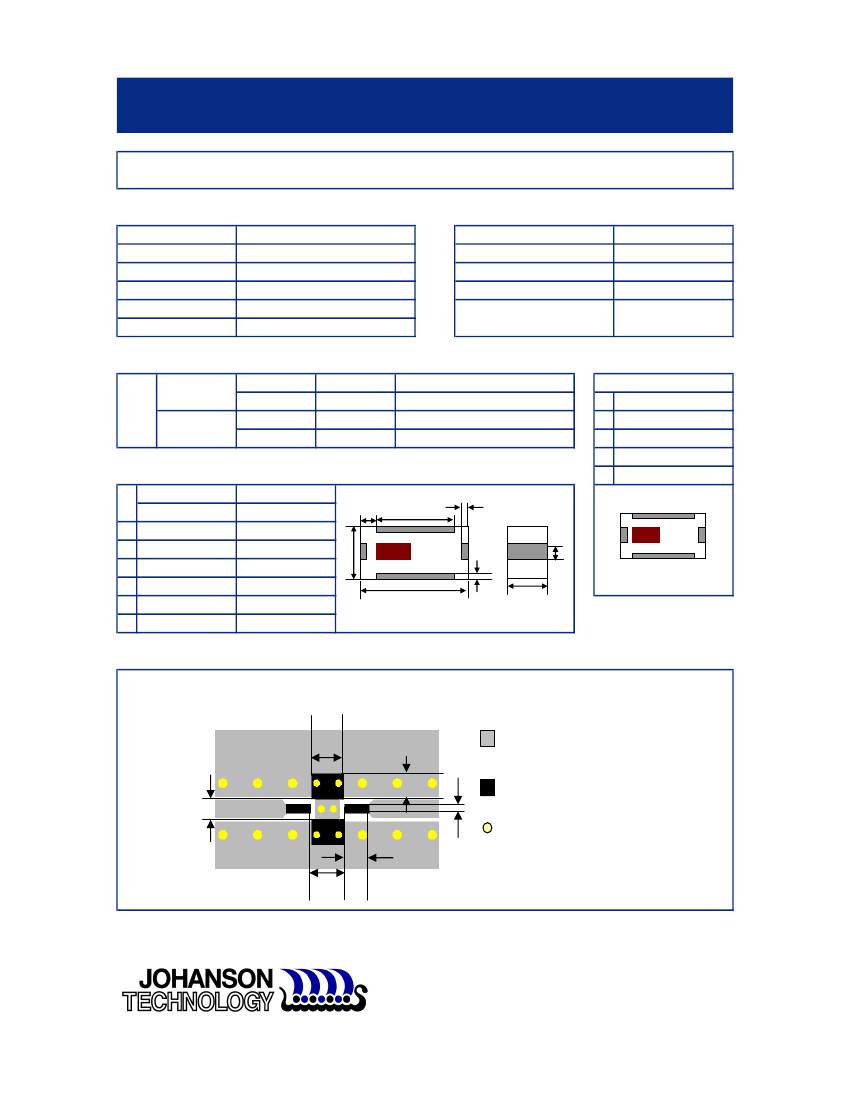

Preliminary

"High Frequency Ceramic Solutions"

P/N 2450BP15P0100

Page 1 of 2

2.45 GHz Band Pass Filter

Detail Specification: 07/07/09

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

2450BP15P0100

2400 - 2500

1.3 dB max.

9.5 dB min.

26 dB @ 3.4 - 3.6 GHz

20 dB @ 4.8 - 5.0 GHz

Impedance

Input Power

Reel Quantity

Operating Temperature

Storage Temperature

50

Ω

500 mW max.

4,000

-40 to +85°C

+5 to +35°C, Humidity

45-75%RH, 12 mos. max*

* - 1 yr shelf life in bag; 1 week shelf life out of bag;

Vacuum reseal unused reel

Packaging

Style

Bulk

T&R

100% Tin

Tin / Lead

Suffix = S

Suffix = E

Suffix = None

Suffix = /Pb

Eg. 2450BP15P0100S

Eg. 2450BP15P0100E

Eg. 2450BP15P0100(E or S)

Eg. 2450BP15P0100(E or S)/Pb

Terminal Configuration

No.

1

2

3

P/N

Suffix Termination

Style

Function

GND

OUT

GND

IN

1

Mechanical Dimensions

In

L

W

T

a

b

c

d

4

mm

2.00 ± 0.15

1.25 ± 0.10

0.95 ± 0.10

1.25 ± 0.15

0.30 ± 0.15

0.25 ± 0.15

0.35 ± 0.15

L

W

d

a

c

0.079 ± 0.006

0.049 ± 0.004

0.037 ± 0.004

0.049 ± 0.006

0.012 ± 0.006

0.010 ± 0.006

0.014 ± 0.006

4

b

2

c

T

3

Mounting Considerations

Mount these devices with brown mark facing up.

*

Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness

1.30

Solder

1.00

0.80

*

0.35

Land

Through-hole (

φ0.25)

1.00

1.40

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
