TYS30121R0N-10: DescriptionFixed Inductors 1.0uH 30% -40C +125C; CategoryPassive components; File Size117KB，1 Pages; ManufacturerLSR

Download Datasheet Parametric Compare View All

TYS30121R0N-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TYS30121R0N-10	-	-	View	Buy Now

TYS30121R0N-10 Overview

Fixed Inductors 1.0uH 30% -40C +125C

TYS30121R0N-10 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	LSR
Product Category	Fixed Inductors
RoHS	Details
Inductance	1 uH
Tolerance	30 %
Maximum DC Current	2.2 A
Maximum DC Resistance	40 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	100 kHz
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Length	3 mm
Width	3 mm
Height	1.2 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	SMD Power Inductor
Self Resonant Frequency	120 MHz
Factory Pack Quantity	2000
Unit Weight	0.000882 oz

Preview

Download Datasheet

View All

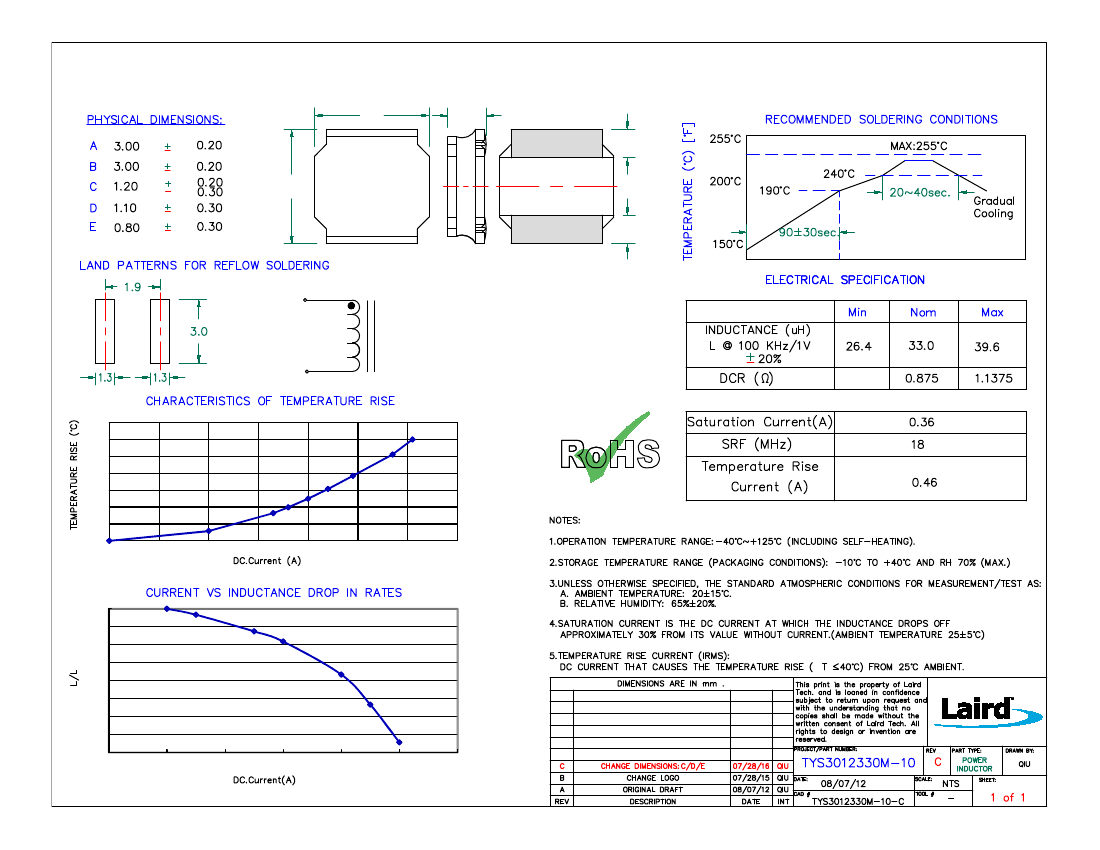

TYS3012330M-10

A

C

D

B

E

D

1

2

60

50

40

30

20

10

0

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0%

-5%

-10%

-15%

-20%

-25%

-30%

-35%

-40%

0.00

0.10

0.20

0.30

0.40

0.50

0.60

TYS30121R0N-10 Related Products

	TYS30121R0N-10	TYS30124R7M-10
Description	Fixed Inductors 1.0uH 30% -40C +125C	Fixed Inductors 4.7uH 20% -40C +125C
Product Attribute	Attribute Value	Attribute Value
Manufacturer	LSR	LSR
Product Category	Fixed Inductors	Fixed Inductors
RoHS	Details	Details
Inductance	1 uH	4.7 uH
Tolerance	30 %	20 %
Maximum DC Current	2.2 A	1.24 A
Maximum DC Resistance	40 mOhms	120 mOhms
Minimum Operating Temperature	- 40 C	- 40 C
Maximum Operating Temperature	+ 125 C	+ 125 C
Test Frequency	100 kHz	100 kHz
Product	Power Inductors	Power Inductors
Shielding	Shielded	Shielded
Termination Style	SMD/SMT	SMD/SMT
Mounting Style	SMD/SMT	PCB Mount
Length	3 mm	3 mm
Width	3 mm	3 mm
Height	1.2 mm	1.2 mm
Self Resonant Frequency	120 MHz	61 MHz
Factory Pack Quantity	2000	2000
Packaging	Reel	Reel
