CDR105NP-101NC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CDR105NP-101NC

CDR105NP-101NC: DescriptionFixed Inductors 100uH 0.8A SMD PWR INDUCTOR; CategoryPassive components; File Size96KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric View All

CDR105NP-101NC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDR105NP-101NC	-	-	View	Buy Now

CDR105NP-101NC Overview

Fixed Inductors 100uH 0.8A SMD PWR INDUCTOR

CDR105NP-101NC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SUMIDA
Product Category	Fixed Inductors
RoHS	Details
Inductance	100 uH
Tolerance	-
Maximum DC Current	800 mA
Maximum DC Resistance	350 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 100 C
Q Minimum	-
Test Frequency	1 kHz
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Length	10.4 mm
Width	9.6 mm
Height	5.5 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Self Resonant Frequency	7 MHz
Factory Pack Quantity	500
Unit Weight	0.052911 oz

Preview

Download Datasheet

View All

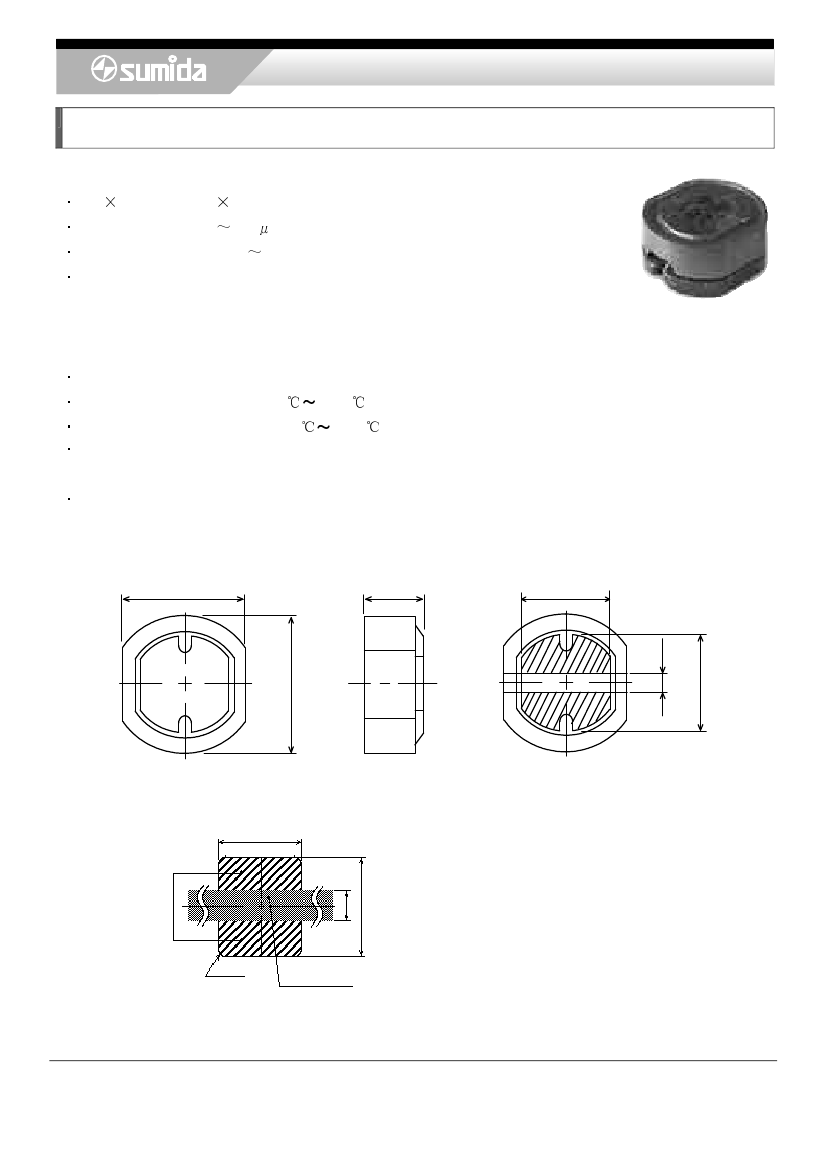

POWER INDUCTORS <SMD Type: CDR Series>

Type: CDR105

◆

Product Description

10.4 9.6mm Max.(L W), 5.5mm Max. Height

Inductance range: 10 470 H.

Rated current range: 0.37 2.53A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+100 (Including coil’s self temperature rise).

Ideally used in Notebook PC ,LCD TV ,Game machine ,HDD,DSC/DVC, etc as DC-DC converter

inductors.

RoHS compliance and Halogen free.

◆

Dimensions (mm)

9.2±0.4

φ10.0±0.4

1.6

Part of sick

2.0

10.0

◆

Land Pattern (mm)

7.5

Part of electrode

R 1.0

Please refer to the sales offices on our website for a representative near you

www.sumida.com

7.8

℃ ½℃

Storage temperature range: -40

μ ½

・

+100 .

5.0±0.5

7.0

1/3
