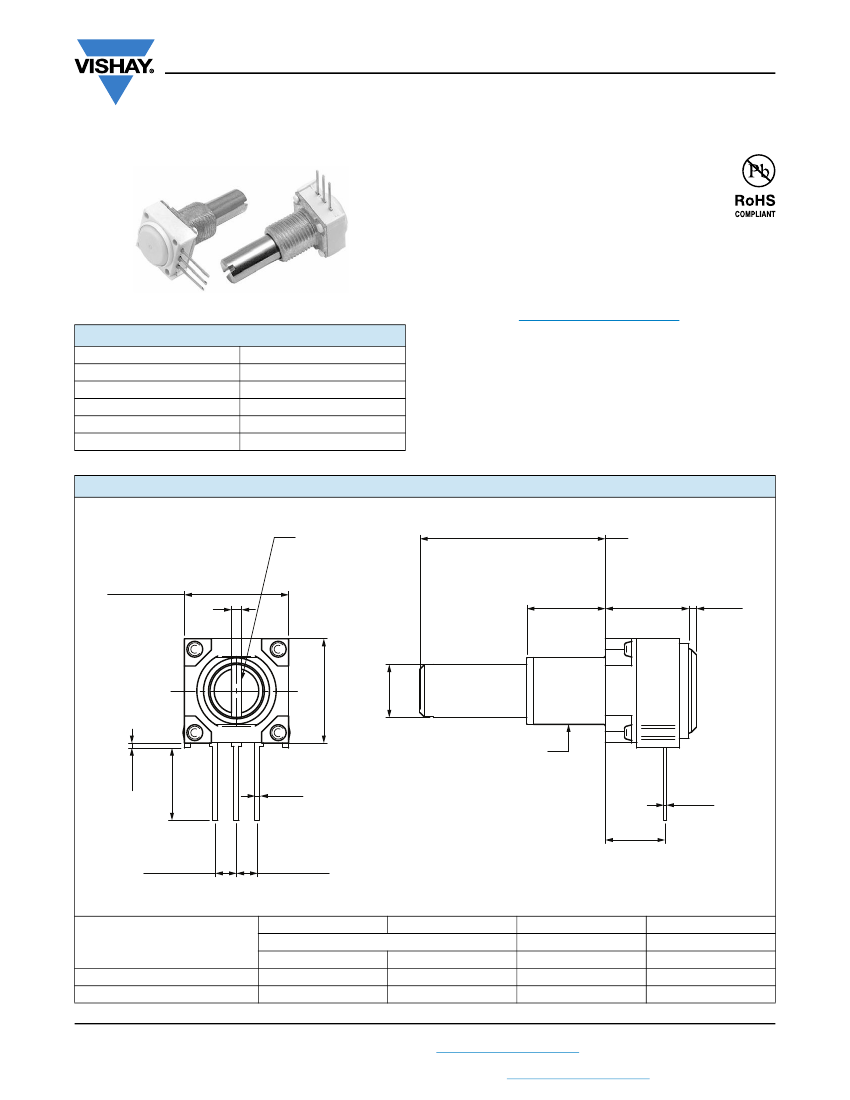

248, 249
www.vishay.com
Vishay Spectrol
1/2" (12.7 mm) Conductive Plastic and Cermet Potentiometers
FEATURES
• Model 248: 0.5 W at 70 °C (conductive plastic
element)
• Model 249: 1 W at 70 °C (cermet element)
• Cost effective panel potentiometer
• PCB mounting
• Tests according to CECC 41000 or IEC 60393-1
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
Multiple module
Switch module
Detent module
Special electrical laws
Sealing level
Lifespan
No
n/a
n/a
A: linear, L: logarithmic
IP 50
10K cycles
DIMENSIONS
in millimeters (inches) ± 0.5 mm (± 0.02")
B
Screwdriver slot shown
in mid electrical travel
12.7 ± 0.4
(0.500 ± 0.016)
S
Mounting surface
9.5
(0.375)
10
(0.395)
1
(0.039)
12.7 ± 0.4
(0.500 ± 0.016)
A
C
0.6
(0.024)
8.5
(0.335)
0.6
(0.024)
5.08
(0.200)
2.54 ± 0.25
(0.100 ± 0.010)
2.54 ± 0.25
(0.100 ± 0.010)
0.36
(0.014)
A
VERSION BUSHING / SHAFT
Ø
B / BH
F / GJ
1/8"
1/4"
SHAFT
B
L
3/4"
7/8"
C
BUSHING
Ø
1/4"
3/8"
S
SCREWDRIVER
SLOT
0.8
1.2
Revision: 30-Aug-17
Document Number: 57054
1
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
248, 249
www.vishay.com
Vishay Spectrol
MODEL 248
Conductive plastic
500
to 1 M
1, 2, 5
± 20 %
0.5 W at 70 °C
0.5
POWER IN W
POWER IN W
1
ELECTRICAL SPECIFICATIONS
PARAMETER
Element type
Total resistance range
Standard series
Resistance tolerance
MODEL 249
Cermet
± 20 % (on request ± 10 %)
1.0 W at 70 °C
Power rating
Linear
0
0
25 50 70
100 125 150
AMBIENT TEMPERATURE IN °C
0
0
25 50 70
100 125 150
AMBIENT TEMPERATURE IN °C
2
Circuit diagram
1
CW
3
Temperature coefficient of resistance (typical)
Linearity (typical)
Limiting element voltage
Contact resistance variation (typical)
Insulation resistance
Dielectric strength
End resistance
Effective electrical travel
± 500 ppm/°C
± 5 % independent
300 V
5 % of the total resistance
± 150 ppm/°C
1000 M minimum, 500 V
DC
750 V
RMS
minimum 50 Hz / 60 Hz
2
maximum each end
265° ± 5°
MECHANICAL SPECIFICATIONS
Mechanical travel
Operating torque
End stop torque
Max. tightening torque
Weight
295° ± 5°
0.1 Ncm to 2 Ncm
35 Ncm (50 oz.-inch)
150 Ncm
8.3 g (0.29 oz.)
(1/4" x 7/8" FMF metal shaft)
MARKING
• Vishay model
• Vishay logo
• Variation law
• SAP code for ohmic value
• Tolerance in %
• Date code (4 digits)
• Terminal identification “3” for lead 3
ENVIRONMENTAL SPECIFICATIONS
Temperature range
Climatic category
Sealing
-55 °C to +125 °C
55 / 125 / 4
IP 50
PACKAGING
• In box of 25 pieces, code BO25
Note
• Hardware supplied in separate bags
Revision: 30-Aug-17
Document Number: 57054
2
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
248, 249
www.vishay.com
Vishay Spectrol
TYPICAL VALUES AND DRIFTS FOR 249
R
T
/R
T
(%)
±3%
±2%
±1%
±3%
±1%
±1%
R
1-2
/R
1-2
(%)
±5%
-
-
-
±2%
-
OTHER
Contact res. variation: < 1 %
Dielectric strength: 1000 V
RMS
Insulation resistance: > 10
4
M
V
1-2
/V
1-3
± 2 %
Contact res. variation:
2 % Rn
-
V
1-2
/V
1-3
± 2 %
PERFORMANCE
TESTS
Electrical endurance
Damp heat, steady state
Change of temperature
Mechanical endurance
Shock
Vibration
CONDITIONS
1000 h at rated power
90’/30’ - ambient temp. 70 °C
4 days
40 °C 93 % HR
5 cycles, -55 °C at +125 °C
10 000 cycles
50
g’s
at 11 ms
3 successive shocks
in 3 directions
10 Hz to 55 Hz, 0.75 mm or 10
g’s
during 6 h
Note
• Nothing stated herein shall be construed as a guarantee of quality or durability.
STANDARD RESISTANCE ELEMENT DATA
STANDARD
RESISTANCE
VALUES
500
1K
2K
2.5K
5K
10K
20K
25K
50K
100K
200K
250K
500K
1M
248 LINEAR TAPER
MAX.
POWER
AT 70 °C
W
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.45
0.36
0.18
0.09
MAX.
WORKING
VOLTAGE
V
15.8
22.4
31.6
35.4
50.0
70.7
100
112
158
224
300
300
300
300
MAX.
WIPER
CURRENT
mA
32
22
16
14
10
7
5.0
4.5
3.2
2.2
1.50
1.20
0.60
0.30
MAX.
POWER
AT 70 °C
W
1
1
1
1
1
1
1
1
1
0.90
0.45
0.36
0.18
0.09
249 LINEAR TAPER
MAX.
WORKING
VOLTAGE
V
22.4
31.6
44.7
50.0
70.7
100
141
158
224
300
300
300
300
300
MAX.
WIPER
CURRENT
mA
45
32
22
20
14
10
7
6
4
3.0
1.5
1.2
0.6
0.3
Revision: 30-Aug-17
Document Number: 57054
3
For technical questions, contact:
sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
248, 249
www.vishay.com
Vishay Spectrol
ORDERING INFORMATION
(part number)
2
4
8
F
G
J
S
0
X
B
2
5
2
5
2
M
A
MODEL
248 =
plastic
conductive
249 =
cermet
element
BUSHING
F = Ø 3/8"
B = Ø 1/4"
SHAFT
Ø
GJ
BH
L
SHAFT END
S = slotted
R = round
F = flatted
SHAFT
MATERIAL
0 = metal
LEADS
X = std
PACKAGING
B25 =
box of
25 pieces
RESISTANCE CODE /
TOLERANCE
/
TAPER
OR
SPECIAL
Resistance:
From 501 = 500
to 105 = 1 M
Tolerance:
M = 20 %;
On request:
K = 10 % (249 only)
Taper:
A = linear;
L = logarithmic
1/4" 7/8"
1/8" 3/4"
RELATED DOCUMENTS
APPLICATION NOTES
Potentiometers and Trimmers
Guidelines for Vishay Sfernice Resistive and Inductive Components
www.vishay.com/doc?51001
www.vishay.com/doc?52029
