UUD1H151MNL1GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UUD1H151MNL1GS

UUD1H151MNL1GS: DescriptionAluminum Electrolytic Capacitors - SMD 50volts 150uF 10x10 '20%; CategoryPassive components; File Size342KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UUD1H151MNL1GS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UUD1H151MNL1GS	-	-	View	Buy Now

UUD1H151MNL1GS Overview

Aluminum Electrolytic Capacitors - SMD 50volts 150uF 10x10 '20%

UUD1H151MNL1GS Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Electrolytic Capacitors - SMD
RoHS	Details
Capacitance	150 uF
Voltage Rating DC	50 VDC
Tolerance	20 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	10 mm
Length	10 mm
Life	5000 Hour
Ripple Current	670 mA
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Low Impedance Electrolytic Capacitors
Termination Style	SMD/SMT
Type	Chip Type, Low Impedance
Leakage Current	3 uA
Dissipation Factor DF	0.14
Factory Pack Quantity	500
Unit Weight	0.042681 oz

Preview

Download Datasheet

View All

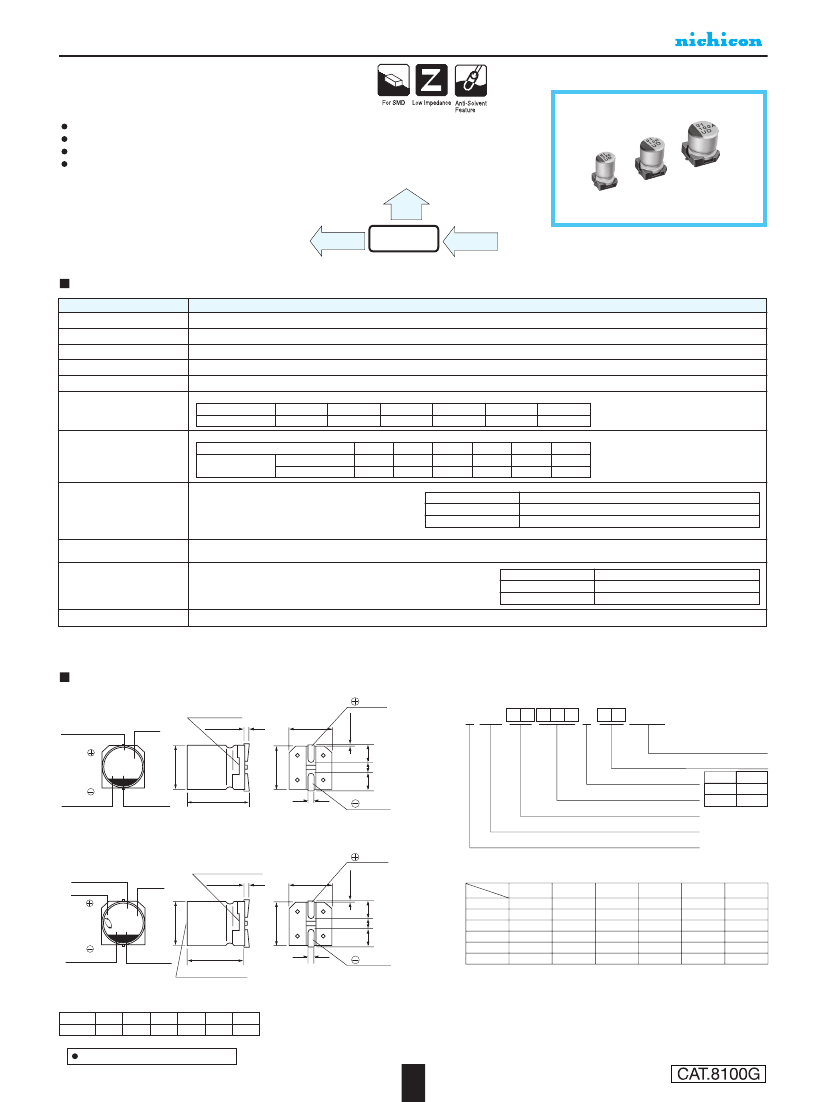

UUD

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Low Impedance

Chip type, low impedance temperature range up to +105

°C

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine fed with carrier tape.

Compliant to the RoHS directive (2011/65/EU).

UWD

High

Temp reflow

UCD

Low Impedance

UUD

Low Impedance

UWG

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

Performance Characteristics

–55 to +105°C

6.3 to 50V

1 to 1500µF

± 20% at 120Hz, 20°C

After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA), whichever is greater.

Measurement frequency : 120Hz at 20°C

6.3

Rated voltage (V)

tan

(MAX.)

0.26 (0.28) 0.20 (0.24) 0.16 (0.20) 0.14 (0.16) 0.12 (0.14) 0.12 (0.14)

Measurement frequency : 120Hz

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

(

) is

φ8

over

Stability at Low Temperature

ZT / Z20 (MAX.)

Z– 55°C / Z+20°C

6.3

Endurance

The specifications listed at right shall be met

when the capacitors are restored to 20°C after the

rated voltage is applied for 5000 hours (2000

hours for

D = 4, 5 and 6.3) at 105°C.

Capacitance change

tan

Leakage current

Within ±30% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Resistance to soldering

heat

Marking

After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

The capacitors are kept on a hot plate for 30 seconds, which is

Capacitance change

Within ±10% of the initial capacitance value

maintained at 250°C. The capacitors shall meet the characteristic

Less than or equal to the initial specified value

tan

requirements listed at right when they are removed from the plate

Less than or equal to the initial specified value

Leakage current

and restored to 20°C.

Black print on the case top.

Chip Type

(φ4 to

φ6.3)

Voltage (C:16V)

Type numbering system (Example : 16V 22

Positive

Series

0.3 MAX.

C±0.2

0.5 MAX.

Plastic platform

10 11 12 13 14

UUD 1 C 2 2 0 M C L 1 GS

A±0.2 E A±0.2

Package code

Configuration

Capacitance tolerance (±20%)

4 to 6.3

Rated capacitance (22µF)

•

Rated voltage (16V)

φD±0.5

22C

B±0.2

Lot No.

Capacitance

L±0.3

Negative

Code

Series name

(φ8,φ10 )

0.5 MAX.

Voltage (V:35V)

Type

Positive

Series

Plastic platform

0.3 MAX.

C±0.2

(mm)

D×L

Trade mark

4 × 5.8

1.8

4.3

1.0

5.8

0.5 to 0.8

5 × 5.8

2.1

5.3

1.3

5.8

0.5 to 0.8

6.3 × 5.8

2.4

6.6

2.2

5.8

0.5 to 0.8

6.3 × 7.7

2.4

6.6

2.2

7.7

0.5 to 0.8

8 × 10

2.9

8.3

3.1

0.8 to 1.1

10 × 10

3.2

10.3

4.5

0.8 to 1.1

Lot No.

Capacitance

L±0.5

Pressure relief vent

Negative

Voltage

6.3

Code

Dimension table in next page.

A±0.2 E A±0.2

100V

φD±0.5

B±0.2

139
