PE-0402CH8N2JTT

Description
Fixed Inductors HIFREQ CERAMIC CHIP 8.2nH Tol5% TIN
CategoryPassive components
File Size451KB，3 Pages
ManufacturerPulse A Technitrol Company
Websitehttp://www.pulseeng.com
Download Datasheet Parametric View All

PE-0402CH8N2JTT Online Shopping

Suppliers Part Number Price MOQ In stock
PE-0402CH8N2JTT - - View Buy Now

PE-0402CH8N2JTT Overview

Fixed Inductors HIFREQ CERAMIC CHIP 8.2nH Tol5% TIN

PE-0402CH8N2JTT Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPulse A Technitrol Company
Product CategoryFixed Inductors
RoHSDetails
Inductance8.2 nH
Tolerance5 %
Maximum DC Current360 mA
Maximum DC Resistance270 mOhms
Q Minimum8
Test Frequency100 MHz
ProductRF Inductors
Termination StyleSMD/SMT
Termination-
Package / Case0402 (1005 metric)
Length1 mm
Width0.6 mm
Height0.5 mm
PackagingReel
Self Resonant Frequency3.6 GHz
Case Code - in0402
Case Code - mm1005
Factory Pack Quantity10000
Unit Weight0.000023 oz

Preview

Download Datasheet
Super Frequency Ceramic RF
Chip Inductors - 0402CH Series
Monolithic inorganic material construction
Very High Q Values
High Self Resonant Frequency

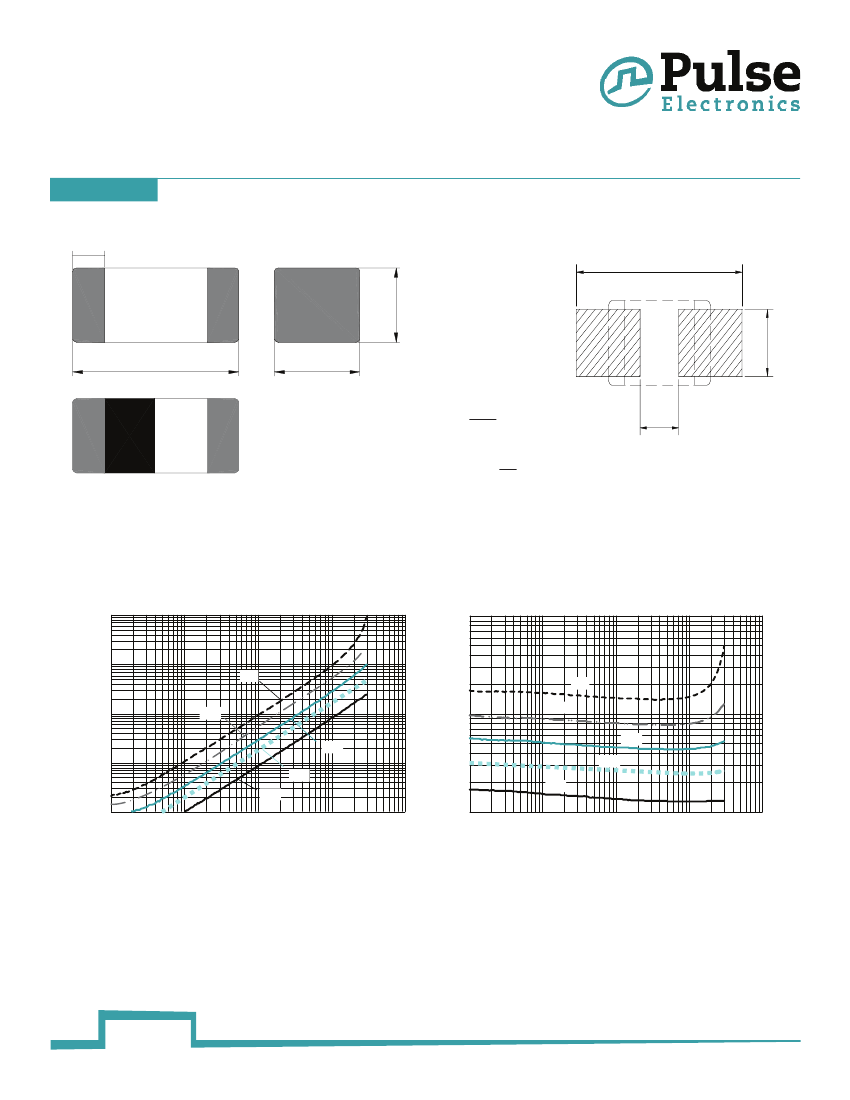

Industry Standard 0402 (1005) Surface
Mount Land Pattern
Electrical Specifications @ 25°
Part
Number
PE-0402CH1N0STT
PE-0402CH1N2STT
PE-0402CH1N5STT
PE-0402CH1N8STT
PE-0402CH2N0STT
PE-0402CH2N2STT
PE-0402CH2N4STT
PE-0402CH2N7STT
PE-0402CH3N0STT
PE-0402CH3N3STT
PE-0402CH3N6STT
PE-0402CH3N9STT
PE-0402CH4N2STT
PE-0402CH4N7STT
PE-0402CH5N1STT
PE-0402CH5N6STT
PE-0402CH6N2STT
PE-0402CH6N8JTT
PE-0402CH7N5JTT
PE-0402CH8N2JTT
PE-0402CH8N2JTT
PE-0402CH100JTT
PE-0402CH120JTT
PE-0402CH150JTT
Inductance Standard
(nH)
Tolerance
1.0
1.2
1.5
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
12
15
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±0.3nH
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Test
Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q (Typ.) Frequency (MHz)
Q min.
300
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
53
45
35
32
38
37
34
30
31
32
33
34
29
30
30
30
31
28
28
29
29
28
26
25
800
129
97
69
61
68
67
54
49
51
54
53
53
47
48
48
48
49
44
45
46
45
45
40
38
900
147
110
76
66
73
71
59
52
54
57
56
56
50
51
51
51
52
49
50
50
49
48
45
42
1500
217
156
104
92
94
92
74
67
70
72
71
70
64
65
64
65
66
59
60
62
59
57
51
49
1800
244
177
116
100
103
101
86
73
76
79
77
76
71
72
71
71
72
64
65
66
62
60
52
51
I
DC
(mA MAX)
710
710
710
710
660
660
630
630
570
540
500
490
470
450
430
420
400
390
370
360
350
330
300
280
R
DC
(Ω MAX)
0.07
0.07
0.07
0.07
0.08
0.08
0.09
0.09
0.11
0.12
0.14
0.15
0.16
0.17
0.19
0.2
0.22
0.23
0.25
0.27
0.29
0.31
0.39
0.45
SRF
(MHz MIN)
10000
10000
8000
6000
6000
6000
6000
6000
6000
6000
5000
4000
4000
4000
4000
4000
3900
3900
3700
3600
3400
3200
2700
2300
Notes:
1. Inductance measured using a HP4286A RF Impedance Analyzer. (Please note that inductance
information is not stamped on part, because of the extremely small size).
2. Q measured using a HP4291A RF Impedance Analyzer with a HP16193A Text Fixture.
3. SRF measured using a HP8753C Network Analyzer.
4. RDC measured using a Valhalla Scientific model 4100 ATC Digital Ohm meter.
5. Based on a 15½ C maximum temperature rise.
