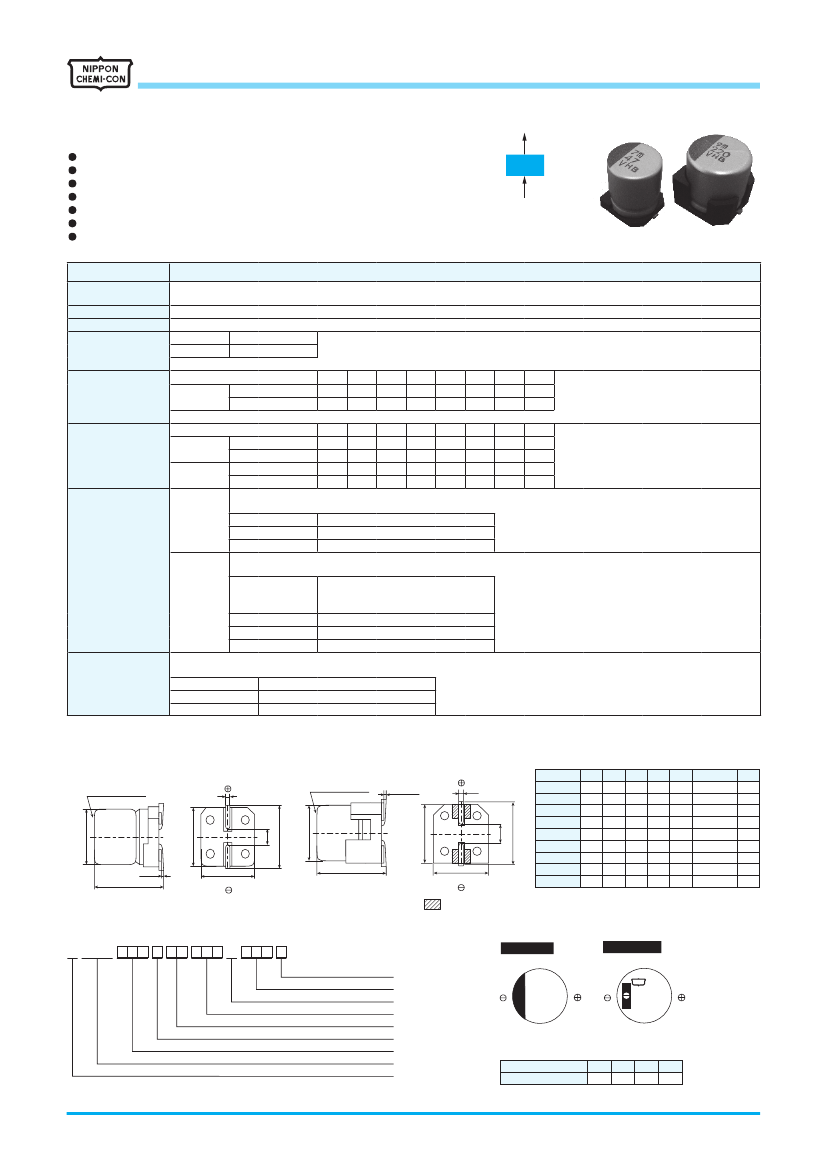

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
AIchip
TM
High heat resistance, 125℃
-
・ESR
: Less than MVH
MHB
・Endurance
: 1,500 to 3,000 hours at 125℃
・Rated
voltage range : 10 to 100V
Lower ESR
・Solvent
resistant type (see PRECAUTIONS AND GUIDELINES)
MVH
・Vibration
resistant structure
・RoHS2
Compliant
・AEC-Q200
compliant : Please contact Chemi-Con for more details, test data, information.
MHB
Series
MHJ
Lower ESR
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Characteristics
-40 to +125℃
10 to 100V
dc
(at 20℃, 120Hz)
±20%(M)
HA0 & JA0
I=0.01CV
KE0 to MN0
I=0.03CV
Where, I : Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V)
(at 20℃ after 2 minutes)
Rated Voltage (V
dc
)
10V 16V 25V 35V 50V 63V 80V 100V
HA0 & JA0
0.24 0.20 0.16 0.14
－
－
－
－
tanδ (Max.)
KE0 to MN0
0.14 0.12 0.10 0.10 0.08 0.08
－
－
When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase.
(at 20℃, 120Hz)
Rated Voltage (V
dc
)
10V 16V 25V 35V 50V 63V 80V 100V
Z(-25℃)/Z(+20℃)
3
2
2
2
－
－
－
－
HA0 & JA0
Z(-40℃)/Z(+20℃)
4
3
3
3
－
－
－
－
Z(-25℃)/Z(+20℃)
2
2
2
2
2
2
－
－
KE0 to MN0
Z(-40℃)/Z(+20℃)
4
4
4
4
4
4
(at 120Hz)
－
－
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied
for 2,000 hours at 125℃.
Capacitance change
≦±30%
of the initial value
HA0 & JA0
D.F. (tanδ)
≦300%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the
rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for the specified period of time at 125℃.
KE0 & KG5
：1,500hours
Time
LH0 & MH0
：2,000hours
KE0 to MN0
KN0 & LN0 & MN0
：3,000hours
Capacitance change
≦±30%
of the initial value
D.F. (tanδ)
≦300%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 125℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±30%
of the initial value
D.F. (tanδ)
≦300%
of the initial specified value
Leakage current
≦The
initial specified value
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. impedance Ratio)
Endurance
Shelf Life
◆DIMENSIONS
[mm]
●
Terminal
Code : A
●
Size code : HA0 to MN0
Vent
(Except HA0)
φD±0.5
B±0.2
W
●
Terminal
Code : G(Vibration resistant structure)
●
Size code : HA0 to MN0
Size code
Vent
(Except HA0)
φD±0.5
0.3max.
W
HA0
JA0
KE0
KG5
KN0
LH0
LN0
MH0
MN0
0.3max.
L±0.5
A±0.2
L±0.5
A±0.2
φD
8
10
12.5
12.5
12.5
16
16
18
18
L
10.0
10.0
13.5
16.0
21.5
16.5
21.5
16.5
21.5
A
8.3
10.3
13.0
13.0
13.0
17.0
17.0
19.0
19.0
B
8.3
10.3
13.0
13.0
13.0
17.0
17.0
19.0
19.0
C
9.0
11.0
13.7
13.7
13.7
18.0
18.0
20.0
20.0
W
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
3.1
4.5
4.2
4.2
4.2
6.5
6.5
6.5
6.5
P
C±0.2
B±0.2
: Dummy terminals
◆PART
NUMBERING SYSTEM
E MHB
AAA A DA AAA
M
AAA G
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 47µF:470,100µF:101)
Taping·Tray code
Terminal code (A, G)
Voltage code (ex. 35V:350,100V:101)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
◆MARKING
HA0, JA0
EX) 16V220µF
KE0 to MN0
EX) 35V1,000µF
2A
MHB
P
C±0.2
5J
220
C
HB
●
Rated
1000
35V
voltage symbol (HA0, JA0)
10
A
16
C
25
E
35
V
Please refer to "Product code guide (surface mount type)"
Rated voltage (V
dc
)
Symbol
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
AIchip
TM
High heat resistance, 125℃
-
MHB
Series
Cap
(µF)
330
470
100
220
100
220
330
820
1,100
(1,500)
1,600
2,200
2,700
3,300
47
100
100
220
560
680
(910)
1,000
1,300
1,600
2,200
270
360
(470)
510
680
820
1,100
200
270
(330)
360
470
560
750
130
160
(220)
240
330
390
510
75
100
(130)
130
180
220
300
◆STANDARD
RATINGS
WV
(V
dc
)
Size
code
HA0
JA0
HA0
HA0
HA0
HA0
JA0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
HA0
HA0
JA0
JA0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
KE0
KG5
(KN0)
LH0
MH0
LN0
MN0
ESR(Initial)
(Ω max./100k to 400kHz)
20℃
-40℃
3.0
2.0
3.0
3.0
3.0
3.0
2.0
0.30
0.28
(0.22)
0.24
0.23
0.17
0.16
3.0
3.0
2.0
2.0
0.30
0.28
(0.22)
0.24
0.23
0.17
0.16
0.55
0.50
(0.38)
0.44
0.44
0.25
0.25
1.54
1.19
(0.94)
1.05
0.84
0.58
0.49
1.54
1.19
(0.94)
1.05
0.84
0.58
0.49
2.24
1.68
(1.32)
1.44
1.20
0.88
0.73
ESR(End of life)
(Ω max.)
100kHz
20℃
–
–
–
–
–
–
–
0.30
0.28
(0.18)
0.24
0.23
0.10
0.090
–
–
–
–
0.30
0.28
(0.18)
0.24
0.23
0.10
0.090
0.55
0.50
(0.38)
0.44
0.44
0.25
0.25
0.88
0.68
(0.53)
0.60
0.48
0.19
0.19
0.88
0.68
(0.53)
0.60
0.48
0.19
0.19
1.1
0.84
(0.66)
0.72
0.60
0.25
0.22
400kHz
-40℃
-40℃
6.0
4.5
6.0
6.0
6.0
6.0
4.5
–
–
–
–
–
–
–
6.0
6.0
4.5
4.5
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Rated ripple current
(mArms/125℃,
100k to 400kHz)
240
330
240
240
240
240
330
1,320
1,470
(1,620)
1,820
2,000
2,280
2,490
240
240
330
330
1,320
1,470
(1,620)
1,820
2,000
2,280
2,490
980
1,090
(1,200)
1,320
1,420
2,040
2,240
540
650
(830)
780
940
1,790
1,910
540
650
(830)
780
940
1,790
1,910
480
580
(740)
720
840
1,580
1,690
Part No.
10
16
25
35
50
63
80
100
0.3
0.2
0.3
0.3
0.3
0.3
0.2
0.060
0.056
(0.044)
0.047
0.045
0.034
0.032
0.3
0.3
0.2
0.2
0.060
0.056
(0.044)
0.047
0.045
0.034
0.032
0.11
0.10
(0.076)
0.087
0.087
0.050
0.050
0.22
0.17
(0.13)
0.15
0.12
0.085
0.070
0.22
0.17
(0.13)
0.15
0.12
0.085
0.070
0.28
0.21
(0.17)
0.18
0.15
0.11
0.091
–
–
–
–
–
–
–
3.7
3.4
(2.2)
2.9
2.8
1.3
0.60
–
–
–
–
3.7
3.4
(2.2)
2.9
2.8
1.3
0.60
6.6
6.0
(4.6)
5.2
5.2
3.0
3.0
14
11
(8.5)
9.6
7.7
3.0
3.0
14
11
(8.5)
9.6
7.7
3.0
3.0
22
17
(13)
14
12
3.9
3.9
EMHB100
□
RA331MHA0G
EMHB100
□
RA471MJA0G
EMHB160
□
RA101MHA0G
EMHB160
□
RA221MHA0G
EMHB250
□
RA101MHA0G
EMHB250
□
RA221MHA0G
EMHB250
□
RA331MJA0G
EMHB250
□
RA821MKE0S
EMHB250
□
RA112MKG5S
(EMHB250
□
TR152MKN0S)
EMHB250
□
RA162MLH0S
EMHB250
□
RA222MMH0S
EMHB250
□
RA272MLN0S
EMHB250
□
RA332MMN0S
EMHB350
□
RA470MHA0G
EMHB350
□
RA101MHA0G
EMHB350
□
RA101MJA0G
EMHB350
□
RA221MJA0G
EMHB350
□
RA561MKE0S
EMHB350
□
RA681MKG5S
(EMHB350
□
TR911MKN0S)
EMHB350
□
RA102MLH0S
EMHB350
□
RA132MMH0S
EMHB350
□
RA162MLN0S
EMHB350
□
RA222MMN0S
EMHB500
□
RA271MKE0S
EMHB500
□
RA361MKG5S
(EMHB500
□
TR471MKN0S)
EMHB500
□
RA511MLH0S
EMHB500
□
RA681MMH0S
EMHB500
□
RA821MLN0S
EMHB500
□
RA112MMN0S
EMHB630
□
RA201MKE0S
EMHB630
□
RA271MKG5S
(EMHB630
□
TR331MKN0S)
EMHB630
□
RA361MLH0S
EMHB630
□
RA471MMH0S
EMHB630
□
RA561MLN0S
EMHB630
□
RA751MMN0S
EMHB800
□
RA131MKE0S
EMHB800
□
RA161MKG5S
(EMHB800
□
TR221MKN0S)
EMHB800
□
RA241MLH0S
EMHB800
□
RA331MMH0S
EMHB800
□
RA391MLN0S
EMHB800
□
RA511MMN0S
EMHB101
□
RA750MKE0S
EMHB101
□
RA101MKG5S
(EMHB101
□
TR131MKN0S)
EMHB101
□
RA131MLH0S
EMHB101
□
RA181MMH0S
EMHB101
□
RA221MLN0S
EMHB101
□
RA301MMN0S
□
: Enter the appropriate terminal code.
( ) :Second standard
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Size code
HA0 to JA0
KE0 to MN0
Capacitance(µF)
Frequency(Hz)
47
75
220
680
2,200
to
to
to
to
to
470
200
560
1,600
3,300
120
0.93
0.40
0.50
0.60
0.75
1k
0.97
0.75
0.85
0.87
0.90
10k
1.00
0.90
0.94
0.95
0.95
100k
1.00
1.00
1.00
1.00
1.00
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
