RHE5G2A391J1M1A03A: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded 390pF 100V X8G +/-5% L/S 5mm; CategoryPassive components capacitor; File Size579KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

RHE5G2A391J1M1A03A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RHE5G2A391J1M1A03A	-	-	View	Buy Now

RHE5G2A391J1M1A03A Overview

Multilayer Ceramic Capacitors MLCC - Leaded 390pF 100V X8G +/-5% L/S 5mm

RHE5G2A391J1M1A03A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 1610
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
capacitance	0.00039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	5 mm
length	4 mm
Manufacturer's serial number	RH
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	AMMO PACK
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
series	RH
size code	1610
surface mount	NO
Temperature characteristic code	X8G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal pitch	5 mm
Terminal shape	WIRE
width	2.5 mm

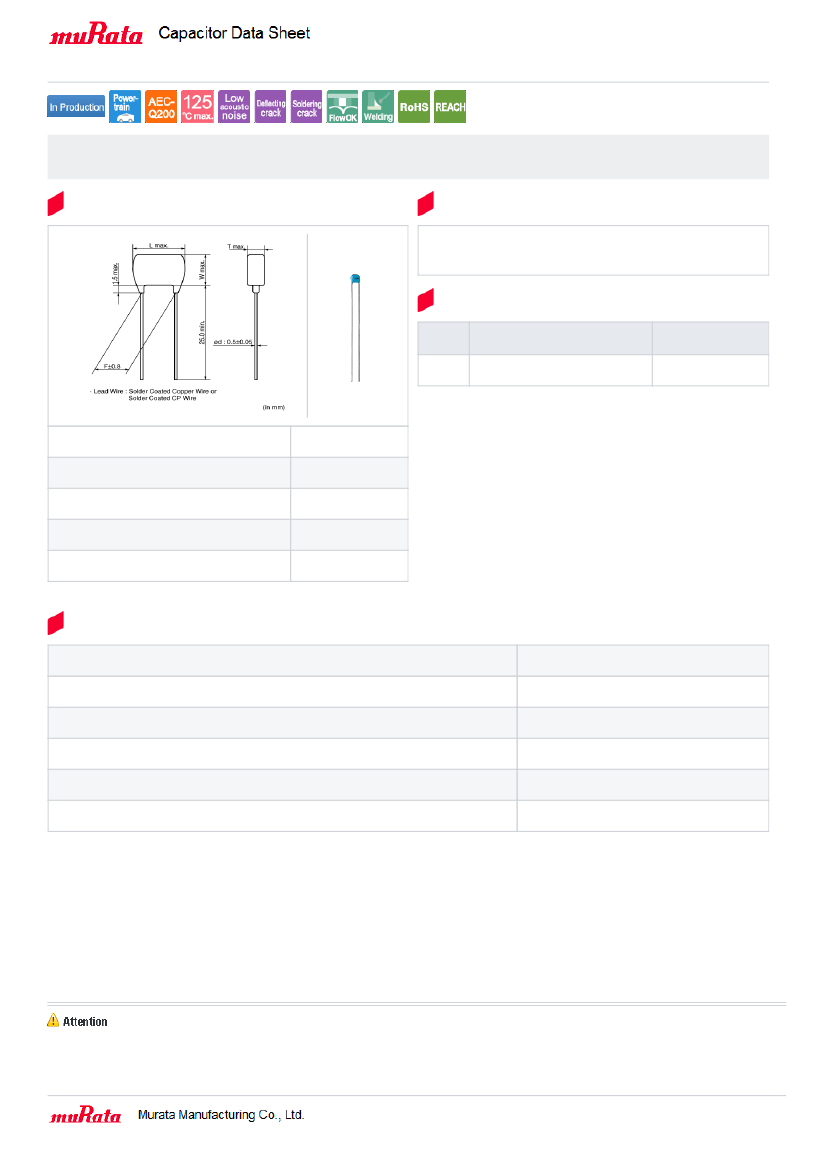

Preview

Download Datasheet

View All

RCER71H333K0A2H03B

< List of part numbers with package codes >

“#” indicates a package specification code.

RCER71H333K0A2H03B

Shape

Notes

Meet LF(Lead Free)[※LF : Lead content is less than 1000 ppm.],

HF(Halogen Free)

References

Packaging

B

Specifications

Packing in bulk

Minimum quantity

500

L size or outer diameter D (mm)

W size

T size

Lead spacing F

Lead diameter d

3.6 mm max.

3.5 mm max.

2.5 mm max.

2.5 ±0.8mm

0.5 ±0.05mm

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

33000pF ±10%

50Vdc

X7R(EIA)

±15%

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/10/21
