PE-1008CM181KTT datasheet, PDF

Datasheet> All Categories > Passive components> PE-1008CM181KTT

PE-1008CM181KTT: DescriptionFixed Inductors SMD IND; CategoryPassive components; File Size2MB，28 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

PE-1008CM181KTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-1008CM181KTT	-	-	View	Buy Now

PE-1008CM181KTT Overview

Fixed Inductors SMD IND

PE-1008CM181KTT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse A Technitrol Company
Product Category	Fixed Inductors
RoHS	Details
Inductance	180 nH
Tolerance	10 %
Maximum DC Current	600 mA
Maximum DC Resistance	250 mOhms
Q Minimum	50
Product	RF Inductors
Shielding	Unshielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	1008 (2520 metric)
Length	2.92 mm
Width	2.79 mm
Height	2.29 mm
Packaging	Reel
Self Resonant Frequency	650 MHz
Case Code - in	1008
Case Code - mm	2520
Factory Pack Quantity	1600

Preview

Download Datasheet

View All

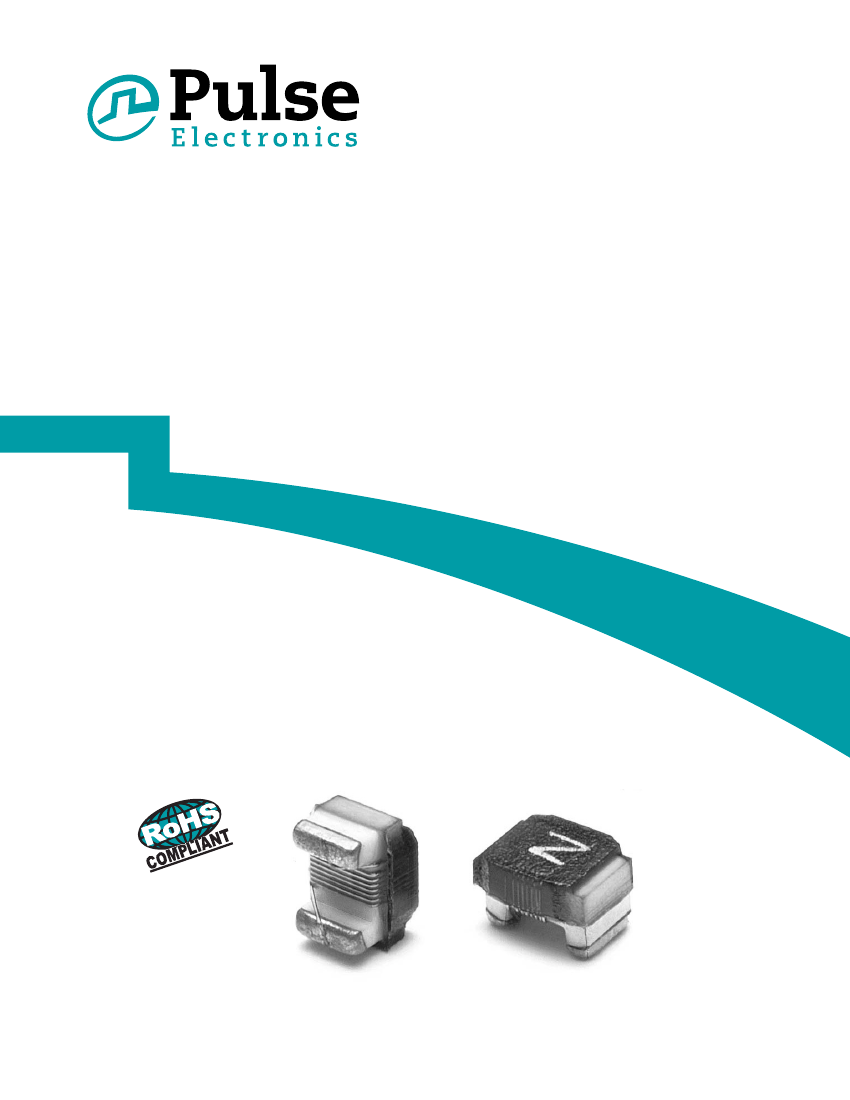

RF Chip Inductors

Wire-Wound - 0402, 0603, 0805, 1008, 1206

Pulse Electronics - leading supplier of magnetics for consumer applications

Table of Contents

The 0402 to 1206 series range of Miniature Chip Inductors contains the very latest in wire-wound technology and

Ceramic or Ferrite Core, thus providing the ultimate in performance demanded by today's Wireless products. The

Inductors provide high Q and SRFs in an industry standard size and footprint. Pulse chip inductors manufactured

after February 2005 are in compliance with RoHS requirements.

Part Number Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Performance Specifications

Environmental Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mechanical Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Tape and Reel Specification . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Miniature Wire-wound RF Chip Inductors

0402CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

0603CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

0805CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13

0805CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

0805FT Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

1008CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20

1008CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

1008CQ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24

1206CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..25-27

Pulse Jack

WC701.O (01/15)

www.pulseelectronics.com

Electronics
