General Purpose, Pulse and DC Transient Suppression
PHE448 Series Polypropylene Film/Foil, Radial
Overview

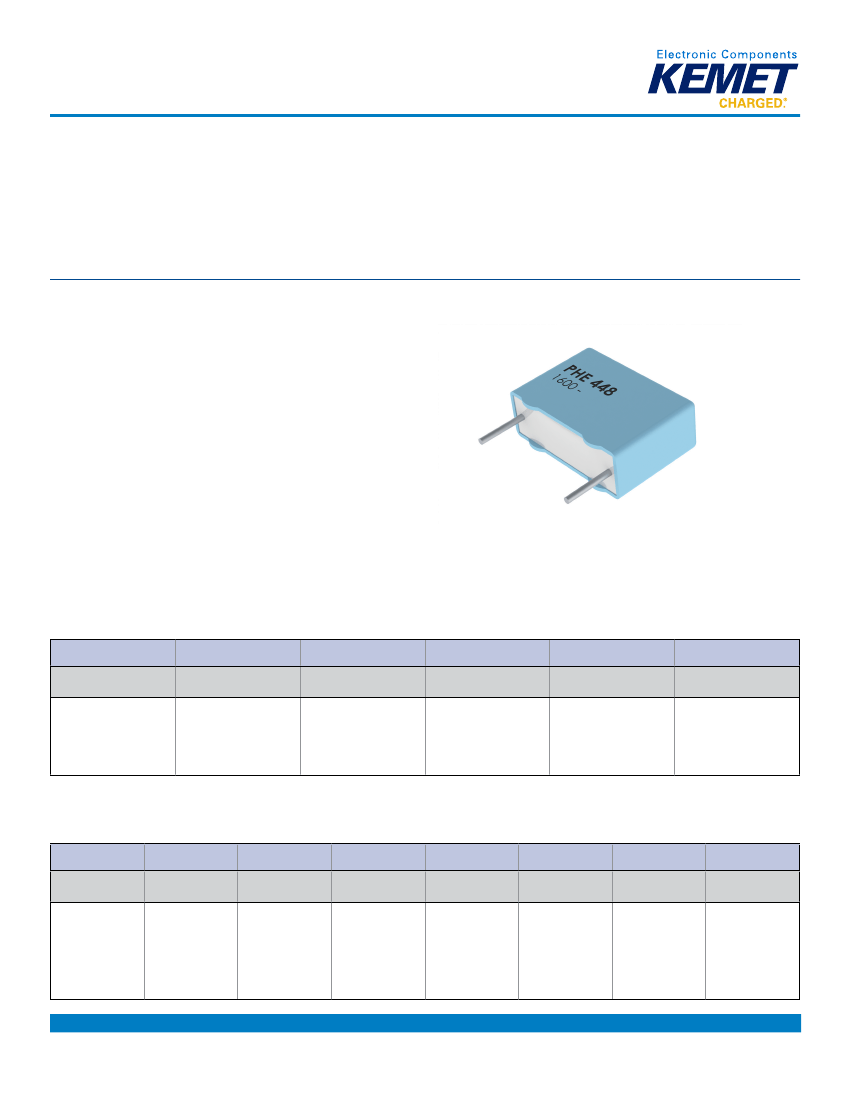

The PHE448 Series is a capacitor with polypropylene film
dielectric and metal foil electrodes, encapsulated in self-
extinguishing resin in a box of material meeting the requirements
of UL 94 V–0.
Applications
Typical applications include high frequency and high voltage
applications requiring capacitors with extremely high current
handling capability, i.e., high dV/dt values.
Benefits
•
•
•
•
•
•
•
•
•
Rated voltage: 1,600 – 2,000 VDC
Rated voltage: 650 – 700 VAC
Capacitance range: 0.0001 – 0.022 µF
Lead spacing: 15 mm
Capacitance tolerance: ±5%, other tolerances on request
Climatic category: 55/105/56, IEC 60068–1
Tape and reel packaging in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Category temperature range of -55˚C to +105˚C
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Legacy Part Number System
PHE448
Series
Polypropylene Film/Foil
R = 1,600
S = 2,000
R
Rated Voltage (VDC)
B
Lead Spacing (mm)
B = 15.0
4150
Capacitance Code (pF)
The last three digits
represent significant
figures. The first digit
specifies the total number
of digits.
Capacitance
Tolerance
J = ±5%
Other tolerances on
request
J
R06
Packaging
See Ordering
Options Table
New KEMET Part Number System
F
Capacitor Class
F = Film
448
Series
Polypropylene
Film/Foil
B
Lead Spacing (mm)
B = 15.0
D
Size Code
See Dimension
Table
Capacitance Code
Capacitance
(pF)
Tolerance
First two digits
J = ±5%,
represent
Other tolerances
significant
on request
figures. Third
digit specifies
number of zeros.
152
J
Rated Voltage
(VDC)
1K6 = 1,600
2K0 = 2,000
1K6
C
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3038_PHE448 • 5/19/2015
1
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – PHE448 Series Polypropylene Film/Foil, Radial
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Other Lead and Packaging Options
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Tape & Reel (Large Reel)
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
H
0
= 16.5 +/-0.5
H
0
= 16.5 +/-0.5
ALW0L
L
P
XLAF1
XLTF1
R30
R17T0
R17T1
R25XA
R25X2
6 +0/-1
17 +0/-1
C
A
R06
R17
Lead Length
(mm)
KEMET
Legacy
Lead and Lead and
Packaging Packaging
Code
Code
15
Native 15
formed to 7.5
Ammo Pack
Tape & Reel (Standard Reel)
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
0.5
KEMET
Size
Code
BD
BL
BJ
BQ
BV
BY
Legacy Size
Code
B04
B06
B10
B11
B14
B16
p
Nominal
15
15
15
15
15
15
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
5.5
7.5
6.5
8.5
9.5
11
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
10.5
14.5
12.5
16
17.5
19
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
18
18
18
18
18
18
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3038_PHE448 • 5/19/2015
2
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – PHE448 Series Polypropylene Film/Foil, Radial
Performance Characteristics
Voltage Range (VDC)
Voltage Range (VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
1,600
650
0.0015 – 0.022
In accordance with IEC E12 series
±5%, other tolerances on request
-55°C to +105°C
+85°C
The rated voltage is decreased with 1.3%/°C between +85°C and +105°C
IEC 60068–1, 55/105/56
Maximum Values at +23°C
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
0.0003
0.0005
0.001
2,000
700
0.0001 – 0.0033
Measured at +23°C, 100 VDC 60 seconds for V
R
< 500 VDC and at 500 VDC
for V
R
≥ 500 VDC
Minimum Values Between Terminals
Insulation Resistance
≥ 100,000 MΩ
Minimum Values Between Terminals and Case
≥ 100,000 MΩ

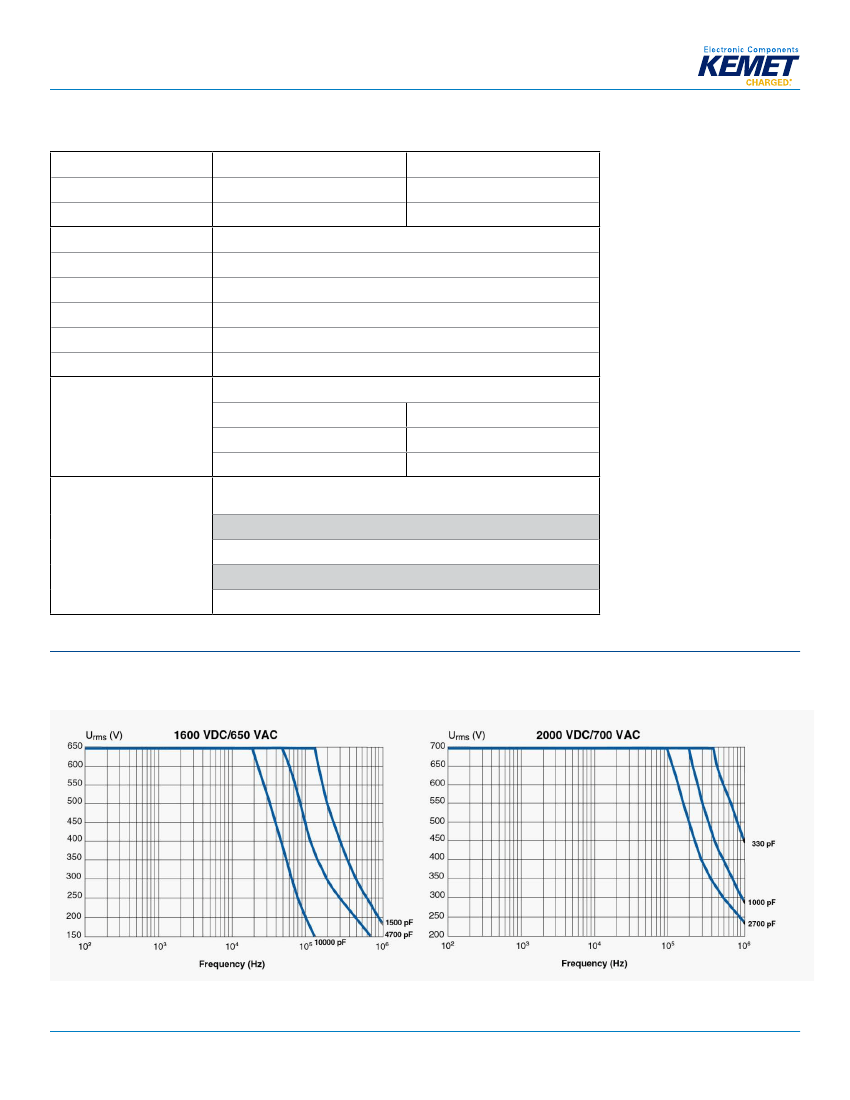

Derating of V
rms
vs. Frequency, +85ºC Ambient Temperature and 10ºC Internal Heating, Typical Values
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3038_PHE448 • 5/19/2015
3
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – PHE448 Series Polypropylene Film/Foil, Radial
Environmental Test Data
Test
Voltage Proof
IEC Publication
60384–1 Clause 4.6
Clause 4.6 2.3
Procedure
1.6 x V
R
after 60 seconds
2 x V
R
(minimum 400 VDC to case) after 60
seconds
6 hours with 10 – 500 Hz and 0.75 mm
amplitude or 98 m/s
2
depending on
frequency
4,000 bumps with 390 m/s
2
mounted on
PCB
Requirements
The capacitors must withstand the voltage without
breakdowns or flashovers and without decreased
insulation resistance below the value in each detail
specification. No visible damage
As above
No visible damage
tanδ ≤ 1.2 x stated value at 100 kHz
Δ C/C ≤ ±0.5 %
Δ C/C ≤ ±0.5%
tanδ ≤ 1.2 x stated value at 100 kHz
Insulation resistance:
≥ 100,000 MΩ for C
R
≤ 0.33 µF
≥ 30,000 MΩ • µF for C
R
> 0.33 µF
Immersion of the terminations into the solder bath shall
be completed in a time not exceeding 1 second and the
terminations shall remain immersed to the specified
depth for 10 + 1 second and then be withdrawn.
∆ C/C ≤ ±1.0%
tanδ increase < 0.001
No visible damage
Insulation resistance:
≥ 100,000 MΩ for C
R
≤ 0.33 µF
≥ 30,000 MΩ • µF for C
R
> 0.33 µF
Δ C/C ≤ ±0.5%
tanδ ≤ 1.2 x stated value at 100 kHz
56 days no visible damage
Insulation resistance:
≥ 50,000 MΩ for C
R
≤ 0.33 µF
≥ 15,000 MΩ • µF for C
R
> 0.33 µF
Δ C/C ≤ ±1%
tanδ ≤ 1.2 x stated value at 100 kHz
No visible damage
Δ C/C ≤ ±3%
tanδ ≤ 1.5 x stated value at 100 kHz
Insulation resistance:
≥ 100,000 MΩ for C
R
≤ 0.33 µF
≥ 30,000 MΩ • µF for C
R
> 0.33 µF
tanδ (100 kHz) ≤ 2 x stated value (100 kHz)
Δ C/C ≤ ±0.5%
Insulation resistance:
≥ 50,000 MΩ for C
R
≤ 0.33 µF
≥ 15,000 MΩ • µF for C
R
> 0.33 µF
Vibration
60068–2–6 Test Fc
Bump
60068–2–29 Test Eb
Resistance to
Soldering Heat
60068–2–20
Method 1A
Solder bath at + 260°C ±5°C with screening
Climatic Sequence
60384–1
Paragraph 4:21
60068–2.2 dry heat 16 hours
60068–2–34 damp heat, one cycle
60068–2–1 Test Aa 2 hours
Damp Heat
Steady State
60068–2–3 Test Ca
+40°C and 90 – 95% RH
Endurance, AC
1,000 hours at +85°C and 1.25 x V
R
AC
Charge and Discharge
60384–17
Paragraph 4.13
10,000 pulses and with (2 x) dV/dt according
to detail specification
Environmental Compliance
All KEMET pulse capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3038_PHE448 • 5/19/2015
4
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – PHE448 Series Polypropylene Film/Foil, Radial
Table 1 – Ratings & Part Number Reference
VDC
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
1600
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
VAC
650
650
650
650
650
650
650
650
650
650
650
650
650
650
650
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
Cap
Value
(µF)
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.0001
0.00012
0.00015
0.00018
0.00022
0.00027
0.00033
0.00039
0.00047
0.00056
0.00068
0.00082
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
Dimensions in mm
B
5.5
5.5
5.5
6.5
6.5
6.5
6.5
7.5
7.5
8.5
8.5
9.5
9.5
11.0
11.0
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
7.5
8.5
8.5
9.5
H
10.5
10.5
10.5
12.5
12.5
12.5
12.5
14.5
14.5
16.0
16.0
17.5
17.5
19.0
19.0
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
12.5
12.5
14.5
16.0
16.0
17.5
L
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
Lead
Spacing
(p)
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
dV/dt
Size Code
(V/µs) (New/Legacy)
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
15000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
25000
BD/B04
BD/B04
BD/B04
BJ/B10
BJ/B10
BJ/B10
BJ/B10
BL/B06
BL/B06
BQ/B11
BQ/B11
BV/B14
BV/B14
BY/B16
BY/B16
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BD/B04
BJ/B10
BJ/B10
BL/B06
BQ/B11
BQ/B11
BV/B14
R
thha
ºC/W
85ºC
0.2m/s
87
86
84
82
82
82
82
78
78
70
70
60
60
55
55
87
87
87
87
87
87
86
86
86
85
85
85
84
82
82
78
70
70
60
New KEMET
Part Number
F448BD152J1K6(1)
F448BD182J1K6(1)
F448BD222J1K6(1)
F448BJ272J1K6(1)
F448BJ332J1K6(1)
F448BJ392J1K6(1)
F448BJ472J1K6(1)
F448BL562J1K6(1)
F448BL682J1K6(1)
F448BQ822J1K6(1)
F448BQ103J1K6(1)
F448BV123J1K6(1)
F448BV153J1K6(1)
F448BY183J1K6(1)
F448BY223K1K6(2)
F448BD101J2K0(1)
F448BD121J2K0(1)
F448BD151J2K0(1)
F448BD181J2K0(1)
F448BD221J2K0(1)
F448BD271J2K0(1)
F448BD331J2K0(1)
F448BD391J2K0(1)
F448BD471J2K0(1)
F448BD561J2K0(1)
F448BD681J2K0(1)
F448BD821J2K0(1)
F448BD102J2K0(1)
F448BJ122J2K0(1)
F448BJ152J2K0(1)
F448BL182J2K0(1)
F448BQ222J2K0(1)
F448BQ272J2K0(1)
F448BV332J2K0(1)
Legacy Part
Number
PHE448RB4150J(1)
PHE448RB4180J(1)
PHE448RB4220J(1)
PHE448RB4270J(1)
PHE448RB4330J(1)
PHE448RB4390J(1)
PHE448RB4470J(1)
PHE448RB4560J(1)
PHE448RB4680J(1)
PHE448RB4820J(1)
PHE448RB5100J(1)
PHE448RB5120J(1)
PHE448RB5150J(1)
PHE448RB5180J(1)
PHE448RB5220K(2)
PHE448SB3100J(1)
PHE448SB3120J(1)
PHE448SB3150J(1)
PHE448SB3180J(1)
PHE448SB3220J(1)
PHE448SB3270J(1)
PHE448SB3330J(1)
PHE448SB3390J(1)
PHE448SB3470J(1)
PHE448SB3560J(1)
PHE448SB3680J(1)
PHE448SB3820J(1)
PHE448SB4100J(1)
PHE448SB4120J(1)
PHE448SB4150J(1)
PHE448SB4180J(1)
PHE448SB4220J(1)
PHE448SB4270J(1)
PHE448SB4330J(1)
VDC
VAC
Cap Value
(µF)
B
(mm)
H
(mm)
L
(mm)
Lead
Spacing (p)
dV/dt (V/
µs)
Size Code
(New/Legacy)
R
thha
ºC/W 85ºC
0.2m/s
New KEMET
Part Number
Legacy Part
Number
(1) Insert lead and packaging code. See Order Options Table for available options.
(2) K = ±10% (only available tolerance).
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3038_PHE448 • 5/19/2015
5
京公网安备 11010802033920号
EEWORLD
