KRL1632E-M-R007-G-T5 datasheet, PDF

Datasheet> All Categories > Passive components> KRL1632E-M-R007-G-T5

KRL1632E-M-R007-G-T5: DescriptionCurrent Sense Resistors - SMD 3/4W 7m ohm 2%; CategoryPassive components; File Size264KB，2 Pages; ManufacturerSUSUMU

Download Datasheet Parametric Compare View All

KRL1632E-M-R007-G-T5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KRL1632E-M-R007-G-T5	-	-	View	Buy Now

KRL1632E-M-R007-G-T5 Overview

Current Sense Resistors - SMD 3/4W 7m ohm 2%

KRL1632E-M-R007-G-T5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SUSUMU
Product Category	Current Sense Resistors - SMD
RoHS	Details
Resistance	7 mOhms
Power Rating	750 mW (3/4 W)
Tolerance	2 %
Temperature Coefficient	100 PPM / C
Voltage Rating	-
Operating Temperature Range	- 55 C to + 155 C
Case Code - in	1206
Case Code - mm	3216
Technology	Metal Foil
Termination	2 Terminal
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	0.5 mm
Length	3.2 mm
Package / Case	1206 (3216 metric)
Product	Thin Film Current Sensing Resistors
Termination Style	SMD/SMT
Type	Metal Foil Resistance Chip, Short Side Terminals
Width	1.6 mm
Maximum Operating Temperature	+ 155 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	5000
Unit Weight	0.000466 oz

Preview

Download Datasheet

View All

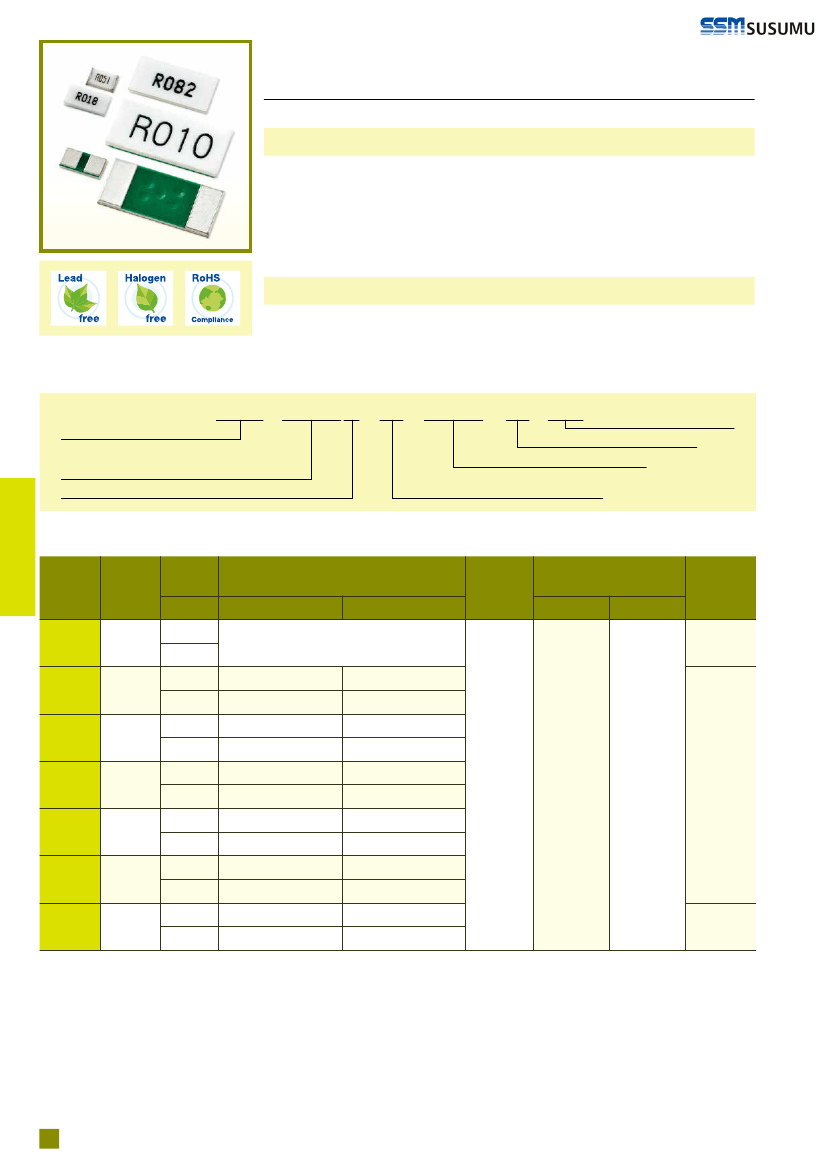

Metal foil low resistance chip resistors

■KRL

series

Features

・

High current sensing short side terminal low resistance chip resistor

・

Two types available: high temperature (operating temperature up to 175℃), low emf

type ( operating temperature up to 155℃).

・

High current handling capability and wide range of power ratings

・

Size: 0510 ~ 50110, power ratings: 0.2W ~ 5W, resistance value range: 5m ~ 1000mΩ

・

Face down construction. Choice between bottom only or wrap around terminal

(short-side terminal)

AEC-Q200 Compliant

Applications

・

Automotive electronics

・

Power source devises, ACDC converters, DCDC converters

・

Motors, inverters, office automation equipment

◆Part

numbering system

Series code

KRL 1220E - C - R010 - F - T1

Size: KRL0510, KRL0816, KRL1220, KRL1632

KRL2550, KRL3264, KRL50110

Current sensing surface mount resistors

Terminal type: D (bottom terminal), E (wrap around terminal)

Temperature characteristics type:

C (high operating temperature ), M (low EMF)

Packaging quantity:

T1(1,000pcs), T5(5,000pcs)

Resistance tolerance

Nominal resistance value

◆Electrical

Specification

Type

Power

ratings

Temperature

coefficient

of resistance

Resistance range(Ω) Resistance tolerance

±1% (F)

50m≦R≦100m

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦500m

ー

10m≦R≦1000m

ー

10m≦R≦1000m

ー

5m≦R≦9½(1m step)

ー

5m≦R≦9½(1m step)

ー

5m≦R≦9m(1m step)

ー

5m≦R≦9m(1m step)

ー

5m≦R≦9m

（1m step）

ー

5m≦R≦9m

（1m step）

Resistance

value series

Operating temperature

Packaging

quantity

(ppm/℃)

±50

±2% (G)

KRL series

KRL0510

0.2W

±100

±50

10,000pcs

KRL0816

0.3W

±100

±50

KRL1220

0.5W

±100

±50

KRL1632

0.75W

E-6 / E-12

-55℃ ~ 175℃

-55℃ ~ 155℃

±100

±50

KRL2550

1.5W

±100

±50

KRL3264

±100

±50

KRL50110

±100

We can meet your requirement for resistance value not specified in above table. Please contact our sales office.

We can meet your requirement outside of E-6/E-12 series resistance. Please contact our sales office.

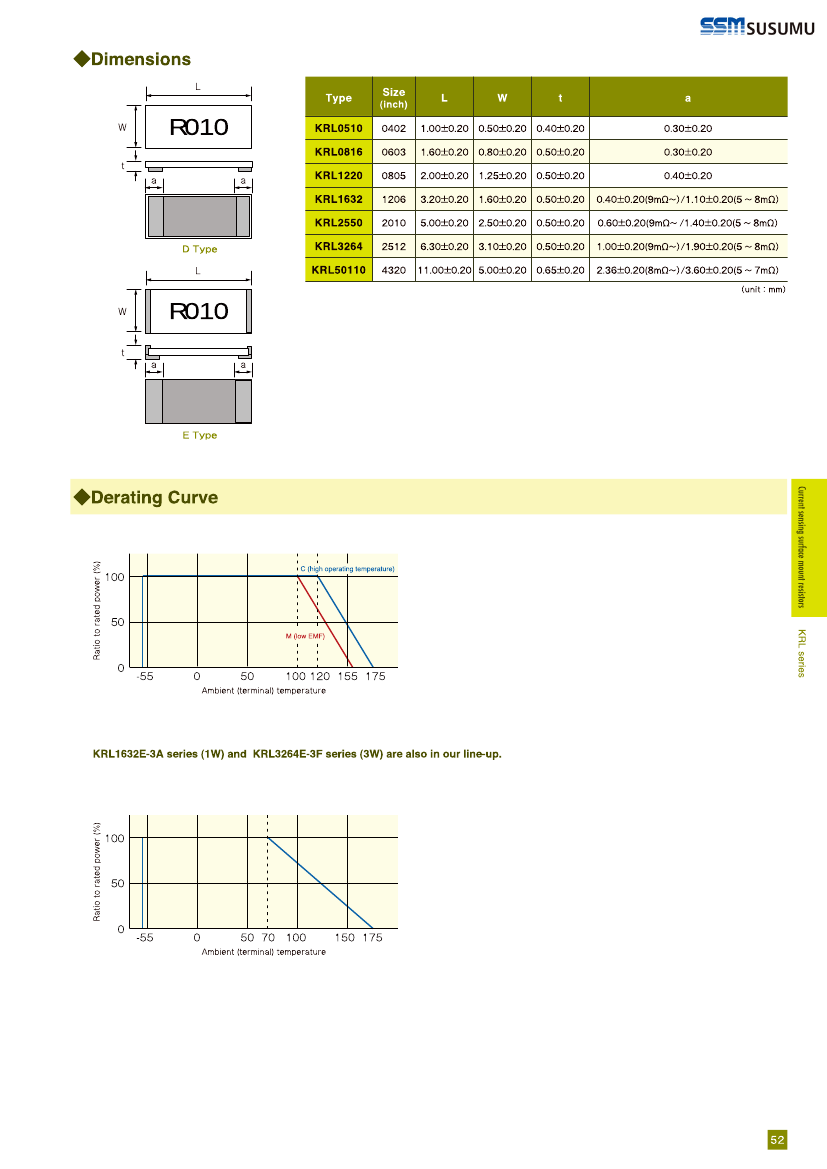

KRL1632E-M-R007-G-T5 Related Products

	KRL1632E-M-R007-G-T5	KRL1632E-M-R005-G-T5	KRL1632E-M-R056-F-T5	KRL1632E-M-R022-F-T5	KRL1220E-M-R270-F-T5	KRL1220E-M-R180-F-T5	KRL1632E-M-R100-F-T5
Description	Current Sense Resistors - SMD 3/4W 7m ohm 2%	Current Sense Resistors - SMD 3/4W 5m ohm 2%	Current Sense Resistors - SMD 3/4w 56m ohm 1%	Current Sense Resistors - SMD 3/4w 22m ohm 1%	Current Sense Resistors - SMD 1/2W 270m ohm 1%	Current Sense Resistors - SMD 1/2W 180m ohm 1%	Current Sense Resistors - SMD 3/4w 100m ohm 1%
Tolerance	2 %	2%	1 %	1 %	1 %	1 %	1 %
Temperature Coefficient	100 PPM / C	100 ppm/°C	50 PPM / C	50 PPM / C	50 PPM / C	50 PPM / C	50 PPM / C
Product Attribute	Attribute Value	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	SUSUMU	-	SUSUMU	SUSUMU	SUSUMU	SUSUMU	SUSUMU
Product Category	Current Sense Resistors - SMD	-	Current Sense Resistors - SMD	Current Sense Resistors - SMD	Current Sense Resistors - SMD	Current Sense Resistors - SMD	Current Sense Resistors - SMD
RoHS	Details	-	Details	Details	Details	Details	Details
Resistance	7 mOhms	-	56 mOhms	22 mOhms	270 mOhms	180 mOhms	100 mOhms
Power Rating	750 mW (3/4 W)	-	750 mW (3/4 W)	750 mW (3/4 W)	500 mW (1/2 W)	500 mW (1/2 W)	750 mW (3/4 W)
Operating Temperature Range	- 55 C to + 155 C	-	- 55 C to + 155 C	- 55 C to + 155 C	- 55 C to + 155 C	- 55 C to + 155 C	- 55 C to + 155 C
Case Code - in	1206	-	1206	1206	0508 (Reversed)	0805	1206
Case Code - mm	3216	-	3216	3216	1220 (Reversed)	2012	3216
Technology	Metal Foil	-	Metal Foil	Metal Foil	Metal Foil	Metal Foil	Metal Foil
Termination	2 Terminal	-	2 Terminal	2 Terminal	2 Terminal	2 Terminal	2 Terminal
Qualification	AEC-Q200	-	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Packaging	Reel	-	Reel	Reel	Reel	Reel	Reel
Height	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5	0.5 mm
Length	3.2 mm	-	3.2 mm	3.2 mm	2 mm	2 mm	3.2 mm
Package / Case	1206 (3216 metric)	-	1206 (3216 metric)	1206 (3216 metric)	0508 (1220 metric) Reversed	0805 (2012 metric)	1206 (3216 metric)
Product	Thin Film Current Sensing Resistors	-	Thin Film Current Sensing Resistors	Thin Film Current Sensing Resistors	Thin Film Current Sensing Resistors	Thin Film Current Sensing Resistors	Thin Film Current Sensing Resistors
Termination Style	SMD/SMT	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Type	Metal Foil Resistance Chip, Short Side Terminals	-	Metal Foil Resistance Chip, Short Side Terminals	Metal Foil Resistance Chip, Short Side Terminals	Metal Foil Resistance Chip, Short Side Terminals	Metal Foil Resistance Chip, Short Side Terminals	Metal Foil Resistance Chip, Short Side Terminals
Width	1.6 mm	-	1.6 mm	1.6 mm	1.25 mm	1.25 mm	1.6 mm
Maximum Operating Temperature	+ 155 C	-	+ 155 C	+ 155 C	+ 155 C	+ 155 C	+ 155 C
Minimum Operating Temperature	- 55 C	-	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	5000	-	5000	5000	5000	5000	5000
Unit Weight	0.000466 oz	-	0.000466 oz	0.000466 oz	-	-	0.000466 oz
