Document 438-1

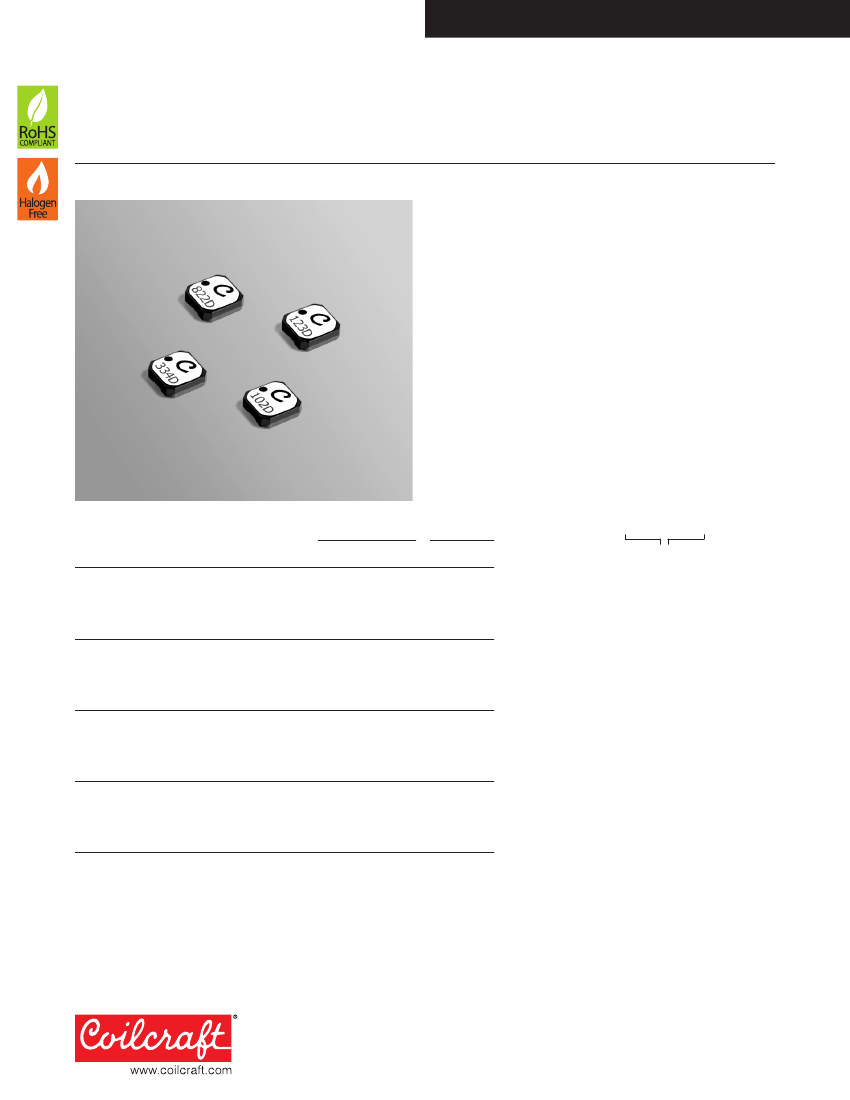

Shielded Power Inductors – LPS3008
• Very low DCR; excellent current handling
• Only 0.8 mm tall; 3.0 × 3.0 mm footprint
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over silver.
Other terminations available at additional cost.
Weight
22 – 25 mg
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
Recommended pick and place nozzle
OD: 3 mm; ID:
≤
1.5 mm
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
Isat
(A)
DCR SRF
Inductance
2
max
3
typ
4
10% 20% 30%
±20% (µH) (Ohms) (MHz) drop drop drop
5
Irms
(A)
6
20°C 40°C
rise rise
1.4
1.1
0.90
0.87
0.85
0.74
0.68
0.58
0.50
0.45
0.42
0.38
0.33
0.29
0.25
0.21
0.175
0.160
0.140
0.130
2.0
1.6
1.3
1.2
1.1
0.95
0.80
0.73
0.67
0.60
0.56
0.50
0.44
0.38
0.32
0.27
0.23
0.21
0.190
0.175
1. Please specify
termination
and
packaging
codes:
LPS3008-104MRC
Termination: R
= RoHS compliant matte tin over
nickel over silver.
Special order, added cost:
Q
= RoHS tin-silver-copper (95.5/4/0.5)
or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (1000 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready. To have a leader
and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (3500 parts
per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an
Agilent/HP 4192A. Inductance at 1 MHz is the same
for parts with SRF
≥10
MHz.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753ES or
equivalent.
5. DC current at 25°C that causes the specified in-
ductance drop from its value without current.
lick for
temperature derating information.
6. Current that causes the specified temperature rise
from 25°C ambient. This information is for reference
only and does not represent absolute maximum rat-
ings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Compo-
nents” before soldering.
LPS3008-561MR_
LPS3008-801MR_
LPS3008-102MR_
LPS3008-152MR_
LPS3008-222MR_
LPS3008-332MR_
LPS3008-472MR_
LPS3008-562MR_
LPS3008-682MR_
LPS3008-822MR_
LPS3008-103MR_
LPS3008-123MR_
LPS3008-183MR_
LPS3008-223MR_
LPS3008-333MR_
LPS3008-473MR_
LPS3008-683MR_
LPS3008-104MR_
LPS3008-124MR_
LPS3008-154MR_
LPS3008-184MR_
0.56
0.80
1.0
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10
12
18
22
33
47
68
100
120
150
180
0.072
0.092
0.125
0.134
0.175
0.285
0.350
0.450
0.500
0.600
0.650
0.790
1.25
1.50
2.30
3.00
4.75
6.85
7.00
8.00
9.00
330
255
220
170
150
114
87
78
75
61
56
49
38
35
23
21
18
14
13
11
10
1.8
1.6
1.3
1.1
1.0
0.81
0.68
0.62
0.58
0.52
0.46
0.45
0.35
0.29
0.27
0.22
0.18
0.15
0.084
0.080
2.0
1.7
1.4
1.3
1.1
0.86
0.73
0.67
0.61
0.56
0.51
0.48
0.38
0.33
0.30
0.23
0.19
0.16
0.094
0.088
2.1
1.8
1.5
1.3
1.1
0.88
0.74
0.70
0.63
0.58
0.52
0.50
0.40
0.34
0.31
0.24
0.20
0.16
0.10
0.092
0.070 0.078 0.082 0.120 0.160
Coilcraft
Designer’s Kit C392
contains samples of 0.80 µH to 33 µH parts (3 each)
from LPS3008, LPS3010 and LPS3015.
Kit C401
contains samples of 0.56 µH to
33 µH parts (3 each) from LPS4012 and LPS4018.
Kit C402
contains samples of
220 µH to 3300 µH parts (3 each) from all five series. For details of kit contents and
to order, contact Coilcraft or visit
http://order.coilcraft.com.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 438-1
Revised 09/01/15
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

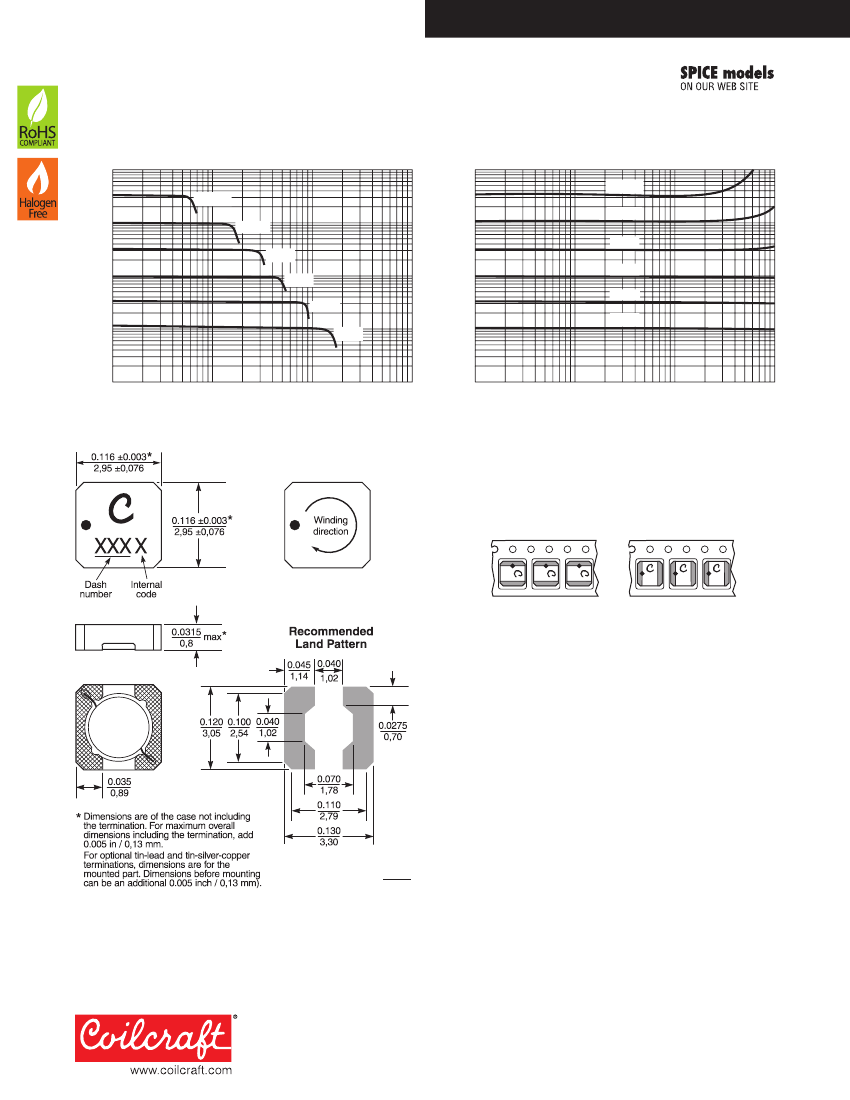

Document 438-2
Shielded Power Inductors – LPS3008 Series
Typical L vs Current
1000
330 µH
Typical L vs Frequency
1000
330 µH
100 µH
33 µH
Inductance (µH)
33 µH
Inductance (µH)
100
100 µH
100
10
10 µH
3.3 µH
10
10 µH
3.3 µH
1
1.0 µH
1
1.0 µH
0.1
0.01
0.1
1
10
0.1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
NOTE NEW PART ORIENTATION
Parts are rotated 90
°
in the
packaging tape compared to previous versions of this product.
NEW
OLD
123
123
123
123
123
123
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 438-2
Revised 09/1/15
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
