DO1606T-223MLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO1606T-223MLC

DO1606T-223MLC: DescriptionFixed Inductors DO1606T Low Profile SMT Power Inductor; CategoryPassive components inductor; File Size170KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

DO1606T-223MLC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DO1606T-223MLC	-	-	View	Buy Now

DO1606T-223MLC Overview

Fixed Inductors DO1606T Low Profile SMT Power Inductor

DO1606T-223MLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	2621
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2621
structure	Unshielded
core material	FERRITE
DC Resistance	0.54 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2 mm
Package length	6.5 mm
Package form	SMT
Package width	5.23 mm
method of packing	TR, 7 Inch
Maximum rated current	0.6 A
self resonant frequency	35 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

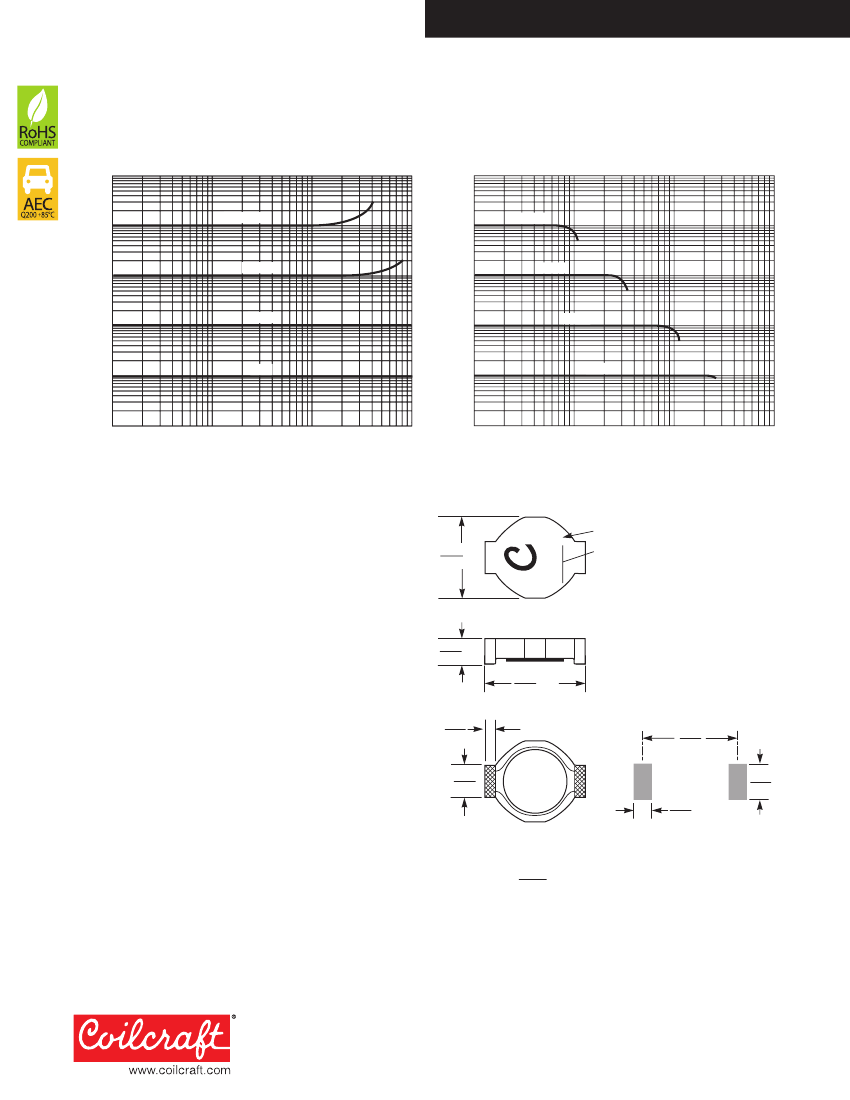

Document 213-1

SMT Power Inductors - DO1606T

• Only 2.0 mm high

• Handles current up to 2.3 Amps rms

Designer’s Kit C338

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

116 – 136 mg

Ambient temperature

–40°C to +85°C with

Irms

current

Maximum part temperature

+125°C (ambient + temp rise

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,

0.3 mm thick, 8 mm pocket spacing, 2.5 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part

number

DO1606T-102ML_

DO1606T-152ML_

DO1606T-222ML_

DO1606T-332ML_

DO1606T-472ML_

DO1606T-682ML_

DO1606T-822ML_

DO1606T-103ML_

DO1606T-153ML_

DO1606T-223ML_

DO1606T-333ML_

DO1606T-473ML_

DO1606T-683ML_

DO1606T-104ML_

DO1606T-154ML_

DO1606T-224ML_

DO1606T-334ML_

DO1606T-474ML_

DO1606T-684ML_

DO1606T-105ML_

DCR

SRF

L ±20%

max

ref

(µH)

(Ohms) (MHz)

1.0

0.04

230

1.5

0.06

180

2.2

0.07

140

3.3

0.12

110

4.7

0.15

100

6.8

0.20

8.2

0.23

0.30

0.40

0.54

0.74

1.1

1.6

100

2.3

150

3.5

220

5.7

330

8.2

470

10.8

680

17.2

1000

22.6

Isat

Irms

(A)

2.5

2.3

2.2

2.1

1.8

1.7

1.4

1.3

1.2

1.1

1.0

0.95

1.0

0.90

0.8

0.70

0.6

0.50

0.5

0.45

0.45 0.40

0.35 0.35

0.30 0.30

0.25 0.25

0.20 0.18

0.16 0.16

0.14 0.12

0.12 0.10

0.08 0.08

1. When ordering, please specify

termination

and

packaging

codes:

DO1606T-105MLC

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit

Special order:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (750 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (2500 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Vdc.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Current that causes a 40°C temperature rise from 25°C ambient.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 213-1

Revised 03/07/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
