Eaton to offer a wide variety of capacitor solutions
tailored to applications for backup power, pulse
power and hybrid power systems. They can
be applied as the sole energy storage or in
combination with batteries to optimize cost, life
time and run time. System requirements can
range from a few microwatts to megawatts. All
products feature low ESR for high power density
with environmentally friendly materials for a
green power solution. Eaton supercapacitors are
maintenance-free with design lifetimes up to
20 years and operating temperatures down to
-40 °C and up to +85 °C.
Technical Data
4327
Effective September 2016
KR Supercapacitors
Coin cells
Specifications
Capacitance
Maximum working voltage
Surge voltage
Capacitance tolerance
Operating temperature range
Extended operating temperature range
0.1 F to 1.5 F
5.5 V
6.3 V
-20% to +80% +20 °C
-25 °C to +70 °C
-25 °C to +85 °C (with voltage derating to 3.6 V @ +85 °C)
Standard Product
Max. initial DC ESR (Ω) (Equivalent Series
Resistance) measured @ 1kHz
Capacitance (F)
Part number
Type
Lead length
Typical mass (g)
0.1
0.1
0.1
0.1
0.22
0.22
0.22
0.22
0.33
0.33
0.33
0.33
0.47
0.47
0.47
0.47
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
KR-5R5V104-R
KR-5R5H104-R
KR-5R5C104-R
KR-5R5C104H-R
KR-5R5V224-R
KR-5R5H224-R
KR-5R5C224-R
KR-5R5C224H-R
KR-5R5V334-R
KR-5R5H334-R
KR-5R5C334-R
KR-5R5C334H-R
KR-5R5V474-R
KR-5R5H474-R
KR-5R5C474-R
KR-5R5C474H-R
KR-5R5V105-R
KR-5R5H105-R
KR-5R5C105-R
KR-5R5C105H-R
KR-5R5V155-R
KR-5R5H155-R
KR-5R5C155-R
KR-5R5C155H-R
Vertical
Horizontal
Cylindrical
Cylindrical
Vertical
Horizontal
Cylindrical
Cylindrical
Vertical
Horizontal
Cylindrical
Cylindrical
Vertical
Horizontal
Cylindrical
Cylindrical
Vertical
Horizontal
Cylindrical
Cylindrical
Vertical
Horizontal
Cylindrical
Cylindrical
Standard
Standard
Standard
Short
Standard
Standard
Standard
Short
Standard
Standard
Standard
Short
Standard
Standard
Standard
Short
Standard
Standard
Standard
Short
Standard
Standard
Standard
Short
75
75
75
75
75
75
75
75
50
50
50
50
50
50
50
50
30
30
30
30
30
30
30
30
1.4
1.4
3.3
3.3
1.4
1.4
3.3
3.3
1.4
1.4
3.3
3.3
1.4
1.4
3.3
3.3
4.2
4.2
9.1
9.1
4.2
4.2
9.1
9.1
Performance
Parameter
Capacitance Change
(% of initial value)
ESR
(% of max. initial value)
Life — +70 °C @ 5.5 Vdc, 1000 hours
Life — +85 °C @ 3.6 Vdc, 2000 hours
Storage Life — -25 °C to +70 °C, 1000 hours
≤
30%
≤
30%
≤
30%
≤
400%
≤
400%
≤
400%
2
www.eaton.com/electronics
KR Supercapacitors
Coin cells

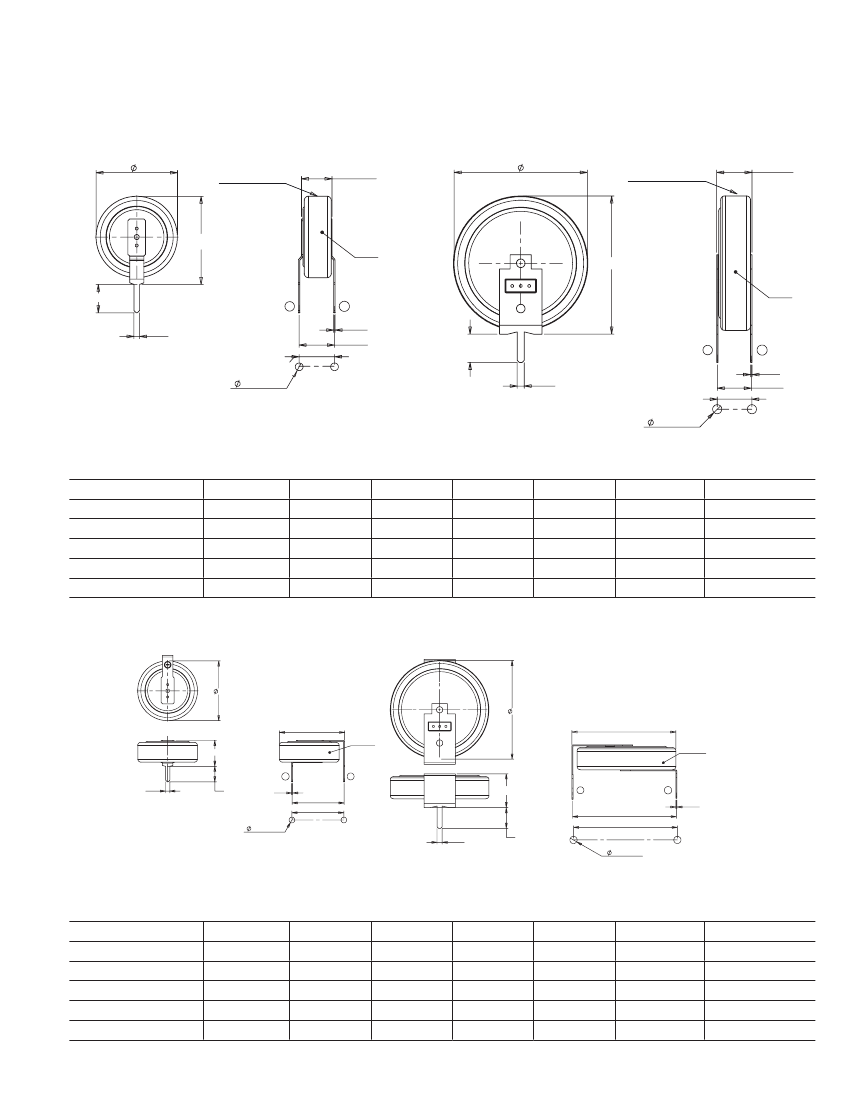

Dimensions (mm)
KR-5R5V104/224/334/474-R
D
Technical Data
4327
Effective September 2016
R-5R5V105/155-R
W
1
Ref
D
Polarity mark points
to negative lead
Polarity mark points
to negative lead
W
1
Ref
H Max
Sleeve
H Max
L
W
Sleeve
-
+
T
P
5.00
L
W
-
+
T
Recommended PCB Layout
1.10 ±0.05
P
5.00
Recommended PCB Layout
1.30 ±0.05
Part Number
Ø D ±0.2
H Max
L ±0.1
P ±0.3
T
W±0.1
W1 Ref.
KR-5R5V104-R
KR-5R5V224-R
KR-5R5V334-R
KR-5R5V474-R
KR-5R5V105-R
KR-5R5V155-R
11.5
11.5
11.5
11.5
19.0
19.0
12.7
12.7
12.7
12.7
19.7
19.7
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
5.0
5.0
5.0
5.0
0.2
0.2
0.2
0.2
0.2
0.2
0.8
0.8
0.8
0.8
1.0
1.0
4.3
4.3
4.3
4.3
5.0
5.0
KR-5R5H104/224/334/474-R
KR-5R5H105/155-R
D
D
W1
W
1
Sleeve
H Max
Sleeve
W
L
+
T
P
10.00
-
H Max
-
P
20.00
+
T
Recommended PCB Layout
1.10 ±0.05
W
L
1.40 ±0.05
Recommended PCB Layout
Part Number
Ø D ±0.2
H Max
L ±0.1
P
T
W±0.1
W1 ±0.5.
KR-5R5H104-R
KR-5R5H224-R
KR-5R5H334-R
KR-5R5H474-R
KR-5R5H105-R
KR-5R5H155-R
11.5
11.5
11.5
11.5
19.0
19.0
5.2
5.2
5.2
5.2
6.7
6.7
3.0
3.0
3.0
3.0
4.0
4.0
10.0±0.3
10.0±0.3
10.0±0.3
10.0±0.3
20.0±0.5
20.0±0.5
0.2
0.2
0.2
0.2
0.2
0.2
0.8
0.8
0.8
0.8
1.0
1.0
12.4
12.4
12.4
12.4
20.0
20.0
www.eaton.com/electronics
3
Technical Data
4327
Effective September 2016
KR Supercapacitors
Coin cells
Dimensions (mm)
KR-5R5C104/224/334/474-R
Polarity Marking
Location
D
H Max
L(-)
Sleeve
KR-5R5C105/155-R
Polarity Marking
Location
D
Sleeve
H Max
L1 L2
W
W1
1.60 ±0.05
L(-)
L(+)
W
W1
L1 L2
-
P
+
T
5.00
L(+)
-
P
+
T
5.00
1.60 ±0.05
Recommended PCB Layout
Recommended PCB Layout
C Type (cylindrical)
ØD
Max
H
Max
L (-)
±0.2
L (+)
±0.2
P
±0.3
T
±0.05
L1
±0.10
L2
±0.10
W
±0.06
W1
±0.06
Part Number
KR-5R5C104-R
KR-5R5C104H-R
KR-5R5C224-R
KR-5R5C224H-R
KR-5R5C334-R
KR-5R5C334H-R
KR-5R5C474-R
KR-5R5C474H-R
KR-5R5C105-R
KR-5R5C105H-R
KR-5R5C155-R
KR-5R5C155H-R
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
21.5
21.5
21.5
21.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
7.1
7.1
7.1
7.1
6.1
3.3
6.1
3.3
6.1
3.3
6.1
3.3
6.5
3.3
6.5
3.3
5.7
3.3
5.7
3.3
5.7
3.3
5.7
3.3
5.8
3.3
5.8
3.3
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
3.0
0.9
3.0
0.9
3.0
0.9
3.0
0.9
3.0
0.8
3.0
0.8
4.0
1.9
4.0
1.9
4.0
1.9
4.0
1.9
4.0
1.8
4.0
1.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
Part numbering system
KR
—
5
R
5
o
Configuration
V = Vertical
H = Horizontal
C=Cylindrical
o
Value
o
o
Multiplier
H*
-R
Voltage (V)
R = Decimal
Family Code
5R5 = 5.5 V
Capacitance (μF)
Short lead length
RoHS Compliant
Example: 474 = 47 x 104 μF or 0.47 F
* Applies to cylindrical part numbers only. If ordering vertical or horizontal types, or standard lead length on cylindrical type, omit “H” from part number.
Packaging information
•
•
•
Part marking
•
•
•
•
Standard packaging: 500 pieces per package
For 0.1 F to 0.47 F, 500 pieces per bag
For 1.0 F to 1.5 F, 100 pieces per tray, 5 trays per box
Manufacturer
Capacitance (F)
Max operating voltage (V)
Polarity
4
www.eaton.com/electronics
Technical Data
4327
Effective September 2016
KR Supercapacitors
Coin cells
Wave solder profile
t
p
T
p
First Wave
Second Wave
Temperature
T
smax
Preheat area
Cool down area
Time
Profile Feature
Standard SnPb Solder
Lead (Pb) Free Solder
Preheat and soak
• Temperature max. (Tsmax)
• Time max.
100 °C
60 seconds
160 °C max.
235 °C – 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
100 °C
60 seconds
160 °C max.
250 °C – 260 °C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
D
preheat to max Temperature
Peak temperature (TP)*
Time at peak temperature (tp)
Ramp-down rate
Time 25 °C to 25 °C
Manual solder
Do not touch the supercapacitor’s external sleeve with the soldering rod or the sleeve will melt or crack. The recommended temperature
of the soldering rod tip is less than 260 °C (maximum: 350 °C) and the soldering duration should be less than 5 seconds. Minimize the time
that the soldering iron is in direct contact with the terminals of the supercapacitor as excessive heating of the leads may lead to higher
equivalent series resistance (ESR).
Reflow soldering
Do not use reflow soldering using infrared or convection oven heating methods.
Cleaning/Washing
Avoid cleaning of circuit boards, however if the circuit board must be cleaned use static or ultrasonic immersion in a standard circuit board
cleaning fluid for no more than 5 minutes and a maximum temperature of +60 °C. Afterwards thoroughly rinse and dry the circuit boards.
In general, treat supercapacitors in the same manner you would an aluminum electrolytic capacitor.
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
