Ferrites and accessories
RM 12, RM 12 LP
Core and accessories
Series/Type:
Date:
B65815, B65816
Februiary 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
RM 12
Core and accessories
Individual parts
Core
Part no.
B65815
Page
3
Clamps
B65816
6
Coil former
B65816
4
Core
B65815
3

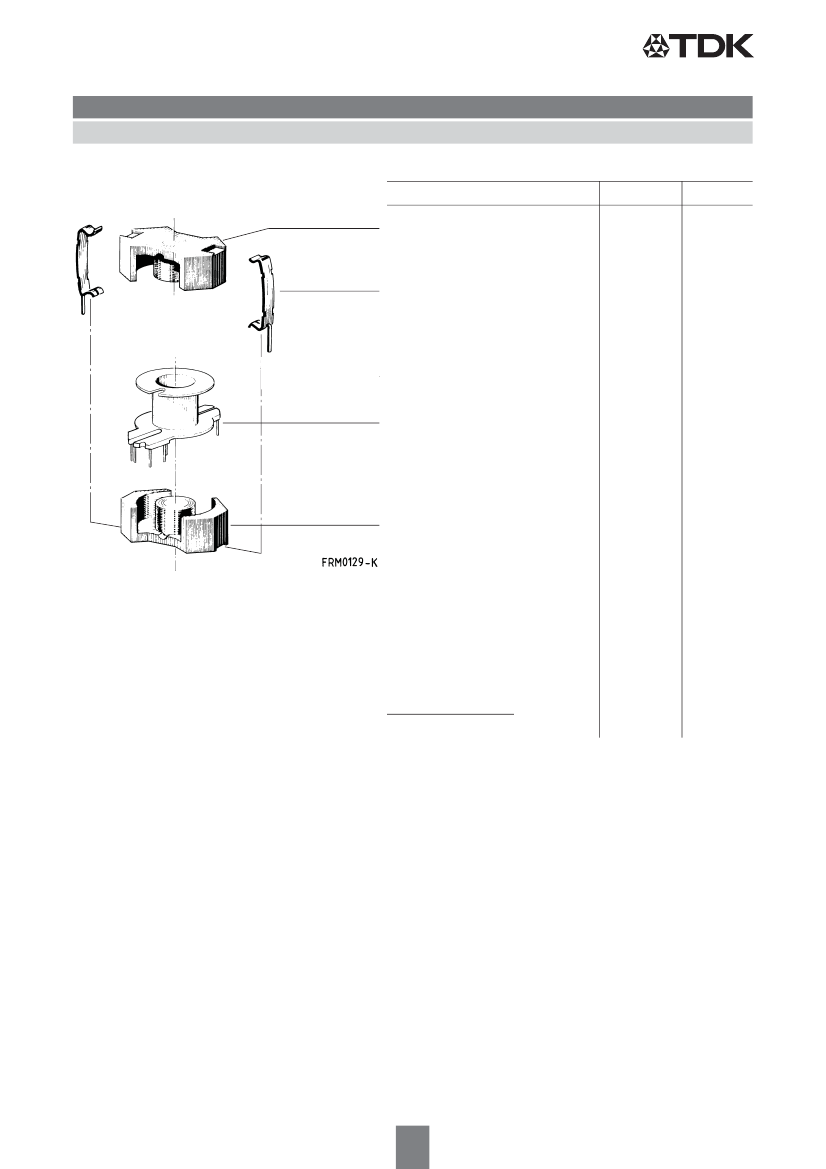

Example of an assembly set
Also available:
Coil former for
power applications
RM 12 low-profile:
Core
B65816
5
B65815P
7
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
02/16
RM 12
Core
■
To IEC 62317-4
■
Optimized core cross section and increased
B65815
thickness of base for power applications
■
Without center hole
■
Delivery mode: sets

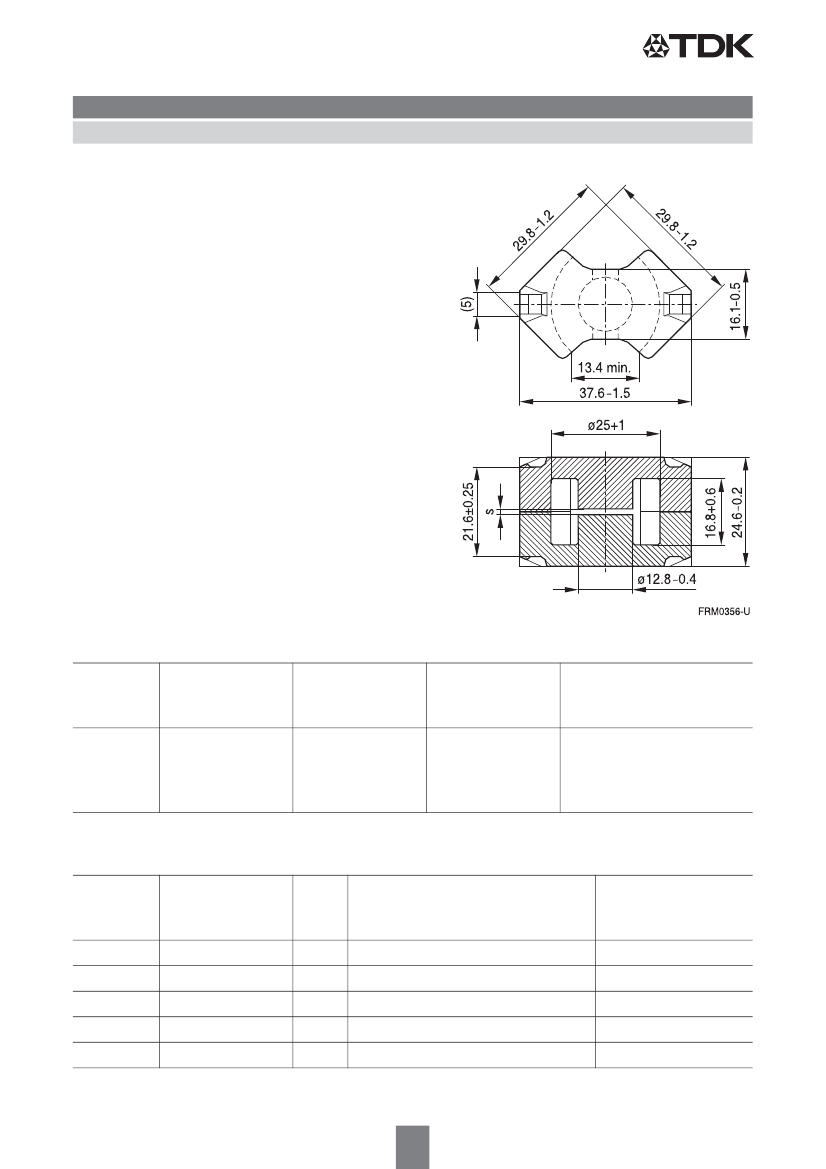

Magnetic characteristics
(per set)
l/A = 0.39 mm
–1
l
e
= 57 mm
A
e
= 146 mm
2
A
min
= 125 mm
2
V
e
= 8320 mm
3
Approx. weight
45 g/set
Gapped
Material
A
L
value
nH
N41
160
250
400
1000
3%
3%
5%
5%
s
approx.
mm
1.30
0.70
0.35
0.12
e
Ordering code
-E without center hole
50
78
124
311
B65815E0160A041
B65815E0250A041
B65815E0400J041
B65815E1000J041
Ungapped
Material
A
L
value
nH
N30
N49
N87
N97
N41
8700 +30/–20%
3700 +30/–20%
5300 +30/–20%
5300 +30/–20%
6000 +30/–20%
2700
1150
1640
1640
1860
e
P
V
W/set
Ordering code
-E without center hole
B65815E0000R030
< 1.41 ( 50 mT, 500 kHz, 100 C) B65815E0000R049
< 4.50 (200 mT, 100 kHz, 100 C) B65815E0000R087
< 3.60 (200 mT, 100 kHz, 100 C) B65815E0000R097
< 1.50 (200 mT, 25 kHz, 100 C) B65815E0000R041
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
02/16
RM 12
Accessories
Coil former
GFR thermosetting plastic (UL 94 V-0, insulation class to IEC 60085:
H max. operating temperature 155 C), color code black
Sumikon PM 9630
®
E41429 (M) , SUMITOMO BAKELITE CO LTD
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 C, 3.5 s
Winding:
see Data Book 2013, chapter “Processing notes, 2.1”
Squared pins.
For matching clamp see page 6.
Sections
1
A
N
mm
2
73
l
N
mm
61
A
R
value
28.7
Pins
12
11
Ordering code
B65816N1012D001
B65816N1011D001
Material:
B65816
12 pins
pin 9 omitted in the 11-pin version
Ground Ø 1.3
+0.1

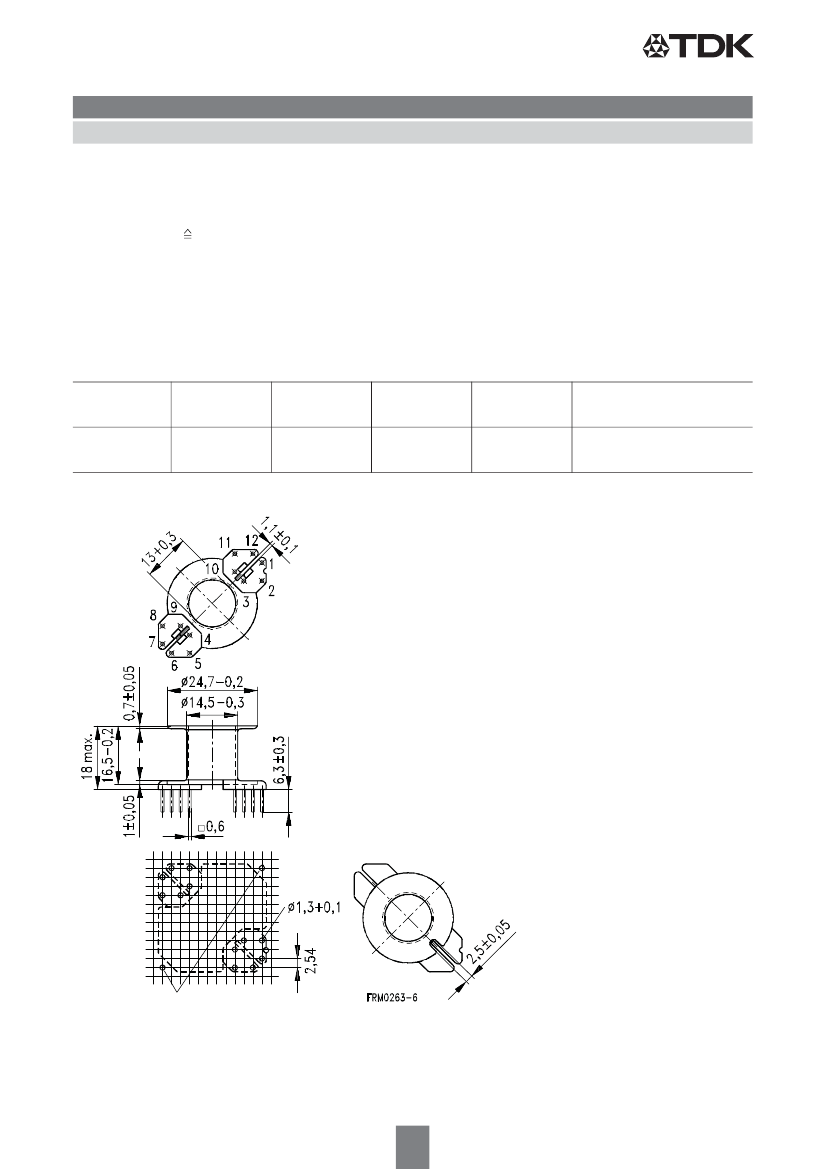

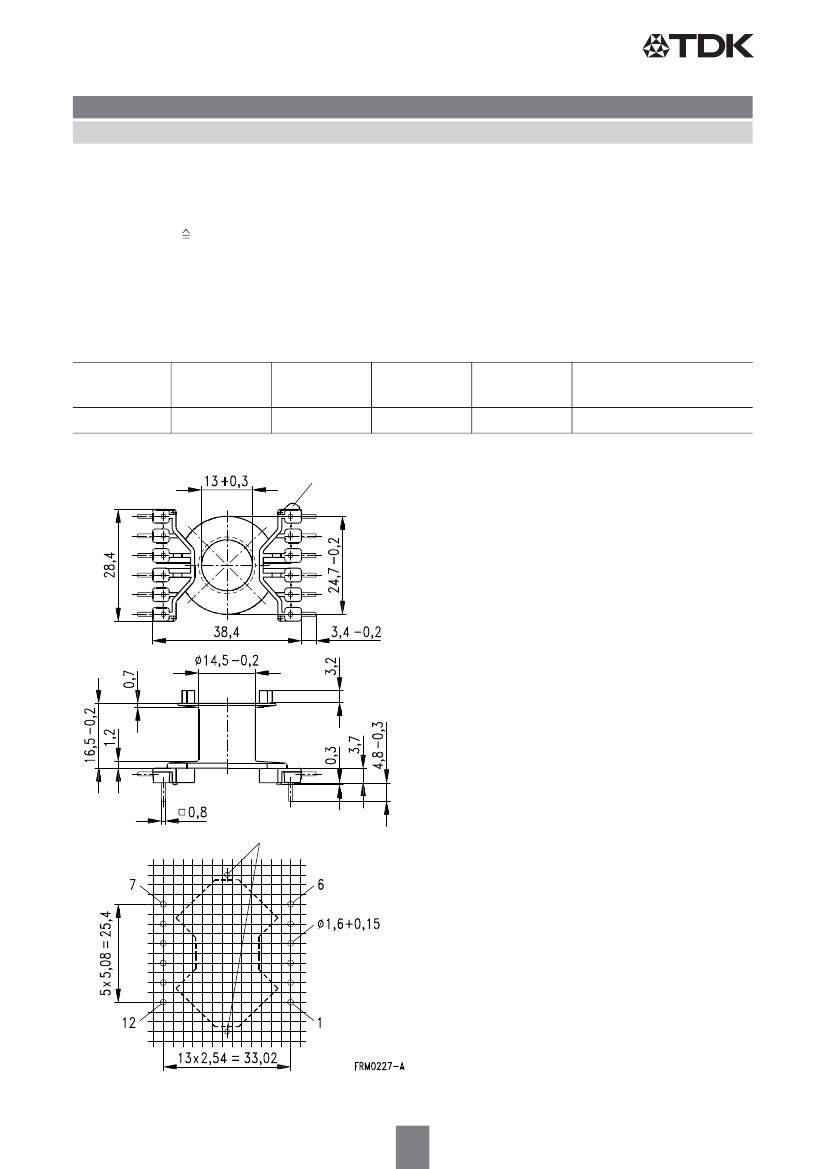

Hole arrangement
View in mounting direction
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
02/16
RM 12
Accessories
Coil former for power applications
GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 C), color code black
Valox 420-SE0
®
E45329 (M) , Sabic Innovative Plastic
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 C, 3.5 s
Winding:
see Data Book 2013, chapter “Processing notes, 2.1”
For matching clamp see page 6.
Sections
1
A
N
mm
2
72
l
N
mm
61
A
R
value
28.7
Pins
12
Ordering code
B65816C1512T001
Material:
B65816
Marking of pin 1
Ground Ø 1.3+0.1
Hole arrangement
View in mounting direction
(Note half pitch!)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
02/16
