Tantalum Surface Mount Capacitors – Low ESR
Tantalum Stack MnO
2
(TSM) Series
Overview
The KEMET Tantalum Stack MnO
2
(TSM) Series is designed
to provide the highest capacitance/voltage ratings in
surface mount configuration. KEMET’s T493 COTS Military/
Aerospace capacitors are utilized in stacks of 2, 3, 4, and 6
components to achieve a broad range of capacitance and
voltage ratings. The T493 COTS series offers component
level Weibull grading options, surge current testing options
and standard, low, and ultra-low ESR options. All component
level lots of this series are conditioned with MIL–PRF–55365
Group A testing. Stacking configurations offer this high
reliability product with custom capacitance/voltage solutions
and very low ESR options.
Note: Custom stacking solutions are available with other KEMET Tantalum
MnO
2
Surface Mount Series. Please contact KEMET Sales for availability.
Benefits
• High capacitance
• Surface mountable
• Capacitance values of 9.4 µF to 2,000 µF
• Capacitance can be custom specified
• Voltage ratings of 6 VDC to 50 VDC
• High volumetric efficiency
• Ultra-low ESR
• Surge capability
• Weibull failure options B and C
• Operating temperature range of −55˚C to +125˚C
• Laser-marked case
• Discrete components EIA standard case sizes (others available)
• High Temperature lead attach material available (> 260°C)

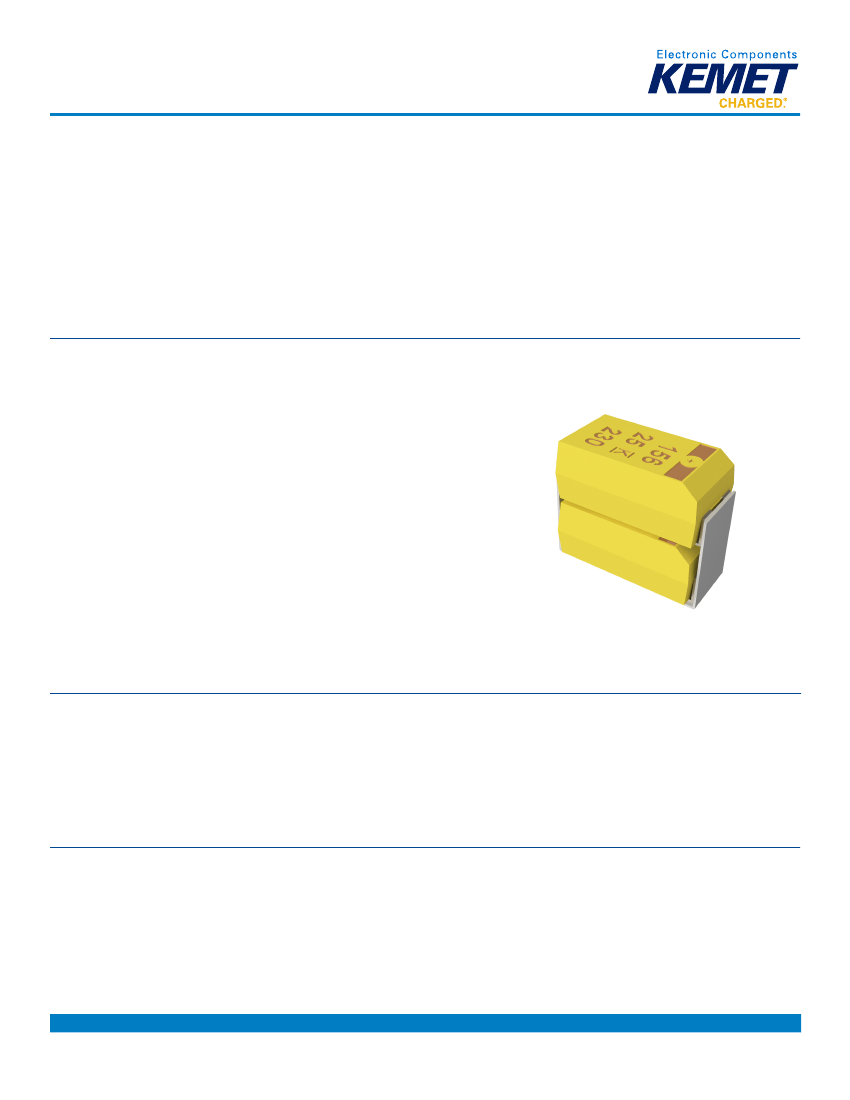

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in a variety of market segments. The T493 COTS stack devices can be
utilized in military and aerospace applications. Other KEMET series can be utilized in filtering and decoupling applications to
service various market segments.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2021_TSM • 5/4/2017
1
Tantalum Surface Mount Capacitors – Low ESR
Tantalum Stack MnO2 (TSM) Series
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
T
Capacitor
Class
T=
Tantalum
SM
Series
Stacks
MnO
2
Cathode
2D
447
K
10
A
Failure
Rate/
Design
A = N/A
B = 0.1%/
1,000 hours
C = 0.01%/
1,000 hours
H
Termination
Finish
H = Standard
Solder Coated
(SnPb 5% Pb
minimum)
C = Hot Solder
Dipped
B = Gold
Plated
T = 100% Tin
61
Surge
20
ESR
D493
C-Spec 2
First digit
represents outer
leadframe finish
D = Silver plated
(Ag)
H = Solder plated
(SnPb 5% Pb
minimum)
T = 100% Tin (Sn)
Second, third
& fourth digit
designates
discrete
component
series.
493 = T493
Rated
Case Capacitance Capacitance
Voltage
Size Code (pF)
Tolerance
(VDC)
K = ±10%
2C,
First two
M = ±20%
3C,
digits
represent
4C,
6C,
significant
2D,
figures. Third
3D,
digit specifies
number of
4D,
zeros.
6D,
2X,
3X,
4X,
6X
006 = 6.3
010 = 10
016 = 16
020 = 20
025 = 25
035 = 35
050 = 50
61 = None
10 = ESR-
62 = 10 Cycles Standard
25°C After
20 = ESR-Low
Weibull
30 = ESR-
63 = 10 cycles,
Ultra-low
−55°C and 85°C
After Weibull
64 = 10 cycles,
−55°C and 85°C
Before Weibull
Note: Custom discrete component stacking solutions are also available with other KEMET Polymer Electrolytic Surface Mount series/products.
Please contact KEMET Sales for availability.
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
9.4 – 2,000 μF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
6 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2021_TSM • 5/4/2017
2
Tantalum Surface Mount Capacitors – Low ESR
Tantalum Stack MnO2 (TSM) Series
Qualification
Test
Endurance
Condition
Δ C/C
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
KEMET specified test, mounted, −55°C to 125°C,
5 cycles
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Thermal Shock
Surge Voltage
85°C, 1.15 x rated voltage 1,000 cycles
Surge Voltage
125°C, 0.77 x rated voltage 1,000 cycles
Mechanical Vibration
MIL–STD–202, Method 204, Condition D, 10 Hz to
2,000 Hz, 20 G peak
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2021_TSM • 5/4/2017
3
Tantalum Surface Mount Capacitors – Low ESR
Tantalum Stack MnO2 (TSM) Series

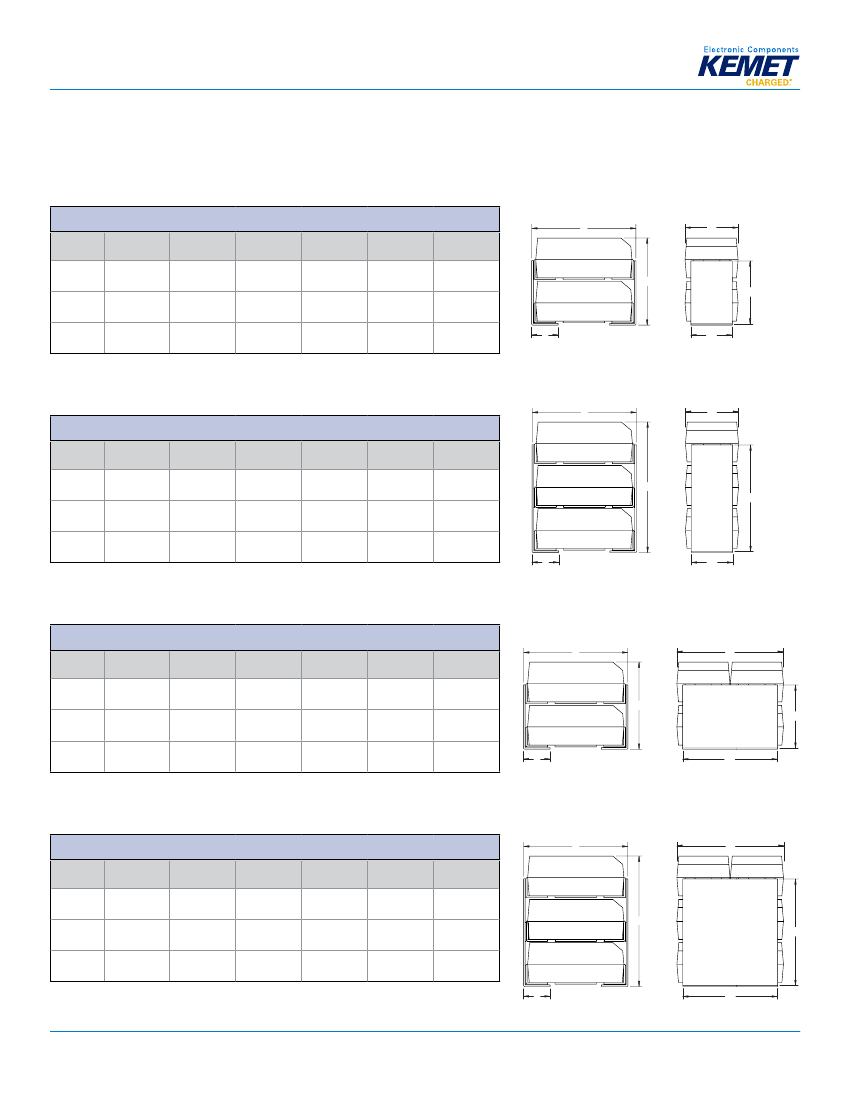

Dimensions – Millimeters (Inches)
Metric will govern
TSM2
KEMET 2 Component Stack Dimensions
Case
Code
2C
2D
2X
L
6.5±0.38
(0.258±0.015)
8.0±0.38
(0.315±0.015)
8.0±0.38
(0.315±0.015)
TSM2
TSP2
TSM2
TSP2
W
2
H
2
4.5±0.38
(0.176±0.015)
4.8±0.38
(0.192±0.015)
6.9±0.38
(0.272±0.015)
SIDE VIEW
L
ANODE (+) END VIEW
W
SIDE VIEW
L
H
ANODE (+) END VIEW
W
H
2
W
3.3±0.2
(0.130±0.008)
4.4±0.2
(0.174±0.008)
4.4±0.2
(0.174±0.008)
H
5.3±0.38
(0.210±0.015)
6.2±0.38
(0.245±0.015)
8.9±0.38
(0.352±0.015)
P
1.4±0.38
(0.055±0.015)
1.9± .38
(0.075±0.015)
1.9±0.38
(0.075±0.015)
P
H
W
2
2.5±0.2
(0.100±0.008)
3.0±0.2
(0.120±0.008)
3.0±0.2
(0.120±0.008)
H
2
TSM3
KEMET 3 Component Stack Dimensions
Case
Code
3C
3D
L
6.5±0.38
(0.258±0.015)
8.0±0.38
(0.315±0.015)
8.0±0.38
(0.315±0.015)
TSM3
TSP3
TSM3
TSP3
P
P
W
2
SIDE VIEW
L
ANODE (+) END VIEW
W
W
3.3±0.2
(0.130±0.008)
4.4±0.2
(0.174±0.008)
4.4±0.2
(0.174±0.008)
H
7.8±0.38
(0.310±0.015)
9.2±0.38
(0.365±0.015)
W
2
2.5±0.2
(0.100±0.008)
3.0±0.2
(0.120±0.008)
H
2
6.4±0.38
(0.252±0.015)
7.7±0.38
(0.304±0.015)
SIDE VIEW
L
H
ANODE (+) END VIEW
W
1.4±0.38
(0.055±0.015)
1.9±0.38
(0.075±0.015)
H
2
TSM2
TSP2
TSM2
TSM4
TSP2
3X
Case
Code
4C
4D
4X
13.3±0.38
3.0±0.2
11.0±0.38
(0.525±0.015) (0.120 ±0.008) (0.436±0.015)
SIDE VIEW
L
SIDE VIEW
ANODE (+) END VIEW
W
L
L
ANODE (+) END VIEW
KEMET 4 Component Stack Dimensions
TSM4
TSP4
TSM4
TSP4
P
1.9±0.38
(0.075±0.015)
H
H
2
P
SIDE VIEW
P
L
SIDE VIEW
L
H
W
2
ANODE (+) END VIEW
W
2
W
ANODE (+) END VIEW
W
H
2
W
H
H
W
H
2
W
2
H
2
4.6±0.38
(0.180±0.015)
4.8±0.38
(0.192±0.015)
6.5±0.38
(0.258±0.015)
P
6.6±0.2
(0.262±0.008)
H
8.9±0.2
(0.350±0.008)
8.9±0.2
(0.350±0.008)
5.3±0.38
(0.210±0.015)
W
2
5.8±0.2
(0.230±0.008)
H
2
1.4±0.38
(0.055±0.015)
1.9±0.38
(0.075±0.015)
1.9±0.38
(0.075±0.015)
P
H
W
2
H
2
8.0±0.38
(0.315±0.015)
8.0±0.38
(0.315±0.015)
6.2±0.38
7.4±0.2
(0.245±0.015) (0.292±0.008)
8.9±0.38
W
2
(0.352±0.015)
P
7.4±0.2
6.9±0.38
(0.292±0.008) (0.272±0.015)
P
W
2
TSM3
TSP3
TSM6
TSM3
TSP3
6C
6D
6X
SIDE VIEW
L
ANODE (+) END VIEW
W
KEMET 6 Component Stack Dimensions
Case
Code
SIDE VIEW
L
W
6.6±0.2
(0.262±0.008)
8.9±0.2
(0.350±0.008)
8.9±0.2
H
(0.350±0.008)
H
ANODE (+) END VIEW
TSM6
TSP6
TSM6
TSP6
P
1.4±0.38
(.055±0.015)
1.9±0.38
(0.075±0.015)
1.9±0.38
(0.075±0.015)
P
SIDE VIEW
L
SIDE VIEW
L
ANODE (+) END VIEW
W
ANODE (+) END VIEW
W
H
6.5±0.38
(0.258±0.015)
8.0±0.38
(0.315±0.015)
8.0±0.38
(0.315±0.015)
P
L
7.8±0.38
(0.310±0.015)
9.2±0.38
(0.365±0.015)
13.3±0.38
(0.525±0.015)
W
2
W
W
2
H
2
6.6±0.38
(0.260±0.015)
7.7±0.38
(0.304±0.015)
5.8±0.2
(0.230±0.008)
(0.292±0.008)
H
2
7.4±0.2
H
H
2
7.4±0.2
11.0±0.38
(0.292±0.008) (0.436±0.015)
H
2
H
H
2
W
2
P
W
P
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
2
T2021_TSM
W
5/4/2017
•
2
4
Tantalum Surface Mount Capacitors – Low ESR
Tantalum Stack MnO2 (TSM) Series
Capacitance and Rated Voltage Chart
Capacitance
µF
9.4
14
19
20
28
30
40
44
45
60
66
88
90
94
130
140
190
200
270
280
300
400
410
440
450
600
660
880
900
990
1300
2000
Code
945
146
196
206
286
306
406
446
456
606
666
886
906
946
137
147
197
207
277
287
307
407
417
447
457
607
667
887
907
997
138
208
3D
6C, 4D
6D
3X
6D, 4X
6X
3C, 2D
4C
6C
3D, 2X
4D
6D
2C
2D
3D
4D
3C
4C
6D
6C
2D
2C
3C
4C
3D
4D
6D
2C
6C, 2D
3D
4D
3C
4C
6C
2D
6D
2C
3C
4C
6C
3D
4D
6X
2C
3C
4C
2D
2C
6V
10 V
16 V
Rated Voltage
20 V
25 V
35 V
50 V
2D
3D
4D
2X
6D
3X
4X
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2021_TSM • 5/4/2017
5
