PG1096103NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PG1096103NLT

PG1096103NLT: DescriptionFixed Inductors PG1096NL 26x26mm 9uH 24.5A 3.15mOhms; CategoryPassive components; File Size357KB，3 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

PG1096103NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PG1096103NLT	-	-	View	Buy Now

PG1096103NLT Overview

Fixed Inductors PG1096NL 26x26mm 9uH 24.5A 3.15mOhms

PG1096103NLT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse A Technitrol Company
Product Category	Fixed Inductors
RoHS	Details
Inductance	10 uH
Tolerance	20 %
Maximum DC Current	24.5 A
Maximum DC Resistance	3.15 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 130 C
Test Frequency	100 kHz
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	26 mm x 26 mm x 14.8 mm
Length	26 mm
Width	26 mm
Height	14.8 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	Round Wire Inductors
Self Resonant Frequency	-
Factory Pack Quantity	60

Preview

Download Datasheet

View All

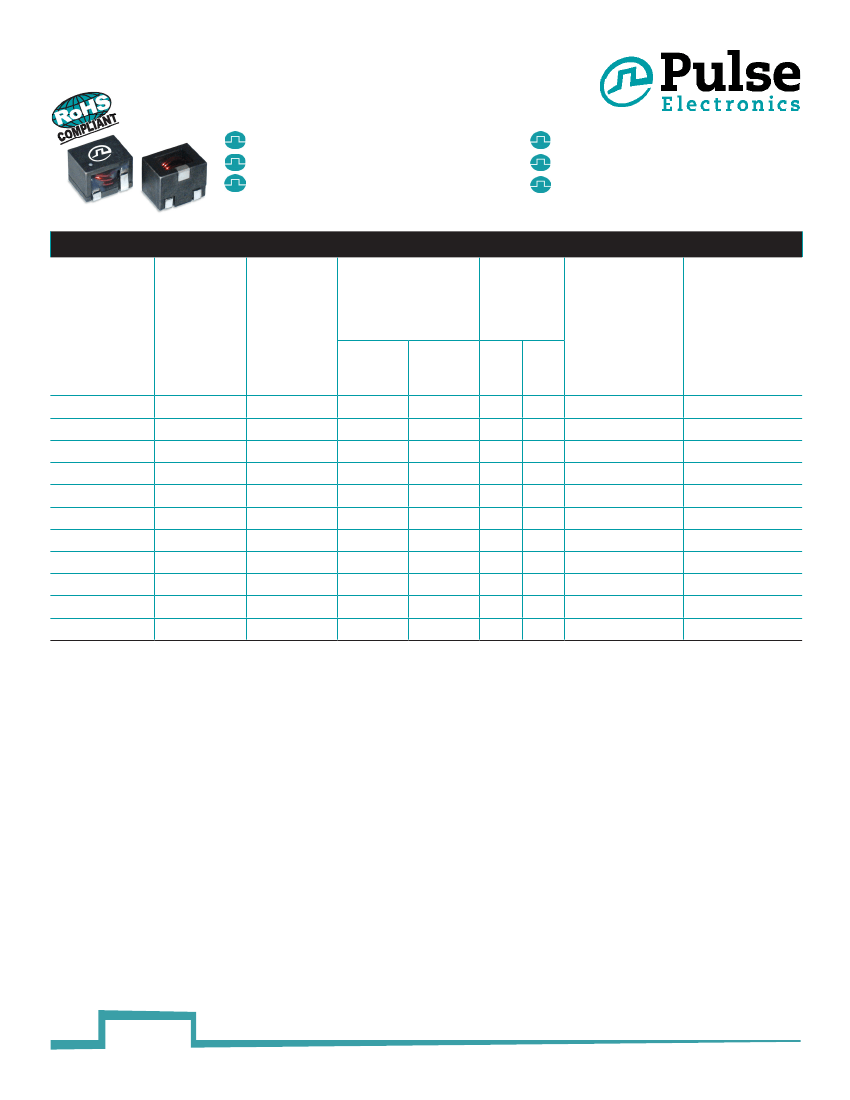

SMT Power Inductors

Round wire Coils– PG1096NL series

Inductance Range: 1.5uH to 82uH

Current Rating: up to 65Apk

Footprint: 26mm x 26mm Max

Height: 14.8mm Max

No Thermal Aging

RoHS Compliant

Electrical Specifications @ 25°C - Operating Temperature -40°C to 130°C

Controlled Electrical Specs.

Irated

(A)

Part Number

Inductance

@ Irated

µH

TYPICAL

Saturation

Current Isat

(A TYP)

DCR

(mΩ)

MAX

24.5

18.5

13.5

9.5

8.5

0.85

1.2

1.8

3.15

5.5

10.5

12.5

Inductance

@ 0Adc

(µH

20%)

1.5

2.5

4.7

6.8

Heating Current

Idc

(A TYP)

Core Loss Factor

(K2)

25°C

15.5

100°C

50.5

27.5

21.8

16.5

14.8

8.6

7.8

24.5

18.5

13.5

9.5

8.5

27.9

43.7

50.6

83.6

90.9

111.5

134.4

168.5

179.3

PG1096.152NL

PG1096.252NL

PG1096.472NL

PG1096.682NL

PG1096.103NL

PG1096.183NL

PG1096.223NL

PG1096.333NL

PG1096.473NL

PG1096.683NL

PG1096.823NL

1.35

2.25

4.2

19.5

29.5

42.3

73.5

Notes:

1. Actual temperature of the component during system operation (ambient plus tem-

perature rise) must be within the standard operating range.

2. Inductance at Irated is a typical inductance value for the component taken at rated

current.

3. The rated current as listed is either the saturation current (@ 25°C) or the heating

current depending on which value is lower.

4. The DCR of the part is measured at an ambient temperature of 20°C±3°C from point a

to b as shown below on the mechanical drawing.

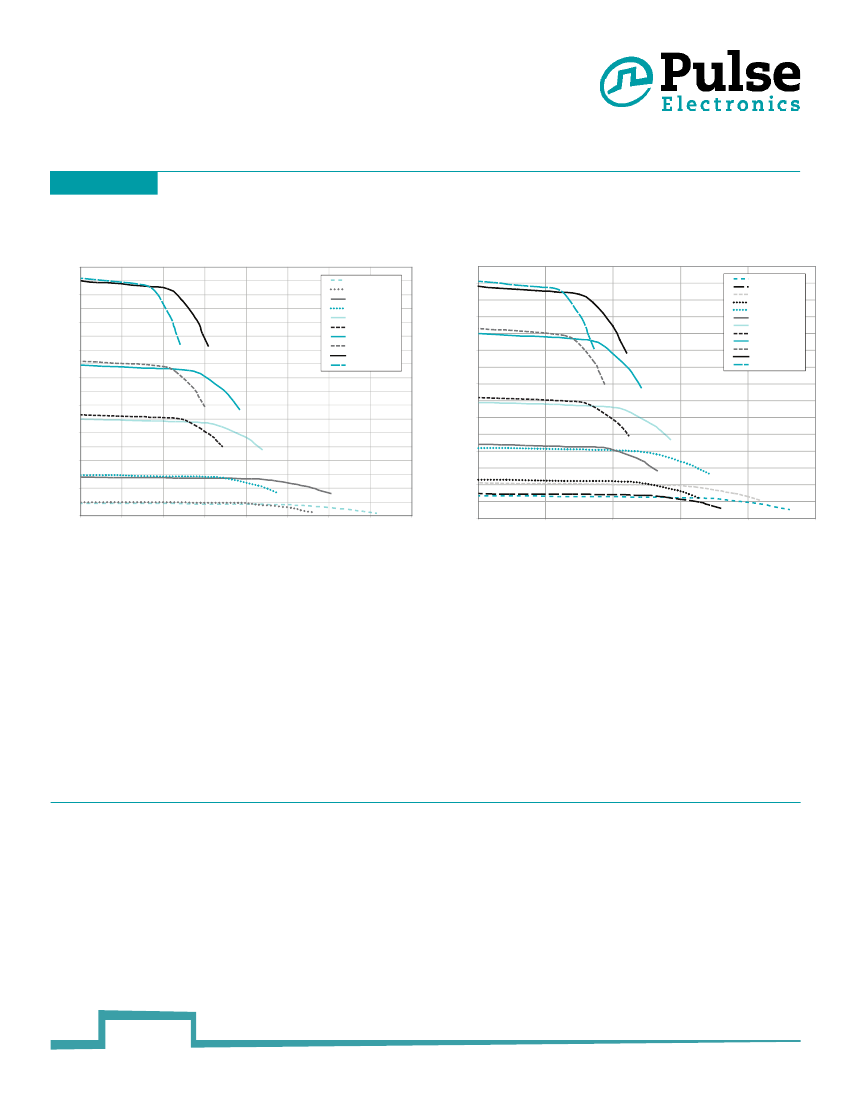

5. The saturation current, Isat, is the current at which the component inductance drop by

20% (typical) at an ambient temperature. This current is determined by placing the

component in the specified ambient environment and applying a short duration pulse

current (to eliminate self-heating effect) to the component.

6. The heating current, Idc, is the DC current required to raise the component tempera- 9.

ture by approximately 40°C. The heating current is determined by mounting the

component on a typical PCB and applying current for 30 minutes. The temperature is

measured by placing the thermocouple on top of the unit under test. Take note that

the components’ performance varies depending on the system condition. It is sug-

gested that the component be tested at the system level, to verify the temperature

rise of the component during system operation.

Core loss approximation is based on published core data:

Core Loss = K1 * (f)

1.42

* (K2ΔI)

2.57

in mW

K1=2.86E-09 (2.50E-09 FOR PG1096.152NL)

f = switching frequency in KHz

K1 & K2 = core loss factors

ΔI=

delta I across the component in Ampere

K2ΔI=one half of the peak to peak flux density across the component in Gauss

Unless otherwise specified, all testing is made at 100kHz, 0.1Vac

Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. PG1096.223NL becomes PG1096.223NLT). Pulse complies with industry

standard tape and reel specification EIA481. The tape and reel for this product has a

width (W=44.0mm), pitch (Po=36.0mm) and depth (Ko=15.6mm).

pulseelectronics.com

P745.C (03/16)
