1892787-9: DescriptionAssy Vert MINIPAK HDL Rcpt 20s; CategoryThe connector; File Size687KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1892787-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1892787-9	-	-	View	Buy Now

1892787-9 Overview

Assy Vert MINIPAK HDL Rcpt 20s

1892787-9 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting female terminal
Connector System	Board to Board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Number of Positions	28
Board-to-board configuration	vertical
Terminal contact plating material	gold
Terminal contact plating thickness	1.27 µm [ 50 µin ]
Contact Current Rating (Max) (A)	136
Terminal contact part plating material surface coating	matte
joint alignment	with
Joint alignment type	polarization
PCB installation and fixation	Without
PCB mounting alignment	Without
Connector mounting type	board mounting
Centerline (Pitch) (mm)	2.01, 2.79, 4.31
Centerline (Pitch) (in)	.079, .11, .17
PCB thickness (recommended) (in)	1.27
Tail length (mm)	1.27
Working group temperature range	-40 – 125 °C [ -40 – 257 °F ]
pick and place cover	Without
Circuit Application	Power and Signal
Encapsulation method	boxes and trays

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TE CONNECTIVITY

7

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

2011

AA

00

A9

A10

ADD NEW PARTS

ECR-15-001425

15OCT2014

22DEC2014

OL

SZ

D

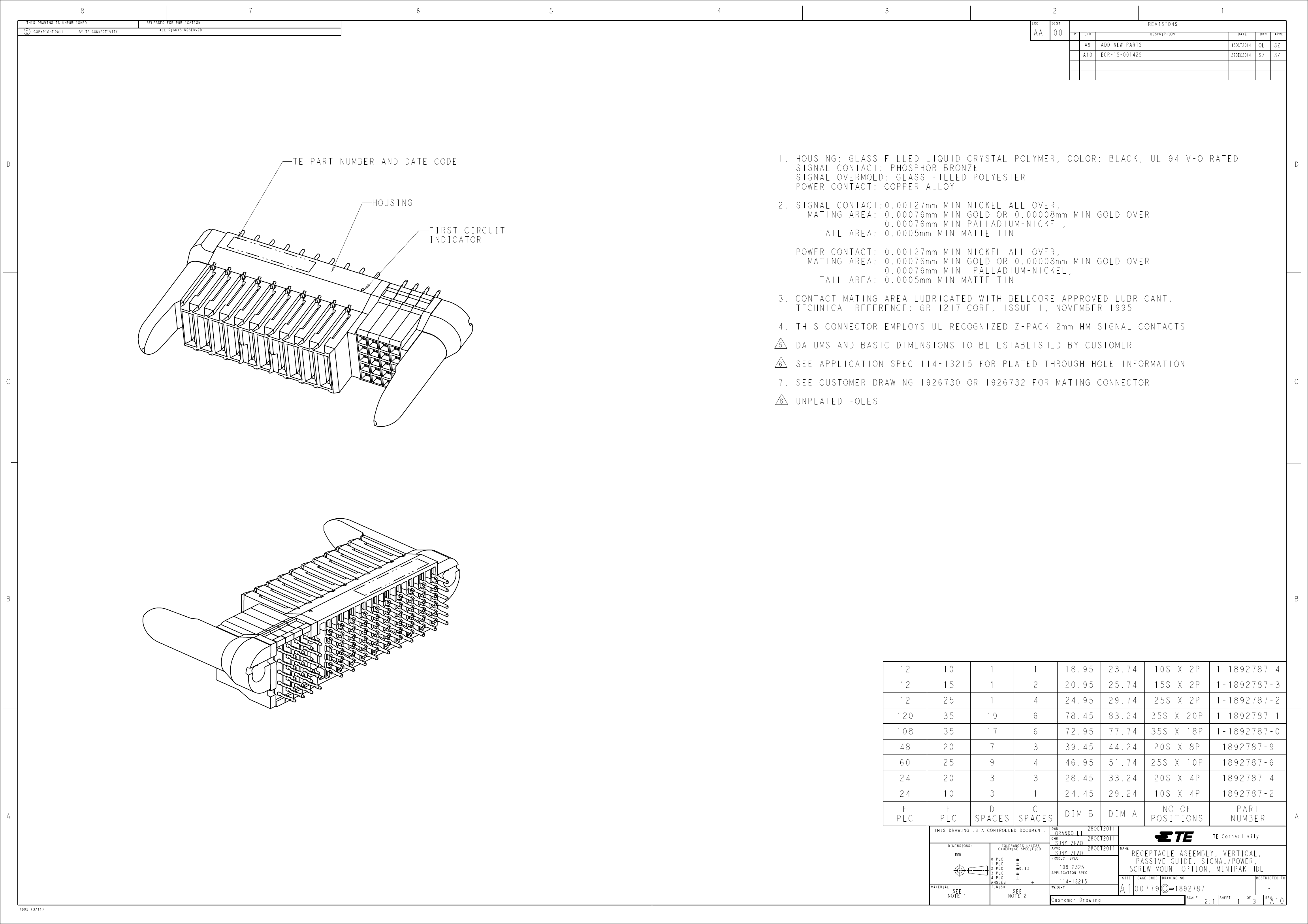

TE PART NUMBER AND DATE CODE

1. HOUSING: GLASS FILLED LIQUID CRYSTAL POLYMER, COLOR: BLACK, UL 94 V-O RATED

SIGNAL CONTACT: PHOSPHOR BRONZE

SIGNAL OVERMOLD: GLASS FILLED POLYESTER

POWER CONTACT: COPPER ALLOY

2. SIGNAL CONTACT:0.00127mm MIN NICKEL ALL OVER,

MATING AREA: 0.00076mm MIN GOLD OR 0.00008mm MIN GOLD OVER

0.00076mm MIN PALLADIUM-NICKEL,

TAIL AREA: 0.0005mm MIN MATTE TIN

POWER CONTACT: 0.00127mm MIN NICKEL ALL OVER,

MATING AREA: 0.00076mm MIN GOLD OR 0.00008mm MIN GOLD OVER

0.00076mm MIN PALLADIUM-NICKEL,

TAIL AREA: 0.0005mm MIN MATTE TIN

3. CONTACT MATING AREA LUBRICATED WITH BELLCORE APPROVED LUBRICANT,

TECHNICAL REFERENCE: GR-1217-CORE, ISSUE 1, NOVEMBER 1995

4. THIS CONNECTOR EMPLOYS UL RECOGNIZED Z-PACK 2mm HM SIGNAL CONTACTS

5

6

D

HOUSING

FIRST CIRCUIT

INDICATOR

DATUMS AND BASIC DIMENSIONS TO BE ESTABLISHED BY CUSTOMER

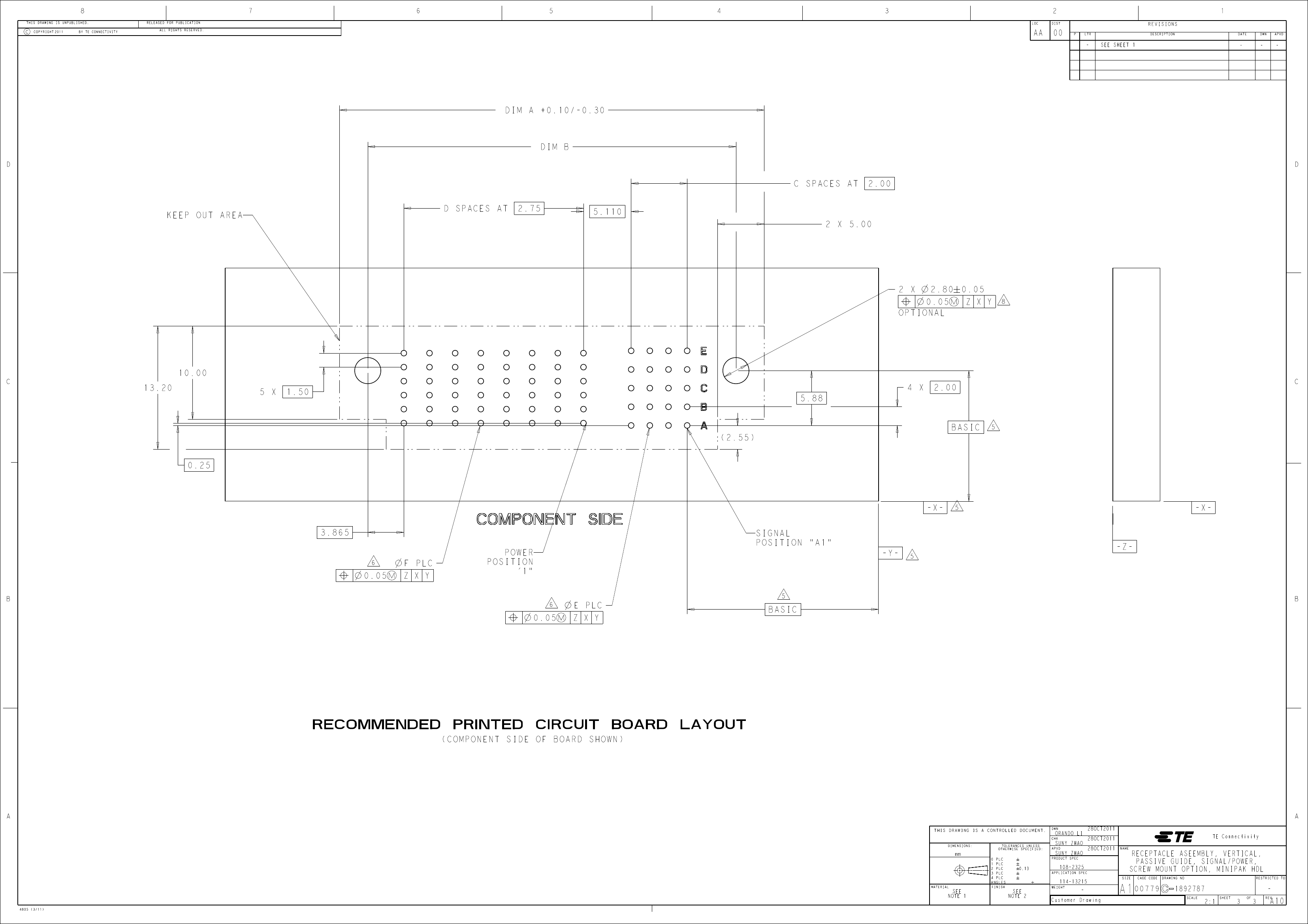

SEE APPLICATION SPEC 114-13215 FOR PLATED THROUGH HOLE INFORMATION

C

7. SEE CUSTOMER DRAWING 1926730 OR 1926732 FOR MATING CONNECTOR

8

UNPLATED HOLES

B

12

120

108

48

60

24

A

10

15

25

35

20

25

20

10

E

PLC

DIMENSIONS:

1

19

17

7

9

3

D

SPACES

1

2

4

6

3

4

3

1

C

SPACES

18.95

20.95

24.95

78.45

72.95

39.45

46.95

28.45

24.45

DIM B

DWN

CHK

23.74

25.74

29.74

83.24

77.74

44.24

51.74

33.24

29.24

DIM A

10S X 2P

15S X 2P

25S X 2P

35S X 20P

35S X 18P

20S X 8P

25S X 10P

20S X 4P

10S X 4P

NO OF

POSITIONS

1-1892787-4

1-1892787-3

1-1892787-2

1-1892787-1

1-1892787-0

1892787-9

1892787-6

1892787-4

1892787-2

PART

NUMBER

TE Connectivity

F

PLC

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ORANDO LI

SUNY ZHAO

108-2325

28OCT2011

NAME

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

0.13

APPLICATION SPEC

SEE

NOTE 1

SEE

NOTE 2

WEIGHT

114-13215

-

Customer Drawing

A1

00779

SIZE

RECEPTACLE ASEEMBLY, VERTICAL,

PASSIVE GUIDE, SIGNAL/POWER,

SCREW MOUNT OPTION, MINIPAK HDL

CAGE CODE

DRAWING NO

RESTRICTED TO

1892787

SCALE

4805 (3/11)

2:1

SHEET

1

OF

3

REV

-

A10
