KF22X-E9P-NJM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF22X-E9P-NJM

KF22X-E9P-NJM: DescriptionD-Sub Standard Connectors D9 FML .318FP METRIC FE-G/B J/S; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KF22X-E9P-NJM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF22X-E9P-NJM	-	-	View	Buy Now

KF22X-E9P-NJM Overview

D-Sub Standard Connectors D9 FML .318FP METRIC FE-G/B J/S

KF22X-E9P-NJM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KF22X
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF22X-E9P-N

Part Number Builder

LR78160

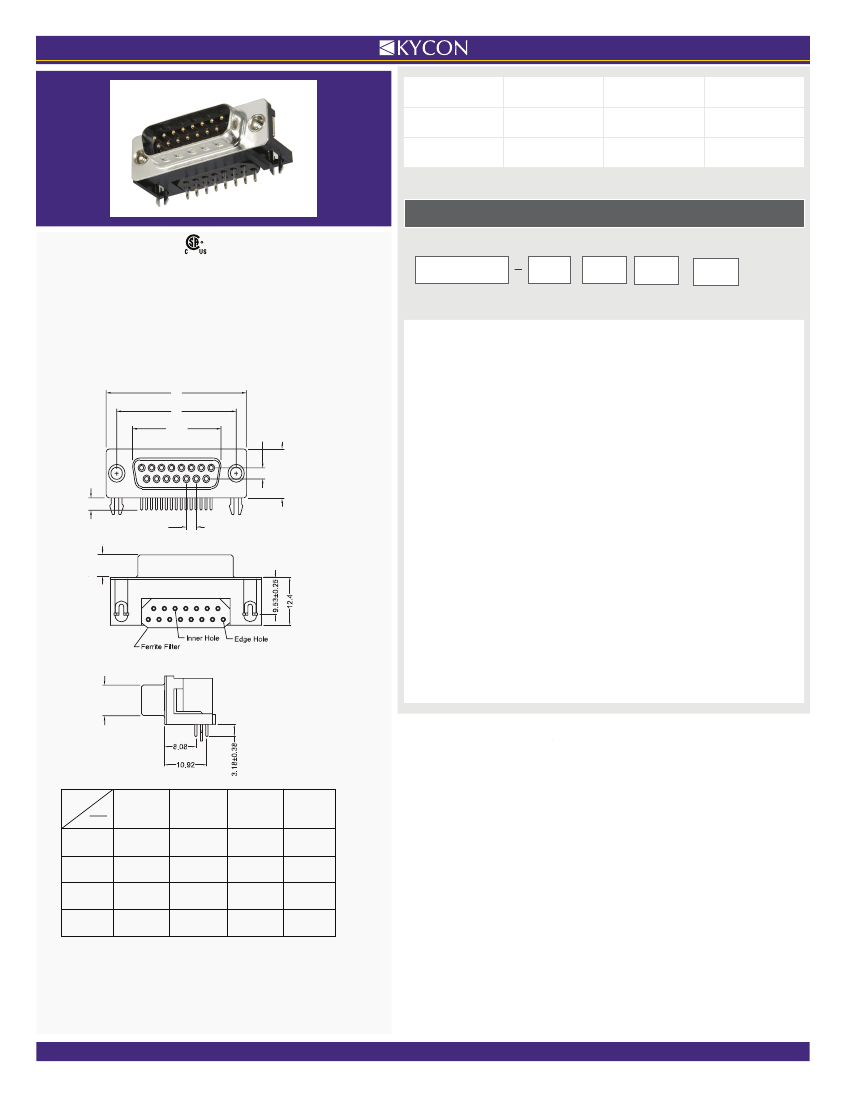

D-SUBMINIATURE CONNECTORS:

KF22X

Series

Right Angle PCB Mount 0.318" Footprint

with Ferrite

KF22X

Series Dimensions

Dimensions in mm

2.84

KF22X

Series

Shell Size

Contact

Type

Mounting

Option

Plating

Option

Series

KF22X

D-Subminiature Connector, 0

.318" Footprint with Ferrite

Shell Size-Contact Option

E-

9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

12.55

A, A1

3.18

2.77

Contact Type

- Pin Contact (Plug)

- Socket Contact (Receptacle)

Mounting Option

With Boardlocks and

#4-40 UNC Threaded Inserts

With Boardlocks and #

4-40 Jackscrews Installed

Plating Option

Blank -

Gold Flash

30 -

30µ” Gold

Contact Kycon for Other Options

6.1 Plug

5.8 Socket

8.36 Plug Interior

7.90 Socket Exterior

Shell

Size

(E)

(A)

(B)

(C)

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

±.010

±0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM
