5432669: DescriptionPluggable Terminal Blocks BCH-500V- 9; CategoryThe connector; File Size59KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

5432669 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5432669	-	-	View	Buy Now

5432669 Overview

Pluggable Terminal Blocks BCH-500V- 9

5432669 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Pluggable Terminal Blocks
RoHS	Details
Product	Headers
Number of Positions	9 Position
Pitch	5 mm
Factory Pack Quantity	100

Preview

Download Datasheet

View All

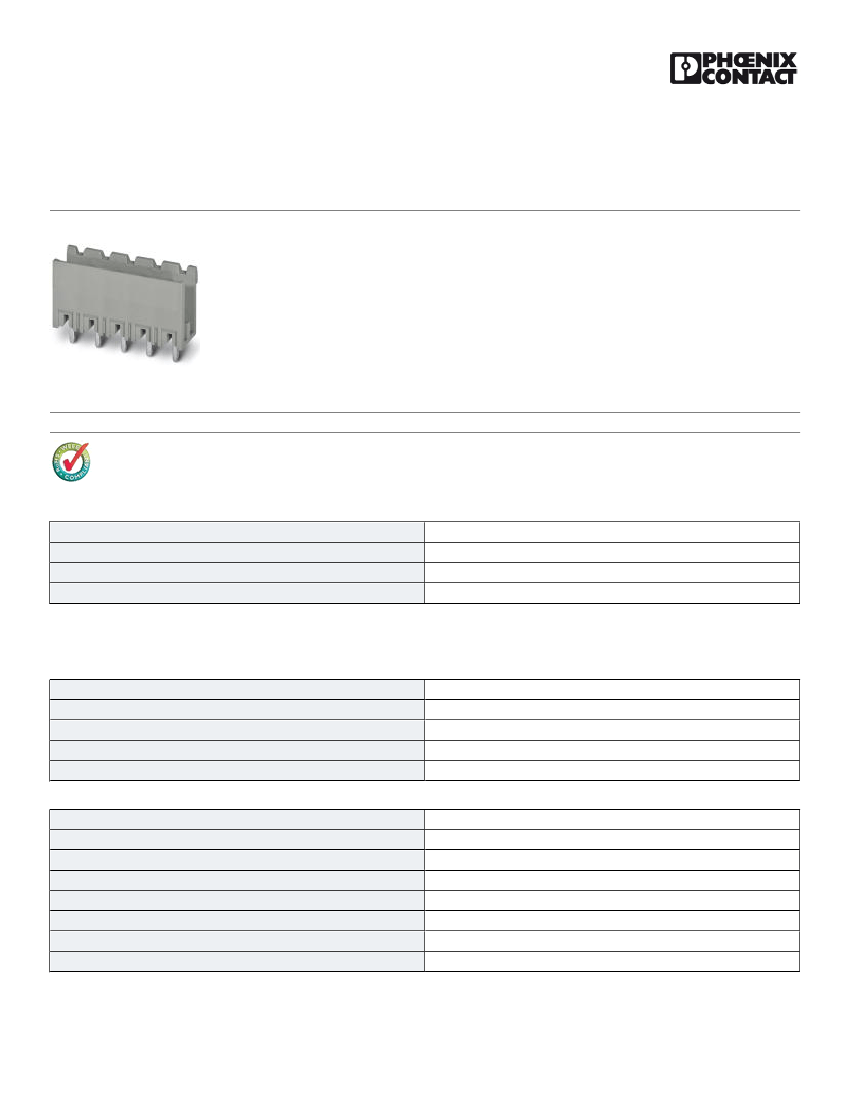

https://www.phoenixcontact.com/us/products/5432669

Printed-circuit board connector - BCH-500V- 9 GY - 5432669

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 9, Pitch: 5 mm, Color: signal

grey, Contact surface: Tin, Mounting: Soldering

The figure shows a 5-pos. version of

the product

Key commercial data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

China

Technical data

Dimensions

Length

Pitch

Dimension a

Pin dimensions

Hole diameter

8.6 mm

5 mm

40 mm

1 x 1 mm

1.4 mm

General

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

Rated voltage (III/2)

Rated voltage (II/2)

BCH-V

I

4 kV

250 V

320 V

400 V

11/05/2014 Page 1 / 3
