1460059 Overview

Heavy Duty Power Connectors HC-B 10-TFQ-N-M1M20G

1460059 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Heavy Duty Power Connectors
Shipping Restrictions	Mouser does not presently sell this product in your region.
Product	Hoods
Accessory Type	Sleeve Housing
Boardlocks	Double Locking
Housing / Hood Size	B10
Thread Size	M20
Factory Pack Quantity	1
Unit Weight	6 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1460059

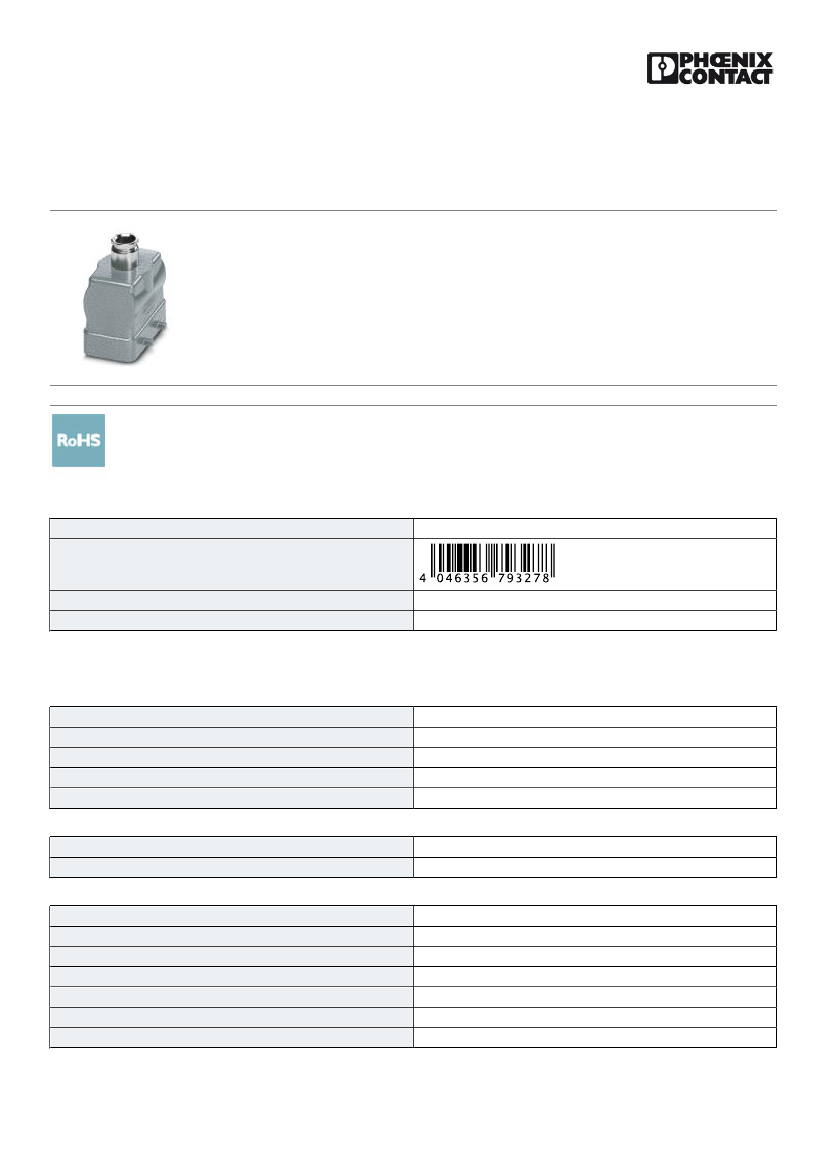

Housing - HC-B 10-TFQ-N-M1M20G - 1460059

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

HEAVYCON B10 sleeve housing, for double locking latch, height: 56 mm, with 1 x M20 screw connection,

straight cable outlet

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4046356793278

85389099

10 STK

Technical data

Dimensions

Height

Width

Length

Wrench size, union nut

External cable diameter

56 mm

43 mm

73 mm

20 mm

5 mm ... 12 mm

Ambient conditions

Degree of protection of housing (IP)

Ambient temperature (operation)

IP65

-40 °C ... 125 °C

General

Note

Size

Locking type

No. of cable outlets

Cable exit

Screw connection

Type of the screw connection

For contact inserts HC-B10, BB18, DD42, M, K8/24

B10

for double locking latch

1

straight

with

1x M20

11/13/2016 Page 1 / 2
