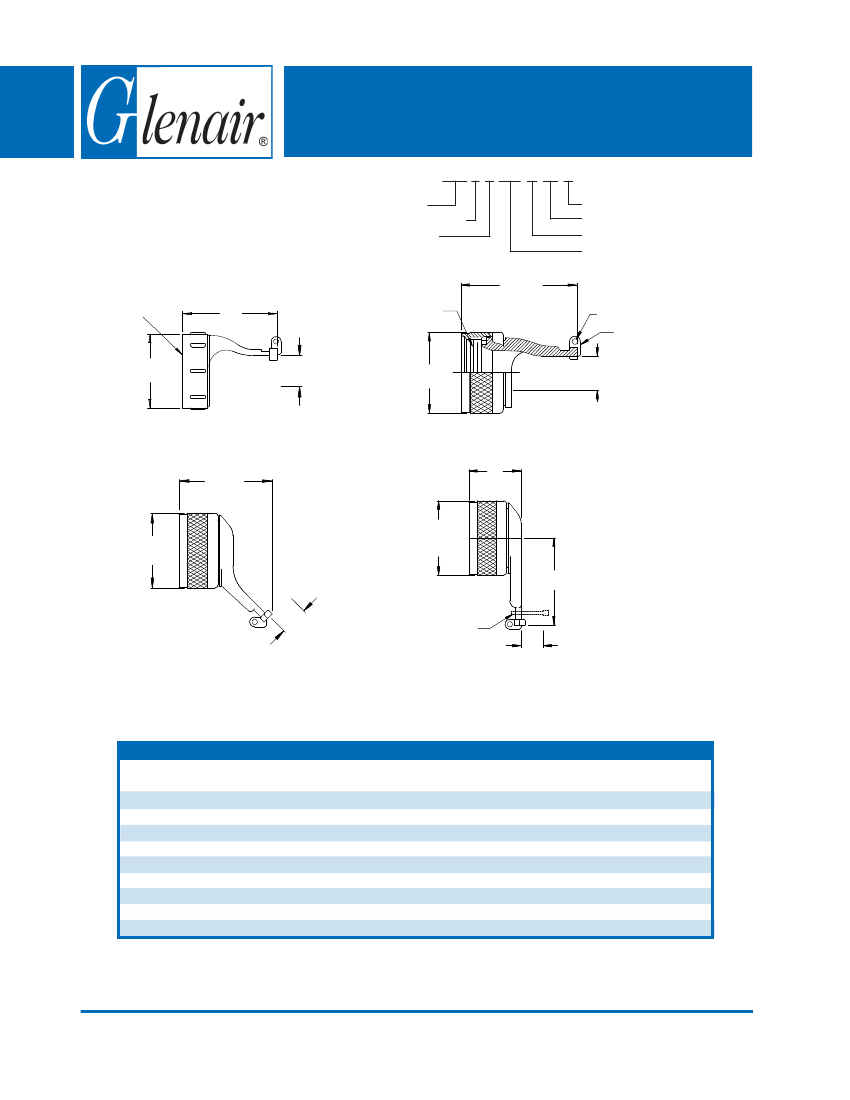

450-001 and 450-002
Qwik-Ty® Strain Relief - Connector Designator E
Direct Coupling (Straight)
Rotatable Coupling (Straight, 45° and 90° Elbows)
450 E S 001 M 16 G
Product Series
Connector Designator
Angle and Profile
A = 90°, B = 45°
S = Straight
A Thread
(Table I)
G
.140 (3.6) Dia (Typ.)
Ground Lug (Optional)
E
Ground Lug (Omit for none)
Shell Size (Table I)
Finish (Table II)
Basic Part Number
001, 002
45
CONNECTOR
DESIGNATOR
E
A Thread
(Table I)
F
B (Table I)
E
D (Table I)
450ES001
STRAIGHT DIRECT COUPLING
H
450ES002
STRAIGHT ROTATABLE COUPLING
J
D
(Table I)
D
(Table I)
K
E
Use MS3367-1 Tie
Strap or Equivalent
(Typical)
E
450EB001
45° ROTATABLE COUPLING
450EA001
90° ROTATABLE COUPLING
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell
Size
08
10
12
14
16
18
20
22
24
E
Cable Entry
.355 (9.0)
.465 (11.8)
.625 (15.9)
.695 (17.7)
.810 (20.6)
.942 (23.9)
.968 (24.6)
1.079 (27.4)
1.300 (331.0)
TABLE III: DIMENSIONS
F
G
H
Max
Max
Max
1.060 (26.9) 1.350 (34.3) 1.320 (33.5)
1.060 (26.9) 1.410 (35.8) 1.440 (36.6)
1.060 (26.9) 1.600 (40.6) 1.580 (40.1)
1.310 (33.3) 1.600 (40.6) 1.600 (40.6)
1.310 (33.3) 1.650 (41.9) 1.600 (40.6)
1.310 (33.3) 1.780 (45.2) 1.630 (41.4)
1.310 (33.3) 1.900 (48.3) 1.630 (41.4)
1.310 (33.3) 2.030 (51.6) 1.630 (41.4)
1.310 (33.3) 2.060 (52.3) 1.630 (41.4)
J
Max
.880 (22.4)
.880 (22.4)
.880 (22.4)
.970 (24.6)
1.020 (25.9)
1.020 (25.9)
.970 (24.6)
.970 (24.6)
.920 (23.4)
K
Max
.940 (23.9)
1.000 (25.4)
1.320 (33.5)
1.410 (35.8)
1.460 (37.1)
1510 (38.4)
1.560 (39.6)
1.560 (39.6)
1.630 (41.4)
© 2005 Glenair, Inc.
1. Cable Entry is defined as the accommodation entry for the wire bundle or cable.
Dimensions are not intended for inspection criteria.
2. Metric dimensions (mm) are indicated in parentheses.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 45 - Page 4
