Railway
Machined Crimp Contact #16
RC/RM Machined contact AWG16
A unique contact technology for a wide range of railway connectors
Qualified for railway applications
Low contact resistance
Good contact retention
Suitable for automatic crimping
Machined crimp contact
Gold plated
Locking spring
Available on plastic carrier
Railway
|
Machined Crimp Contact #16
Technical features
•
•
•
•
•
•
•
Machined crimp contact
Contact body:
High conductive copper alloy
Plating:
K (Std) Min. 0.4μm gold all over, over nickel
Current per contact max.:
15A according to NFF61030
Contact resistance:
≤ 3 MΩ
Contact retention in body:
110 N min.
Individual insertion force:
3.5 N max.
•
Individual withdrawal force:
0.55 N min
• RC/RM machined contact size 16 can be used in any
contact position UTS, UTO, VGE1 and 838 connectors
Ordering information
Type
RM:
Male contact bulk packing
RC:
Female contact bulk packing
KRM:
Male contact on plastic carrier strip
KRC:
Female contact on plastic carrier strip
Wire size
#14 – #16 – #20 – #24 – #28
Contact size #16
.0625’’ (1.6mm) diameter contacts
Design variation: Crimp barrel
Contact type
No digit:
Pin
GE1:
Longer contact
GE3:
Shorter contact (only male contact)
GE7:
Shorter contact (only female contact)
Plating indication:
K:
Gold
Other plating on request
Packing quantity
No digit (std):
50 pcs bulk packing (RM/RC)
2000 pcs on reel (KRM/KRC)
1000:
1000 pcs bulk packing (RM/RC)
(K)RM
(K)RC
16
16
M
M
23
23
(GE1)
(GE1)
K
K
The RM/RC machined contact packing
Conscious of the wide variety of applications, contact packaging has been considered for small series (bulk packaging) and high volume
production (reeled contacts):
• 50 pieces bulk package
(machined contacts)
• 1000 pieces
bulk package
(machined contacts)
• 5000 pieces reeled
(machined contacts)
2
Railway
|
Machined Crimp Contact #16

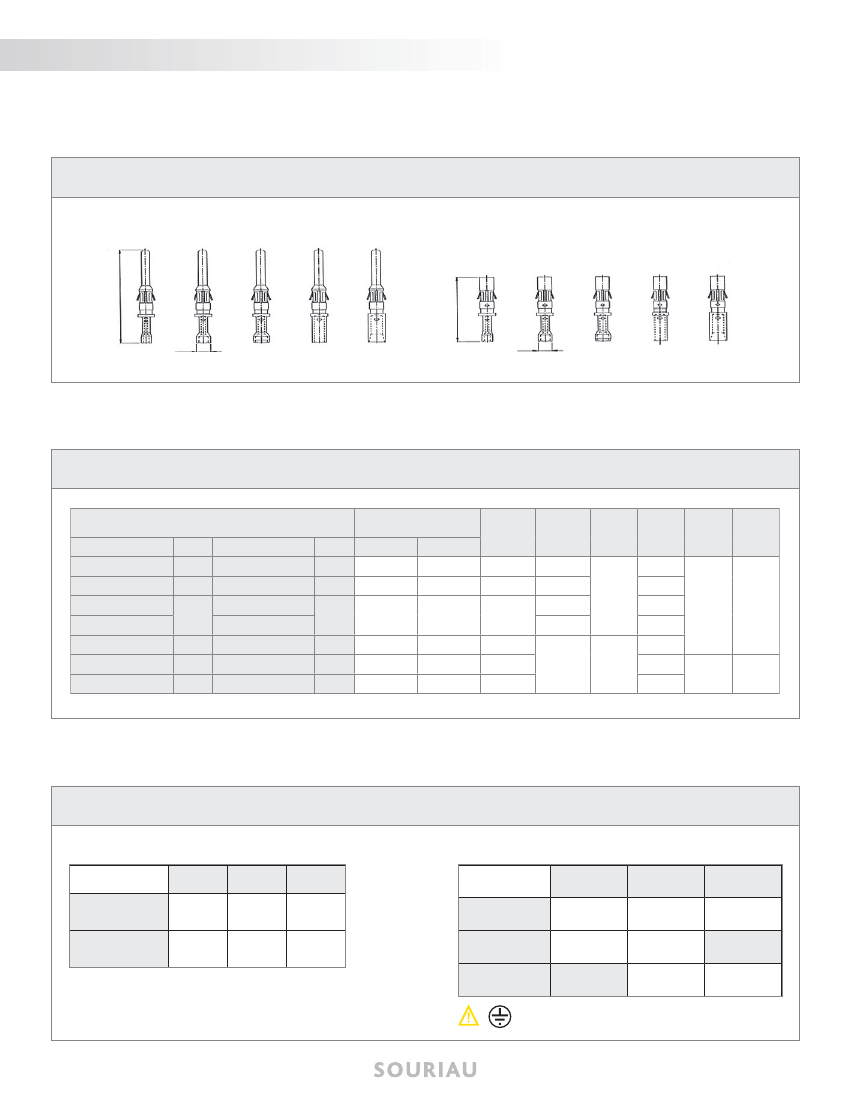

RM/RC machined contacts
Contact size 16 - Pin Ø1.6mm (.063’’)
Male contact
Female contact
L1
FIG.1
O.D.
FIG.2
L2
O.D.
FIG.3
FIG.4
FIG.5
FIG.6
FIG.7
FIG.8
FIG.9
FIG.10
Part numbers & dimensions
Part numbers
Male contact
RM28M1K
RM24M9K
RM20M13K
RM20M12K
RM16M23K
RM14M50K
RM14M30K
FIG.
1
2
3
4
5
5
Female contact
RC28M1K
RC24M9K
RC20M13K
RC20M12K
RC16M23K
RC14M50K
RC14M30K
FIG.
6
7
8
9
10
10
Wire size
AWG
30-28
26-24
22-20
20-16
16-14
16-14
mm²
0.05-0.08
0.13-0.20
0.32-0.52
0.50-1.50
1.5-2.5
1.5-2.5
Max.
wire Ø
0.55
0.8
1.18
1.80
2.05
2.28
3.2
7.1
Max.
insul. Ø
1.1
1.6
1.8
2.2
4.8
Wire
strip
length
O.D.**
1.90
2.55
2.92
2.92
2.55
3.10
3.10
L1
L2
26.2
18.2
26.2
18.2
For machined contacts reeled on plastic carrier: put «K» in front of part number example: KRM16M13K
Dimensions
Comparison with standard RM / RC contacts
GE1
RM contact
(male contact)
RC contact
(female contact)
+ 1 mm
+ 1.5 mm
GE3
-1 mm
-
GE7
-
-0.6 mm
Standard
RC contact
Standard
RM contact
RM*GE1
First Mate,
Last Break
Last Mate,
First Break
Contact selector guide
Standard
RC contact
RM*GE1
RC*GE7
First Mate, Last Break contact can be used as
grounding contact.
Note : all dimensions are in mm / ** Outer diameter
3
Railway
|
Machined Crimp Contact #16
RM/RC machined contact
Longer
Part numbers
Male contact
RM28M1GE1K
RM24M9GE1K
RM20M13GE1K
RM20M12GE1K
RM16M23GE1K
RM14M50GE1K
RM14M30GE1K
FIG.
1
2
3
4
5
5
Female contact
RC28M1GE1K
RC24M9GE1K
RC20M13GE1K
RC20M12GE1K
RC16M23GE1K
RC14M50GE1K
RC14M30GE1K
FIG.
6
7
8
9
10
10
Wire size
AWG
30-28
26-24
22-20
20-16
16-14
mm²
0.05-0.08
0.13-0.20
0.32-0.52
0.52-1.50
1.5-2.5
Max.
wire Ø
0.55
0.8
1.18
1.80
2.05
2.28
3.2
7.1
Max.
insul. Ø
1.1
1.6
1.8
2.2
4.8
Wire strip
length
O.D.**
1.90
2.55
2.92
2.55
3.10
L1
L2
WPNRAILCONTACT#16WUSEN03 © Copyright SOURIAU 2015
- All information in this document presents only general particulars and shall not form part of any contract. All rights reserved to SOURIAU for changes without prior notification or public announcement.
27.2
19.7
Shorter
Part numbers
Male contact
RM28M1GE3K
RM24M9GE3K
RM20M13GE3K
RM20M12GE3K
RM16M23GE3K
RM14M50GE3K
RM14M30GE3K
FIG.
1
2
3
4
5
5
Female contact
RC28M1GE7K
RC24M9GE7K
RC20M13GE7K
RC20M12GE7K
RC16M23GE7K
RC14M50GE7K
RC14M30GE7K
FIG.
6
7
8
9
10
10
Wire size
AWG
30-28
26-24
22-20
20-16
16-14
mm²
0.05-0.08
0.13-0.20
0.32-0.52
0.52-1.50
1.5-2.5
Max.
wire Ø
0.55
0.8
1.18
1.80
2.05
2.28
3.2
7.1
Max.
insul. Ø
1.1
1.6
1.8
2.2
4.8
Wire strip
length
O.D.**
1.90
2.55
2.92
2.55
3.10
25.2
17.6
L1
L2
Crimptooling
Stripping
length
Wire size
AWG
30-28
4.8
26-24
22-20
20-16
7.1
16-14
16-14
mm²
0.05-0.08
0.13-0.2
0.32-0.52
0.5-1.5
1.5-2.5
1.5-2.5
Part numbers
RM28M1*
RM24M9*
RM20M12*
RM16M23*
RM14M30
RM14M50*
RC28M1*
RC24M9*
RC20M12*
RC16M23*
RC16M30*
RC14M50*
Tool
MH860 (M22520/7-01)
MH860 (M22520/7-01)
MH860 (M22520/7-01)
MH860 (M22520/7-01)
AF8 (M22520/1-01)
AF8 (M22520/1-01)
Locator
MH86164G
MH86164G
MH86164G
MH86164G
TP1142
TP1142
Tool
selector
4/6
5/6
5/7
6/8
8
8
RX2025GE1
Extraction
tool
railway-connectors.com
contactindustry@souriau.com
Note : all dimensions are in mm
4
