AN6500S: DescriptionBUILT-IN REFERENCE VOLTAGE OPERATIONAL AMPLIFIERS; CategoryAnalog mixed-signal IC Amplifier circuit; File Size236KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

AN6500S Overview

BUILT-IN REFERENCE VOLTAGE OPERATIONAL AMPLIFIERS

AN6500S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.5 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5 mm
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Nominal slew rate	0.6 V/us
Maximum slew rate	3.5 mA
Supply voltage upper limit	24 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	10000
width	4.2 mm
Base Number Matches	1

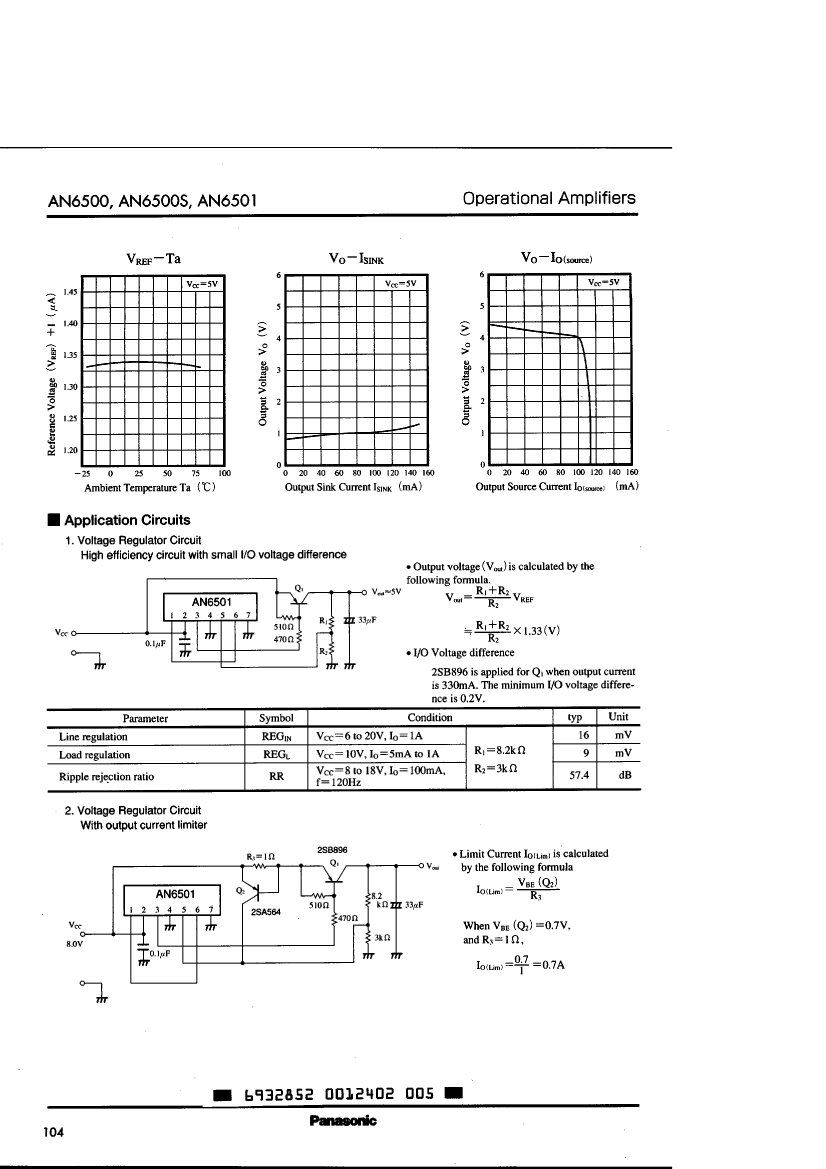

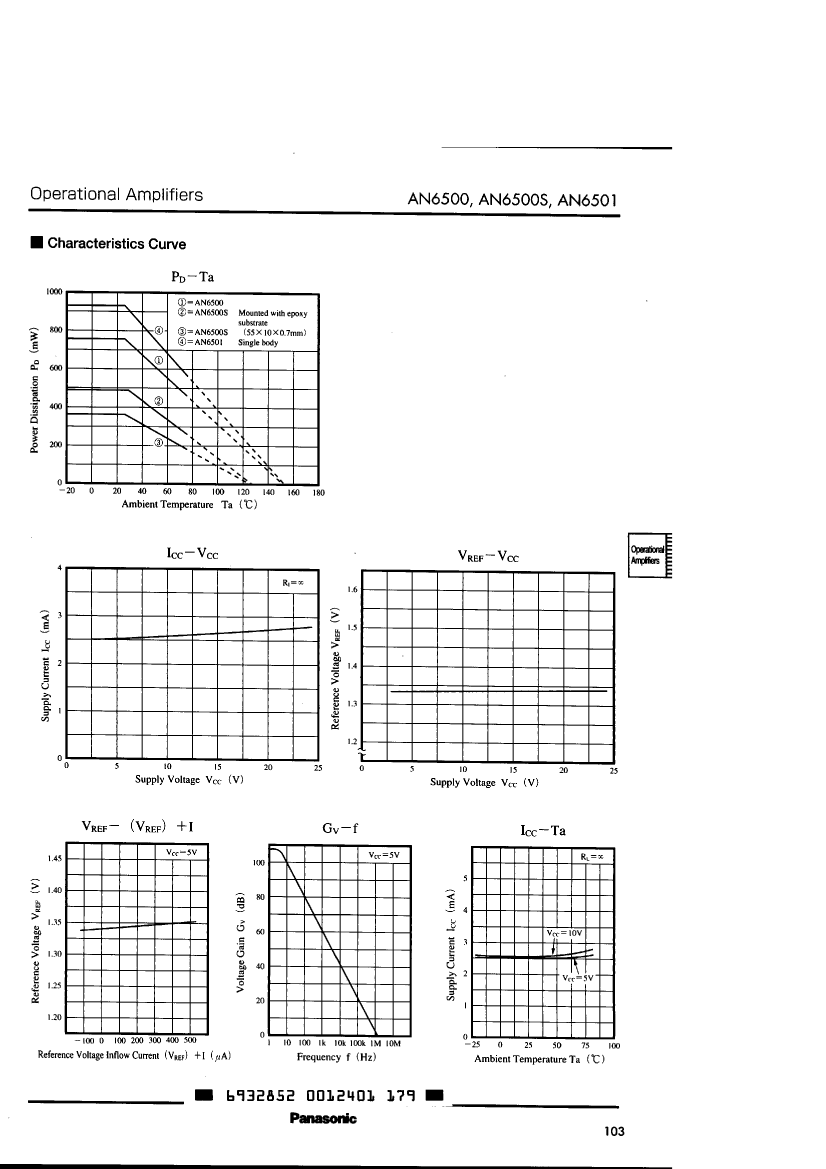

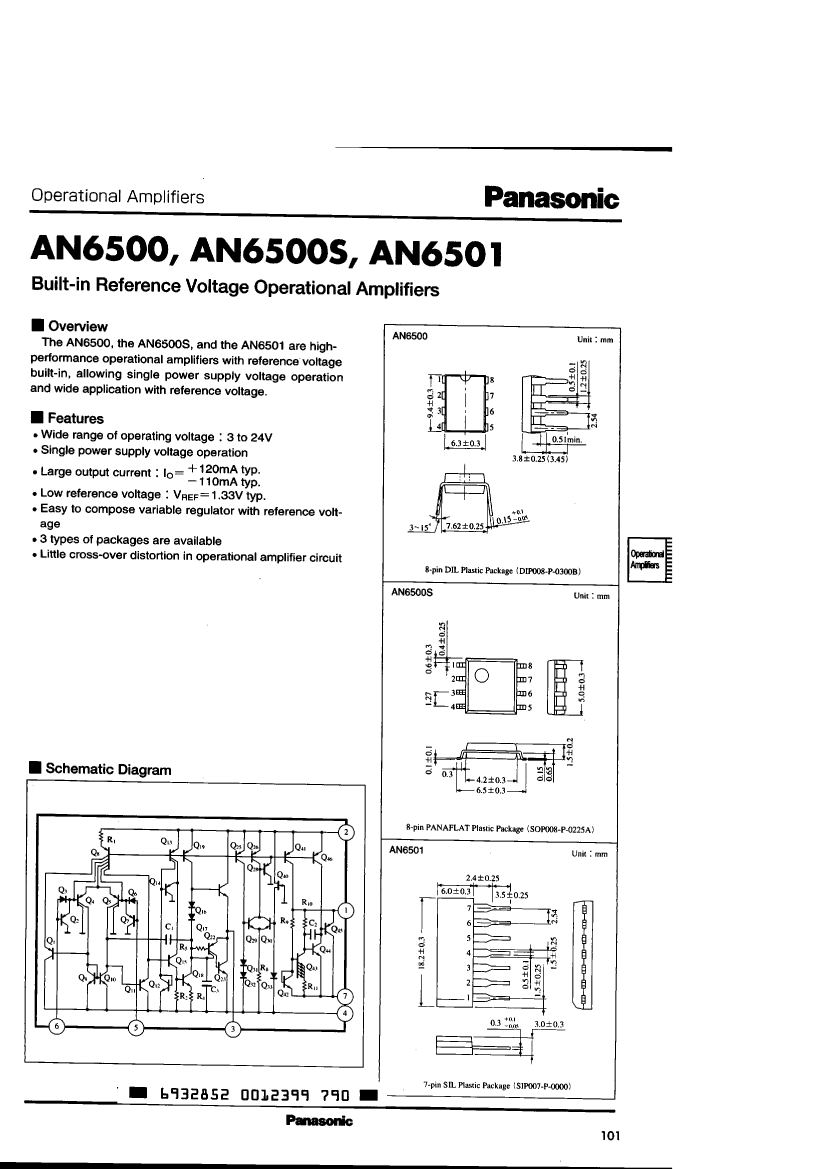

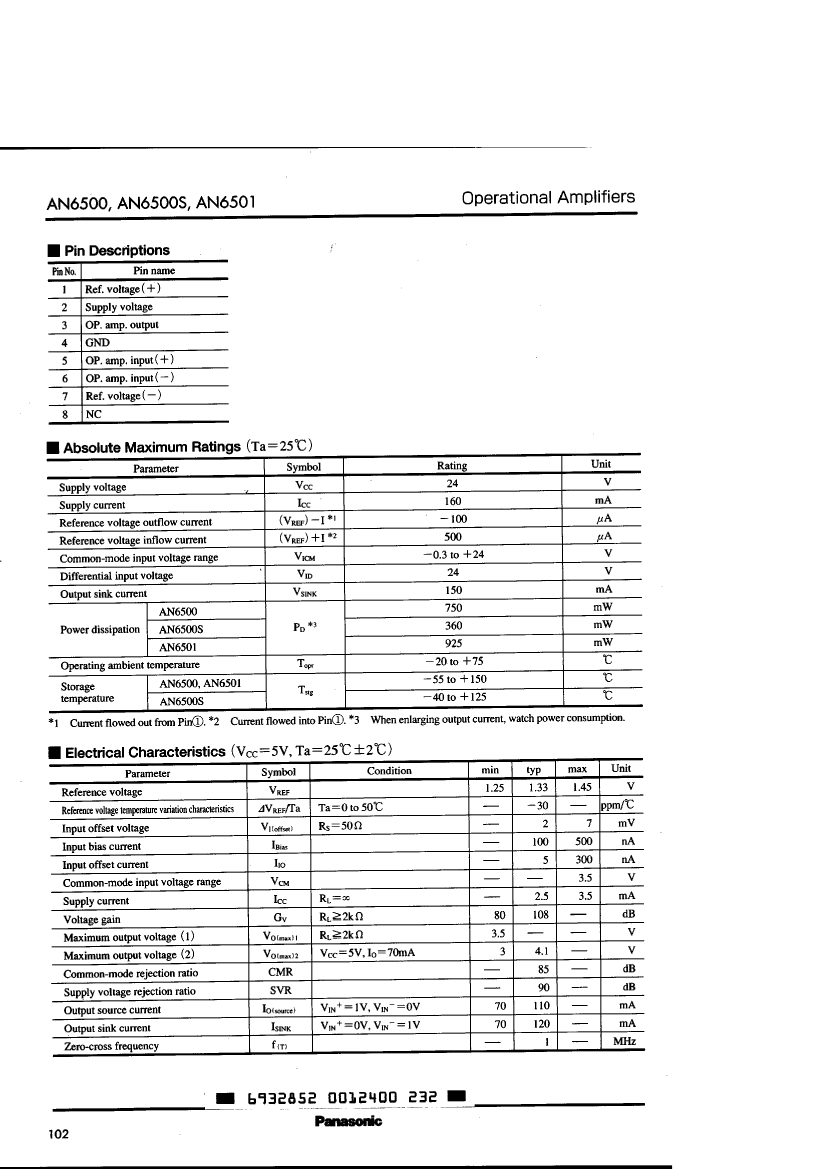

Preview

Download Datasheet

View All

AN6500S Related Products

	AN6500S	AN6501	AN6500
Description	BUILT-IN REFERENCE VOLTAGE OPERATIONAL AMPLIFIERS	BUILT-IN REFERENCE VOLTAGE OPERATIONAL AMPLIFIERS	BUILT-IN REFERENCE VOLTAGE OPERATIONAL AMPLIFIERS
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SIP	DIP
package instruction	SOP, SOP8,.25	SIP, SIP7,.05	DIP, DIP8,.3
Contacts	8	7	8
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA
Maximum bias current (IIB) at 25C	0.5 µA	0.5 µA	0.5 µA
Nominal Common Mode Rejection Ratio	85 dB	85 dB	85 dB
frequency compensation	YES	YES	YES
Maximum input offset voltage	7000 µV	7000 µV	7000 µV
JESD-30 code	R-PDSO-G8	R-PSIP-T7	R-PDIP-T8
JESD-609 code	e0	e0	e0
length	5 mm	18.2 mm	9.4 mm
low-dissonance	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of terminals	8	7	8
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SIP	DIP
Encapsulate equivalent code	SOP8,.25	SIP7,.05	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	8.95 mm	4.05 mm
Nominal slew rate	0.6 V/us	0.6 V/us	0.6 V/us
Maximum slew rate	3.5 mA	3.5 mA	3.5 mA
Supply voltage upper limit	24 V	24 V	24 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	SINGLE	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz	1000 kHz
Minimum voltage gain	10000	10000	10000
width	4.2 mm	3 mm	7.62 mm
Base Number Matches	1	1	-
