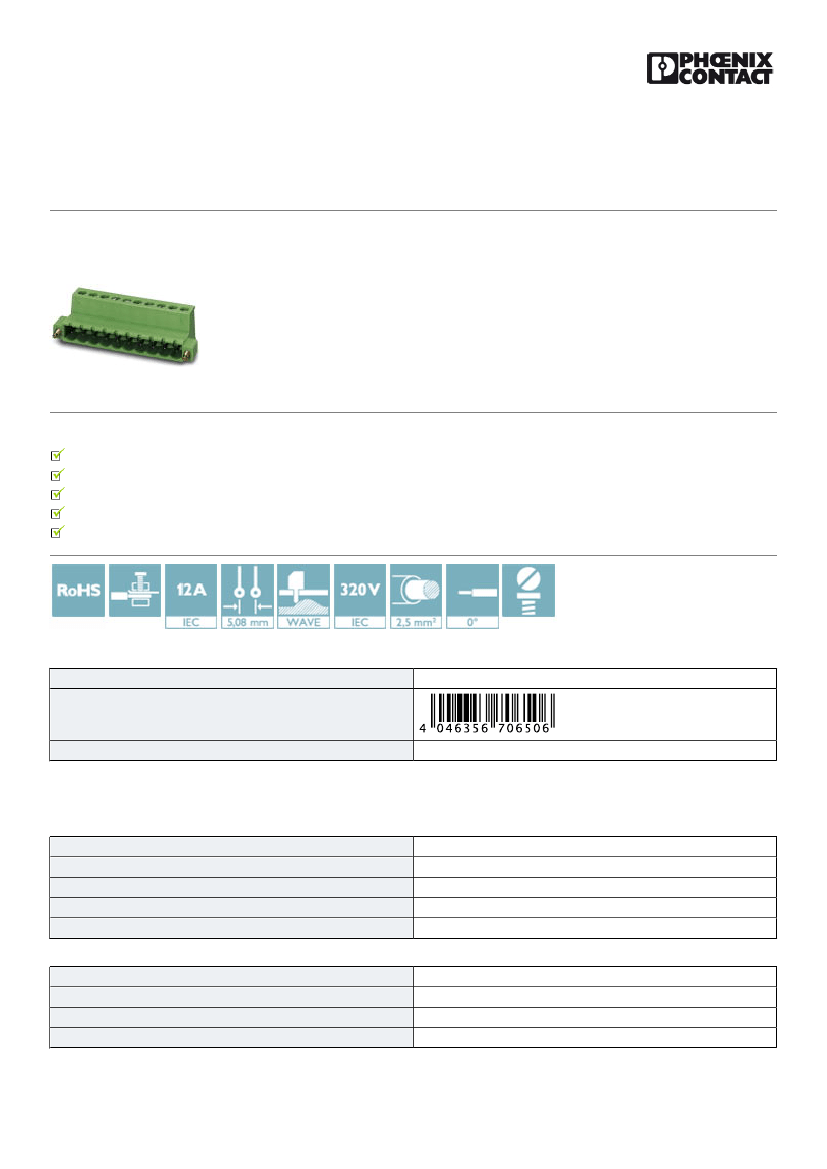

Printed-circuit board connector - IC 2,5/ 8-STF-5,08 EX - 1810175
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, nominal current (Ex): 12 A, nominal voltage
(Ex): 176 V, number of positions: 8, pitch: 5.08 mm, connection method: Screw connection with tension
sleeve, color: green, contact surface: Tin, mounting: Wave soldering
The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Screwable flange for superior mechanical stability
Satisfies the more stringent safety requirements of “Ex eb” protection according to IEC 60079-7 for potentially explosive areas
Easy PCB replacement thanks to plug-in modules
Key Commercial Data
Packing unit
GTIN
GTIN
4046356706506
50 pc
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
19 mm
42.14 mm
15 mm
5.08 mm
35.56 mm
General
Range of articles
Number of positions
Connection method
Insulating material group
IC 2,5/..-STF-EX
8
Screw connection with tension sleeve
I
11/19/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1810175
Printed-circuit board connector - IC 2,5/ 8-STF-5,08 EX - 1810175
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
4 kV
4 kV
4 kV
250 V
320 V
630 V
EN-VDE
12 A
2.5 mm²
PA
V0
A3
7 mm
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
11/19/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1810175
Printed-circuit board connector - IC 2,5/ 8-STF-5,08 EX - 1810175
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
19,2
4,31
a+6,58
15
5,2
5,08
a
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
EAC
D
300 V
B.01742
cULus Recognized
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931014
B
250 V
11/19/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1810175
Printed-circuit board connector - IC 2,5/ 8-STF-5,08 EX - 1810175
Approvals
Nominal current IN
mm²/AWG/kcmil
D
10 A
30-12
B
12 A
30-12
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/19/2018 Page 4 / 4
