54819-1572: DescriptionUSB Connectors USB Ser Mini-B Rec H sgAssy 5CktEmbsTpPkg; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54819-1572 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54819-1572	-	-	View	Buy Now

54819-1572 Overview

USB Connectors USB Ser Mini-B Rec H sgAssy 5CktEmbsTpPkg

54819-1572 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SOLDER HOLDING POSTS
body width	0.156 inch
subject depth	0.354 inch
body length	0.39 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	50 mΩ
Contact style	USB, SER B SQ
DIN compliance	NO
Durability	5000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FLANGELESS
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Maximum operating temperature	50 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	LIQUID CRYSTAL POLYMER
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

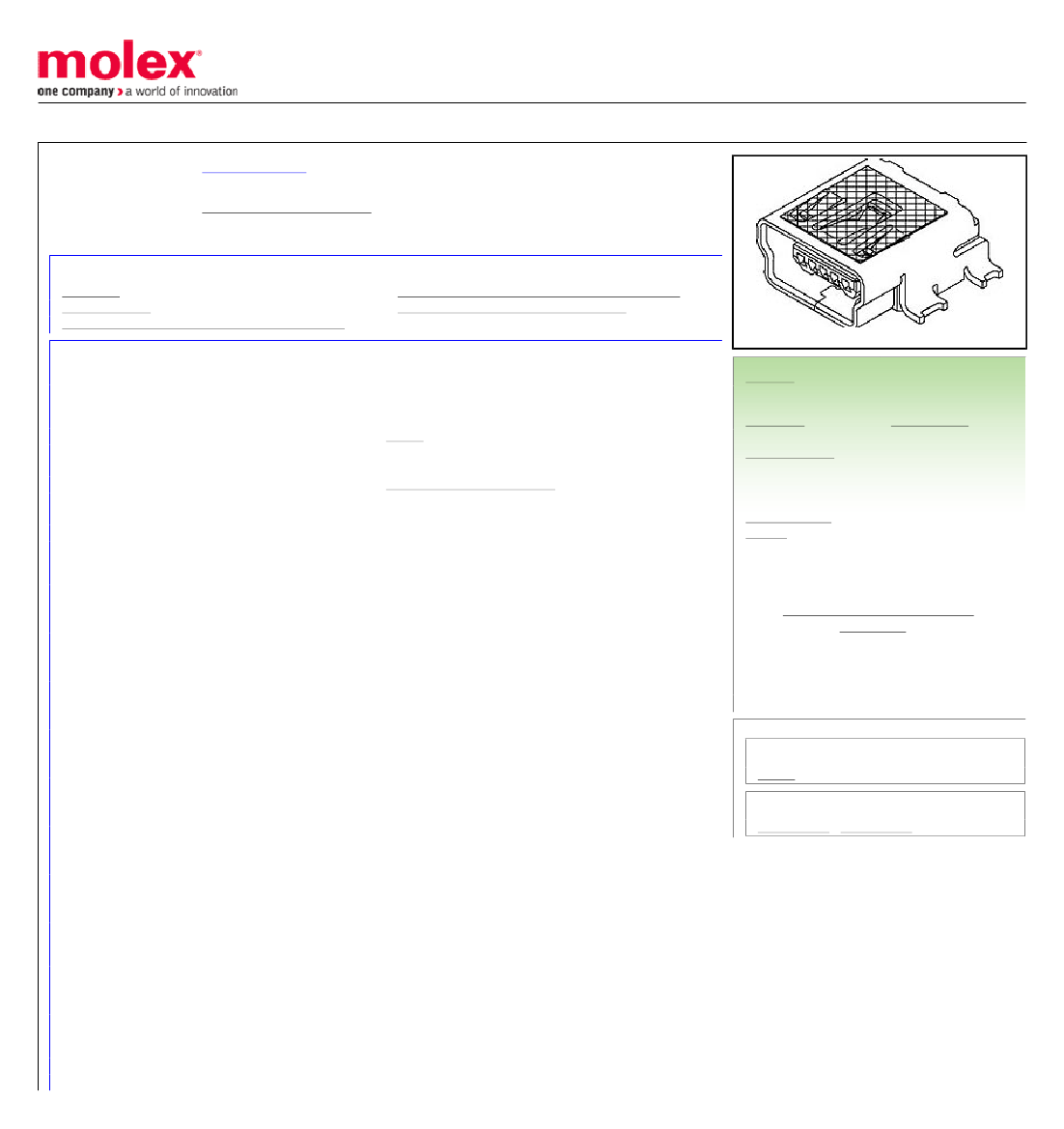

Preview

Download Datasheet

View All

This document was generated on 02/20/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0548191572

Active

USB Products and Solutions

USB On-The-Go (OTG) Mini-B Receptacle, Right Angle, Surface Mount Solder Tails

and Shell Tabs, with Cover Tape, Lead-Free, LCP Housing

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54819-011-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Product Specification PS-54819-012-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

I/O Connectors

54819

Wire-to-Board

Receptacle

USB Products and Solutions

USB 2.0, USB OTG (On-The-Go)

Mini-B

822348178834

Black

5000

94V-0

Receptacle

Yes

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

0.600/g

Right Angle

Yes

Embossed Tape on Reel

0.80mm

0.762µm

1.016µm

Yes

-20°C to +85°C

Surface Mount

1.0A

Yes

30V

003

REFLOW

001

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

54819 Series
