Part Number

Search

39-00-0284

Description
Pin & Socket Connectors .093 CRIMP RECEPT Reel of 8000
CategoryThe connector    terminals
File Size33KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

39-00-0284 Online Shopping

Suppliers Part Number Price MOQ In stock
39-00-0284 - - View Buy Now

39-00-0284 Overview

Pin & Socket Connectors .093 CRIMP RECEPT Reel of 8000

39-00-0284 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesPUSH-ON TERMINAL
Wire gauge18 AWG
Base Number Matches1

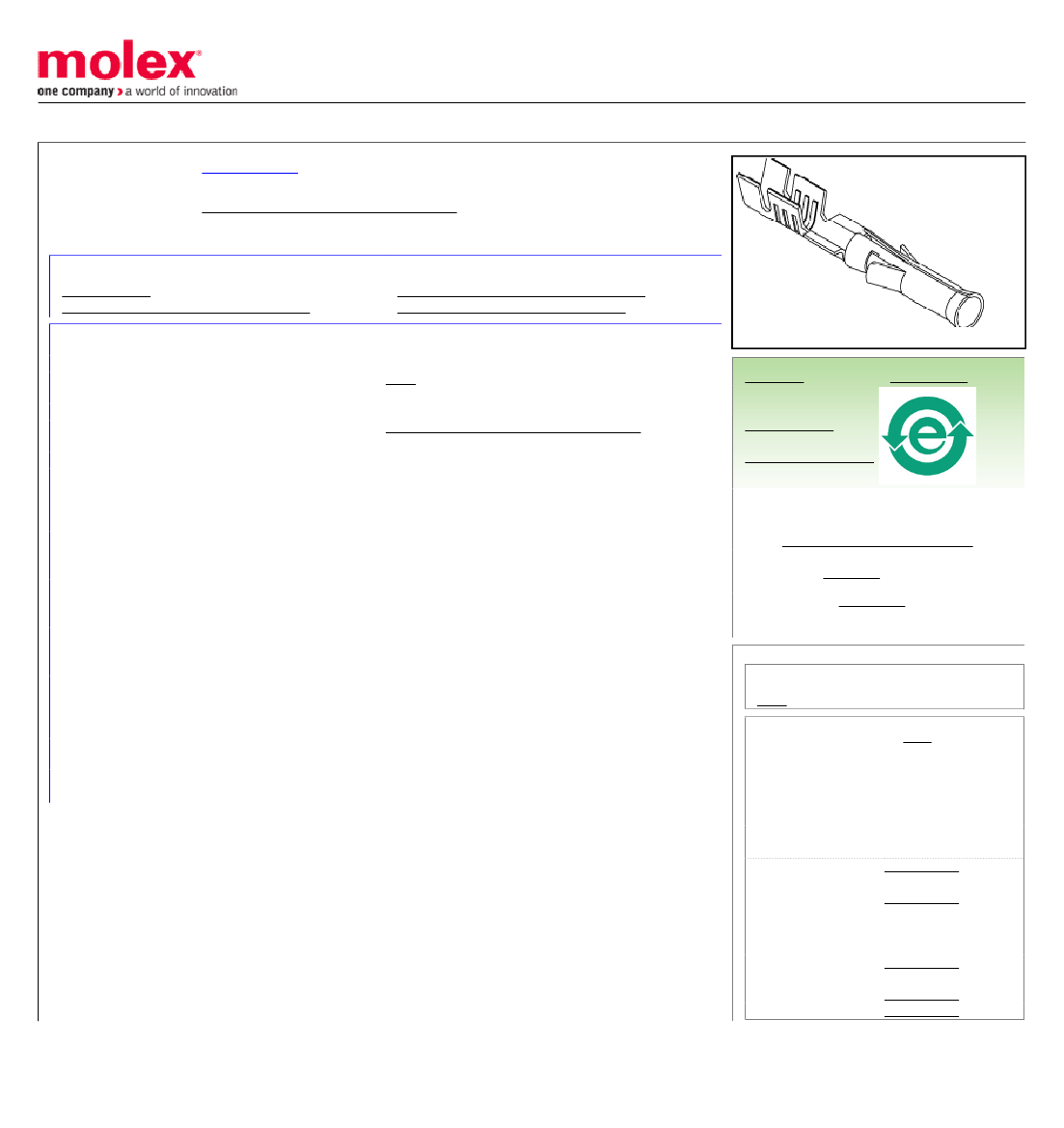

This document was generated on 09/25/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
39-00-0284
Active
Standard .093" Pin and Socket Connectors
2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1381,
Female, with Tin (Sn) over Copper Plated Brass Contact, 18-24 AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-1381-004 (PDF)
Product Specification PS-1381-005 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Terminals
1381
Power
Yes
Standard .093" Pin and Socket Connectors
Standard .093"
800753617506
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
UPC
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
324.000/mg
Reel
0.889µm
0.889µm
Crimp or Compression
1.50-3.10mm
18, 20, 22, 24
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Old Part Number
1381AT
Search Parts in this Series
1381Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638924000
Applicator
Extractor Tool
0638240200
for .093 and
HCS-125 Product
Series
Mini-Mac™
0638927000
Applicator
Extraction Tool
0011030006
Terminator Die
0011402002
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-1381-004, PS-1381-005, RPS-1381-001
SD-1381*
This document was generated on 09/25/2014

39-00-0284 Related Products

39-00-0284 39-00-0284-Mouser-Reel
Description Pin & Socket Connectors .093 CRIMP RECEPT Reel of 8000 Pin & Socket Connectors .093" TERM 18-24G F Reel of 1000
