LCMA240-16F-X: DescriptionTerminals Copper Compression Metric Lug, 1 Hole, S; CategoryThe connector; File Size221KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

LCMA240-16F-X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCMA240-16F-X	-	-	View	Buy Now

LCMA240-16F-X Overview

Terminals Copper Compression Metric Lug, 1 Hole, S

LCMA240-16F-X Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panduit
Product Category	Terminals
Product	Lug Terminals
Type	Compression

Preview

Download Datasheet

View All

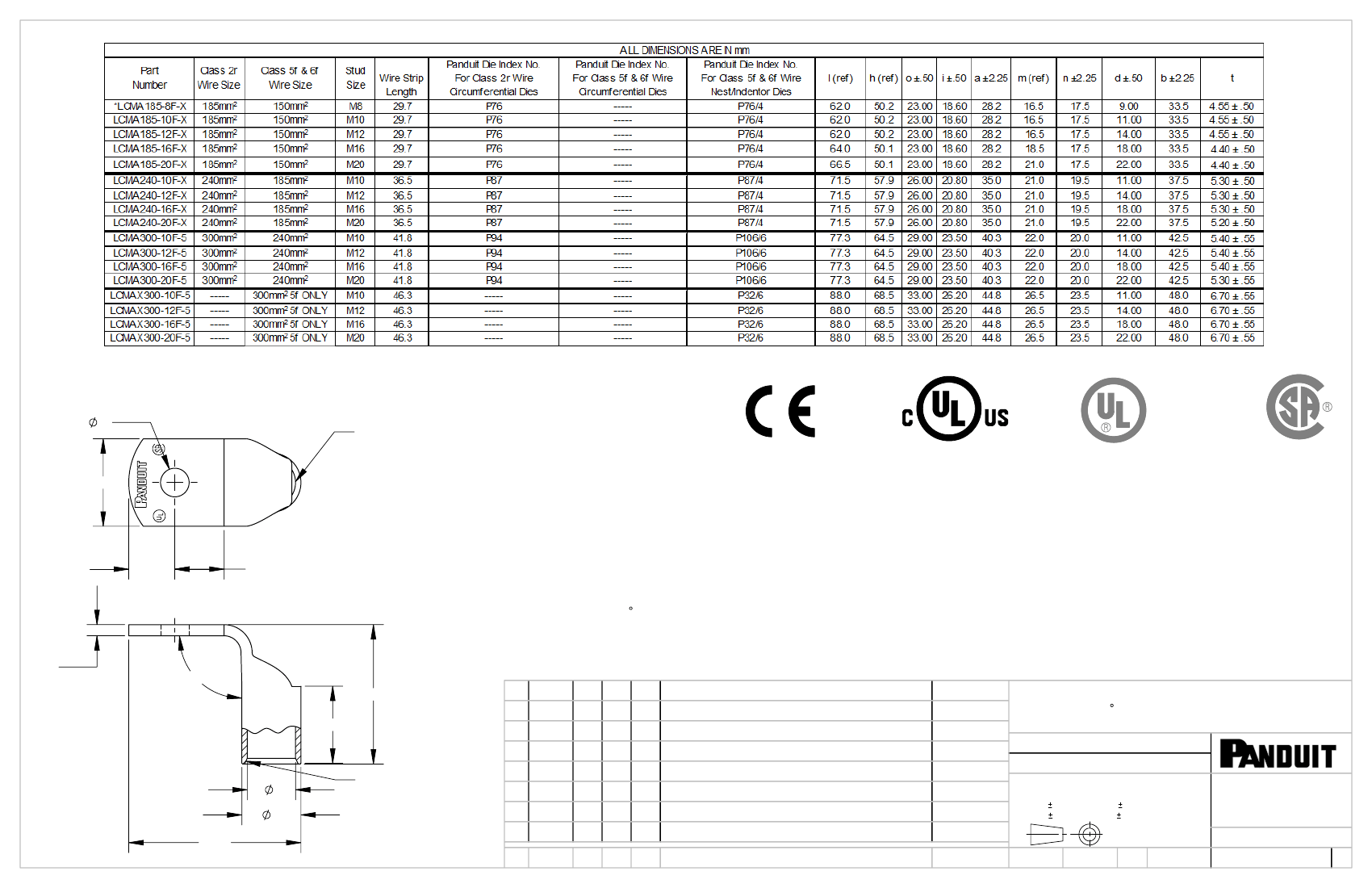

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
