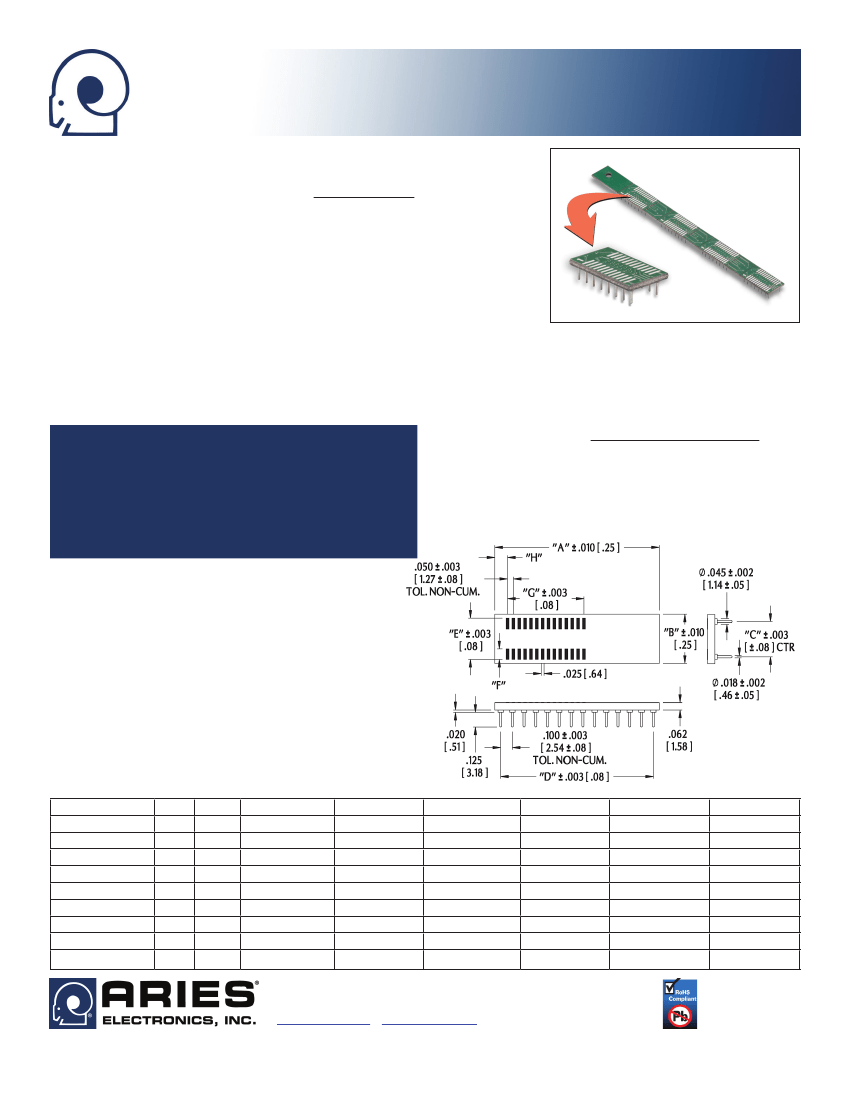

Series 350000-11-RC RoHS/WEEE-Compliant
SOIC-to-DIP Adapter
FEATURES
• A cost-effective means of upgrading to SOIC without changing your PCB layout
• Available on 0.300 [7.62] centers. Consult
Data Sheet 18011
for adapters on 0.400
[10.16] or 0.600 [15.24] centers
GENERAL SPECIFICATIONS
• BOARD MATERIAL: 0.062 [1.58] thick FR-4
or
IS410 per IPC4101A/26 with
1-oz. Cu traces, both sides
• PADS: Finished with ENIG (Immersion Au over Electroless Ni)
• PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
• PIN PLATING: 10µ [2.54µ] min. Au per MIL-G-45204 over 100µ [2.54µ] min. Ni
per SAE AMS-QQ-N-290
• OPERATING TEMPERATURE: 105°C max.
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = NO. OF PINS PER ROW X 0.100 [2.54]
“D” = (NO. OF PINS PER ROW - 1) X 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ORDERING INFORMATION
(see Table below)
P/N
08-350000-11-RC
14-350003-11-RC
14-350000-11-RC
16-350000-11-RC
18-350000-11-RC
20-350000-11-RC
24-350000-11-RC
20-350001-11-RC
28-350002-11-RC
Pins
8
14
14
16
18
20
24
20
28
Type
SOIC
SOIC
SOIC
SOIC
SOIC
SOIC
SOIC
SOJ
SOIC
Dim. “B”
0.460 [11.68]
0.380 [9.65]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.450 [11.43]
0.420 [10.67]
0.400 [10.16]
Centers “C”
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
Dim. “E”
0.455 [11.56]
0.322 [8.18]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.420 [10.67]
0.350 [8.89]
0.350 [8.89]
Dim. “F”
0.155 [3.94]
0.080 [2.03]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.138 [3.51]
0.090 [2.29]
0.090 [2.29]
Dim. “G”
0.150 [3.81]
0.300 [7.62]
0.500 [12.70]
0.550 [13.97]
0.550 [13.97]
0.550 [13.97]
0.550 [13.97]
0.550 [13.97]
0.650 [16.51]
Dim. “H”
0.121 [3.07]
0.200 [5.08]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.180 [4.57]
0.060 [1.52]
0.375 [9.53]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18010RC
Rev. 1.5
