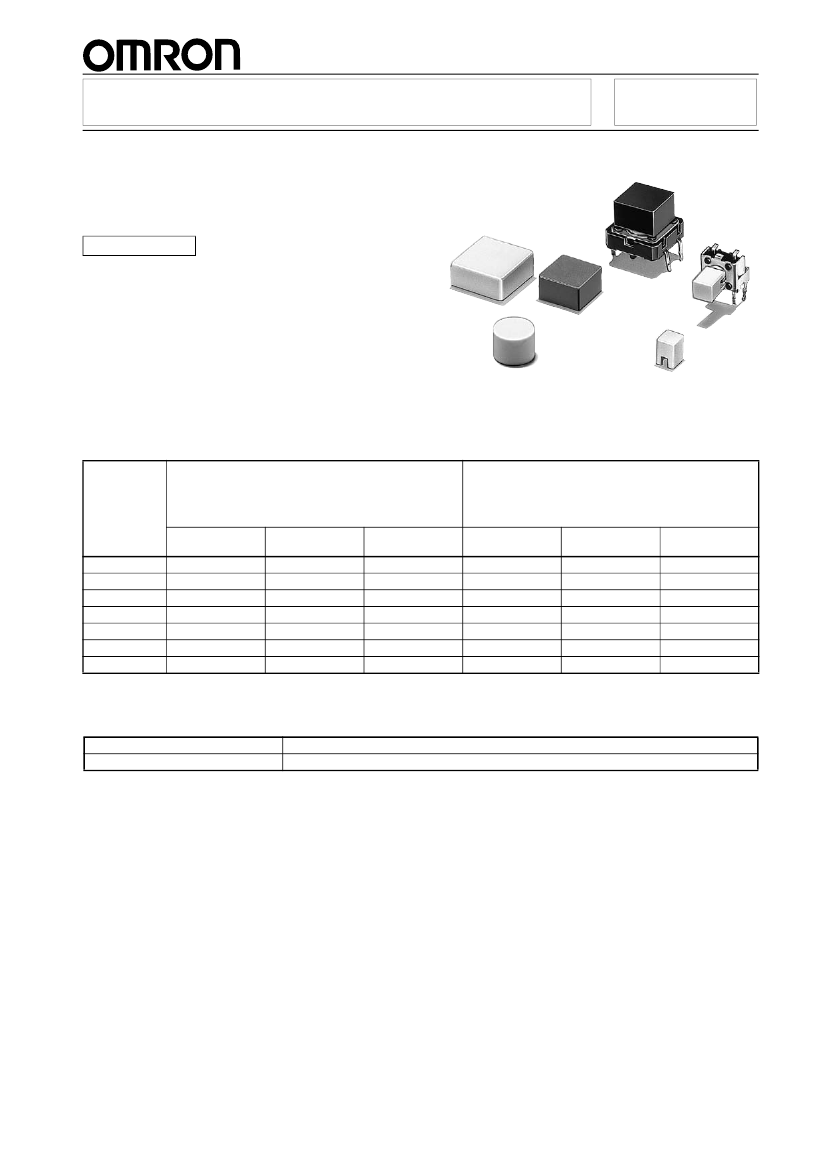

Tactile Switch Key Top
Key Top Designed Specially for
Projected-plunger-type B3F, B3FS, and
B3W Switches
●
Available in a wide range of colors and sizes.
B32
RoHS Compliant
■
List of Models
Color
6
×
6 mm Switches
B3F-1000, -1000-G,
B3F-3000, -3000-G, -6000,
B3W-1000,
B3FS-1000
4
×
4 mm Key
Top
6 mm dia.
Key Top
B32-2000
B32-2010
---
---
---
---
---
D-type
Key Top
B32-2100
B32-2110
---
---
---
---
---
9
×
9 mm
Key Top
B32-1200
B32-1210
B32-1220
B32-1230
B32-1240
B32-1260
B32-1280
12
×
12 mm Switches
B3F-4000, -5000, -5001,
B3W-4000,
B3FS-4000
12
×
12 mm
Key Top
B32-1300
B32-1310
B32-1320
B32-1330
B32-1340
B32-1360
B32-1380
9.5-mm dia.
B32-1600
B32-1610
B32-1620
B32-1630
---
---
---
For B3F, B3FS, and B3W Switches
lvory
Black
Orange
Yellow
Blue
White
Red
Note:
■
B32-1000
B32-1010
B32-1020
B32-1030
B32-1040
B32-1060
B32-1080
Bulk Packed, 1000 pcs per bag. Order in multiple of the package quantity.
Characteristics
-25°C to +70°C at 60%RH max. (with no icing or condensation)
35% to 85% (at 5 to 35°C)
Ambient operating temperature
Ambient operating humidity
1
B32
B32-13@0
R0.2
B32

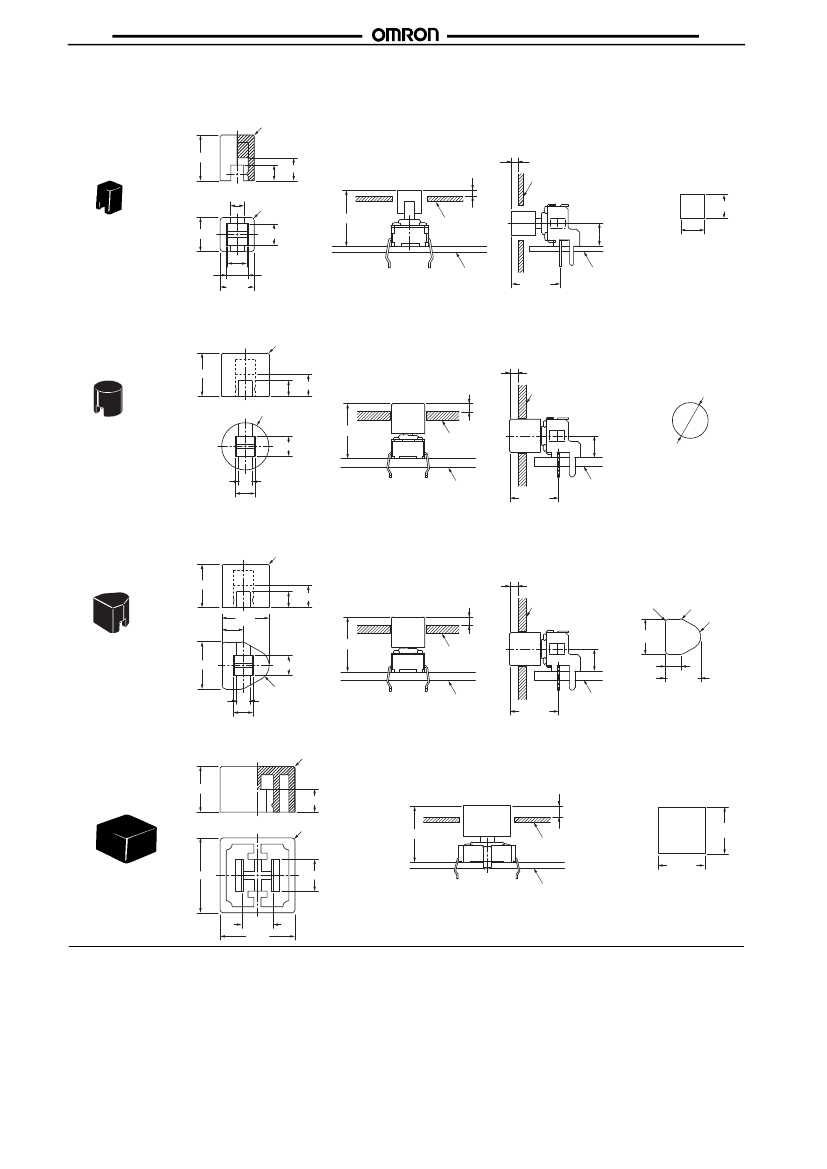

Reference Dimensions
1.0 to 2.0
Panel Cutout
5.5
2.8
1.8 dia.
R0.5
10.0
±0.4
Panel
12.2
+0.05
0
12.2
+0.05
0
PC board
12
±0.15
3.8
±0.1
3.5
3.8
±0.1
12
±0.15
B32-16@0
Reference Dimensions
7
2.8
9.5
±0.2
dia.
11.5
±0.4
Panel
1.0 to 2.0
Panel Cutout
9.7
+0.05
dia.
0
3.8
±0.1
PC board
3.55
3.8
±0.1
Note:
■
Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
Precautions
Mount the Key Top on to the Switch after soldering, otherwise the Key Top may be deformed by the soldering heat.
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety
before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems,
vehicles,
combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if
used
improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and
be
sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
