D2SW-3L1M Overview

Basic / Snap Action Switches REPLACED BY D2SW-3L1MS

D2SW-3L1M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerOMRON
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time24 weeks

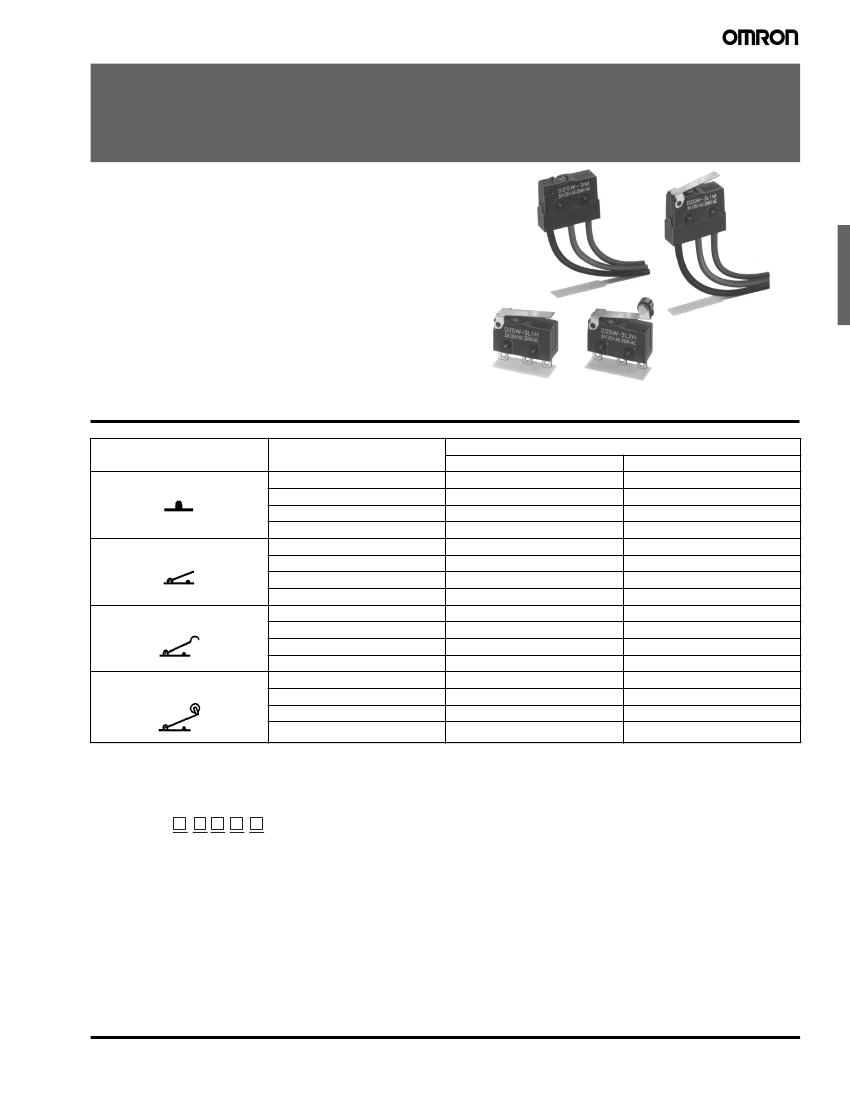

Sealed Snap Action Switch
D2SW
Watertight Miniature Snap Action Switch
• High-quality watertight miniature Snap Action switch.
Switch Body meets IP67 (IEC 529) requirements
• Monoblock construction assures high sealing capability and
is ideal for dusty places or where water is sprayed
• Wide operating temperature range of -40°C to 85°C
• Perfect for the automobile, agriculture machinery, automatic
vending machine, refrigerator, ice-manufacturing,
hot-water supply, air conditioner, and industrial equipment,
which require highly environment-resistive capabilities
• RoHS Compliant
Ordering Information
Actuator
Pin plunger
Terminal
Solder terminals
Quick-connect terminals (#110)
PCB terminals
With lead wires
Solder terminals
Quick-connect terminals (#110)
PCB terminals
With lead wires
Solder terminals
Quick-connect terminals (#110)
PCB terminals
With lead wires
Hinge roller lever
Solder terminals
Quick-connect terminals (#110)
PCB terminals
With lead wires
Model
Model 3 A
D2SW-3HS
D2SW-3TS
D2SW-3DS
D2SW-3MS
D2SW-3L1HS
D2SW-3L1TS
D2SW-3L1DS
D2SW-3L1MS
D2SW-3L3HS
D2SW-3L3TS
D2SW-3L3DS
D2SW-3L3MS
D2SW-3L2HS
D2SW-3L2TS
D2SW-3L2DS
D2SW-3L2MS
Model 0.1 A
D2SW-01HS
D2SW-01TS
D2SW-01DS
D2SW-01MS
D2SW-01L1HS
D2SW-01L1TS
D2SW-01L1DS
D2SW-01L1MS
D2SW-01L3HS
D2SW-01L3TS
D2SW-01L3DS
D2SW-01L3MS
D2SW-01L2HS
D2SW-01L2TS
D2SW-01L2DS
D2SW-01L2MS
Hinge lever
Simulated roller lever
Note: 1.
“S” at the end of the part number signifies UL/CSA approved models.
2.
The standard lengths of the lead wires (UL1015 AWG22 for UL/CSA models, AV0.5f otherwise.) of models incorporating them are 30 cm.
Model Number Legend
D2SW-
1 2 3 4 5
1.
Ratings
3:
3 A at 125 VAC
01: 0.1 A at 30 VDC
Actuator
None: Pin plunger
L1:
Hinge lever
L2:
Hinge roller lever
L3:
Simulated roller lever
3.
Contact Form
None: SPDT
-2:
SPST-NC*
-3:
SPST-NO*
*Lead wire versions only
5.
4.
Terminals
H, HS: Solder terminals (HS for UL and CSA approval)
D, DS: PCB terminals (DS for UL and CSA approval)
T, TS: Quick-connect terminals (#110)
(TS for UL and CSA approval)
M, MS: Molded lead wires (MS for UL and CSA approval)
Length of the molded lead wire
None: 300 mm
-0: 1,000 mm (non-Safety Standards approved models)
2.
Sealed Snap Action Switch
D2SW
195
