LK-P
1a 10A TV-5 rated
power relays
VDE
LK-P RELAYS
5. Conforms to the various safety
standards
UL, CSA, VDE, TÜV and SEMKO
approved
FEATURES
1. High switching capacity: 10 A 277V
AC
2. High insulation resistance between
contact and coil
1) Creepage distance and clearances
between contact and coil: Min. 6 mm
.236
inch
(In compliance with IEC60065)
2) Surge withstand voltage between
contact and coil: 10,000 V
3. Popular terminal pitch in AV
equipment field
4. Space-saving slim type
Base area: Width 11
×
Length 24 mm
Width .433
×
Length .945 inch
TYPICAL APPLICATIONS
• Audio visual equipment
TVs, VTRs
• Office equipment
LBP, CRT
• Home appliances
Refrigerator, Air conditioner
RoHS compliant
ORDERING INFORMATION
LKP 1a
LK-P relay
Contact arrangement
1a: 1 Form A
Protective construction
F: Flux-resistant type
Nominal coil voltage (DC)
5V, 9V, 12V, 24V
Notes: Certified by UL, CSA, TÜV and SEMKO
VDE approved type is available. Please consult us for details.
F
TYPES
Contact arrangement
1 Form A
Nominal coil voltage
5V DC
9V DC
12V DC
24V DC
Part No.
LKP1aF-5V
LKP1aF-9V
LKP1aF-12V
LKP1aF-24V
Notes: 1. Standard packing Carton: 100 pcs. Case: 500 pcs.
2. 18 V DC types are also available. Please consult us for details.
RATING
1. Coil data
Nominal coil
voltage
5V DC
9V DC
12V DC
24V DC
Pick-up voltage
(at 20°C
68°F)
70%V or less of
nominal voltage
(Initial)
Drop-out voltage
(at 20°C
68°F)
10%V or more of
nominal voltage
(Initial)
Nominal operating
current
[±10%] (at 20°C
68°F)
106.4mA
58.8mA
44.2mA
22.1mA
Coil resistance
[±10%] (at 20°C
68°F)
47Ω
153Ω
272Ω
1,087Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
6.5V DC
11.7V DC
15.6V DC
31.2V DC
530mW
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB199E 201202-T
LK-P
2. Specifications
Characteristics
Contact
Item
Arrangement
Contact resistance (Initial)
Contact material
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Rating
Max. switching voltage
Max. switching current
Min. switching capacity (reference value)*
1
Insulation resistance (Initial)
Breakdown voltage
(Initial)
Electrical
characteristics
Between open contacts
Between contact and coil
Specifications
1 Form A
Max. 100 mΩ (By voltage drop 6 V DC 1A)
AgSnO
2
type
10A 277V AC, 5A 30V DC
2,770VA, 150W
277V AC, 30V DC
10A (AC), 5A (DC)
100mA, 5V DC
Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1 min. (Detection current: 10 mA)
4,000 Vrms for 1 min. (Detection current: 10 mA)
Max. 45°C
113°F
(By resistive method, nominal coil voltage applied to the coil;
contact carrying current: 10A, at 70°C
158°F)
10,000 V
Max. 15 ms (excluding contact bounce time.)
Max. 5 ms (excluding contact bounce time) (Without diode)
200 m/s
2
(Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 1.5 mm
Min. 2×10
6
Min. 10
5
(ON/OFF = 1.5s : 1.5s at rated load)
Ambient temperature: –40°C to +70°C
–40°F to +158°F,
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature),
Air pressure: 86 to 106kPa
20 times/min. (at nominal switching capacity)
Approx. 12 g
.42 oz
Temperature rise (coil)
Surge breakdown voltage*
2
(Between contact and coil) (Initial)
Operate time (at nominal voltage) (at 20°C
68°F)
(Initial)
Release time (at nominal voltage) (at 20°C
68°F)
(Initial)
Shock resistance
Mechanical
characteristics
Vibration resistance
Functional
Destructive
Functional
Expected life
Destructive
Mechanical (at 180 times/min.)
Electrical
Conditions for operation, transport and storage*
3
Max. operating speed
Conditions
Unit weight
* Specifications will vary with foreign standards certification ratings.
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2×50µs
according to JEC-212-1981
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
REFERENCE DATA
1. Max. switching power
2. Coil temperature rise
Sample: LKP1aF-12V, 6 pcs.
Point measured: coil inside
Contact current: 5 A, 10 A
100
60
Coil applied voltage, %V
55
Temperature rise,
°C
Contact current, A
50
45
40
35
30
25
0
10
100
Contact voltage, V
20
0
100
120
Coil applied voltage, %V
20
0
10
20
70°C 10A
70°C 5A
20°C 10A
20°C 5A
3. Ambient temperature characteristics and coil
applied voltage
Contact current: 10 A
220
180
Allowable ambient temperatures
against % coil voltages
(max. inside the coil tem-
perature set as
115°C
239°F)
10
140
100
Cold start
1
60
Pick-up voltage
30
40
50
60
70
80
Ambient temperature,
°C
ASCTB199E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
LK-P

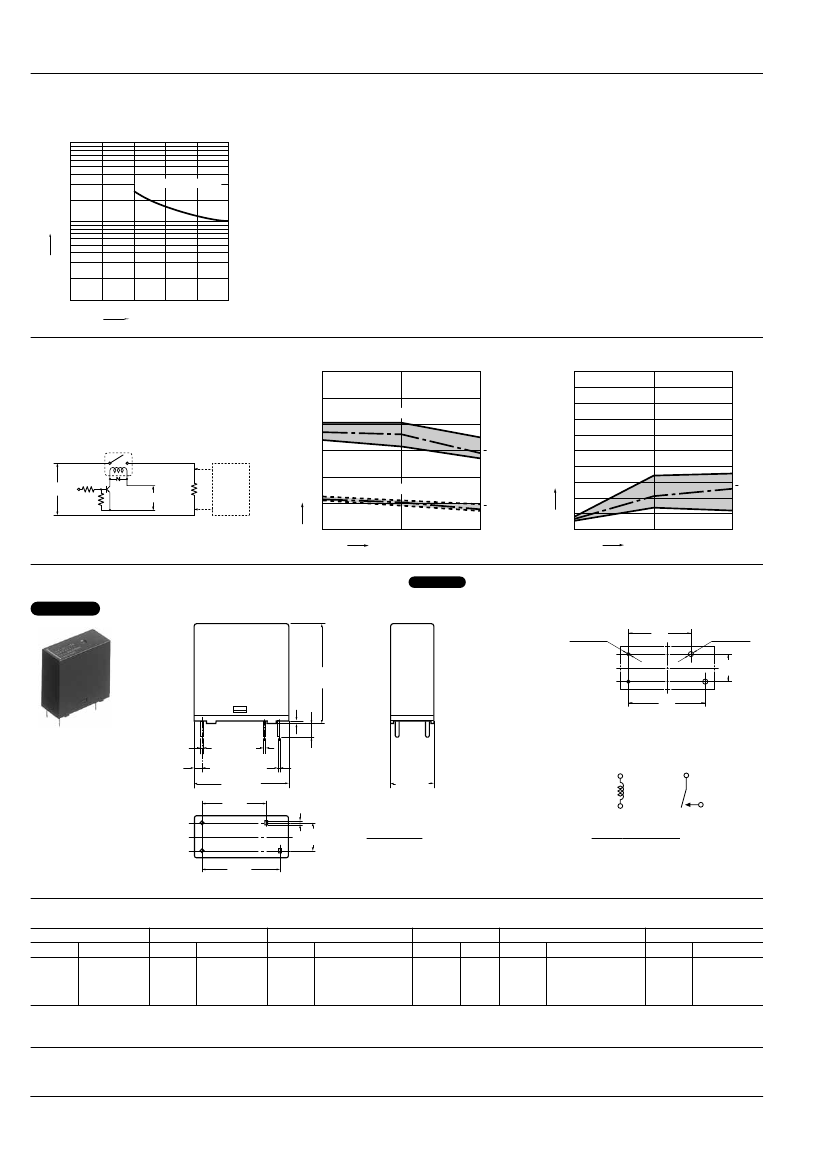

4. Life curve
Operation frequency: 20 times/min.
(ON/OFF = 1.5s: 1.5s)
Ambient temperature: room temperature
100
250V AC resistive load
Life,
×10
4
10
1
0
2
4
6
8
10
Contact current, A
5. Electrical life test
(10 A 277 V AC, resistive load)
Sample: LKP1aF-12V, 6 pcs.
Operation frequency: 20 times/min.
(ON/OFF = 1.5s: 1.5s)
Ambient temperature: 20°C
68°F
Change of pick-up and drop-out voltage
12
Pick-up and drop-out voltage, V
10
Pick-up voltage
8
Max.
6
4
Drop-out voltage
2
0
0
Max.
x
Min.
5
4
No. of operations,
×10
10
x
Min.
Change of contact resistance
50
45
Contact resistance, mΩ
40
35
30
25
20
15
10
5
0
0
5
No. of operations,
×10
4
Min.
10
Max.
x
Circuit:
Contact
welding
detection
and Mis-
contacting
detection
circuit
277V AC
12V DC
DIMENSIONS
(mm
inch)
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
PC board pattern (Bottom view)
2-0.9 dia.
2-.035 dia.
16.5
.650
2-1.3 dia.
2-.051 dia.
7.5
.295
20.0
.787
Max. 25.0
.984
0.5
.020
4
.157
0.4
.016
1.0
.039
7.5
.295
20.0
.787
Tolerance:
±0.1
±.004
0.5 dia.
.020 dia.
1.65
.065
0.3
.012
Max. 24.0
.945
16.5
.650
Schematic (Bottom view)
Max. 11.0
.433
Dimension:
Less than 1mm
.039inch:
Min. 1mm
.039inch
less than 3mm
.118 inch:
Min. 3mm
.118 inch:
General tolerance
±0.1
±.004
±0.2
±.008
±0.3
±.012
SAFETY STANDARDS
UL/C-UL (Recognized)
File No.
Contact rating
E43149
10A 277V AC
5A 30V DC
CSA (Certified)
File No.
Contact rating
LR26550
10A 277V AC
etc.
5A 30V DC
VDE (Certified)
TV rating (UL/CSA)
File No.
Contact rating
File No.
Rating
40014390 10A 250V AC (cos
φ
=1.0) UL
TV-5
E43149
CSA
LR26550
TÜV (Certified)
SEMKO (Certified)
File No.
Rating
File No.
Contact rating
B 11 05
10A 250V AC (cos
φ
=1.0) 807779
3/100A 250V AC
13461 299 5A 30V DC (0ms)
5/40A 250V AC
10A 250V DC
For Cautions for Use.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB199E 201202-T
