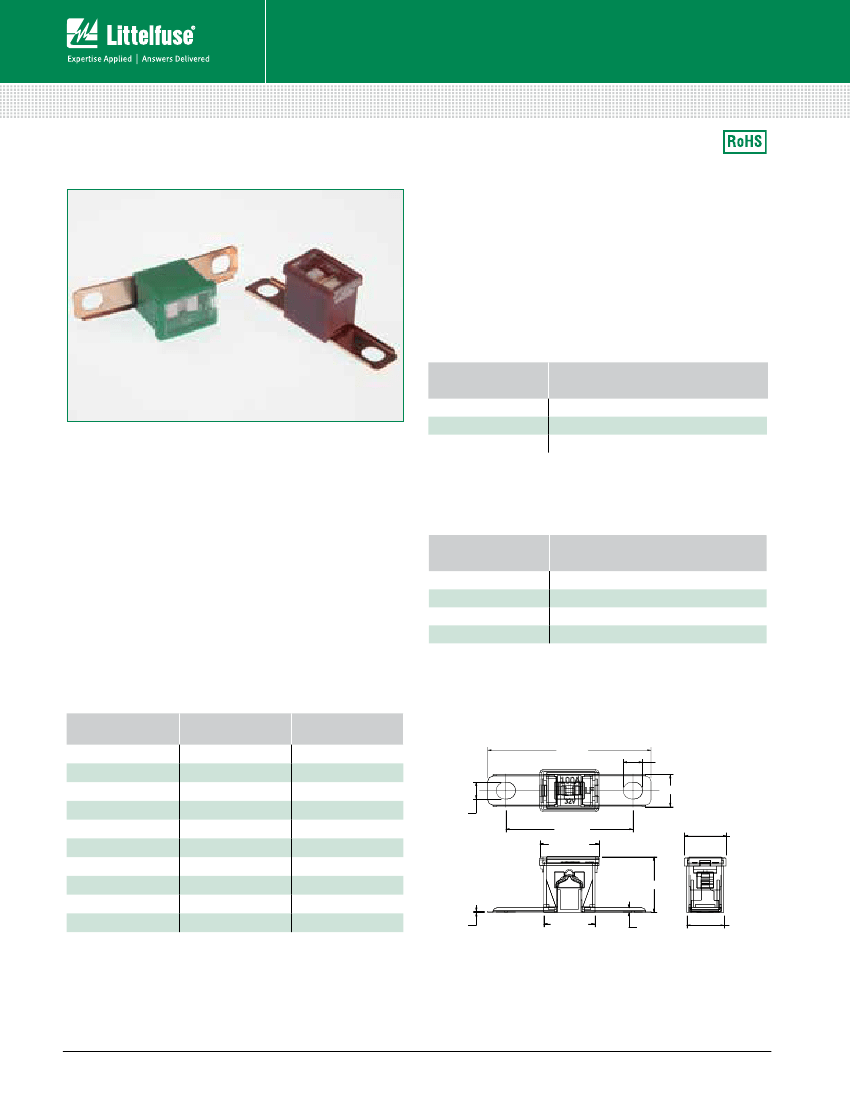

PAL Fuses
Auto Link PAL Fuses - 295
Specifications
Voltage Rating:
32 VDC
Current Cycling:
24˚C
The fuses satisfy the performance requirements after 50% of the rated current
is applied for 10,000 cycles. Each cycle consists of an interrupted current with
the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range:
-40˚C to +125˚C
Complies with JASO 0612
Ordering Information
Part Number
0295xxx.H
0295xxx.U
0295xxx.MXJ
Package Size
100
500
1000
Description
PAL fuses are commonly found on many Japanese and domestic
built vehicles.
Time-Current Characteristics
% of Rating
110
200
350
600
Opening Time Min / Max (s)
14,400 s
5 s / 100 s
0.2s / 7 s
0.040 s / 1 s
Ratings
Part Number
0295020._
0295030._
0295040._
0295050._
0295060._
0295070._
0295080._
0295100._
0295120._
0295140._
Dimensions
Current
Rating (A)
20
30
40
50
60
70
80
100
120
140
Body Color
LIGHT BLUE
PINK
GREEN
RED
YELLOW
BROWN
BLACK
BLUE
WHITE
REDDISH BROWN
Dimensions in mm
63 ±1.0
63 ±1.0
7.5
±0.1
7.5
±0.1
12.4
±0.2
12.4 ±0.2
6.5 ±0.1
6.5 ±0.1
49.0 ±1.0
49 ±1.0
22.8
±0.5
22.8
±0.5
16.2
16.2
±0.5
±0.5
21.5 ±0.5
21.5 ±0.5
0.4
0.4 ±0.05
±0.05
19.8
19.8
±0.5
±0.5
1.7
1.7
±0.3
±0.3
14.5 ±0.5
14.5 ±0.5
