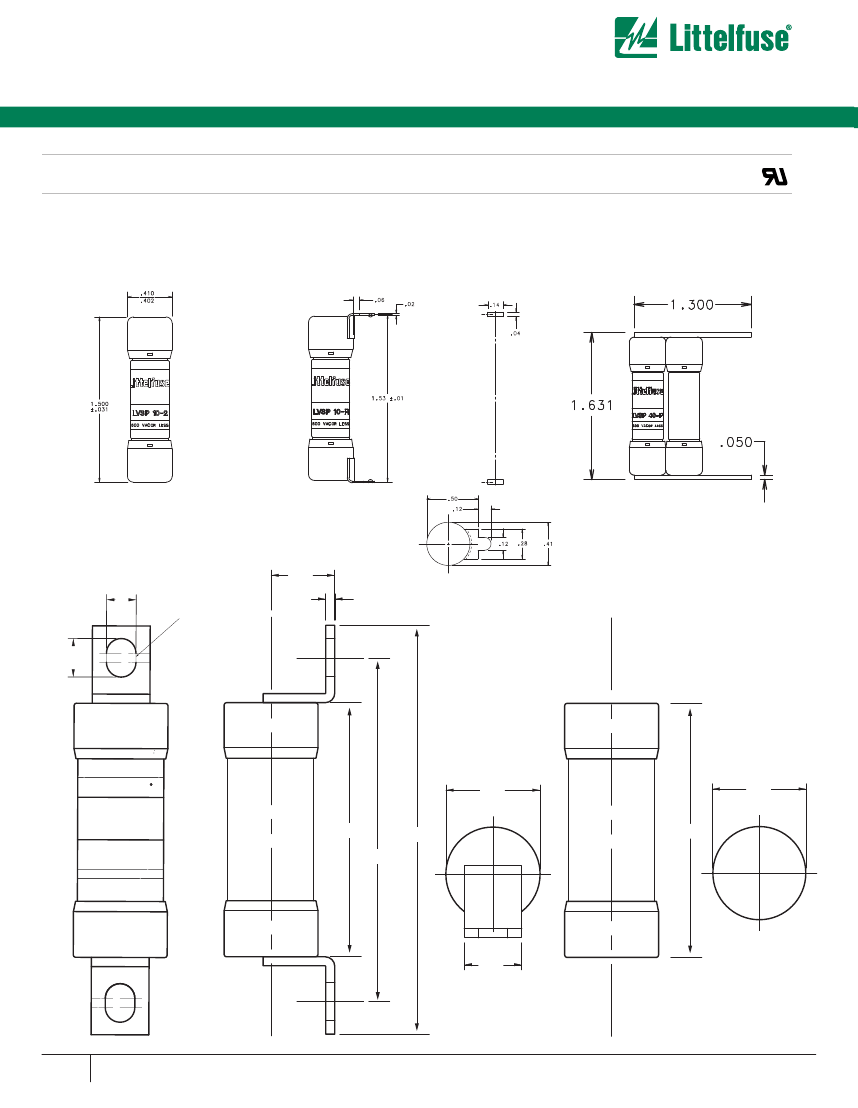

Blade Terminal & Special Purpose Fuses
Surge Fuses
LVSP Series
Surge Fuse

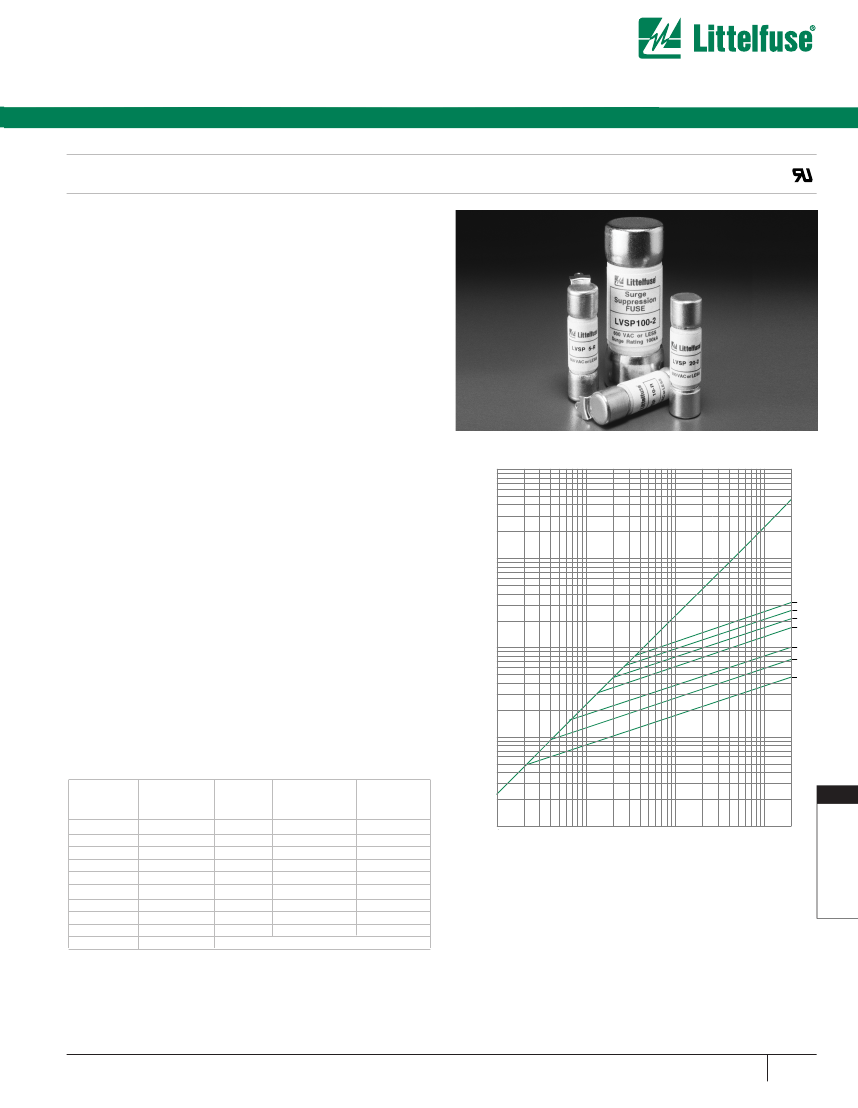

The Littelfuse Varistor Surge Protection (LVSP) Fuses are intended for
the protection of TVSS products. The LVSP Series has been designed to
survive the 8x20µs lightning surges described in various Standards
(UL1449, IEC61000-4-5 & IEEE C62.41) without opening. This allows
the TVSS to perform the necessary suppression. The LVSP Series is not
rated for continuous current and the ratings are to specific 8x20µs surge
capability. The LVSP Series can be used to facilitate TVSS module com-
pliance to UL1449 in permanently connected applications (abnormal
overvoltage, unlimited current conditions)
®
Features:
• Rated at 600 VAC - 200kA I.R.
• Available in Surge Ratings from 5-100kA (8x20µs)
• Very current limiting under AC short-circuit conditions
• Available in Cartridge, Bolt-in and PC board mount versions
• Provides short circuit protection in TVSS Systems and complements
the Littelfuse Line of overvoltage products (HA, HB34, TMOV™ and
iTMOV™ varistors as well as the AK-10 series TVS diodes)
1000000
AGENCY APPROVALS:
Recognized under the components program
of Underwriters Laboratories for Special Purpose Fuses.
AGENCY FILE NUMBERS:
UL E71611
100000
APPLICATIONS:
• TVSS Products
• Surge Arrestors
PEAK LET-THRU IN AMPERES
RATINGS:
5-100kA 8x20µs Surge withstand
600VAC 200kA I.R.
80kA
60kA
40kA
30kA
20kA
10kA
5kA
RECOMMENDED FUSE BLOCKS FOR LVSP FUSES:
• LVSP (5-20)-2
- L60030M Series (Block)
- LPSM Series (“Dead Front” Holder)
• LVSP (30-100)-2
- LJ60030 Series (Block)
- LPSJ30 (“Dead Front” Holder)
10000
1000
ORDERING INFORMATION:
Catalog
Number
LVSP
5
LVSP
10
LVSP
15
LVSP
20
LVSP
30
LVSP
40
LVSP
40P
LVSP
60
LVSP
80
LVSP
100
Nominal
Nominal
Melting I
2
t
8x20µs
Clearing I
2
t
Surge Rating A
2
Sec
A
2
Sec
981
359
5,000
3,210
1,300
10,000
8,235
3,267
15,000
11,710
4,940
20,000
35,325
11,950
30,000
40,000
20,550
61,700
40,000
9,975
55,854
60,000
39,240
145,566
80,000
75,000
254,000
100,000
Contact Factory
Ipeak@
100kA, 60Hz
(A)
3,700
5,823
7,765
8,135
12,478
15,250
17,300
19,604
24,600
12
100
AVAILABLE FAULT CURRENT SYMMETRICAL R.M.S. AMPERES
*
Contact the factory for additional rating or configuration availability
w w w. l i t t e l f u s e . c o m
463
