SMD Transient Voltage Suppressor
ATV02W5V0-HF Thru ATV02W191-HF
Working Peak Reverse Voltage:5.0-190 Volts
Peak Pulse Power:200 Watts
RoHS Device
Halogen Free
Features
- Glass passivated chip.
- Low leakage current.
- 200W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%.
- Uni and bidirectional unit.
- Excellent clamping capability.
- Very fast response time.
-
Comply with AEC-Q101
SOD-123
0.114 (2.90)
0.102 (2.60)
0.047 (1.20)
0.028 (0.70)
0.153 (3.90)
0.138 (3.50)
0.075 (1.90)
0.063 (1.60)
Mechanical data
- Case: Molded plastic.
- Epoxy: UL 94V-0 rate flame retardant.
- Lead: Solderable per MIL-STD-750, method 2026.
- Polarity: Color band denotes cathode end
except bipolar.
- Mounting position: Any.
- Weight: 0.016 grams
(approx)
.
0.051 (1.30)
0.037 (0.95)
0.010 (0.25)
0.002 (0.05)
0.033 (0.85)
0.014 (0.35)
Dimensions in inches and (millimeter)
Circuit Diagram
Bi-directional
Uni-directional
Maximum Rating and Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Parameter
Peak power dissipation at 10/1000µs waveform (Note 1)
Peak power dissipation at 8/20µs waveform (Note 1)
Peak pulse current with a 10/1000µs waveform (Note 1)
Power dissipation on infinite heatsink at T
L
= 75°C
Peak forward surge current, 8.3ms single half sone-wave
undirestional only (Note 2)
Max.instantaneous forward voltage at 25A for
undirestional only
Operating junction and storage temperature range
Symbol
P
PP
P
PP
I
PP
P
D
I
FSM
V
F
T
J
,T
STG
Value
200
1000
See next table
0.4
20
3.5
-55 to +150
Unit
W
W
A
W
A
V
°C
Notes:
1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25°C per Fig.1
2. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum.
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV05
REV:B
Page 1
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

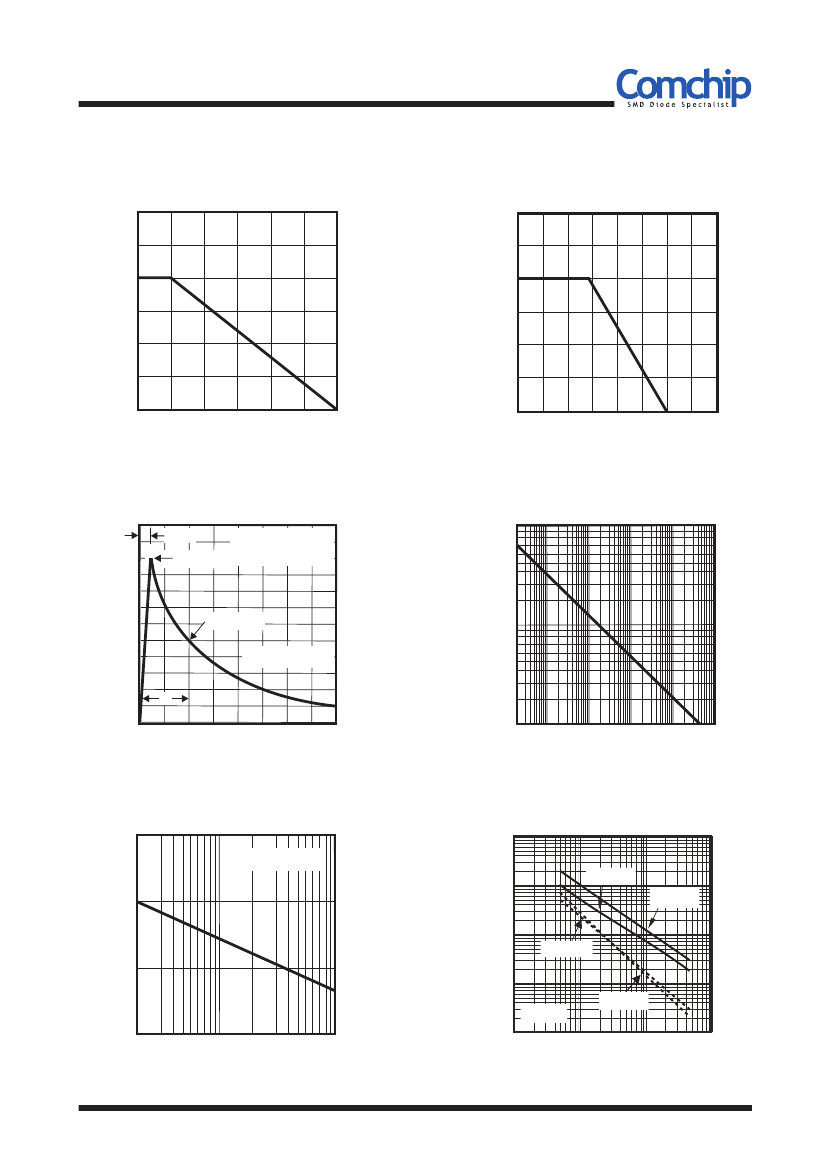

Rating and Characteristic Curves (ATV02W5V0-HF
Thru. ATV02W191-HF)
Fig. 1 - Pulse Derating Curve
Steady State Power Dissipation,(W)
150
125
0.6
0.5
0.4
Fig.2 - Steady State Power
Derating Curve
Peak Pulse Derating in % of
Peak Power or Current, %
100
75
50
25
0
0
0.3
0.2
0.1
25
50
75
100
125
150
0
0
25
50
75 100 125 150 175 200
Ambient Temperature, (°C)
Lead Temperature, (°C)
Fig. 3 - Pulse Waveform
10
Tr=10µs
TJ=25°C
Fig. 4 - Peak Pulse Power
Rating Curve
100
Peak Value(I
PP
)
Pulse Width(td) is defined as
the point where the peak
current decays 50% of I
PPM
Peak Pulse Current, (%)
Half Value=I
PP
/2
Peak Power, (kW)
4
1
50
10/1000 µ sec.Waveform
as defined by R.E.A.
td
0
0
1
2
3
0.1
0.1µs
1µs
10µs
100µs
Time, (ms)
1ms
10ms
Pulse Width
Fig. 5 - Maximum non-repetitive
surge current
30
10000
T
J
= T
J
max.
8.3 ms single half sine-wave
Fig.6 - Typical Junction Capacitance
Peak forward surge current, (A)
Junction Capacitance, (pF)
1000
Bi-directional
@zero bias
Uni-directional
@zero bias
20
100
Uni-directional
@V
RWM
10
10
T
J
=25 C
f=1.0MHz
O
Bi-directional
@V
RWM
0
1
10
100
1
1
10
100
1000
Number of cycle at 60 Hz
Breakdown Voltage,V
BR
(V)
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV05
REV:B
Page 2
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (ATV02W5V0-HF
Thru. ATV02W191-HF)
Absolute Maximum Rating
(Ta=25°C)
Part No
ATV02W5V0(B)-HF
ATV02W6V0(B)-HF
ATV02W6V5(B)-HF
ATV02W7V0(B)-HF
ATV02W7V5(B)-HF
ATV02W8V0(B)-HF
ATV02W8V5(B)-HF
ATV02W9V0(B)-HF
ATV02W100(B)-HF
ATV02W110(B)-HF
ATV02W120(B)-HF
ATV02W130(B)-HF
ATV02W140(B)-HF
ATV02W150(B)-HF
ATV02W160(B)-HF
ATV02W170(B)-HF
ATV02W180(B)-HF
ATV02W190(B)-HF
ATV02W200(B)-HF
ATV02W220(B)-HF
ATV02W240(B)-HF
ATV02W260(B)-HF
ATV02W280(B)-HF
ATV02W300(B)-HF
ATV02W330(B)-HF
ATV02W360(B)-HF
ATV02W400(B)-HF
ATV02W430(B)-HF
ATV02W450(B)-HF
ATV02W480(B)-HF
ATV02W510(B)-HF
ATV02W540(B)-HF
ATV02W580(B)-HF
ATV02W600(B)-HF
ATV02W640(B)-HF
ATV02W700(B)-HF
ATV02W750(B)-HF
ATV02W780(B)-HF
ATV02W800(B)-HF
ATV02W850(B)-HF
ATV02W900(B)-HF
ATV02W101(B)-HF
ATV02W111(B)-HF
ATV02W121(B)-HF
ATV02W131(B)-HF
ATV02W141(B)-HF
ATV02W151(B)-HF
ATV02W161(B)-HF
ATV02W171(B)-HF
ATV02W181(B)-HF
ATV02W191(B)-HF
Notes:
1. Suffix B after part number to specify bi-directional devices.
2. For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double.
V
C (
M
ax.)
@ IPP
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
80.0
85.0
90.0
100.0
110.0
120.0
130.0
140.0
150.0
160.0
170.0
180.0
190.0
V
BR
M
in.
(V)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
21.10
22.20
24.4
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77.80
83.30
86.70
88.80
94.40
100.00
111.00
122.00
133.00
144.00
155.00
167.00
178.00
189.00
200.00
211.00
V
BR
M
ax.
(V)
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
23.30
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
97.60
104.00
111.00
123.00
135.00
147.00
159.00
171.00
185.00
197.00
209.00
220.00
232.00
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
IPP
@ 10/1000us
I
R
@ V
RWM
(uA)
400
400
250
100
50
25
10
5
2.5
2.5
2.5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Marking Code
Uni
FE
FG
FK
FM
FP
FR
FT
FV
FX
FZ
HE
HG
HK
HM
HP
HR
HT
HB
HV
HX
HZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
XE
XG
XK
XM
XP
XR
XT
XB
XV
XX
XZ
TE
TG
TK
TB
TM
TP
TR
TT
TV
(V)
9.20
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
30.6
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
129.0
137.0
146.0
162.0
177.0
193.0
209.0
224.0
243.0
259.0
275.0
292.0
308.0
(A)
21.74
19.42
17.86
16.67
15.50
14.71
13.89
12.99
11.76
10.99
10.05
9.30
8.62
8.20
7.69
7.25
6.85
6.54
6.17
5.63
5.14
4.75
4.41
4.13
3.75
3.44
3.10
2.88
2.75
2.58
2.43
2.30
2.14
2.07
1.94
1.77
1.65
1.59
1.55
1.46
1.37
1.23
1.13
1.04
0.96
0.89
0.82
0.77
0.73
0.68
0.65
Bi
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LB
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NB
NV
NX
NZ
PE
PG
PK
PB
PM
PP
PR
PT
PV
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV05
REV:B
Page 3
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

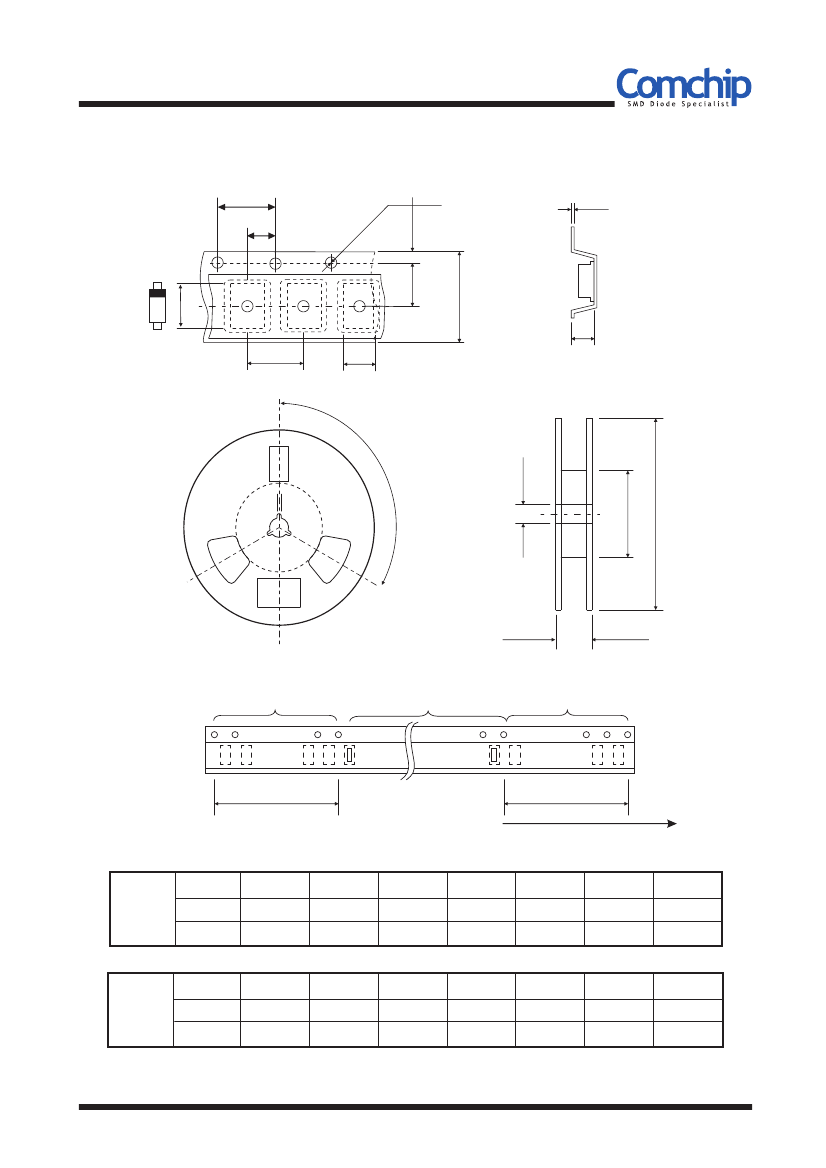

Reel Taping Specification
P
0
P
1
Index hole
d
E
T
F
B
P
A
W
C
12
0
o
D
2
D
1
D
W
1
Trailer
.......
.......
160mm (min)
Device
.......
.......
.......
.......
Leader
.......
.......
400mm (min)
End
Start
Direction of Feed
SYMBOL
A
1.85 ± 0.10
0.073 ± 0.004
B
3.94 ± 0.10
0.155 ± 0.004
C
1.57 ± 0.10
0.062 ± 0.004
d
1.55 ± 0.05
0.061 ± 0.002
D
178.00 ± 1.00
7.008 ± 0.039
D
1
50.00 Min.
1.969 Min.
D
2
13.00 ± 0.20
0.512 ± 0.008
SOD-123
(mm)
(inch)
SYMBOL
E
1.75
±
0.10
0.069
±
0.004
F
3.50 ± 0.05
0.138± 0.002
P
4.00 ± 0.10
0.157 ± 0.004
P
0
4.00 ± 0.10
0.157 ± 0.004
P
1
2.00 ± 0.05
0.079 ± 0.002
W
8.00 ± 0.10
0.315 ± 0.004
W
1
11.40 Max.
0.449 Max.
SOD-123
(mm)
(inch)
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV05
REV:B
Page 4
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Suggested PAD Layout
SOD-123
SIZE
(mm)
A
B
C
D
E
2.90
1.30
1.40
4.20
1.60
(inch)
0.114
0.051
0.055
0.165
0.063
B
C
E
A
D
Standard Packaging
REEL PACK
Case Type
REEL
( pcs )
Reel Size
(inch)
SOD-123
3,000
7
Company reserves the right to improve product design , functions and reliability without notice.
AQW-JTV05
REV:B
Page 5
Comchip Technology CO., LTD.
