BK-HHL-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK-HHL-R

BK-HHL-R: DescriptionFuse Holder INLINE FUSEHOLDER; CategoryCircuit protection; File Size50KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK-HHL-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BK-HHL-R	-	-	View	Buy Now

BK-HHL-R Overview

Fuse Holder INLINE FUSEHOLDER

BK-HHL-R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Fuse Holder
RoHS	Details
Product	Fuse Holders
Type	Miniature
Mounting Style	Through Hole, Vertical
Number of Poles	1 Pole
Current Rating	16 A
Voltage Rating	32 V
Packaging	Bulk
Color	Black
Illumination	Not Illuminated
Factory Pack Quantity	1000
Unit Weight	0.448000 oz

Preview

Download Datasheet

View All

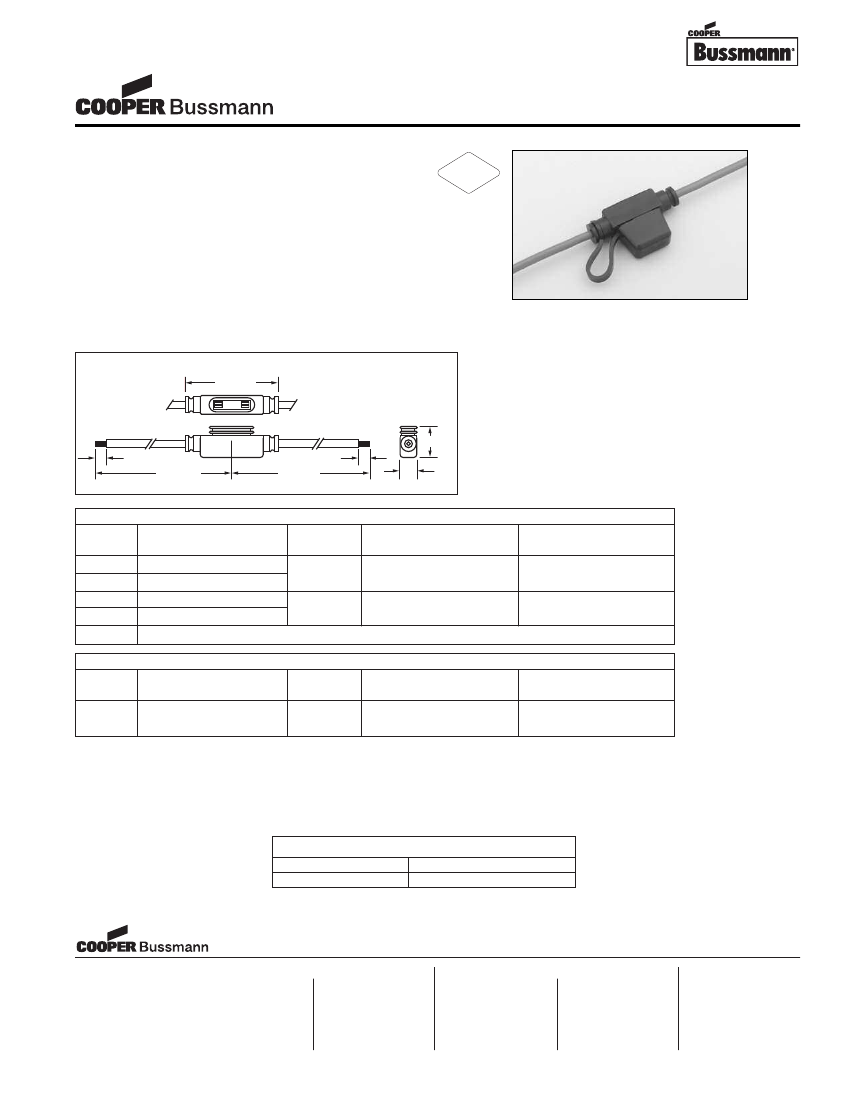

MINI

Fuseholders

HHL & HHM

Description

• In-Line Fuseholders for MINI

Fuses.

• Voltage Rating: 32Vdc maximum

• Current Rating: See Table

• Body material withstands high temps. Protective cover

has removable straps.

Ordering

• Specify packaging and product code

RoHS

2002/95/EC

1.56"

.59"

.25"

4.75"

.25"

.41"

MINI

Fuse Blade Type Holder

Catalog

No.

HHL

HHL-B

HHM

HHM-B

HHM-C

Description

Black fuseholder w/cover

Black fuseholder - Body only

Black fuseholder w/cover

Black fuseholder - Body only

Black cover only

Fuse Size

2-20A

2-30A

Electrical

Connection

#16 black lead wire;

4" length stripped to 1/4"

#12 red lead wire;

4" length stripped to 1/4"

Maximum Continuous

Current Rating

16A*

24A*

Bulk Products (Bulk Quantity - 1000 Pieces)

Catalog

No.

BK/HHL-R

Description

Black fuseholder - Body only

Fuse Size

2-20A

Electrical

Connection

#16 red lead wire;

4" length stripped to 1/4"

Maximum Continuous

Current Rating

16A*

* or 80% of fuse rating, whichever is less

A fuse must be properly and fully inserted into the holder to provide a solid connection. Poor or

improper insertion of the fuse can result in failure of the fuse and holder, thus not protecting the

device for which it was intended.

PACKAGING CODE

Packaging Code

Description

1,000 pieces in a box

Visit us on the web at:

www.cooperbussmann.com

OC-2599 3/07

Technologies 2007

North America

Cooper Electronic Technologies Cooper Bussmann

1225 Broken Sound Parkway NW P.O. Box 14460

Suite F

St. Louis, MO 63178-4460

Boca Raton, FL 33487-3533

Tel: 1-636-394-2877

Tel: 1-561-998-4100

Fax: 1-800-544-2570

Fax: 1-561-241-6640

Toll Free: 1-888-414-2645

Europe

Cooper Electronic Technologies Cooper Electronic Technologies

Cooper (UK) Limited

Avda. Santa Eulalia, 290

Burton-on-the-Wolds

08223

Leicestershire • LE12 5TH UK

Terrassa, (Barcelona), Spain

Tel: +44 (0) 1509 882 737

Tel: +34 937 362 812

Fax: +44 (0) 1509 882 786

+34 937 362 813

Fax: +34 937 362 719

Asia Pacific

Cooper Electronic Technologies

1 Jalan Kilang Timor

#06-01 Pacific Tech Centre

Singapore 159303

Tel: +65 278 6151

Fax: +65 270 4160

BK-HHL-R Related Products

	BK-HHL-R	HHL-1K0193	BK-HHL	HHL-1K0192	BP/HHM	HHM-BLUE
Description	Fuse Holder INLINE FUSEHOLDER	Fuse Holder IN-LINE FUSEHOLDER	Fuse Holder IN-LINE FUSEHOLDER	Fuse Holder IN-LINE FUSEHOLDER	Fuse Holder HOLDER W/COVER 1A3406	Fuse Holder IN LINE ATM HOLDER
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Product Category	Fuse Holder	Fuse Holder	Fuse Holder	Fuse Holder	Fuse Holder	Fuse Holder
RoHS	Details	N	Details	N	N	N
Product	Fuse Holders	Fuse Holders	Fuse Holders	Fuse Holders	Fuse Holders	Fuse Holders
Number of Poles	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole	1 Pole
Current Rating	16 A	20 A	20 A	20 A	30 A	30 A
Voltage Rating	32 V	32 V	32 V	32 V	32 V	32 V
Packaging	Bulk	Bulk	Bulk	Bulk	Blister Card	Bulk
Color	Black	Black	Black	Black	Black	Blue
Illumination	Not Illuminated	Not Illuminated	Not Illuminated	Not Illuminated	Not Illuminated	Not Illuminated
Factory Pack Quantity	1000	1000	100	250	5	1000
Unit Weight	0.448000 oz	0.480000 oz	0.448000 oz	1.871998 oz	1.120000 oz	0.496000 oz
