ECMF02-4CMX8
Common mode filter with ESD protection for USB 2.0 interface
Datasheet
production data
Applications
Where transient overvoltage protection in ESD
sensitive equipment is required, such as:
Computers
Printers
Communication systems
Cellular phone handsets and accessories
Video equipment
Description
Features
Integrated common mode filter
Differential pair ESD protection
16 V V
BUS
ESD and EOS protection
ID pin ESD protection
Low profile micro QFN-8L package
High bandwidth: > 6 GHz
Optimized for high speed USB 2.0
High common mode attenuation at 900 MHz
and 1.8 GHz
Support for audio over USB 2.0 thanks to
bidirectional ESD protection
Ultra compact, low board space
Low height: < 0.55 mm
The ECMF02-4CMX8 affords key component
integration such as common mode filter D+ and
D- lines and ESD protection on all lines. This
device offers an optimized flow-through footprint
for USB 2.0 applications.
Figure 1. Pin configuration (top view)
Complies with the following standards:
IEC 61000-4-2 level 4:
–
15
kV (air discharge)
–
8
kV (contact discharge)
RoHS2 compliant
May 2015
This is information on a product in full production.
DocID022286 Rev 3
1/16
www.st.com
Characteristics
ECMF02-4CMX8
1
Characteristics
Table 1. Absolute maximum ratings (T
amb
= 25 °C)
Symbol
Parameter
ESD discharge IEC 61000-4-2, level 4
Contact discharge on D+/D- pins
Contact discharge on V
BUS
and I
D
pins
Air discharge on all pins
Value
Unit
V
PP
Peak pulse voltage
(1)
10
20
30
150
4.8
-40 to +125
-55 to +150
kV
P
PP
I
PP
T
j
T
stg
Peak pulse power (8/20µs) on V
BUS
Peak pulse current (8/20µs) on V
BUS
Maximum operating junction temperature
Storage temperature range
W
A
°C
°C
1. Measurements done on IEC 61000-4-2 test bench. For further details see Application note AN3353.
Figure 2. Electrical characteristics - definitions
2/16
DocID022286 Rev 3
Characteristics
ECMF02-4CMX8

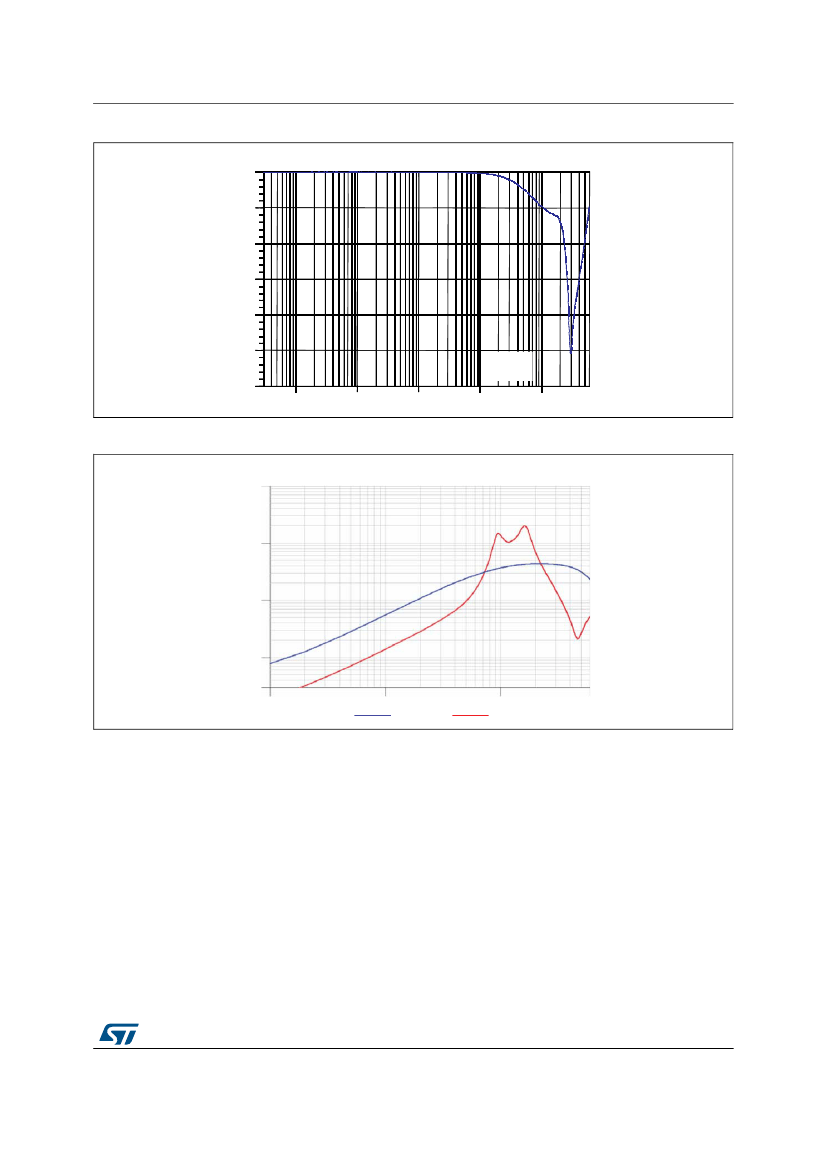

Figure 3. SDD21 differential attenuation measurement (Z
0 diff
= 90
Ω
) for data lines D+ and D-
Figure 4. SCC21 common mode attenuation measurement (Z
0 com
= 45
Ω
)
4/16
DocID022286 Rev 3
ECMF02-4CMX8
Figure 5. ID frequency response measurement (Z
0
= 75
Ω
)
Characteristics
Figure 6. Differential (Z
DD21
) and common mode (Z
CC21
) impedance versus frequency
DocID022286 Rev 3
5/16
16
