Blocks and Holders
Fuse Blocks, Holders and Accessories

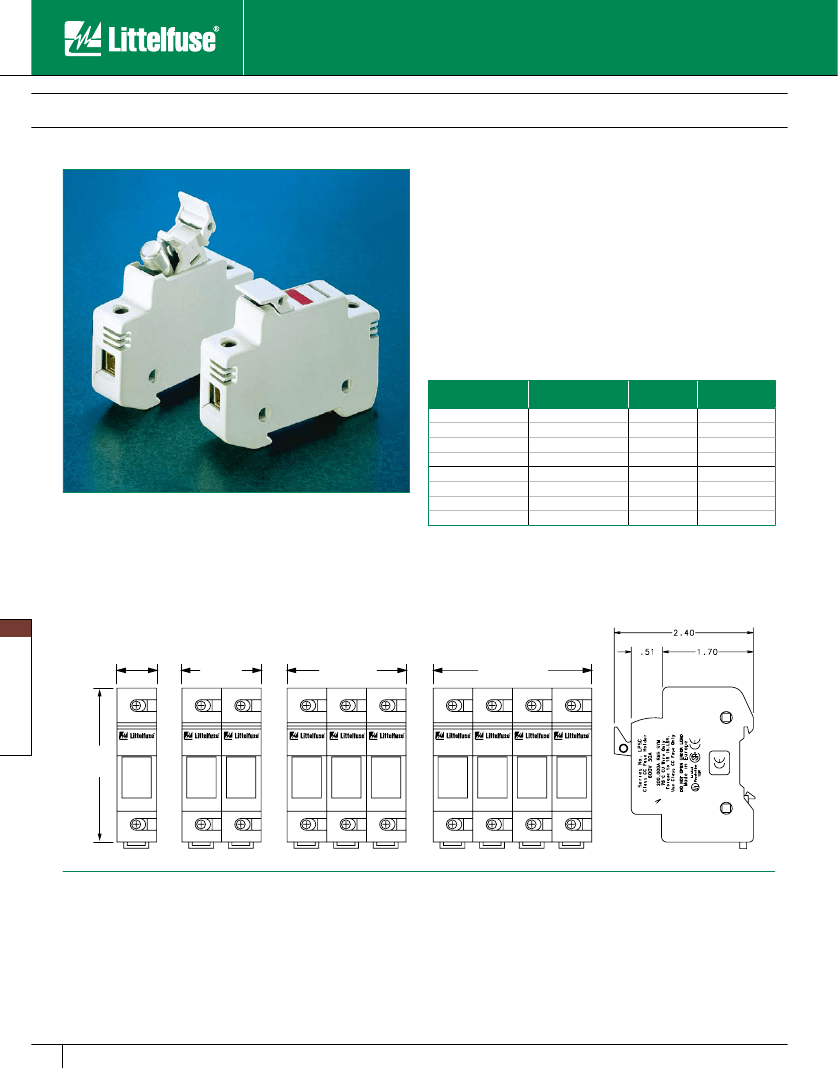

POWR-SAFE “Dead Front” Holders
Features/benefits
•
•
•
•
•
•
•
•
Meets “Dead Front” requirements
Mountable on 35mm Din Rail
Blown fuse identification (Indicating versions only)
Easy installation and removal of fuses. No special fuse pullers or tools
required.
UL Listed for branch circuit protection (Class CC versions only)
Compact design
Ventilated design for cooler operation
Indicates above 80 volts (ID versions only)
Ordering information
Indicating
Part Number
LPSC001ID
LPSC002ID
LPSC003ID
LPSC004ID
LPSM001ID
LPSM002ID
LPSM003ID
LPSM004ID
Multi-pole Assembly Kit:
Non-Indicating
Part Number
LPSC001
LPSC002
LPSC003
LPSC004
LPSM001
LPSM002
LPSM003
LPSM004
Fuse Type
Class CC
Class CC
Class CC
Class CC
Midget
Midget
Midget
Midget
Number of Poles
1
2
3
4
1
2
3
4
Littelfuse POWR-SAFE “Dead Front” holders provide optimum
protection to personnel. Indicating and non-indicating versions are
available in 1, 2, 3, or 4 poles for Class CC and Midget fuses.
Order No: CYHP001
(Kit contains 20 connector pincers and 10 handle pins.)
Dimensions in inches (mm in parentheses)
•
LPSM/LPSC POWR-SAFE Holders
.689
(17.50)
NOTE: Contact factory for DC rated versions.
Blocks and Holders
1.38
(35.05)
2.07
(52.58)
2.76
(70.10)
3.032
(77.01)
Specifications
Voltage Rating:
Ampere Rating:
Interrupting Rating:
Terminal type:
Suggested Torque:
Wire Range:
110
600 Volts AC/DC
30 amperes
200 kA (Class CC)
100 kA (Midget)
Pressure plate
17.7 lb.
#6— #14CU
Material:
Flammability Rating:
Approvals:
Thermo-Plastic
94VO
UL Listed (LPSC File No: E14721)
UL Recognized (LPSM File No: E14721)
CSA Certified (LPSC/LPSM File No: LR7316)
CE Certified
www.littelfuse.com
© 2005 Littelfuse
•
