C519
5 mm x 15 mm Time-delay glass tube fuses
Ordering
•
•
Specify
product
code
Insert packaging code prefix before part number.
E.g. BK(BK1)/C519-2-R
Product features
•
•
•
•
Time-delay
5 x 15mm physical size
Nickel-plated brass endcap construction
UL Listed product meets standard UL 248-14
Electrical Characteristics
Amp Rating
Opening Time
135%
60 minutes max.
125mA - 250mA
3 seconds min.
200%
120 seconds max.
100%
4 hours min.
470mA
30 minutes max.
350mA
600mA
90 seconds max.
2A
2 seconds max.
6A
500 milliseconds max.
135%
60 minutes max.
375mA - 5A
3 seconds min.
200%
120 seconds max.
Rated Current
Agency information
•
UL Listed Card: C519 125mA-250mA and
375mA-3A (Guide JDYX, File E19180)
•
UL Recognized Card: C519 350mA, and 3.5A-7A
(Guide JDYX2, File E19180)
•
CSA Certification Card: C519 125mA-250mA and
375mA-3A (Class 1422-01, File 53787)
Part Number
C519-125-R
C519-250-R
C519-350-R
C519-375-R
C519-500-R
C519-600-R
C519-750-R
C519-1-R
C519-1.25-R
C519-1.5-R
C519-1.6-R
C519-2-R
C519-2.25-R
C519-2.5-R
C519-3-R
C519-3.5-R
C519-4-R
C519-5-R
Voltage
Rating
Vac
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
125
125
125
Interrupting Rating
at Rated Voltage (amps)
600Vac
250Vac
125Vac
-
35
10,000
-
35
10,000
25
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
-
400
-
-
400
-
-
400
Speci cations
Typical DC Cold
Resistance*
(Ω)
4.72
1.32
1.04
0.81
0.54
0.38
0.26
0.14
0.13
0.10
0.09
0.059
0.057
0.046
0.035
0.028
0.023
0.019
Typical
Melting I
2
t**
DC
0.101
0.467
1.169
1.531
2.280
6.982
9.162
14.289
22.961
31.989
31.156
60.256
97.724
78.163
80.426
149.279
233.346
354.813
Max.
Voltage
Drop (mV)***
770
430
530
470
440
350
310
230
220
240
200
170
180
190
150
130
130
150
* DC Cold Resistance (Measured at <10% of rated current)
** Typical Melting I
2
t (A
2
Sec) (Typical I
2
t at 10 times rated current)
*** Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
Technical Data
2007
Effective
May
2017
C519
5 mm x 15 mm Time-delay glass tube fuses

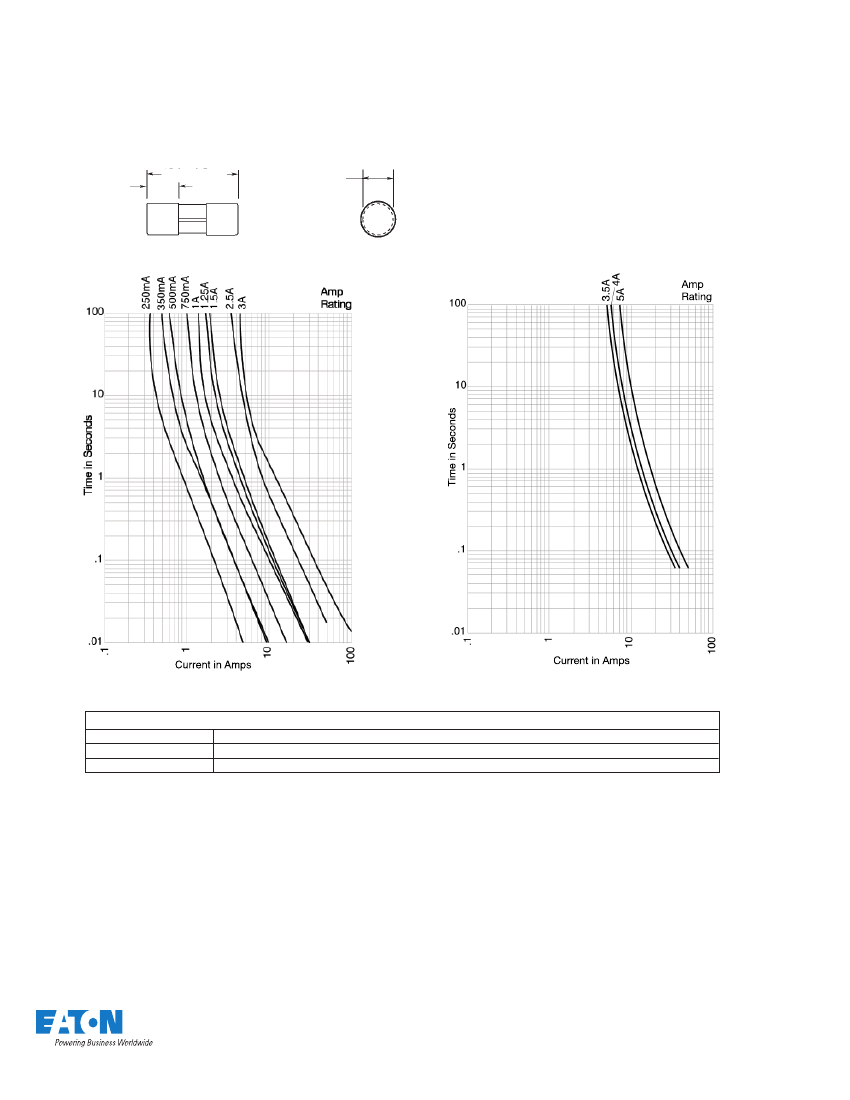

Dimensions - mm
Drawing Not to Scale
14.5 ± 0.5
5.0 (Typ.)
5.2 ± 0.3
Packaging Code Pre x
BK
BK1
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a cardboard carton
Packaging Code
