“ZNR” Transient/Surge Absorbers (Type D)
“ZNR”
Transient/Surge Absorbers
D
Series:
E
Type:
“ZNR” Transient/Surge Absorber, Series E, Type D
features large surge current and energy handling
capability for absorbing transient overvoltage in a
compact size.
●
Large withstanding surge current capability in compact
sizes
●
Large “Energy Handling Capability” absorbing transient
overvoltages in compact sizes
●
Wide range of varistor voltages
●
The standard products shown below have received UL
and VDE standards
Varistor voltage 200V over : UL, VDE
●
RoHS compliant
■
Features
■
Recommended Applications
●
Transistor, diode, IC, thyristor or triac semiconductor
protection
●
Surge protection in consumer electronic equipment
●
Surge protection in communication, measuring or
controller electronics
●
Surge protection in electronic home appliances, gas or
petroleum appliances
■
Applicable Standards
●
UL1449 Ed.3
●
VDE IEC61051-1, -2, -2-2, IEC60950-1 Ed.2 Annex.Q
●
Type designation(UL), Style reference(VDE)
Are not registered by product Part No..
(Refer to pages 2 and 12 for the details)
■
Handling Precautions
Please see Related Information
(Pages 15 to 17)
■
Minimum Quantity / Packing Unit
Please see Related Information
(Page 18)
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Series
Series E8
Series E11
Series E14
Lead Configuration
Symbol Lead Configuration Packaging
Bulk
Straight Lead
A
1)
Bulk
Crimped Lead
B
2)
Taped
Straight Lead
E
2)
Taped
Crimped Lead
F
1) Cut Type, Series E8, Series E11
2) Series E8, Series E11
Design No.
Nominal Varistor Voltage
The first two digits are significant
figures and the third one denotes
the number of zeros following.
E08
E11
E14
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Feb. 2013
1
“ZNR” Transient/Surge Absorbers (Type D)
■
Reference Guide to Standard Products
Part No.
Applicable
Standards
Varistor
Voltage
at 1 mA
(V)
200
(185 to 225)
220
(198 to 242)
240
(216 to 264)
270
(247 to 303)
330
(297 to 363)
360
(324 to 396)
390
(351 to 429)
430
(387 to 473)
470
(423 to 517)
510
(459 to 561)
560
(504 to 616)
620
(558 to 682)
680
(612 to 748)
750
(675 to 825)
820
(738 to 902)
910
(819 to 1001)
1000
(900 to 1100)
1100
(990 to 1210)
Maximum
Allowable
Voltage
Clamping
Voltage
at 8/20μs
Maximum
Peak Current
at 8/20μs(A)
1 time 2 times
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
10000
3500
6000
7500
3500
5000
7500
3500
5000
7500
3500
5000
7500
5000
7500
5000
7500
5000
7500
5000
7500
2500
5000
7000
2500
5000
7000
2500
5000
7000
2500
5000
7000
2500
4500
7000
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
2500
4500
6500
4500
6500
4500
6500
4500
6500
4500
6500
AC 480 V, Line–Line and
Line–Ground Applications
(For DC 500 V Insulating Test)
AC 415 V, Line–Line and
Line–Ground Applications
(For DC 500 V Insulating Test)
AC 380 V, Line–Line and
Line–Ground Applications
(For DC 500 V Insulating Test)
AC 100 V to 240 V, Line–Line
and
Line–Ground Applications
AC 100 V to 220 V, Line–Line
and
Line–Ground Applications
AC 100 V to 120 V, Line–Line
Applications
Telephone Line Applications,
(For DC 250 V Insulation
Resistance Test)
AC 100 V to 120 V, Line–Line
Applications
AC 100 V Line–Line
Applications
Recommended Applications
Standard
Registration No. Approvals
ERZE08A201
E8201
○☆
ERZE11A201
ERZE14A201
ERZE08A221
ERZE11A221
ERZE14A221
ERZE08A241
ERZE11A241
ERZE14A241
ERZE08A271
ERZE11A271
ERZE14A271
ERZE08A331
ERZE11A331
ERZE14A331
ERZE08A361
ERZE11A361
ERZE14A361
ERZE08A391
ERZE11A391
ERZE14A391
ERZE08A431
ERZE11A431
ERZE14A431
ERZE08A471
ERZE11A471
ERZE14A471
ERZE08A511
ERZE11A511
ERZE14A511
ERZE08A561
ERZE11A561
ERZE14A561
ERZE08A621
ERZE11A621
ERZE14A621
ERZE08A681
ERZE11A681
ERZE14A681
ERZE08A751
ERZE11A751
ERZE14A751
ERZE11A821
ERZE14A821
ERZE11A911
ERZE14A911
ERZE11A102
ERZE14A102
ERZE11A112
ERZE14A112
E11201
E14201
E8221
E11221
E14221
E8241
E11241
E14241
E8271
E11271
E14271
E8331
E11331
E14331
E8361
E11361
E14361
E8391
E11391
E14391
E8431
E11431
E14431
E8471
E11471
E14471
E8511
E11511
E14511
E8561
E11561
E14561
E8621
E11621
E14621
E8681
E11681
E14681
E8751
E11751
E14751
E11821
E14821
E11911
E14911
E11102
E14102
E11112
E14112
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○☆
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○●☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
○◎☆★
ACrms (V) DC (V) max.(V) Ip (A)
340
130
170
340
340
360
140
180
360
360
395
150
200
395
395
455
175
225
455
455
545
210
270
545
545
595
230
300
595
595
650
250
320
650
650
710
275
350
710
710
775
300
385
775
775
845
320
410
845
845
930
350
450
930
930
1025
385
505
1025
1025
1120
420
560
1120
1120
1240
460
615
1240
1240
510
550
625
680
670
745
825
895
1355
1355
1500
1500
1650
1650
1815
1815
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
25
50
100
50
100
50
100
50
100
50
100
○
: UL1449 Ed.3,
●
: UL1449 Type3 (or Code-Connected and Direct plug-in),
◎
: UL1449 Type2 (or Permanently Connected),
☆
: VDE (IEC61051-1, -2, -2-2),
★
: VDE (IEC60950-1 Ed.2 Annex.Q)
※
Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the latest file No.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Feb. 2013
2
“ZNR” Transient/Surge Absorbers (Type D)
Series E8
■
Ratings and Characteristics
●
Operating Temperature Range
Varistor
Voltage
V
1 mA
(V)
ERZE08A201
200(185 to 225)
ERZE08A221
220(198 to 242)
ERZE08A241
240(216 to 264)
ERZE08A271
270(247 to 303)
ERZE08A331
330(297 to 363)
ERZE08A361
360(324 to 396)
ERZE08A391
390(351 to 429)
ERZE08A431
430(387 to 473)
ERZE08A471
470(423 to 517)
ERZE08A511
510(459 to 561)
ERZE08A561
560(504 to 616)
ERZE08A621
620(558 to 682)
ERZE08A681
680(612 to 748)
ERZE08A751
750(675 to 825)
: – 40 to 85 °C
●
Storage Temperature Range : – 40 to 125 °C
Maximum
Allowable
Voltage
Clamping
Voltage
(max.)
½
Ip
(V)
340
360
395
455
545
595
650
710
775
845
930
1025
1120
1240
Rated
Power
(W)
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
Maximum
Peak Current Capacitance
(8/20 μs)
(max.)
(10/1000 μs) (2 ms) 1 time 2 times
Maximum
Energy
(J)
35
39
42
49
58
65
70
80
85
92
92
92
92
100
(J)
25
27.5
30
35
42
45
50
55
60
67
67
67
67
70
(A)
(A)
at 1 kHz (pF)
390
380
360
330
300
280
260
230
180
150
150
140
130
130
Part No.
ACrms (V)
130
140
150
175
210
230
250
275
300
320
350
385
420
460
DC (V)
170
180
200
225
270
300
320
350
385
410
450
505
560
615
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
3500 2500
½Ip
Measuring current of clamping voltage : 25 A
■
Dimensions in mm (not to scale)
Part No.
D max.
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
11.5
11.5
11.5
T max.
5.1
5.2
5.3
5.5
5.9
6.1
6.3
6.5
7.3
7.8
8.1
8.7
9.0
9.7
F±1.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
A max.
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
13.5
14.5
14.5
14.5
L±1.0
1.9
2.0
2.1
2.3
2.6
2.8
20.0 min.
L
L
F
A
F
f
0.8
D
T
ERZE08A201
ERZE08A221
ERZE08A241
ERZE08A271
ERZE08A331
ERZE08A361
ERZE08A391
ERZE08A431
ERZE08A471
ERZE08A511
ERZE08A561
ERZE08A621
ERZE08A681
ERZE08A751
2.9
3.1
3.6
4.0
4.3
4.7
5.0
5.6
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Aug. 2012
3
“ZNR” Transient/Surge Absorbers (Type D)
■

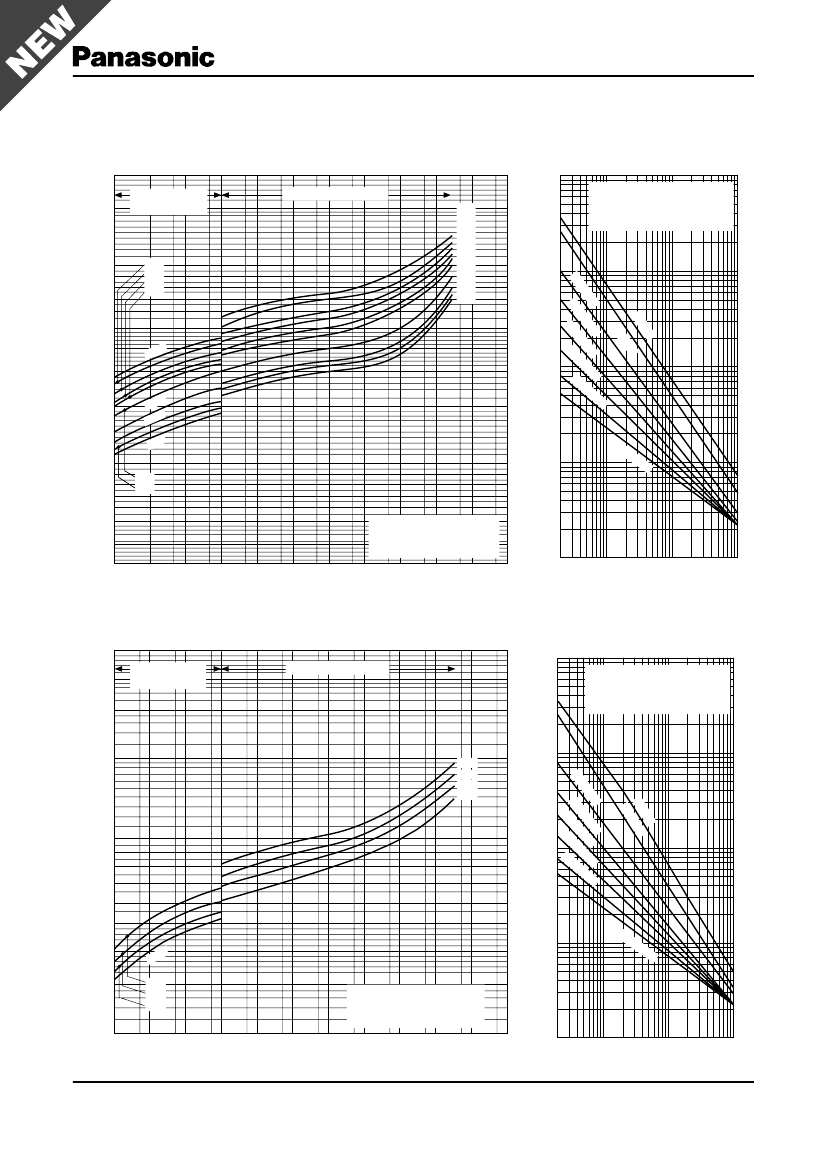

Typical Characteristics
Voltage vs. Current
Impulse Derating
(Relation between impulse
width and impulse current multiple)
ERZE08A201 to ERZE08A511
ERZE08A201 to ERZE08A511
10000
2 times : 5 min. interval
up to 10 times : 2 min. interval
up to 10
6
times : 10 sec. interval
2000
1000
900
800
700
600
500
Voltage (V)
400
300
471
431
391
361
511
471
431
391
361
331
271
241
221
201
1000
10
Tim
es
im
1T
10
10
Surge Current (A)
10
4
2
es
es
Tim
Tim
2T
3
e
es
im
511
100
200
271
241
m
e
10
5
s
Tim
es
Ti
201
100
90
80
70
60
50
40
30
10
-6
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
Current (A)
10
331
221
10
6
Tim
es
Test Current Waveform
10
-6
to 10
-3
A: Direct Current
10
-1
to 10
4
A: 8/20 μs
10
1
10
2
10
3
10
4
10
5
1
20
100
1000
Impulse Width (μs)
10000
ERZE08A561 to ERZE08A751
5000
4000
3000
ERZE08A561 to ERZE08A751
10000
2 times : 5 min. interval
up to 10 times : 2 min. interval
up to 10
6
times : 10 sec. interval
2000
1000
751
681
621
561
Surge Current (A)
10
Tim
es
e
im
1 T
imes
2T
10
10
2
es
s
Tim
ime
3
T
Voltage (V)
1000
900
800
700
600
500
400
300
100
Ti
10
5
mes
Tim
es
10
4
10
5
61
10
6
Tim
es
751
681
621
200
10
-6
Test Current Waveform
10
-6
to 10
-3
A: Direct Current
10
-1
to 10
4
A: 8/20 μs
10
-4
10
-3
10
-2
10
-1
10
0
Current (A)
10
1
10
2
10
3
10
4
10
5
1
20
100
1000
Impulse Width (μs)
10000
10
-5
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Aug. 2012
4
“ZNR” Transient/Surge Absorbers (Type D)
Series E11
■
Ratings and Characteristics
●
Operating Temperature Range
Varistor
Voltage
V
1 mA
(V)
ERZE11A201
ERZE11A221
ERZE11A241
ERZE11A271
ERZE11A331
ERZE11A361
ERZE11A391
ERZE11A431
ERZE11A471
ERZE11A511
ERZE11A561
ERZE11A621
ERZE11A681
ERZE11A751
ERZE11A821
200(185 to 225)
220(198 to 242)
240(216 to 264)
270(247 to 303)
330(297 to 363)
360(324 to 396)
390(351 to 429)
430(387 to 473)
470(423 to 517)
510(459 to 561)
560(504 to 616)
620(558 to 682)
680(612 to 748)
750(675 to 825)
820(738 to 902)
: – 40 to 85 °C
●
Storage Temperature Range : – 40 to 125 °C
Maximum
Allowable
Voltage
Clamping
Voltage
(max.)
½
Ip
(V)
340
360
395
455
545
595
650
710
775
845
930
1025
1120
1240
1355
1500
1650
1815
Rated
Power
(W)
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Maximum
Peak Current Capacitance
(8/20 μs)
(max.)
(10/1000 μs) (2 ms) 1 time 2 times
Maximum
Energy
(J)
70
78
84
99
115
130
140
155
175
190
190
190
190
210
235
255
280
310
(J)
50
55
60
70
80
90
100
110
125
136
136
136
136
150
165
180
200
220
(A)
(A)
at 1 kHz (pF)
690
660
620
580
520
480
450
400
360
310
310
300
290
280
260
240
220
200
Part No.
ACrms (V)
130
140
150
175
210
230
250
275
300
320
350
385
420
460
510
550
625
680
DC (V)
170
180
200
225
270
300
320
350
385
410
450
505
560
615
670
745
825
895
6000 5000
6000 5000
6000 5000
6000 5000
6000 4500
6000 4500
6000 4500
6000 4500
6000 4500
6000 4500
6000 4500
5000 4500
5000 4500
5000 4500
5000 4500
5000 4500
5000 4500
5000 4500
ERZE11A911
910(819 to 1001)
ERZE11A102
1000(900 to 1100)
ERZE11A112
1100(990 to 1210)
½Ip
Measuring current of clamping voltage : 50 A
■
Dimensions in mm (not to scale)
Part No.
D max.
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
14.0
14.0
14.0
14.0
14.0
14.0
14.0
T max.
5.2
5.3
5.4
5.6
5.9
6.1
6.2
6.4
6.6
6.8
7.2
7.5
7.8
8.2
8.5
9.0
9.5
10.1
F±1.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
A max.
17.0
17.0
17.0
17.0
17.0
17.0
17.0
17.0
17.0
17.0
17.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
L±1.0
1.9
2.0
2.1
2.3
2.6
2.8
2.9
3.1
3.3
20.0 min.
L
L
F
A
F
f
0.8
D
T
ERZE11A201
ERZE11A221
ERZE11A241
ERZE11A271
ERZE11A331
ERZE11A361
ERZE11A391
ERZE11A431
ERZE11A471
ERZE11A511
ERZE11A561
ERZE11A621
ERZE11A681
ERZE11A751
ERZE11A821
ERZE11A911
ERZE11A102
ERZE11A112
3.5
3.8
4.2
4.5
4.9
5.2
5.7
6.2
6.8
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Aug. 2012
5
Talking
京公网安备 11010802033920号
EEWORLD
