LPSJ603Z

Description
Fuse Holder 60A 3 Pole for Class J Fuse
CategoryCircuit protection
File Size141KB,1 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric Compare View All

LPSJ603Z Online Shopping

Suppliers Part Number Price MOQ In stock
LPSJ603Z - - View Buy Now

LPSJ603Z Overview

Fuse Holder 60A 3 Pole for Class J Fuse

LPSJ603Z Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLittelfuse
Product CategoryFuse Holder
RoHSN
ProductFuse Holders
Fuse Size / GroupClass J
Mounting StyleDIN Rail
Number of Poles3 Pole
Current Rating60 A
Voltage Rating600 V
PackagingBulk
ColorWhite
IlluminationNot Illuminated
Factory Pack Quantity1

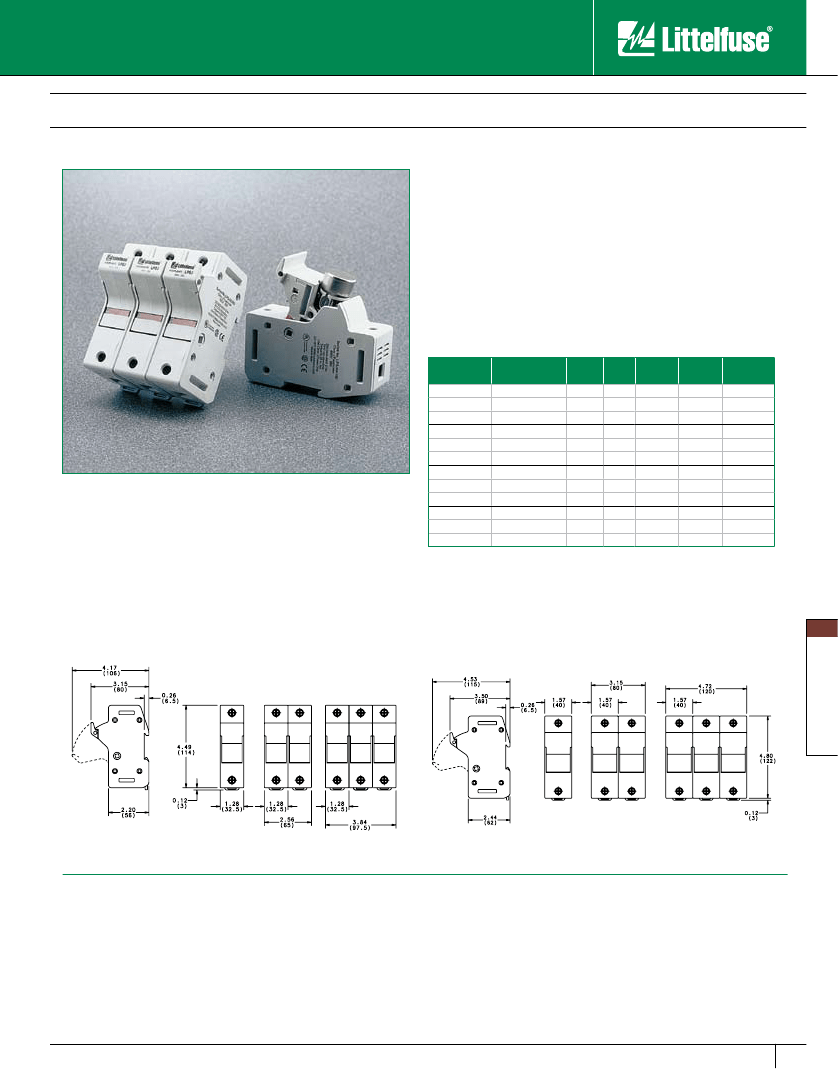

Blocks and Holders
Fuse Blocks, Holders and Accessories
Class J POWR-SAFE Holders
Features/benefits
Meets “Dead Front” requirements and IEC Type IP20 protection.
Mountable on 35mm DIN-Rail.
Blown fuse identification (Indicating versions only).
Easy installation and removal of fuses. No special fuse pullers or tools
required.
• UL listed for branch circuit protection.
• Ventilated design for cooler operation.
Ordering Information
Littelfuse
Catalog No.
LPSJ30-1
LPSJ30-2
LPSJ30-3
LPSJ30-1ID
LPSJ30-2ID
LPSJ30-3ID
LPSJ60-1
LPSJ60-2
LPSJ60-3
LPSJ60-1ID
LPSJ60-2ID
LPSJ60-3ID
Littelfuse
System No.
LPSJ301.Z
LPSJ302.Z
LPSJ303.Z
LPSJ301.ZXID
LPSJ302.ZXID
LPSJ303.ZXID
LPSJ601.Z
LPSJ602.Z
LPSJ603.Z
LPSJ601.ZXID
LPSJ602.ZXID
LPSJ603.ZXID
No. of
Poles
1
2
3
1
2
3
1
2
3
1
2
3
Pack
Qty.
6
3
2
6
3
2
6
3
2
6
3
2
Voltage
Rating
600V
600V
600V
600V
600V
600V
600V
600V
600V
600V
600V
600V
Ampere
Rating
30A
30A
30A
30A
30A
30A
60A
60A
60A
60A
60A
60A
Options
Indicating
Indicating
Indicating
Indicating
Indicating
Indicating
Littelfuse POWR-SAFE “Dead Front” fuseholders provide optimum
protection to personnel. An integral DIN-Rail adapter system allows fuse
holders to be mounted on 35mm DIN-Rail without the use of tools or
special parts. Indicating and non-indicating versions are available in 1, 2,
or 3 poles for Class J fuses.
Multi-Pole Assembly Kit:
Order No: US3J2PAK to assemble two LPSJ30-1
US3J3PAK to assemble three LPSJ30-1
US6J2PAK to assemble two LPSJ60-1
US6J3PAK to assemble three LPSJ60-1
Dimensions in inches (mm in parentheses)
Blocks and Holders
30 Amp
60 Amp
Specifications
Voltage Rating:
Interrupting Rating:
Ampere Rating:
Terminal Type:
Suggested Torque:
Wire Range:
600 VAC
200 kA
30 and 60 amperes
Pressure plate
30A – 35 inch-pounds
60A – 45 inch-pounds
#2 – #14CU
Material:
Flammability Rating:
Approvals:
Thermo-plastic
94V0
UL Listed
CSA Certified
IEC Type IP20 Protection
CE
© 2005 Littelfuse
POWR-GARD
Products Catalog
www.littelfuse.com
129
