DATA SHEET
Part No.
Package Code No.
AN5832SA
SSOP032 - P - 0300AP
SEMICONDUCTOR COMPANY
MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.
Publication date: February 2005
SDB00096AEB
1
AN5832SA
Contents
Features …………………………………………………………………………………………………………….. 3
Applications ………………………………………………………………………………………………………… 3
Package ……………………………………………………………………………………………………………. 3
Application Circuit …………………………………………………………………………………………………. 4
Block Diagram ………………...……………………………………………………………………………………. 6
Pin Descriptions ………………...…………………………………………………………………………………… 7
Absolute Maximum Ratings ………………………………………………………………………………………. 8
Operating Supply Voltage Range ……………..…………………………………………………………………. 8
SDB00096AEB
2
AN5832SA
AN5832SA
Silicon Monolithic Bipolar IC
Features
Supports both I
2
C bus and parallel control
Integrated SIF demodulation
Fully adjustment - free ( when used with SIF input )
2 adjustment points when used with baseband input
Integrated voice AGC circuit
Reduced peripheral component count
Low power consumption ( typ. V
CC
= 5 V, I
TOT
= 28 mA )
Near pin to pin compatible with AN5833SA ( Japanese TV audio multiplex demodulation IC )
Applications
TV sets, VCRs, DVD recorders, PCs, car navigation systems, and similar products for US market
Package
DIL-32PIN Plastic Package (SO Type)
SDB00096AEB
3
AN5832SA

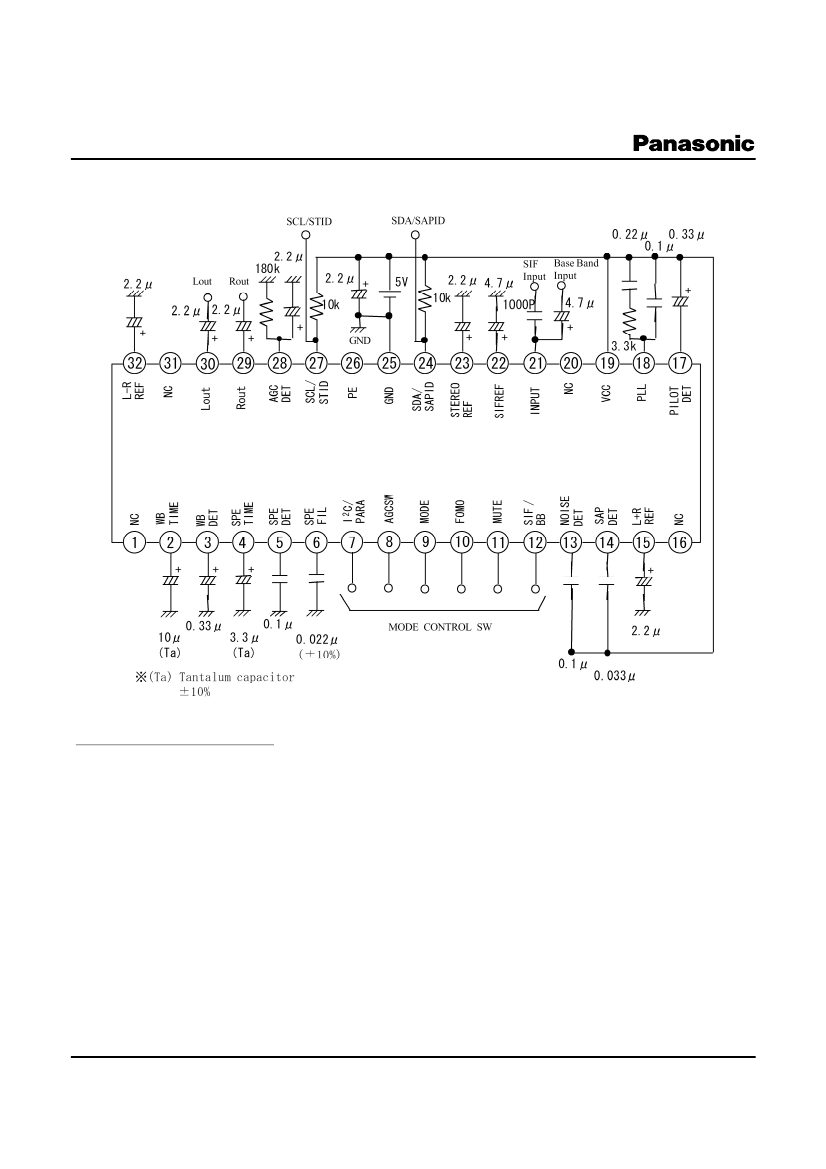

Application Circuit
< Instructions of Application Circuits >
1 ) In case of using base band input, ICs were adjusted to perform good separation when input level ismatched
with 100 mV[rms] ( = 283 mV[p-p] ) on condition of mono 100% mod pre-emphasis OFF.
However, if good enough separation can't be taken in the cause of un-matching frequency characteristic and so in
input signal, it can adjust separation by connecting a volume between #22Pin and GND for adjusting high frequency separation.
If it not need adjusting separation, please open #22Pin.
If it need adjusting low frequency separation also, please adjust the input level volume for taking best separation on low frequency.
2 ) In case of using SIF input, please set up the SIF input level from tuners between 80 dBµV to 110 dBµV in standard
RF input conditions. Please select SIF - BPFs that group delay of 4.5 MHz
±42
kHz is flat as possible.
3 ) In measuring characteristics of separation, please use the stereo modulator that perform good characteristic on dbx
encoder and corrected well.
In case of using SIF input, please correct FM modulation band to
±25
kHz exactly at mono 100% mod pre-emphasis
OFF with the 0 carrier method.
And, please use LPFs that reduce 30 kHz signal over 20 dB setting between line-outs and AB level meter
SDB00096AEB
4
AN5832SA
Application Circuit ( continued )
( 1 ) Example of No Adjustments Application Circuits in case of SIF Input

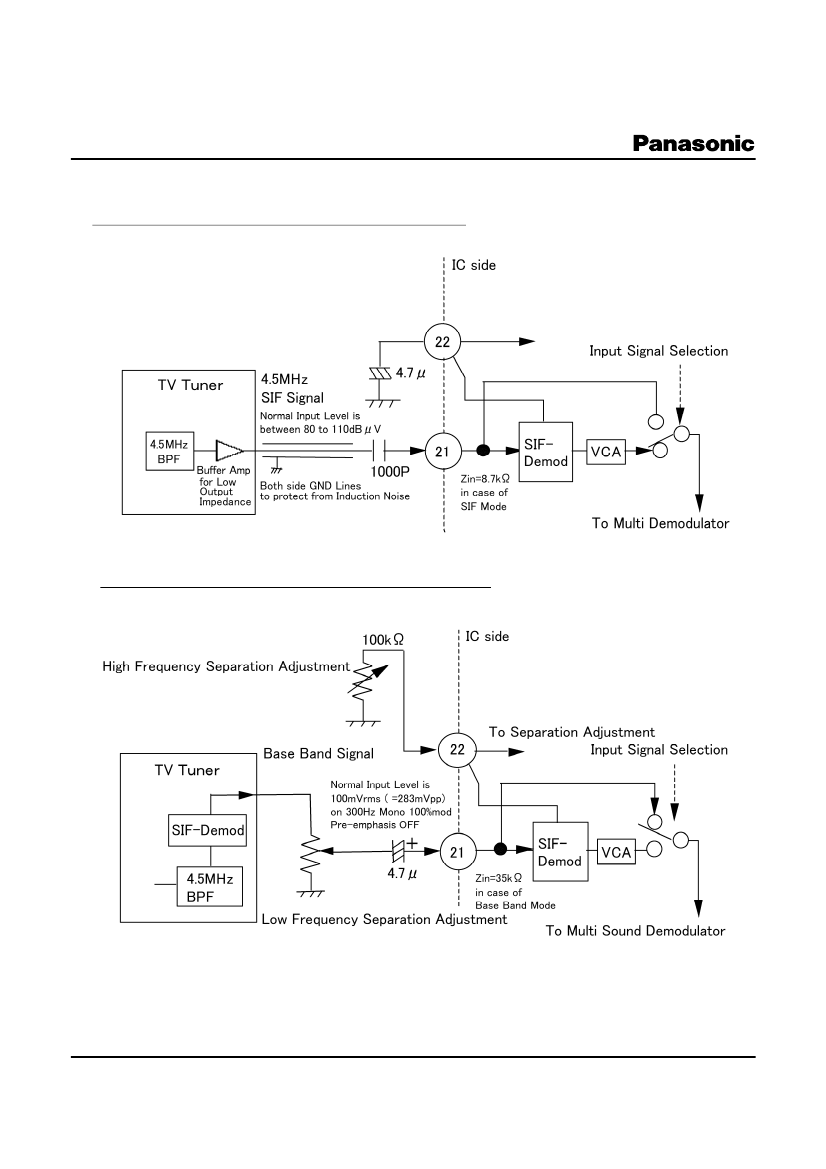

( 2 ) Example of Adjustments Application Circuits in case of Base Band Input
SDB00096AEB
5
