LA120X201

Description
Specialty Fuses 1200 VAC Semiconductor Fuses
CategoryCircuit protection
File Size88KB,1 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric View All

LA120X201 Online Shopping

Suppliers Part Number Price MOQ In stock
LA120X201 - - View Buy Now

LA120X201 Overview

Specialty Fuses 1200 VAC Semiconductor Fuses

LA120X201 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLittelfuse
Product CategorySpecialty Fuses
RoHSN
ProductSpecialty Fuses
Body StyleCartridge Fuses
Current Rating20 A
Voltage Rating AC1.2 kVAC
Mounting StyleHolder
Termination StyleClip
Fuse TypeFast Blow
Indicator StyleWithout Indicator
PackagingBulk
TypeSemiconductor Fuse
Factory Pack Quantity1

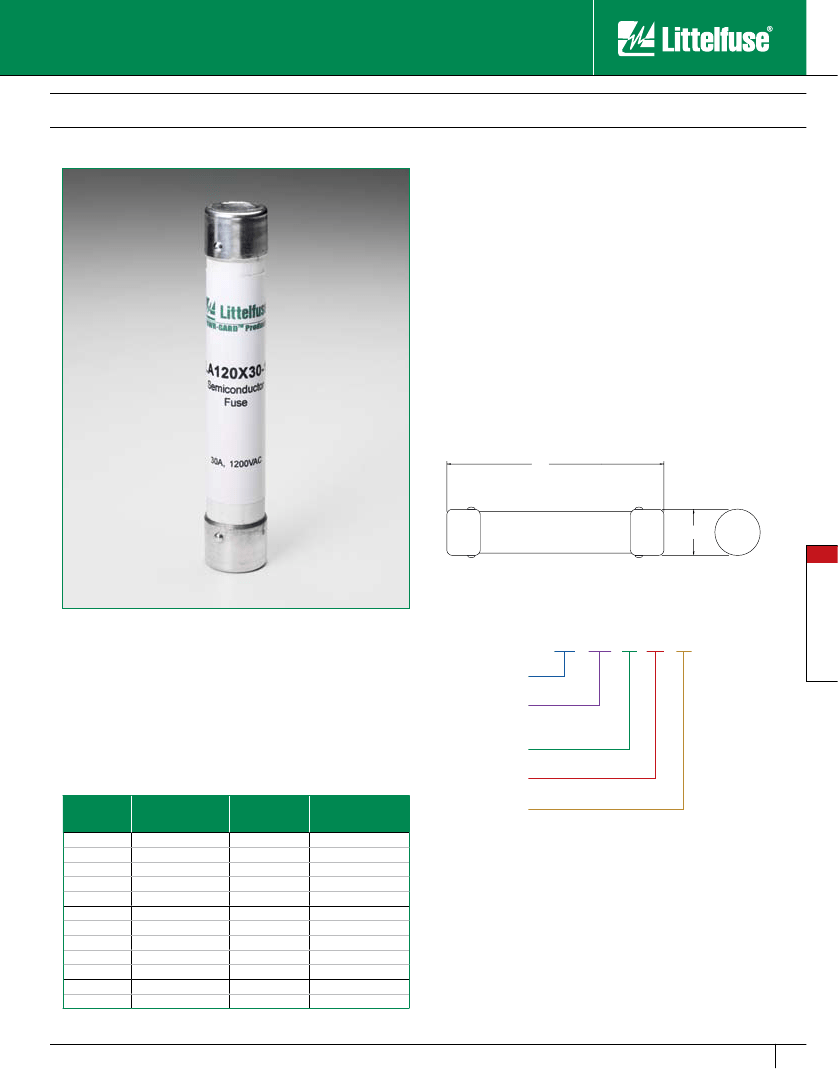

Special Purpose Fuses
LA120X Semiconductor Fuses
1200 VAC • Very Fast Acting • 1/2 – 30 Amperes
Littelfuse LA120X semiconductor protection fuses, rated
1
/
2
through
30A, 1200 VAC are popular for use in traction drive auxiliary circuits and
similar applications. LA120X fuses are also suitable for use on 1000VDC
auxiliary circuits with low time constants.
Features
• 1000 Volt DC rating for a wide range of circuits.
• Compact size fits in where competitive sizes will not fit.
Applications
Protection of traction drive auxiliary circuits, etc.
Dimensions
In Inches (mm in parentheses)
4 5/8
(117)
.812
(20.6)
Special Purpose Fuses
Ordering Information
LA 120 X 25 -1
Littelfuse
Voltage
(1200)
Style
Catalog Numbers & Technical Data
Ampere
Rating
1
2
3
4
5
6
10
15
20
25
30
12
Ampere Rating
Mounting Type
Ferrule
Littelfuse Catalog
Number
LA120A1/2-1
LA120X1-1
LA120X2-1
LA120X3-1
LA120X4-1
LA120X5-1
LA120X6-1
LA120X10-1
LA120X15-1
LA120X20-1
LA120X25-1
LA120X30-1
Mounting Type
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Clearing I
2
t
@1200 VAC (A
2
S)
1.9
7.5
30
69
120
190
280
970
2100
3700
5700
8300
Specifications
Voltage Rating:
Interrupting Rating:
Ampere Range:
AC: 1200 Volts
DC: 1000 Volts
100,000 Amperes
1
2
– 30 Amperes
Note: Mounting type 1 can use 109002 and 129002 clips.
© 2005 Littelfuse
POWR-GARD
Products Catalog
www.littelfuse.com
101
