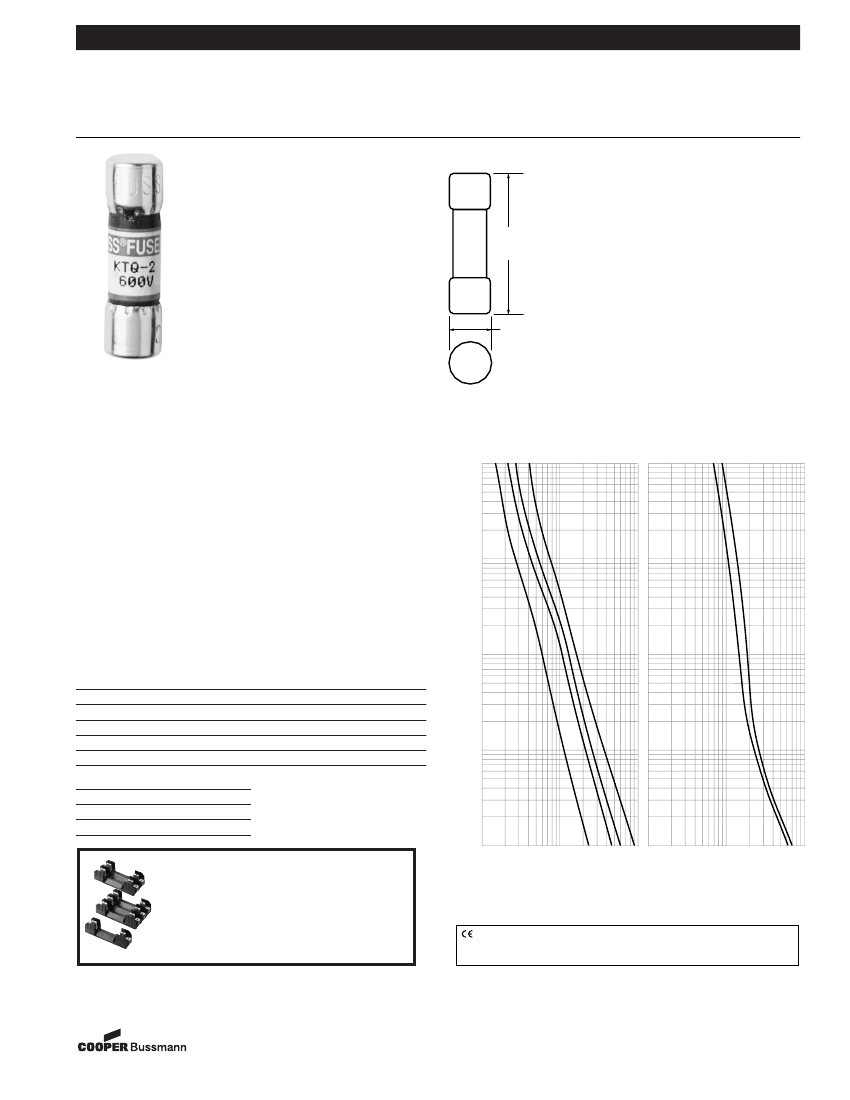

Bussmann
®
Ferrule Type, Fast-Acting Fuses
For 13/32” x 1-3/8” (10.3mm x 35mm)
Dimensional Data
KTQ
1.375" (±0.031)
(35mm)
.41" (±0.004)
(10.3mm)
Catalog Symbol:
KTQ
Ferrule Type, Fast-Acting
1-6A
600Vac
Agency Information:
UL Recognized, STD 248-14, (Guide # JDYX2,
File E19 180)
Interrupt Rating:
10,000A RMS Sym.
Body Material:
Melamine
Ferrule Material:
Bronze
Ferrule Plating:
Nickel
• For control, gaseous vapor fixture, and HID ballast;
electronic circuits.
• Melamine cartridge.
Time-Current Characteristic Curves–Average Melt
(Full Size Curves Available)
1
1-6/10
2
3
AMPERE
RATING
100
10
• Mounts in Buss panel-mount fuseholders HPS-L,
BM-series blocks, or 13/32” clips.
Electrical Ratings (Catalog Symbol and Amperes)
600 Volts AC
KTQ-1
KTQ-1-6/10
KTQ-2
KTQ-3
KTQ-4
KTQ-5
KTQ-6
TIME IN SECONDS
• Slightly more delay than type BBS to override transient
currents.
1
.1
Test Specifications
Load
110%
135%
Opening Time
Indefinitely
1 hr. (max.)
1
10
1
100
10
Recommended fuseblocks/fuseholders for
13/32” x 1-1/2” fuses
See Data Sheets listed below
• Open fuseblocks - 1104, 2104
• Finger-safe fuseholders - 1109, 1102, 1103, 1151
• Panel-mount fuseholders - 2114, 2113, 2108,
2112, 2109, 2140
• In-line fuseholders - 2127, 2126
RMS SYMMETRICAL CURRENT IN AMPERES
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to clear-
ly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any prod-
ucts and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected,
it should be tested by the user in all possible applications.
10-2-02
SB02295
Form No. KTQ
Page 1 of 1
Data Sheet: 2045
100
.01
4
5
