RF (Radio Frequency) Type
SOP Series
[1-Channel (Form A) Type]
—Low On resistance—
6.3±0.2
.248±.008
4.4±0.2
.173±.008
2.1±0.2
.083±.008
PhotoMOS
RELAYS
toMOS relay has only 30 pA even with the
rated load voltage of 80 V (AQV225NS).
4. Controls low-level analog signals
PhotoMOS relays feature extremely low
closed-circuit offset voltage to enable
control of low-level analog signals without
distortion.
5. Tape and reel
The device comes standard in a tape and
reel (1,000 pcs./reel) to facilitate automat-
ic insertion machines.
(DIP)
Volume
(SOP)
Approx. 25%
mm
inch
1
2
3
6
5
4
Approx. 50%
Footprint
FEATURES
1. 1-channel (Form A) in super minia-
ture design
The device comes in a super-miniature
SO package measuring (W) 4.4
×
(L) 6.3
×
(H) 2.1 mm
(W).173
×
(L) .248
×
(H) .083
inch
—approx. 25% of the volume and
50% of the footprint size of DIP type Pho-
toMOS Relays.
2. Low capacitance between output
terminals ensure high response
speed:
The capacitance between output termi-
nals is small, typically 10 pF. This enables
for a fast operation speed of 200
µ
s.
3. Low-level off state leakage current:
The SSR has an off state leakage current
of several milliamperes, whereas the Pho-
TYPICAL APPLICATIONS
• Telephones
• Measuring instruments
• Computer
• Industrial robots
• High-speed inspection machines
TYPES
1. AC/DC type
Output rating*
Load voltage
80 V
200 V
400 V
Load current
120 mA
50 mA
40 mA
Part No.
Picked from the 1/2/3-pin side
1 Form A
AQV225NSX
AQV227NSX
AQV224NSX
Picked from the 4/5/6-pin side
1 Form A
AQV225NSZ
AQV227NSZ
AQV224NSZ
Packing quantity in tape and reel
1,000 pcs.
*Indicate the peak AC and DC values.
Notes: (1) Tape package is the standard packing style. Also available in tube. (Part No. suffix "X" or "Z" is not needed when ordering; Tube: 75 pcs.;
Case: 1,500 pcs.)
(2) For space reasons, the top two letters of the product number "AQ" are omitted on the product seal. The package type indicator "X" and "Z"
are also omitted from the seal. (Ex. the label for product number AQV224NS is V224NS).
RATING
1. Absolute maximum ratings (Ambient temperature: 25
°
C
77
°
F)
Item
LED forward current
Input
LED reverse voltage
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current
Output
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Temperature
limits
Operating
Storage
I
peak
P
out
P
T
V
iso
T
opr
T
stg
Type of
Symbol connec-
tion
I
F
V
R
I
FP
P
in
V
L
A
I
L
B
C
80 V
0.12 A
0.15 A
0.25 A
0.36 A
AQV225NS
AQV227NS
50 mA
3V
1A
75 mW
200 V
0.05 A
0.06 A
0.08 A
0.15 A
450 mW
500 mW
1,500 V AC
–40
°
C to +85
°
C
–40
°
F to +185
°
F
–40
°
C to +100
°
C
–40
°
F to +212
°
F
Non-condensing at low
temperatures
400 V
0.04 A
0.05 A
0.06 A
0.12 A
A connection: Peak AC, DC
B, C connection: DC
A connection: 100 ms (1 shot),
V
L
= DC
AQV224NS
Remarks
f = 100 Hz, Duty factor = 0.1%
149
AQV22
r
NS
2. Electrical characteristics (Ambient temperature: 25
°
C
77
°
F)
Item
LED operate current
Input
LED turn off current
LED dropout voltage
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
R
on
Maximum
Typical
On resistance
Maximum
Output
Typical
R
on
Maximum
Typical
Output capacitance
Maximum
Off state leakage current
Turn on time*
Turn off time*
I/O capacitance
Initial I/O isolation
resistance
*Turn on/Turn off time
Typical
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
I
leak
T
on
T
off
C
iso
R
iso
—
—
—
—
—
30 pA
C
out
15 pF
30 pA
10 nA
0.25 ms
0.5 ms
0.08 ms
0.2 ms
0.8 pF
1.5 pF
1,000 M
Ω
90 pA
C
R
on
B
A
Type of
Symbol connec-
tion
I
Fon
I
Foff
V
F
—
—
—
7.0
Ω
10.0
Ω
3.5
Ω
5.0
Ω
1.8
Ω
2.5
Ω
AQV225NS
AQV227NS
0.7 mA
3 mA
0.4 mA
0.65 mA
1.14 V (1.25 V at I
F
= 50 mA)
1.5 V
30
Ω
50
Ω
16
Ω
25
Ω
8
Ω
12.5
Ω
10 pF
70
Ω
100
Ω
55
Ω
70
Ω
28
Ω
35
Ω
AQV224NS
Remarks
I
L
= Max.
I
L
= Max.
I
F
= 5 mA
I
F
= 5 mA
I
L
= Max.
Within 1 s on time
I
F
= 5 mA
I
L
= Max.
Within 1 s on time
I
F
= 5 mA
I
L
= Max.
Within 1 s on time
I
F
= 0
V
B
= 0
f = 1 MHz
I
F
= 0
V
L
= Max.
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0
500 V DC
For type of connection, see Page 31.
Transfer
characteristics
Note: Recommendable LED forward current I
F
= 5 mA.
Input
90%
Output
Ton
Toff
10%
s
For Dimensions, see Page 28.
s
For Schematic and Wiring Diagrams, see Page 31.
s
For Cautions for Use, see Page 36.

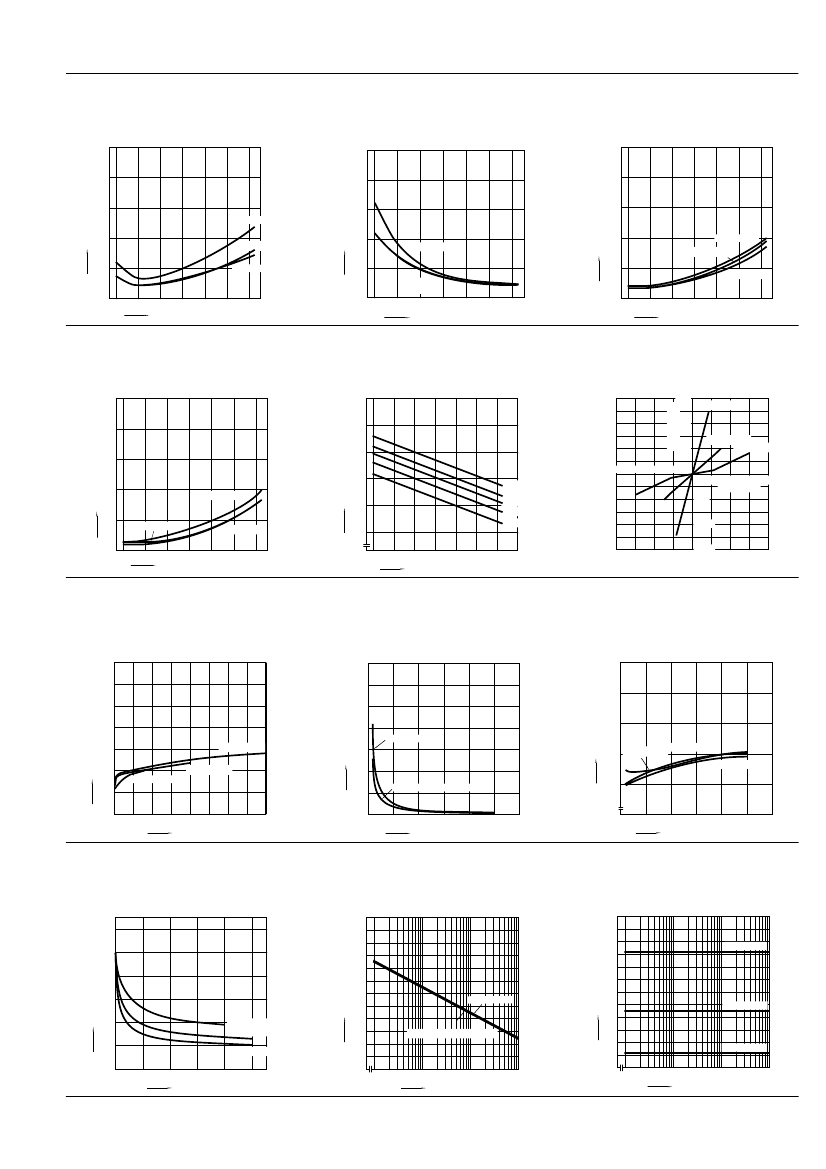

REFERENCE DATA
1. Load current vs. ambient temperature char-
acteristics
Allowable ambient temperature: –40
°
C to +85
°
C
–40
°
F to +185
°
F
Type of connection: A
2.-(1) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 4 and 6;
LED current: 5 mA;
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
12.0
2.-(2) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 4 and 6;
LED current: 5 mA;
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
120
100
150
Load current, mA
AQV225NS
100
On resistance,
Ω
10.0
AQV225NS
8.0
6.0
4.0
2.0
0
On resistance,
Ω
80
60
40
20
0
AQV224NS
50
AQV227NS
AQV224NS
AQV227NS
0
–40 –20
0
20
40 60
8085 100
Ambient temperature,
°C
–40 –20
0
20
40
60 80 85
Ambient temperature,
°C
–40 –20
0
20
40
60 80 85
Ambient temperature,
°C
150
AQV22
r
NS
3. Turn on time vs. ambient temperature char-
acteristics
LED current: 5 mA;
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
1.0
4. Turn off time vs. ambient temperature char-
acteristics
LED current: 5 mA;
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
0.5
5. LED operate current vs. ambient tempera-
ture characteristics
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED operate current, mA
0.8
Turn on time, ms
Turn off time, ms
0.4
4
0.6
AQV225NS
0.4
AQV227NS
0.2
AQV224NS
0.3
3
0.2
AQV225NS
0.1
AQV224NS,
AQV227NS
2
AQV225NS
AQV227NS
1
AQV224NS
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
0
–40
–20
0
20
40
60
80 85
0
–40
–20
0
20
40
60
80 85
Ambient temperature,
°C
Ambient temperature,
°C
6. LED turn off current vs. ambient temperature
characteristics
Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED turn off current, mA
7. LED dropout voltage vs. ambient tempera-
ture characteristics
Sample: All types;
LED current: 5 to 50 mA
1.5
LED dropout voltage, V
8. Voltage vs. current characteristics of output
at MOS portion
Measured portion: between terminals 5 and 6,
7 and 8;
Ambient temperature: 25
°C
77°F
150
Current, mA
AQV225NS
100
50
AQV227NS
AQV224NS
4
1.4
1.3
–4
1.2
1.1
1.0
0
–40 –20
0
20
40
60
80 85
50mA
30mA
20mA
10mA
5mA
–3
–2
3
–1
1
–50
–100
–150
3
4
2
Voltage, V
2
AQV225NS
1
AQV224NS
AQV227NS
0
–40
–20
0
20
40
60 8085
Ambient temperature,
°C
Ambient temperature,
°C
9. Off state leakage current
Measured portion: between terminals 4 and 6;
Ambient temperature: 25°C
77°F
10. LED forward current vs. turn on time char-
acteristics
Measured portion: between terminals 4 and 6;
Load voltage: Max. (DC);
Continuous load current: Max. (DC);
Ambient temperature: 25°C
77°F
1.4
1.2
Turn on time, ms
1.0
0.8
AQV225NS
0.6
0.4
0.2
AQV224NS,AQV227NS
11. LED forward current vs. turn off time char-
acteristics
Measured portion: between terminals 4 and 6;
Load voltage: Max. (DC);
Continuous load current: Max. (DC);
Ambient temperature: 25°C
77°F
0.22
10
–6
Off state leakage current, A
Turn off time, ms
0.18
10
–9
AQV224NS
AQV227NS
AQV225NS
10
–12
0
100
200
300
400
0.14
AQV224NS
0.10 AQV225NS
AQV227NS
0.06
0
0
0
10
20
30
40
50
60
0
10
20
30
40
50
60
Load voltege, V
LED forward current, mA
LED forward current, mA
12. Applied voltage vs. output capacitance
characteristics
Measured portion: between terminals 4 and 6;
Frequency: 1 MHz, 30 mVrms;
Ambient temperature: 25°C
77°F
12
Output capacitance, pF
13. Isolation characteristics
(50
Ω
impedance)
Measured portion: between terminals 4 and 6;
Ambient temperature: 25°C
77°F
14. Insertion loss characteristics
(50
Ω
impedance)
Measured portion: between terminals 4 and 6;
Ambient temperature: 25°C
77°F
6
100
10
8
6
4
2
0
AQV225NS
AQV227NS
AQV224NS
0
20
40
60
80
100
0
Isolation, dB
80
60
40
AQV225NS,AQV227NS
20
Insertion loss, dB
5
4
3
AQV224NS
AQV224NS
AQV227NS
2
1
0
AQV225NS
10
4
10
5
10
6
Frequency, Hz
10
7
10
4
10
5
Applied voltage, V
10
6
Frequency, Hz
10
7
