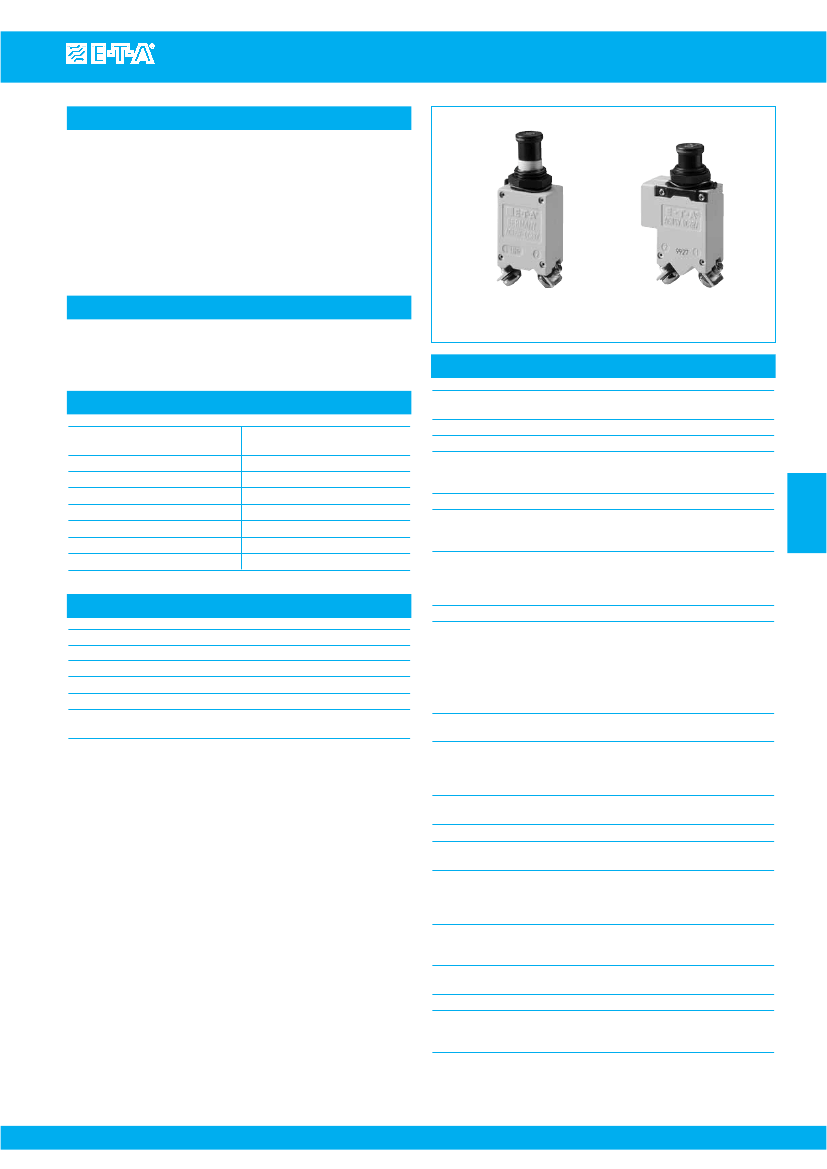

High Performance Thermal Circuit Breaker 483-...
Description
Single pole, miniaturised, aircraft style thermal circuit breaker with
tease-free, trip-free, snap action mechanism and push/pull on/off
manual actuation (M-type TO CBE to EN 60934). An indicator band on
the push button clearly shows the tripped/off position. Threadneck
panel mounted, available in metric and US (MS 3320) configurations.
Advanced two-chamber design contributes to fail-safe operation.
Temperature compensated from -55° to +125 °C, with optional auxiliary
contacts, and fully approved for use on a wide range of aircraft and
equipment. Full specification ensures suitability for the most
demanding applications. For three pole version see type 583.
Typical applications
without auxiliary contact
Aircraft systems and equipment (fixed wing and helicopters); other
extra low voltage wiring applications; defence equipment;
communications systems.
483-...
with auxiliary contact
Technical data
Voltage rating
Current rating range
Auxiliary circuit
Typical life
AC 115 V (400 Hz); DC 28 V
(higher voltage ratings upon request)
1...35 A
0.5 A, DC 28 V
20,000 operations mechanical or
10,000 operations at I
N
(≤ 25 A)
5,000 operations at I
N
(30 + 35 A)
-55...+125 °C (-67...+257 °F)
rated impulse
pollution
withstand voltage
degree
1.5 kV
3
test voltage
AC 1,500 V
AC 1,500 V
> 100 MΩ (DC 500 V)
AC 115 V (400 Hz):
≤4A
1,000 A
5A
2,000 A
7.5...35 A 2,500 A
DC 28 V:
1...25 A
6,000 A
30 + 35 A 4,000 A
operating area IP40
terminal area IP00
Standard current ratings and typical volt drop values
Current
rating (A)
1
2
2.5
3
4
5
7.5
Volt drop
(mV)
750
520
400
360
350
260
230
Current
rating (A)
10
15
20
25
30
35
Volt drop
(mV)
190
190
200
170
160
150
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664A)
Dielectric strength
(IEC 60664 and 60664A)
operating area
main to aux. circuit
Insulation resistance
Interrupting capacity I
cn
4
Approvals
Authority
LN 29886
VG 95345 T06
MS 3320, MS 3320 V
QPL
UL
Voltage ratings
Current ratings
AC 250 V, 50/60 Hz 1...25 A
DC 75 V
1...35 A
Degree of protection
(IEC 60529/DIN 40050)
Vibration
(sinusoidal)
15 g (70-2000 Hz), ± 0.76 mm (5-70 Hz)
to VG 95210, sheet 19,
IEC 60068-2-6, test Fc/ISO 7137
Vibration (random)
16.4 g rms, 0.2 g
2
/Hz ± 1.5 dB
to VG 95210, sheet 29, ISO 7137
Acceleration
17 g, to ISO 2669
Shock
75 g (11 ms) to VG 95210, sheet 28,
IEC 60068-2-27, test Ea/ISO 7137
Corrosion
96 hours at 5 % salt mist, severity A
48 hours at 20 % salt mist, severity B
to VG 95210, sheet 2,
IEC 60068-2-11, test Ka/ISO 7137
Humidity
240 hours at 95 % RH,
to VG 95210, sheet 7,
IEC 60068-2-3, test C/ISO 7137
Explosion
to VG 95210, sheet 10,
MIL-STD-202, meth. 109
Altitude
≤ 25,000 m above sea level
Mass
max. 29 g with auxiliary contact
max. 25 g without auxiliary contact
Weight reduction through aluminium threadneck: approx. 3 g
Issue B
(050310)
www.e-t-a.com
4
- 41
High Performance Thermal Circuit Breaker 483-...
Ordering information
Type No.
483
single pole, with temperature compensation
Mounting
G
threadneck panel mounting, standard
V
threadneck panel mounting, high vibration performance
Threadneck design
1
M12x1x6.4x8.8 dia. with mounting plate (aux. contact version)
2
15/32-32UNx6.4x7.8 dia. (without aux. contact)
3
MJ12x6.4x8.8 dia. (without aux. contact)
4
M12x1x6.4x8.8 dia. (without aux. contact)
5
7/16-32UNx6.4x7.8 dia. (without aux. contact)
6
M12x1x9.4x8.8 dia. (without aux. contact)
7
7/16-32 UNx6.4x7.8 dia.with mounting plate (aux.contact version)
8
as 483-G1...but with aluminium threadneck
(only mounting -G and aux. contact versions S1, S5)
Hardware for threadneck (washers)
0
without hardware
1
wave washer 12/15 - mounted
2
mounted washer 12.1/17.2 - mounted
3
mounted washer 11.3/14.9 - mounted
(threadneck design 5,7 only)
4
mounted washer 12/15 - mounted
5
tooth washer 12.1/17.2, bulk shipped
Hardware for threadneck (nuts)
0
without hardware
1
hex nut M12x1 (threadneck design 1, 4, 6 only)
2
hex nut 15/32-32UN (threadneck design 2 only)
3
hex nut 7/16-32UN (threadneck design 5, 7 only)
4
hex nut M12x1, aluminium, fitted
(threadneck design 8 only)
5
hex nut MJ12x1 (only with threadneck design 3)
6
hex nut M12x1, bulk shipped (threadneck design 1,4,6)
Terminal design (main terminals)
K
screws terminals with metric thread
1
K14 (M4, MJ4)
J
screw terminals with inch thread
1
J14 (8-32UNC-2B)
2
J17 (8-32UNC-2B)
3
J25 (6-32UNC-2B)
Characteristic curve
M1
thermal, 1.15-1.38 I
N
Terminal screws
A
Phillips screw M4x6
B
Phillips screw 8-32UNC-2Ax6 (MS 51957-41)
C
Phillips screw 6-32UNC-2Ax6 (MS 51957-26)
D
slotted flat head screw M4x6
E
hex screw with Phillips head 8-32UNC-3A-9.5
K
hex screw with Phillips head 8-32UNC-3Ax7.6
L
Phillips screw MJ4x6
M
as ”K“ but bulk shipped
Z
without accessories
Terminal washers
0
without lock washer
1
lock washer B4
2
lock washer 4.3 (MS 35338-137)
3
lock washer B4 and washer 4.4/9.5
4
lock washer 3.7 (MS 35338-136)
5
lock washer 4.3/9
Auxiliary contact
S0
without auxiliary contact
S1
with auxiliary contact (N/C) connector
to EN3155-016M2018, size 20
S5
with polarized auxiliary contact (N/C)
Barrier
Z
without barrier (standard)
Colour of the push button
blank: black (standard) (e. g. 7.5)
A
green (e. g. 7.5)
G
green, marking to EN (e. g. 7 1/2)
N
black, marking to EN (e. g. 7 1/2)
Current ratings
1...35 A
483 - G 4 1 1 - K 1 M1 - A 1 S0 Z
. - 5A
ordering example
Ordering information for approved devices
483-G411-K1M1-A1S0ZN
Metric threadneck M12x1 and terminal design -K14 (M4x6), listed
by the German Materialamt der Bundeswehr to VG 95345 T06.
483-G111-K1M1-A1S1ZN
Metric threadneck M12x1 and terminal design -K14 (M4x6) and
auxiliary contact -Si, listed by the German Materialamt der
Bundeswehr to VG 95345 T06.
483-G533-J1M1-B2S0ZN (MS 3320)
Threadneck size 7/16-32UNSx6.4 and terminal design -J14
(inch thread 8-32), approved to MS 3320.
483-V533-J1M1-B2S0ZN (MS 3320-V)
Threadneck size 7/16-32UNSx6.4 and terminal design -J14
(inch thread 8-32), approved to MS 3320-V.
483-G533-J3M1-C4S0Z (483-TC-G11-J25)
Threadneck size 7/16-32UNSx6.4 and terminal design -J25
(inch thread 6-32), listed by the German Materialamt der
Bundeswehr to VG 95345, part 6.
483-G814-K1M1-A1S1ZN
Aluminium threadneck M12x1x6.4x8.8 dia.
4
Internal connection diagrams
line 2
1
with auxiliary contact
line 1
11
with polarized auxiliary contact
line 1
3
2
12
2
5
4
- 42
www.e-t-a.com
Issue B
(050310)
High Performance Thermal Circuit Breaker 483-...

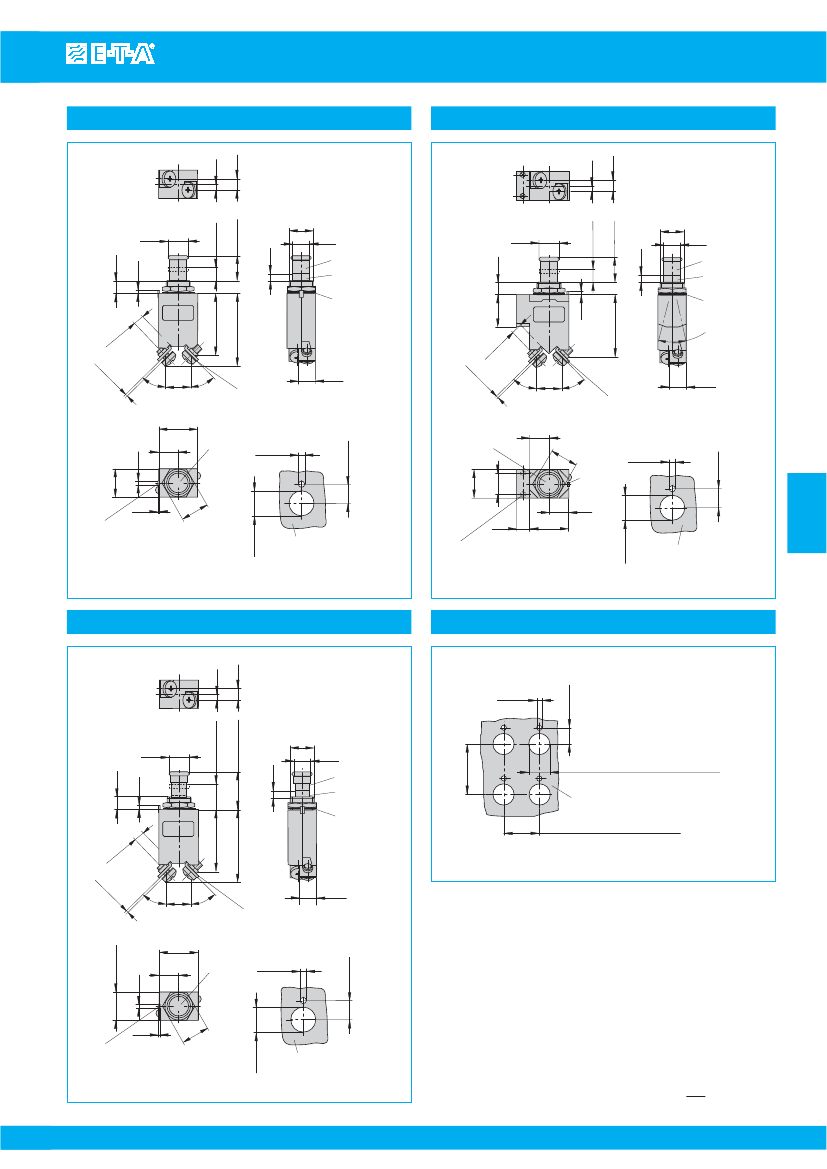

Dimensions 483-G411-K1M1-A1S0ZN (VG 95345 T06)
Dimensions 483-G111-K1M1-A1S1ZN
(VG 95345 T06)
2.5
.098
5
.197
2.5
.098
5
.197
tightening torque max. 4 Nm
M12x1
3.5
.138
ø8.4
.331
black
white
lock washer
31
1.22
36.5
1.44
ø10
.394
6.35
.250
6.5 ON
.256
12.5 OFF
.492
6.35
.250
1.5
.059
3.5
.138
ø10
.394
6.5 ON
.256
12.5 OFF
.492
tightening torque max. 4 Nm
M12x1
ø8.4
.331
black
white
lock washer
16.2
.638
1.5
.059
1
2
m
in
in . 4.
.1 6
81
6
4. 1
8
m n .1
i
m
in.
31
1.22
°
22
2
1
45°
12.8
.504
45°
teminal
screw
ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
8.5
.335
m
9.5
±0.2
.374
±.008
2
.079
ø3.2
+0.15
.126
+.006
location pin
14.2
.559
14.2
.559
10.5
.413
5
ø12.5
+0.2
.492
+.008
thickness 1.5 - 3 mm
.059 - .118 in.
ø12.5
+0.2
.492
+.008
0.8
.031
location pin
14
S
W 1
.55
9.5
±0.2
.374
±.008
Dimensions 483-G533-J1M1-B2S0ZN (MS 3320)
2.5
.098
5
.197
ø3.2
+0.15
.126
+.006
min. 11.9 ON
min .469
max. 19 OFF
max .748
tightening torque max. 4 Nm
7/16-32-UN-2A THD
ø8.4
.331
black
white
lock washer
min. 30
min. 1.18
6.35
.250
1.5
.059
3.5
.138
ø10
.394
ø12.5
+0.2
(M12 and 15/32)
.492
+.008
9.5
±0.2
.374
±.008
6
4. 1
8
m n .1
i
m
in.
1
2
45°
12.8
.504
45°
8.5
.335
teminal
screw
MS 51957-41 (8-32 UNC-2A)
with lock washer MS 35338-137
tightening torque max. 1.7 Nm
current rating
mounting holes
in A
ø3.2
+0.15
.126
+.006
max. 15
max .591
2
.079
ø12.5
+0.2
.492
+.008
0.8
.031
location pin
5
14
S
W 1
.55
thickness 1.5 - 3 mm
.059 - .118 in.
This is a metric design and millimeter dimensions take precedence ( mm )
inch
9.5
±0.2
.374
±.008
max.19.8
max .780
9.5
.374
31
1.22
36.5
1.44
Issue B
(050310)
.5
. 1 59
ax .0
m ax.
m
.5
. 1 59
ax .0
m ax
m
.5
. 1 59
ax .0
m ax.
m
45°
12.8
.504
45°
teminal
screw
ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
8.5
.335
19.5
.768
9.5
.374
mounting holes
current rating
in A
+0.15
ø3.2
.126
+.006
current rating
in A
9.5
.374
S
W1
.55 4
1
mounting holes
5
9.5
.374
6.5
.256
19.5
.768
4
thickness 1.5 - 3 mm
.059 - .118 in.
aux. contact (connector to
EN 3155-016 M2018)
Mounting
ø11.5
+0.2
(7/16)
.453
+.008
thickness 1.5 - 3 mm
.059 - .118 in.
min. 20 min 25 when fitted with
splash
cover
min. 787 min .984
www.e-t-a.com
4
- 43
High Performance Thermal Circuit Breaker 483-...

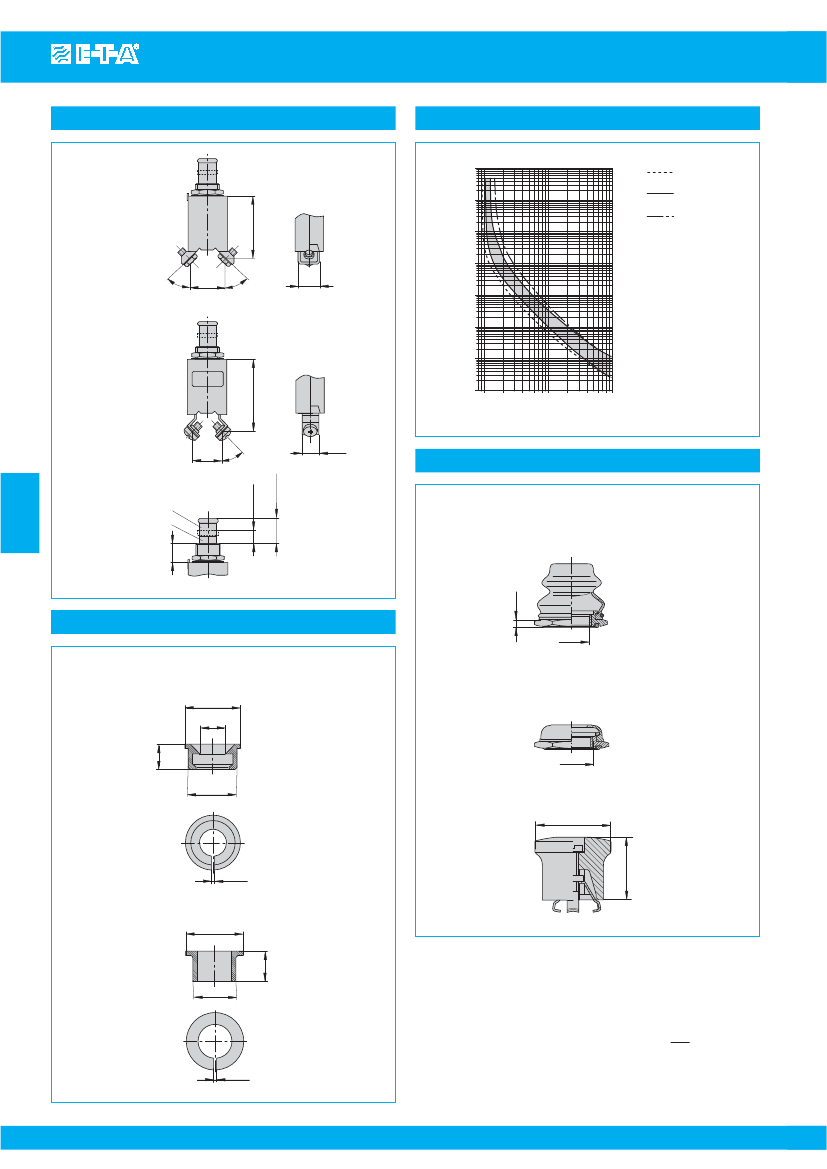

Other main terminal and threadneck designs
Terminal design -J2
Terminal distances to:
MS 14 105 (a, b)
MS 14 153 (a, b)
MS 22 073 (a)
MS 22 074 (a)
MS 25 244 (a)
MS 25 373 (a, b)
10000
+125 °C
+ 257 °F
+ 23 °C
+ 73.4 °F
-55 °C
+67 °F
Typical time/current characteristics
(31 mm/1.22 in.)
1000
Trip time in
seconds
b
100
10
45°
45°
a
(18 mm/.709 in.)
10.5
.413
1
Terminal design -J3
Terminal distances to:
MS 26 574 (a, b)
0.1
0.01
(35.5 mm/1.40 in.)
0.001
1
2
4 6 810 20 40 6080100
… times rated current
b
45°
a
(15 mm/.591 in.)
8.5
.335
6.5 ON
.256
12.5 OFF
.492
Accessories
Splash
cover/hex nut assembly with O ring
(IP66 and IP67)
(approved to VG 95345, T23)
X 200 801 08 nickel plated nut, transparent cover
X 200 801 03 matt black finish nut, black cover
X 200 801 09 matt black finish nut 7/16-32, black cover
Mounting -G6
4
black
white
9.4
.370
Accessories
M12x1 or
7/16-32
Identification collar
to be
snapped
on the push button
Y 307 004 01 black
Y 307 004 02 white
Y 307 004 03 red
ø14
Y 307 004 04 green
.551
Y 307 004 05 blue
ø6.85
.270
.252
6.4
Splash
cover/hex nut assembly with O ring
(IP54)
(approved to VG 95345, T23)
X 200 802 01 nickel plated nut
X 200 802 02 matt black finish nut
.071
1.8
M12x1
ø12.35
.486
Actuator extension
(black) to be fitted on the push button
(approved to VG 95345, T23)
X 200 803 01
ø20
ø.787
0.65
.026
Lock out ring
to block the push button in OFF position
Y 307 005 01 red
ø14.6
Y 307 005 02 black
.575
7.7
.303
ø10.9
.429
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
0.8
.031
4
- 44
www.e-t-a.com
.669
17
Issue B
(050310)
Embedded System
京公网安备 11010802033920号
EEWORLD
