INIATURE
M
INIATURE
F
USEHOLDERS
Holder / No. 596
Not for new designs;
please refer to holder no. 830

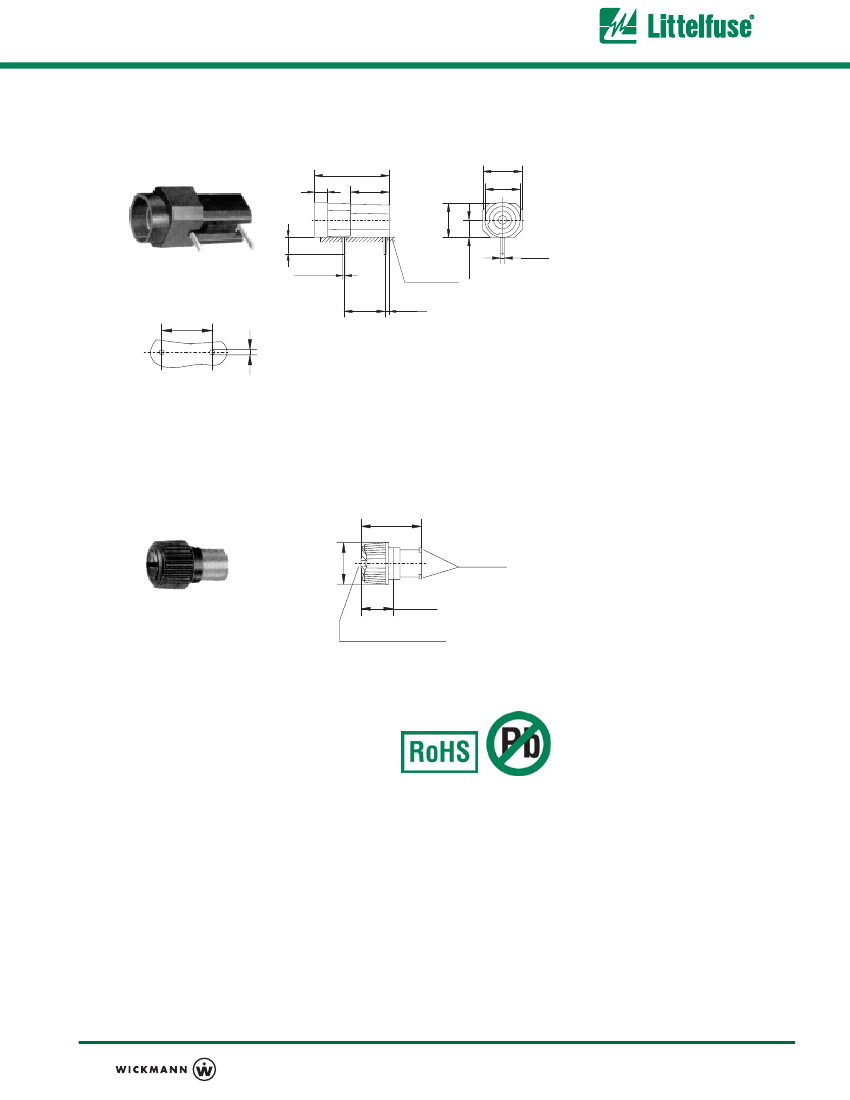

PC Mount,
for 5x20mm Fuses
23
-0,5
4
±0,2
11,7
±0,2
±0,1
Specifications
Montage
12
ø10,5
±0,2
+0,2
(2) Solder pins0.5 x 1.1mm
IP 40 (IEC 60529)
Holder:
Cap:
Protection Class & Category
Materials
Duroplastic
(Phenolplast PF), black
Thermoplastic (Polyamide
PA 6.6), UL 94 V-0, black
Copper alloy,
corrosion protected
solderable tinned
5
-0,5
+1
10,25
+0,1
1,1
+0,1
Metal Parts:
Terminals:
0,5
+0,05
Leiterplatte
Printed Circuit Board
12,5
+0,2
5,25
1,25
±0,15
Electrical Data (23 ºC)
12,5
+0,2
Rated Voltage:
250 V
max. Current/Power: 6.3 A / 2.0 W
-25 °C to 70 °C (consider de-rating)
10 °C to 60 °C
≤
5 mΩ
Temperature
Operating Temperature
ø1,3
Stock Conditions
Contact Resistance
Dielectric Strength
3 kV, 50Hz, 1 min., dry
Holes in the Printed Circuit Board
Insulation Resistance
Cap / No. 583
-0,2
> 10 MΩ (500 V DC, 1 min.)
235 ºC, 3 sec. (Wave)
350 ºC, 1 sec. (Soldering Iron)
260 °C, 5 sec.
Solderability
15,7
±0,4
Soldering Heat Resistance
ø10,3
Renknase
Bayonet-connector-nose
8,5
±0,5
Minimum Cross Section
Conduction Path - 0.2mm
2
596, 250 V
2,2 g (596) / 1,7 g (583)
Type
Flush Mount Type
Marking
Schlitz für Schraubendreher
Slot for screw-driver
Unit weight
Order Information
Packaging
Bulk (100 St.)
Holder
Cap
No. 596 0000 000
No. 583 0000 000
Order Numbers
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
