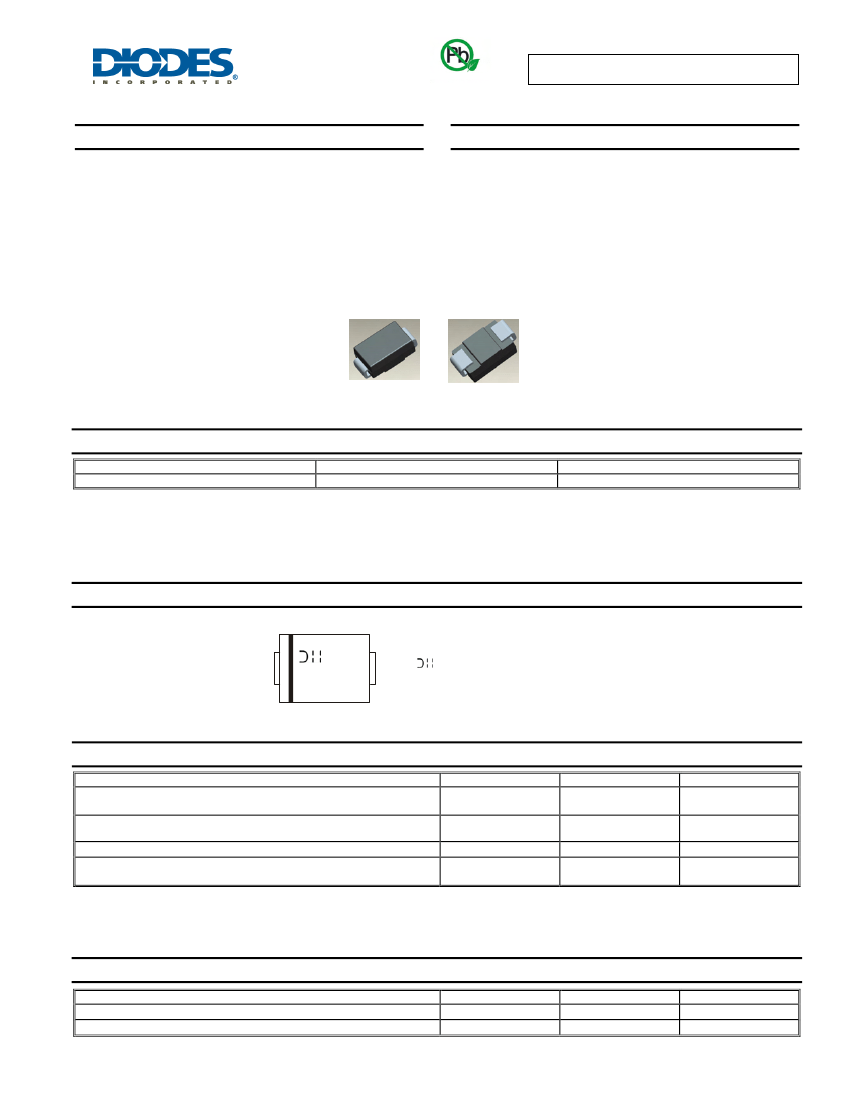

SMAJ5.0(C)A – SMAJ200(C)A
400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
•
•
•
•
•
•
•
400W Peak Pulse Power Dissipation
Glass Passivated Die Construction
Unidirectional and Bidirectional Versions Available
Excellent Clamping Capability
Fast Response Time
Lead Free Finish/RoHS Compliant (Note 1)
Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
•
•
•
•
•
•
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band (Note: Bi-directional devices
have no polarity indicator.)
Weight: 0.064 grams (approximate)
Top View
Bottom View
Ordering Information
(Note 3)
Part Number
SMAJXXX(C)A-13-F
*x = Device Voltage, e.g., SMCJ170A-13-F. Example: SMAJ170A-13-F.
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at http://www.diodes.com.
Case
SMA
Packaging
5000/Tape & Reel
Marking Information
xx = Product type marking code
(See Electrical Characteristics Table)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
YWW
xx
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Peak Pulse Power Dissipation
(Note 4)
(Non repetitive current pulse derated above T
A
= 25° C)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load
(Notes 4, 5 & 6)
Steady State Power Dissipation @ T
L
= 75°C
Instantaneous Forward Voltage @ I
PP
= 35A
(Notes 4, 5, & 6)
Notes:
Symbol
P
PK
I
FSM
PM
(AV)
V
F
Value
400
40
1.0
3.5
Unit
W
A
W
V
4. Valid provided that terminals are kept at ambient temperature.
5. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
6. Unidirectional units only.
Thermal Characteristics
Characteristic
Operating Temperature Range
Storage Temperature Range
Symbol
T
J
T
STG
1 of 5
www.diodes.com
Value
-55 to +150
-55 to +175
Unit
°C
°C
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 16 - 2
January 2012
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Part Number
Add C For
Bidirectional
(Note 7)
SMAJ5.0(C)A
SMAJ6.0(C)A
SMAJ6.5(C)A
SMAJ7.0(C)A
SMAJ7.5(C)A
SMAJ8.0(C)A
SMAJ8.5(C)A
SMAJ9.0(C)A
SMAJ10(C)A
SMAJ11(C)A
SMAJ12(C)A
SMAJ13(C)A
SMAJ14(C)A
SMAJ15(C)A
SMAJ16(C)A
SMAJ17(C)A
SMAJ18(C)A
SMAJ20(C)A
SMAJ22(C)A
SMAJ24(C)A
SMAJ26(C)A
SMAJ28(C)A
SMAJ30(C)A
SMAJ33(C)A
SMAJ36(C)A
SMAJ40(C)A
SMAJ43(C)A
SMAJ45(C)A
SMAJ48(C)A
SMAJ51(C)A
SMAJ54(C)A
SMAJ58(C)A
SMAJ60(C)A
SMAJ64(C)A
SMAJ70(C)A
SMAJ75(C)A
SMAJ78(C)A
SMAJ85(C)A
SMAJ90(C)A
SMAJ100(C)A
SMAJ110(C)A
SMAJ120(C)A
SMAJ130(C)A
SMAJ150(C)A
SMAJ160(C)A
SMAJ170(C)A
SMAJ200(C)A
Notes:
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
200
Breakdown
Test
Voltage
Current
V
BR
@ I
T
(Note 8)
Min (V) Max (V) I
T
(mA)
6.40
7.25
10
6.67
7.37
10
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
224
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104
111
123
135
147
159
185
197
209
248
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Reverse
Leakage @ V
RWM
(Note 9)
I
R
(μA)
800
800
500
200
100
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
Max. Clamping
Voltage @ I
pp
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
324
Max. Peak Pulse
Current
I
pp
(A)
43.5
38.8
35.7
33.3
31.0
29.4
27.7
26.0
23.5
22.0
20.1
18.6
17.2
16.4
15.3
14.5
13.7
12.3
11.2
10.3
9.5
8.8
8.3
7.5
6.9
6.2
5.7
5.5
5.2
4.9
4.6
4.3
4.1
3.9
3.5
3.3
2.2
2.9
2.7
2.5
2.3
2.0
1.9
1.6
1.5
1.4
1.2
Marking Code
BI-
TE
TG
TK
TM
TP
TR
TT
TV
TX
TZ
UE
UG
UK
UM
UP
UR
UT
UV
UX
UZ
VE
VG
VK
VM
VP
VR
VT
VV
VX
VZ
WE
WG
WK
WM
WP
WR
WT
WV
WX
WZ
XE
XG
XK
XM
XP
XR
YT
UNI-
HE
HG
HK
HM
HP
HR
HT
HV
HX
HZ
IE
IG
IK
IM
IP
IR
IT
IV
IX
IZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
RE
RG
RK
RM
RP
RR
RT
RV
RX
RZ
SE
SG
SK
SM
SP
SR
ST
7. Suffix C denotes Bi-directional device.
8. V
BR
measured with I
T
current pulse = 300μs
9. For Bidirectional devices having V
RWM
of 10V and under, the I
R
is doubled.
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 16 - 2
2 of 5
www.diodes.com
January 2012
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
100
10,000
T
J
= 25
°
C
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
C
T
, TOTAL CAPACITANCE (pF)
Unidirectional
1,000
50
Bidirectional
100
25
10 X 1000 Waveform
as defined by REA
0
0
25
50
75
100
125 150
175 200
T
A
, AMBIENT TEMPERATURE (
°
C)

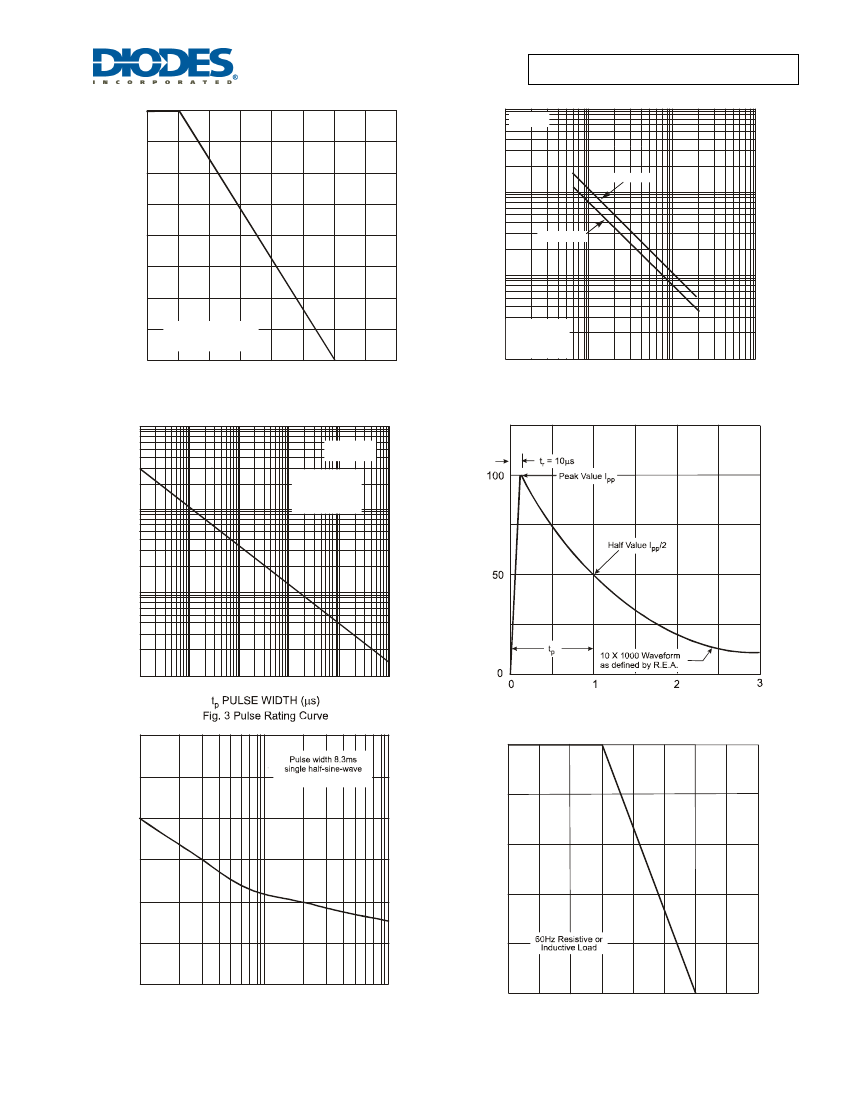

Fig. 1 Pulse Derating Curve
100
I
P
, PEAK PULSE CURRENT (%I
pp
)
T
j
= 25
°
C
10
Measured at
f = 1MHz
1.0Vrms signal
Bias = 0Vdc
1
10
100
V
WM
, STANDOFF VOLTAGE (V)
Fig. 2 Typical Total Capacitance
1,000
P
PK
, PEAK PULSE POWER (kW)
Non repetitive
pulse waveform
shown in Fig. 4
10
1.0
0.1
0.1
1.0
10
100
1,000
10,000
t, TIME (ms)
Fig. 4 Pulse Waveform
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
50
PM
(AV),
STEADY STATE POWER DISSIPATION (W)
1.0
0.8
40
0.6
30
20
0.4
10
0.2
0
1
20
10
50 100
NUMBER OF CYCLES AT 60Hz
Fig. 5 Maximum Non-Repetitive Surge Current
2
5
0.0
0
50
75 100 125 150 175 200
T
L
, LEAD TEMPERATURE (
°
C)
Fig. 6 Steady State Power Derating Curve
25
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 16 - 2
3 of 5
www.diodes.com
January 2012
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
Package Outline Dimensions
B
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
A
C
D
J
H
G
E
Suggested Pad Layout
SMA
Value (in mm)
Dimensions
Z
6.5
G
1.5
X
1.7
Y
2.5
C
4.0
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 16 - 2
4 of 5
www.diodes.com
January 2012
© Diodes Incorporated
SMAJ5.0(C)A – SMAJ200(C)A
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
SMAJ5.0(C)A – SMAJ200(C)A
Document number: DS19005 Rev. 16 - 2
5 of 5
www.diodes.com
January 2012
© Diodes Incorporated
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
