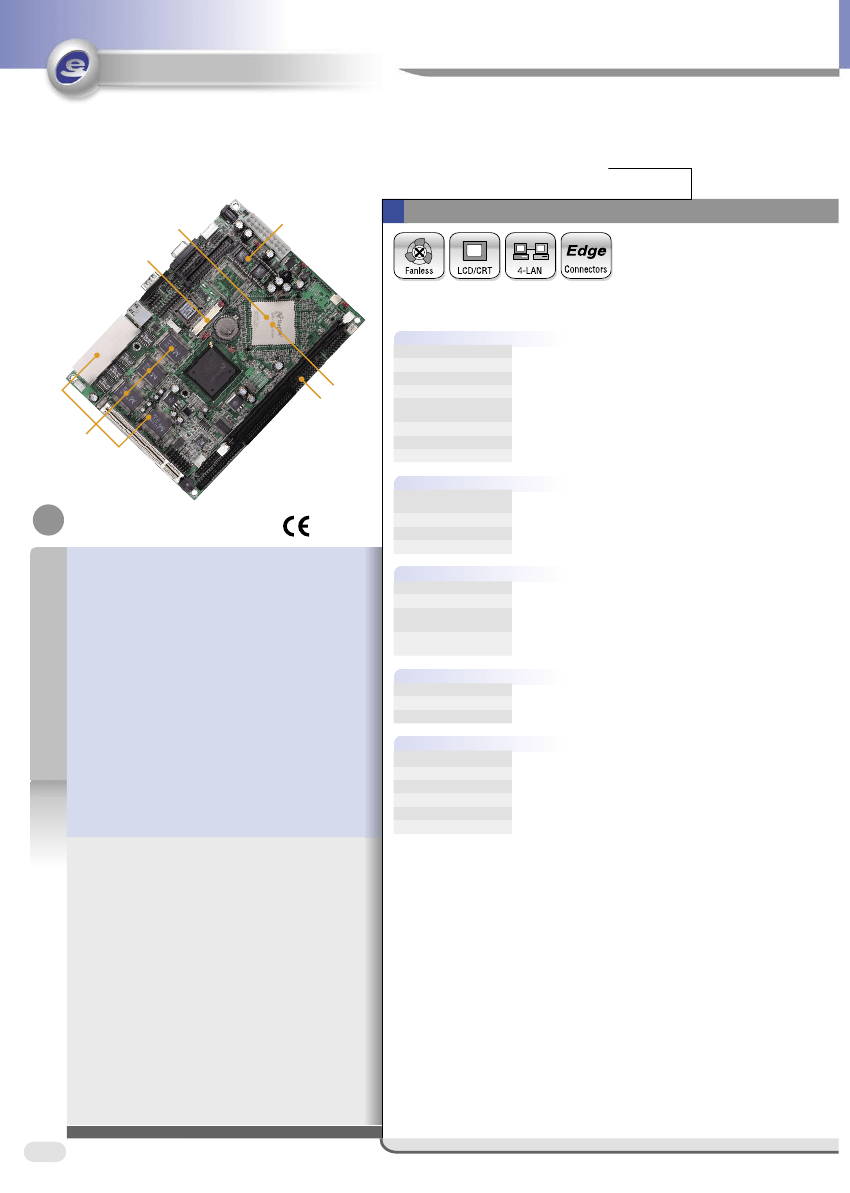

ECP-5414
AMD Geode™ GX1 Communication Platform
Specifications
System
CPU
BIOS
System Chipset
I/O Chip
System Memory
SSD
Watchdog Timer
Expansion
Onbaord AMD Geode™ GX1 300 MHz
Award 256 KB Flash BIOS
AMD Geode™ GX1/CS5530A
Winbond W83977F-A
One 168-pin DIMM socket supports up to 256 MB SDRAM
Optional 64 MB SDRAM onboard
One M-Systems DiskOnChip, one CompactFlash Type I/II socket
Reset/IRQx; 16 sec. ~ 127 min. and 30 sec./step
One PCI slot
I/O
MIO
09
FCC
Features
Onboard AMD Geode™ GX1 300 MHz Processor
Optional 64 MB SDRAM Onboard
2 COM / 2 USB / 1 Parallel / 1 IrDA Port
AMD Geode™ GX1 Integrated 2D Graphics
Accelerator
IrDA
USB
DI/O
4 x EIDE (Ultra DMA 33), 2 x FDD, 1 x LPT, 2 x RS-232, 1 x K/B &
Mouse
115 k bps, IrDA 1.0 compliant
2 x USB 1.0 ports
4-bit TTL DI and 4-bit TTL DO
9-4
Network Appliance
Display
Chipset
Display Memory
Resolution
VGA/LCD Interface
AMD Geode™ GX1 with integrated 2D graphics engine
1/2/4 MB frame buffer using system memory
CRT mode: 1280 x 1024 @ 8 bpp (60 Hz)
LCD/Simultaneous mode: 1024 x 768 @ 16 bpp (60 Hz)
PCI bus VGA/LCD interface
Supports 9/12/18-bit TFT panels
Supports CRT, 18-bit TFT Panels
Four Realtek 8100B or Optional Intel
®
Ethernet
Chipset
Ethernet Interface
Remote Boot ROM
Four Realtek RTL8100B or optional Intel
®
82559/82559ER
IEEE 802.3u 100Base-Tx Fast Ethernet compatible
Optional Built-in boot ROM in Flash BIOS
82559/82559ER 10/100Base-Tx Fast Ethernet
Controllers
M-Systems DiskOnChip Socket Onboard
Supports Type I/II CompactFlash Disk
Fanless Operation
Mechanical & Environmental
Power Requriement
Power Type
Operating Temperature
Operating Humidity
Size (L x W)
Weight
+5 V @ 1.3 A (with AMD Geode™ GX1 300 MHz & 128 MB SDRAM)
ATX
0 ~ 60° C (32 ~ 140° F)
0% ~ 90% relative humidity, noncondensing
8" x 5.75" (203 mm x 146 mm)
0.88 lbs (0.4 Kg)
Ordering Information
• ECP-5414
AMD Geode™ GX1 300 MHz Communication Platform
with LCD, & Four 10/100Base-Tx Ethernet
CompactFlash Card Series (xx = Capacity, Capacity Option:
8, 16, 32, 48, 64, 96, 128, 192, 256, 512 MB)
DiskOnChip 2000 (xx = Capacity, Capacity Option: 16, 24,
32, 48, 64, 80, 112, 144, 288, 576 up to 1 GB)
DiskOnChip Millennium 2000 8 MB
• ACC-CFC-xx
• ACC-DOC2000-xx
• ACC-DOC2000M-8
